Interconnecting Wiring - AIREDALE LogiCool InRak Technical Manual

IT Cooling

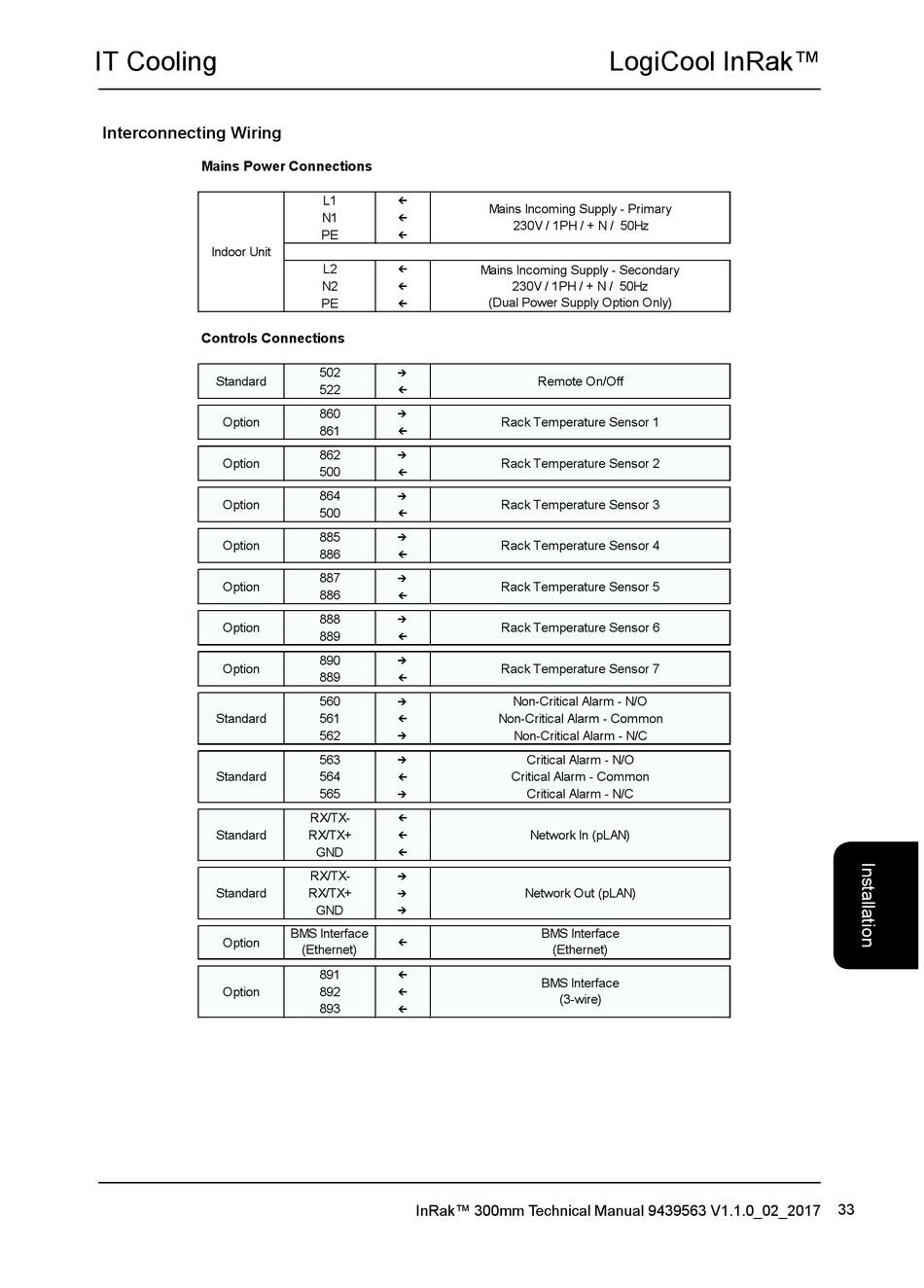

Interconnecting Wiring

Mains Power Connections
Indoor Unit
Controls Connections
Standard
Option
Option
Option
Option
Option
Option
Option
Standard
Standard
Standard
Standard
Option
Option
L1

N1

PE

L2

N2

PE

502

522

860

861

862

500

864

500

885

886

887

886

888

889

890

889

560

561

562

563

564

565

RX/TX-

RX/TX+

GND

RX/TX-

RX/TX+

GND

BMS Interface

(Ethernet)
891

892

893

InRak™ 300mm Technical Manual 9439563 V1.1.0_02_2017
LogiCool InRak™
Mains Incoming Supply - Primary
230V / 1PH / + N / 50Hz
Mains Incoming Supply - Secondary
230V / 1PH / + N / 50Hz
(Dual Power Supply Option Only)
Remote On/Off
Rack Temperature Sensor 1
Rack Temperature Sensor 2
Rack Temperature Sensor 3
Rack Temperature Sensor 4
Rack Temperature Sensor 5
Rack Temperature Sensor 6
Rack Temperature Sensor 7
Non-Critical Alarm - N/O
Non-Critical Alarm - Common
Non-Critical Alarm - N/C
Critical Alarm - N/O
Critical Alarm - Common
Critical Alarm - N/C
Network In (pLAN)
Network Out (pLAN)
BMS Interface
(Ethernet)
BMS Interface
(3-wire)
33
