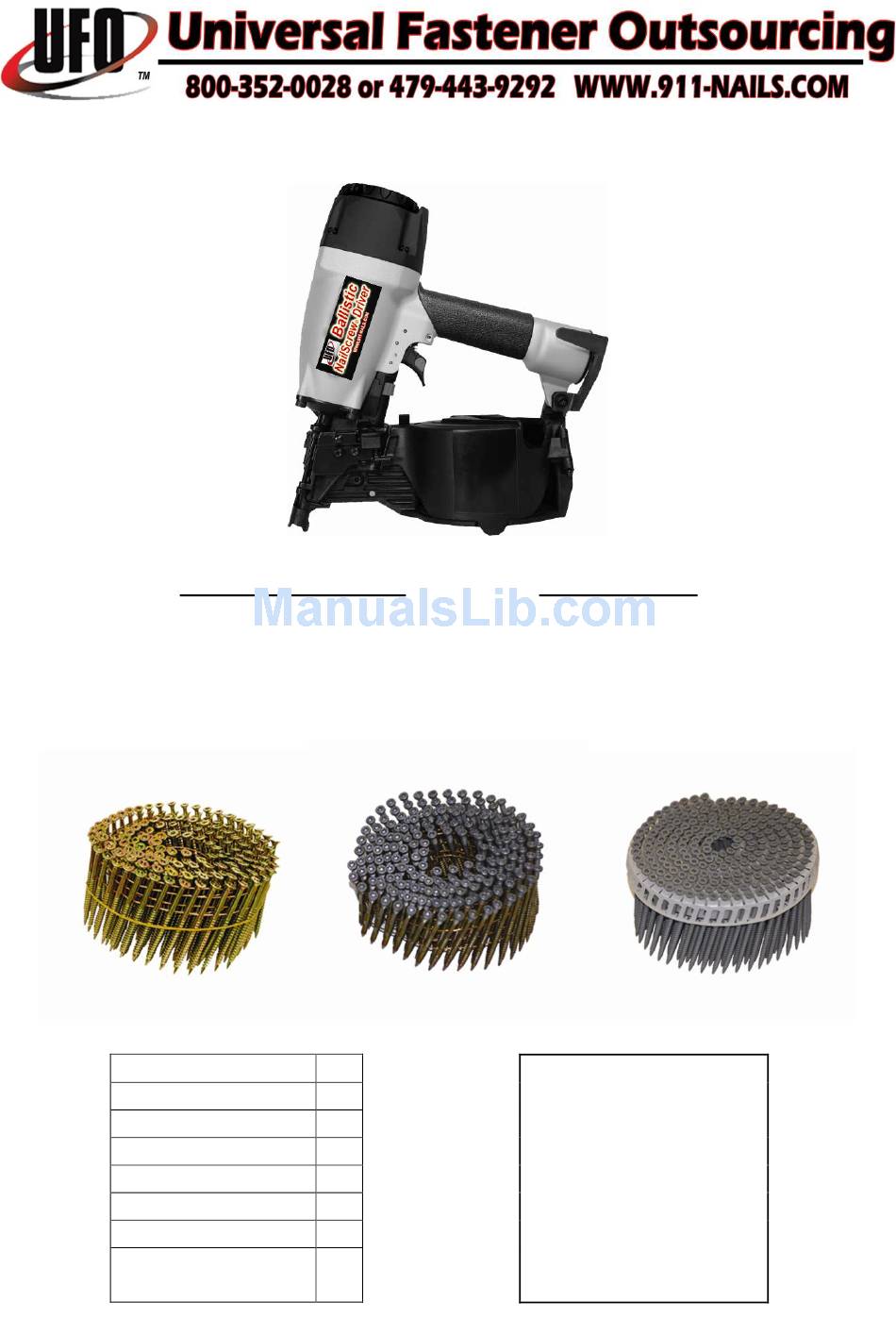

NSDCN65SP OPERATION MANUAL
NSDCN65SP Technical Data
Length
Width
Height
Weight
Operating Pressure
PACKING LIST:
NSDCN7515 COIL NAILER
S5 HEX KEY
S4 HEX KEY
S3 HEX KEY
AIR TOOL OIL
SAFETY GLASSES
BUMP OR SEQUENTIAL
FIRE TRIGGER
12-1/4"
5"
12-1/2"
6.4lbs
70-120psi
QTY
1
1
1
1
1
1
1
NAIL DIMENSIONS:
15° Round Head Coil nails
Length: 1-3/4" – 2.5"
Shank diameter: .090"– .113"
Head: .224" – .276"
Instruction Manual Contents:
◎ Important Safety Rules
◎ Operating Instructions
◎ Maintenance
◎ Troubleshooting
◎ Parts List
◎ Composite Fencing Installation
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for UFO NSDCN65SP
Summary of Contents for UFO NSDCN65SP
- Page 1 NSDCN65SP OPERATION MANUAL NSDCN65SP Technical Data NAIL DIMENSIONS: Length 12-1/4" 15° Round Head Coil nails Length: 1-3/4” – 2.5” Width 5" Shank diameter: .090”– .113” Height 12-1/2" Head: .224” – .276” Weight 6.4lbs Operating Pressure 70-120psi PACKING LIST: Instruction Manual Contents: ◎...
-
Page 2: Important Safety Rules
Lower the pressure as a last resort and as little as necessary to get the job done. The NSDCN65SP should be sequentially fired into steel. First, place the nose of the tool where you want the fastener to be; this will depress the safety. Second, use the trigger to fire the tool in this sequence each and every time. -
Page 3: Power Source
create an operator tripping hazard. Secure all connections tightly. 6. CARRY TOOL ONLY BY THE HANDLE and keep finger off the trigger pull. This Fig 3. will allow the safety yoke mechanism to prevent the unintentional firing of fasteners. 7. KEEP THE TOOL POINTED AWAY FROM YOURSELF AND OTHERS at all times. - Page 4 3. The Adjuster Plate can be moved up and down by twisting the spindle and pulling up to decrease or pushing down to increase to the length of nail (FIG. 15) , the Adjuster Plate should be adjusted correctly to the position indicated inside Lower Nail Housing. (FIG.
-
Page 5: Clearing A Jammed Fastener
RUBBER NO-MAR TIP: ADJUSTING THE DRIVE DEPTH: Driving depth will be adjusted by rolling the wheel (FIG. 19) Test fire a fastener and check depth. If the nail is driven too high, rotate the rolling wheel clockwise (right) if the nail is too deep rotate the rolling wheel counter clockwise (left). -
Page 6: Maintenance
7. Make sure that all connections in the air supply system are sealed to prevent air loss. Fig 4. Tool WARNING: Never operate tool unless safety nose is in contact with work-piece. Do not operate tool without fasteners or damage to the tool may result. Never fire fasteners into air! Fasteners may injure the operator or others, and damage to the tool may result. -
Page 7: Troubleshooting
※ Troubleshooting Following are common operating problems and solutions. Please read carefully for suggested solutions. WARNING: If any of the following symptoms occur during tool operation, stop using the tool immediately or serious personal injury could result! Only a qualified person or an authorized service center can perform repairs or replacement of tool parts. - Page 8 MODEL NO. NSDCN65SP ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION 820384 DEFLECTOR BOLT (3M2353) 830725 FEED PISTON CAP 830700 DEFLECTOR 820819 C - RING 820045 RUBBER PAD 830726 830701 MUFFLER 830727 FEED FINGER 920164 HEX.SOC.HD.BOLT 830728 FEED FINGER SPRING...
- Page 9 830722 O - RING 920586 FIXED RING 830723 PUSHER SPRING 920828 O - RING 830724 FEED BUMPER 810803 PULL SPRING MODEL NO. NSDCN65SP ONLY USE PARTS AND ACCESSORIES RECOMMENDED BY THE MANUFACTURER. Parts & Service Contact: http://elder-hayesinc.com or call 1-800-769-0775...
- Page 10 NSDCN65SP For Parts & Service Contact: http://elder-hayesinc.com or call 1-800-769-0775...
