  • Page 1: Operating Instructions

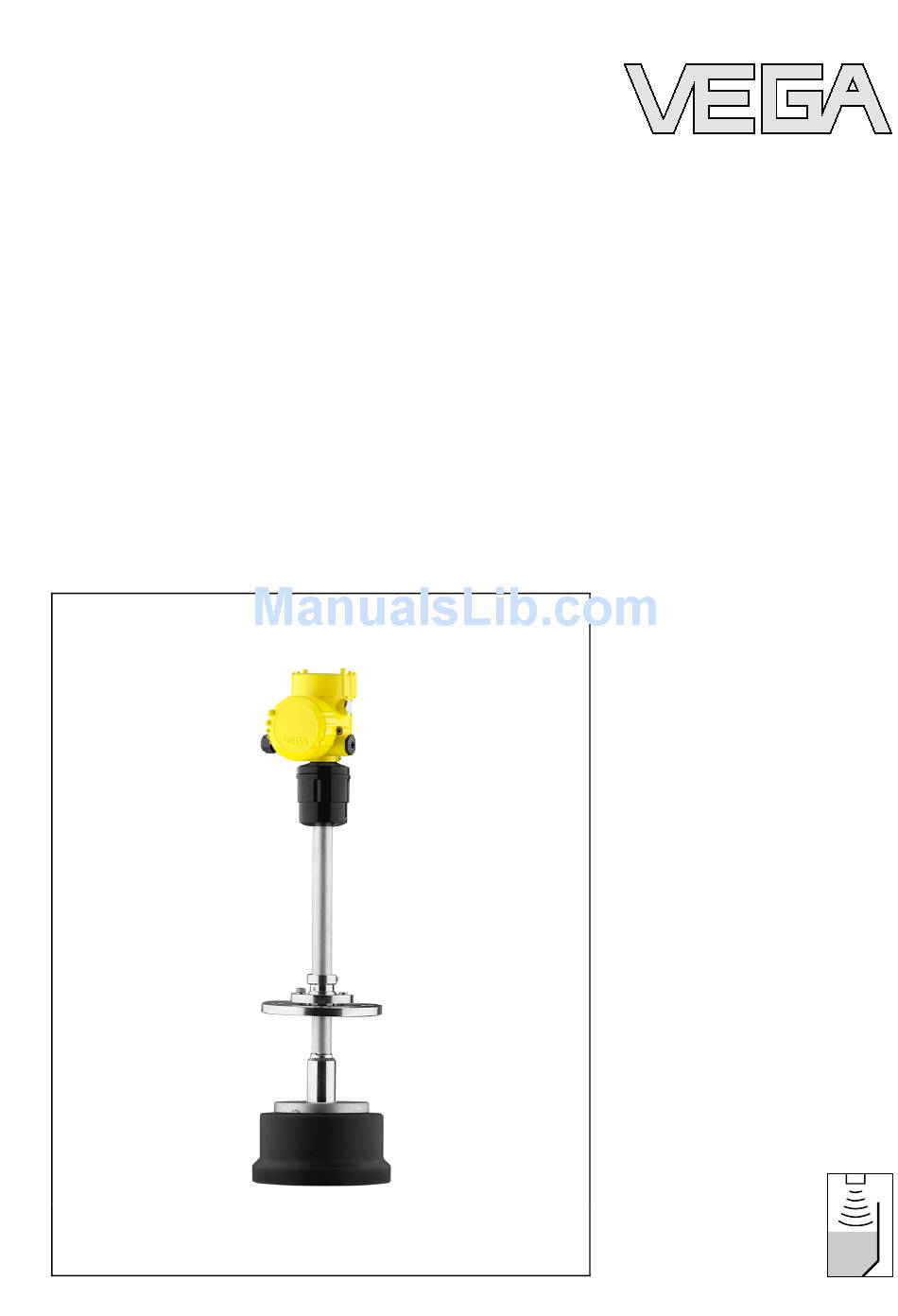

    Operating Instructions VEGASON 64 Profibus PA Ultrasonic...

  • Page 2: Table Of Contents

    Parameter adjustment with PDM ....42 Saving the parameter adjustment data ... . 42 VEGASON 64 • Profibus PA...
  • Page 3 Instructions manuals for accessories and replacement parts Tip: To ensure reliable setup and operation of your VEGASON 64, we offer accessories and replacement parts. The associated documents are: 27835 - Indicating and adjustment module PLICSCOM 32628 - Interface adapter VEGACONNECT...

  • Page 4: About This Document

    This symbol indicates special instructions for Ex applications. List The dot set in front indicates a list with no implied sequence. à Action This arrow indicates a single action. Sequence Numbers set in front indicate successive steps in a procedure. VEGASON 64 • Profibus PA...

  • Page 5: For Your Safety

    During work on and with the device the required personal protective equipment must always be worn. 2.2 Appropriate use VEGASON 64 is a sensor for continuous level measurement. You can find detailed information on the application range in chapter "Product description".

  • Page 6: Safety Approval Markings And Safety Tips

    The range of available functions depends on the respective software version of the individual components. The software version of VEGASON 64 can be determined as follows: via PACTware on the type label of the electronics via the indicating and adjustment module You can view all software histories on our website www.vega.com.
  • Page 7 2 For your safety Chapter "Packaging, transport and storage" Chapter "Disposal" VEGASON 64 • Profibus PA...

  • Page 8: Product Description

    Version A: compact in flange version Version B: compact with swivelling holder Version C: separately with swivelling holder Version D: separately with thread Fig. 1: VEGASON 64 compact with swivelling holder Housing cover with integrated PLICSCOM (optional) Housing with electronics Swivelling holder with flange...

  • Page 9: Principle Of Operation

    (Electronic Device Description) is also required to enable the full range of sensor functions (also available as a download).A CD with the appropriate files can be ordered via e-mail under info@de.vega.com or by phone from one of the VEGA agencies under the order number "DRIVER.S". 3.3 Operation VEGASON 64 can be adjusted with different adjustment media:...

  • Page 10: Packaging, Transport And Storage

    Not exposed to corrosive media Protected against solar radiation Avoiding mechanical shock and vibration Storage and transport Storage and transport temperature see chapter "Supplement - temperature Technical data - Ambient conditions" Relative humidity 20 … 85 % VEGASON 64 • Profibus PA...

  • Page 11: Mounting

    Use the recommended cables (see chapter "Connecting to power supply") and tighten the cable gland. You can give your VEGASON 64 additional protection against moisture penetration by leading the connection cable downward in front of the cable entry. Rain and condensation water can thus drain off.
  • Page 12 If the medium reaches the transducer, buildup can form on it and cause faulty measurements later on. 100% Fig. 3: Version A - Measuring range (operating range) and max. measuring distance full (dead band) empty (max. measuring distance) Measuring range Reference plane VEGASON 64 • Profibus PA...

  • Page 13: Mounting Preparations

    (max. measuring distance) Measuring range Reference plane Gauge pressure in the vessel does not influence VEGASON 64. Low Pressure/Vacuum pressure or vacuum does, however, damp the ultrasonic pulses. This influences the measuring result, particularly if the level is very low.
  • Page 14 Fig. 5: Mounting - Version B Groove to lock the housing Notch Screw of swivelling holder (hexagon SW 13) Grub screw, fixing ring (hexagon spanner - size 4) Terminal screws, housing (hexagon spanner - size 4) VEGASON 64 • Profibus PA...
  • Page 15 Loosen terminal screw of the swivelling holder (3) with a fork spanner (SW 13) Direct the sensor with the swivelling holder to the measured product 10 Fasten the swivelling holder with screw (3), torque max. 20 Nm VEGASON 64 • Profibus PA...
  • Page 16 Insert the transducer tube from below into the mounting opening Fasten (SW 46) the hexagon nut (3) Remove the plug from below out of the connection head and plug it into the socket of the transducer tube VEGASON 64 • Profibus PA...
  • Page 17 Insert the plug at the end of the transducer cable into the socket on the remote electronics Fig. 9: Plug connector between transducer and socket of electronics housing Socket electronics housing Plug connector Connection piece, transducer tube VEGASON 64 • Profibus PA...

  • Page 18: Mounting Instructions

    4 Mounting 4.3 Mounting instructions When mounting VEGASON 64, keep a distance of at least 500 mm Mounting position (19.69 in) to the vessel wall. If the sensor is installed in the center of dished or round vessel tops, multiple echoes can arise. These can, however, be suppressed by an appropriate adjustment (see chapter "Setup").
  • Page 19 If the reflective properties of the medium are good, you can mount VEGASON 64 on a socket piece. The socket end should be smooth and burr-free, if possible also rounded. Carry out a false echo storage. Sensor orientation Align the sensor in liquids as vertical as possible to the product surface to achieve optimum measuring results.
  • Page 20 If there are agitators in the vessel, a false echo storage should be carried out with the agitators in motion. This ensures that the interfering reflections from the agitators are saved with the blades in different positions. Fig. 14: Agitators VEGASON 64 • Profibus PA...
  • Page 21 If foams are causing measurement errors, the sensor should be used in a standpipe or, alternatively, the more suitable guided radar sensors (TDR) should be used. Guided radar is unaffected by foam generation and is particularly suitable for such applications. VEGASON 64 • Profibus PA...
  • Page 22 If there are strong air currents in the vessel, e.g. due to strong winds in outdoor installations or air turbulence, e.g. by cyclone extraction you should mount VEGASON 64 in a standpipe or use a different measuring principle, e.g. radar or guided radar (TDR).

  • Page 23: Connecting To Power Supply

    Connect only in the complete absence of line voltage If overvoltage surges are expected, overvoltage arresters should be installed according to Profibus specifications Tip: We recommend VEGA overvoltage arrester B63-32. Take note of In hazardous areas you should take note of the appropriate safety instruc- regulations, conformity and type approval certificates of the sensors...

  • Page 24: Connection Procedure

    5.2 Connection procedure Warning: Before connecting to voltage supply, the plug connection between transducer and remote electronics must be provided in idle condition (see illustration below). Non-observance will damage the electronics! VEGASON 64 • Profibus PA...
  • Page 25 11 Connect the lead cable for power supply in the same way according to the wiring plan, in addition connect the ground conductor to the inner ground terminal. 12 Screw the housing cover on VEGASON 64 • Profibus PA...

  • Page 26: Wiring Plan, Double Chamber Housing

    5.3 Wiring plan, double chamber housing Housing overview Fig. 20: Double chamber housing Housing cover, connection compartment Blind stopper or plug M12 x 1 for VEGADIS 61 (optional) Housing cover, electronics compartment Filter element for air pressure compensation Cable gland VEGASON 64 • Profibus PA...
  • Page 27 Terminals for VEGADIS 61 Connection compart- ment L1 N Fig. 22: Connection compartment, double chamber housing Spring-loaded terminals for signal output Ground terminal for connection of the ground conductor and screen Spring-loaded terminals for voltage supply VEGASON 64 • Profibus PA...

  • Page 28: Switch On Phase

    Fig. 23: Wiring plan, double chamber housing Power supply Signal output 5.4 Switch on phase After VEGASON 64 is connected to voltage supply or after voltage Switch on phase recurrence, the instrument carries out a self-check for approx. 30 seconds. The following steps are carried out: Internal check of the electronics Indication of the instrument type, the firmware as well as the...

  • Page 29: Set Up With The Indicating And Adjustment Module Plicscom

    Screw housing cover with inspection window tightly back on Removal is carried out in reverse order. The indicating and adjustment module is powered by the sensor, an additional connection is not necessary. VEGASON 64 • Profibus PA...
  • Page 30 Fig. 24: Mounting the indicating and adjustment module Note: If you intend to retrofit the instrument with an indicating and adjustment module for continuous measured value indication, a higher cover with an inspection glass is required. VEGASON 64 • Profibus PA...

  • Page 31: Adjustment System

    The functions of the individual keys are shown in the above illustration. Approx. 10 minutes after the last pressing of a key, an automatic reset to measured value indication is triggered. Any values not confirmed with [OK] will not be saved. VEGASON 64 • Profibus PA...

  • Page 32: Setup Procedure

    PACTware or DTM. As VEGASON 64 is a distance measuring instrument, the distance Parameter adjustment from the sensor to the product surface is measured. To have the real product level displayed, an allocation of the measured distance to the percentage height must be made.
  • Page 33 Enter the requested parameter via the appropriate keys, save your settings and jump to the next menu item with the [->] key. VEGASON 64 • Profibus PA...
  • Page 34 "Display". Linearisation curve linear Enter the requested parameter via the appropriate keys, save your settings and jump to the next menu item with the [->] key. VEGASON 64 • Profibus PA...
  • Page 35 The filling level would then no longer be detectable in this area. Extended setting/Quick The menu item "Extended setting" offers the possibility to optimise VEGASON 64 for applications in which the level changes very quickly. level change For this reason, select the function "Quick level change > 1 m/min.".
  • Page 36 (see chart): Function Reset value Sensor address 0 m(d) Max. adjustment Min. adjustment Meas. range end in m(d) Medium Liquid Sensor-specific basic adjustment. Depending on the sensor type, see chapter "Technical data". VEGASON 64 • Profibus PA...
  • Page 37 You will find a detailed description of these menu items in the operating instructions manual "Indicating and adjustment module". Special parameters are parameters which are set customer-specifically on the service level with the adjustment software PACTware. VEGASON 64 • Profibus PA...

  • Page 38: Menu Schematic

    1.245 m(d) 6.789 m(d) Vessel form Linearisation curve Channel Damping Silo PV lin. value linear Sensor-TAG Sensor Display Basic adjustment ▶ Display Diagnostics Service Info Displayed value PA-Out Diagnostics Basic adjustment Display ▶ Diagnostics Service Info VEGASON 64 • Profibus PA...
  • Page 39 Info Basic adjustment Display Diagnostics Service ▶ Info Sensor type Date of manufacture Date of last change Sensor characteristics VEGASON 6x 10. April 2007 10. April 2007 Software version Display now? 3.50 Serial number 12345678 VEGASON 64 • Profibus PA...

  • Page 40: Saving The Parameter Adjustment Data

    They are hence available for multiple use or service purposes. If VEGASON 64 is equipped with an indicating and adjustment module, the most important data can be read out of the sensor into indicating and adjustment module. The procedure is described in the operating instructions manual "Indicating and adjustment module"...

  • Page 41: Setup With Pactware And Other Adjustment Programs

    USB cable to the PC VEGACONNECT Sensor External connection via I²C interface TWIST Fig. 27: Connection via I²C connection cable I²C bus (com.) interface on the sensor I²C connection cable of VEGACONNECT VEGACONNECT USB cable to the PC VEGASON 64 • Profibus PA...

  • Page 42: Parameter Adjustment With Pactware

    A detailed description is available in the online help of PACTware and the VEGA DTMs. Note: Keep in mind that for setup of VEGASON 64, DTM-Collection in the actual version must be used. All currently available VEGA DTMs are provided in the DTM Collection on CD and can be obtained from the responsible VEGA agency for a token fee.

  • Page 43: Maintenance And Fault Rectification

    24 hour service hotline However, should these measures not be successful, call the VEGA service hotline in urgent cases under the phone no. +49 1805 858550. The hotline is available to you 7 days a week round-the-clock. Since we offer this service world-wide, the support is only available in the...
  • Page 44 à Carry out a software update or send the instrument for repair E041 Hardware error, electronics defective à Exchange instrument or return instrument for repair E113 Communication conflict à Exchange instrument or return instrument for repair VEGASON 64 • Profibus PA...

  • Page 45: Exchanging The Electronics Module

    Connect the sensor to power supply and provide connection from PC to the instrument via VEGACONNECT. Start PACTware and provide connection to the sensor, e.g. via the VEGA project assistant. Close the parameter window of the sensor, as far as open.

  • Page 46: Instrument Repair

    If a repair is necessary, please proceed as follows: You can download a return form (23 KB) from our Internet homepage www.vega.com under: "Downloads - Forms and certificates - Repair form". By doing this you help us carry out the repair quickly and without having to call back for needed information.

  • Page 47: Dismounting

    The individual wires of the transducer cable carry a voltage of approx. 70 V during operation (see chapter "Mounting preparations"). There- fore dismount VEGASON 64 only in complete absence of line voltage. Warning: Before separating the transducer cable (see chapter "Mounting preparations", example see illustration below), idle condition must be...
  • Page 48 Correct disposal avoids negative effects to persons and environment and ensures recycling of useful raw materials. Materials: see chapter "Technical data" If you have no possibility to dispose of the old instrument professionally, please contact us concerning return and disposal. VEGASON 64 • Profibus PA...

  • Page 49: Supplement

    Measured value Version A distance between lower edge of the flange and product surface version B, C and D distance between lower edge of the transducer and product surface Depending on size and process fitting material. VEGASON 64 • Profibus PA...
  • Page 50 Adjustment time Measuring accuracy > 1 mm (0.039 in) Resolution, general Deviation see diagram Time to output the correct level (with max. 10 % deviation) after a sudden level change. Incl. non-linearity, hysteresis and non-repeatability. VEGASON 64 • Profibus PA...
  • Page 51 (65.617 ft) (82.021 ft) -25 mm (-0.984 in) -50 mm (-1.196 in) Fig. 30: Deviation VEGASON 64 versions B, C and D Influence of the ambient temperature to the sensor electronics 0.06 %/10 K Average temperature coefficient of the zero signal (temperature error) Relating to the nominal measuring range.
  • Page 52 LC display in dot matrix 4 keys Adjustment elements Protection IP 20 unassembled IP 40 mounted into the sensor without cover Tested according to the regulations of German Lloyd, GL directive 1. With separate version C and D. VEGASON 64 • Profibus PA...
  • Page 53 Depending on the version, instruments with approvals can have different technical data. For these instruments, the corresponding approval documents have to be taken into account. These are part of the delivery or can be downloaded under www.vega.com via "VEGA Tools" and "serial number search" as well as via "Downloads" and "Approvals".

  • Page 54: Profibus Pa

    Each Profibus instrument gets an unambiguous ident number (ID number) from the Profibus user organisation (PNO). This ID number is also included in the name of the GSD file. For VEGASON 64 the ID number is 0x0770(hex) and the GSD file "SN__0770.GSD". As an option to this manufacturer-specific GSD file, PNO provides also a general so-called profile-specific GSD file.
  • Page 55 PA-Out Select additional cyclic value Fig. 31: VEGASON 64: Block diagram with AI (PA-OUT) value and additional cyclical value TB Transducer Block FB Function Block Module of the PA sensors For the cyclic data traffic, VEGASON 64 provides the following modules:...
  • Page 56 Example 3 with distance value and additional cyclical value without temperature value: AI (PA-OUT) Free Place Additional Cyclic Value Telegram configuration: Byte-No. Format IEEE-754- Status IEEE-754- Status Floating point value Floating point value PA-OUT Status Additional Cyclic Status Value (FB1) (FB1) Value VEGASON 64 • Profibus PA...
  • Page 57 Switch on simulation uncertain substitute set l Failsafe replacement value (Failsafe-Mode = "Fsafe value") 0 x 4c uncertain - initial value Failsafe replacement value (Failsafe-Mode = "Last valid value" and no valid measured value since switching on) VEGASON 64 • Profibus PA...
  • Page 58 (non-cascade) - active ad- Hi-Alarm visory alarm - high limited 0 x 8d good (non-cascade) - active crit- Lo-Lo-Alarm ical alarm - low limited 0 x 8e good (non-cascade) - active crit- Hi-Hi-Alarm ical alarm - high limited VEGASON 64 • Profibus PA...

  • Page 59: Dimensions

    10 Supplement 10.3 Dimensions Housing / ") ø 84mm ") M12x M20x1,5/ ½ NPT Fig. 37: Aluminium double chamber housing Dimension with integrated indicating and adjustment module VEGASON 64 • Profibus PA...
  • Page 60 0.45" 6" 4x ø 0.75" 3" Fig. 38: VEGASON 64, the specification to the transducer diameter apply to standard/StEx Version A Version B Dead zone: 1 m (3.281 ft) Measuring range: with liquids up to 25 m (82.02 ft), with solids up to 15 m (49.21 ft)
  • Page 61 190,5 11,5 152,4 4x ø 19,1 3" Fig. 39: VEGASON 64 Version C Version D Dead zone: 1 m (3.281 ft) Measuring range: with liquids up to 25 m (82.02 ft), with solids up to 15 m (49.21 ft) VEGASON 64 • Profibus PA...

  • Page 62: Industrial Property Rights

    Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellectuelle. Pour plus d'informations, on pourra se référer au site http://www.vega.com VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad industrial. Para mayor información revise la pagina web http://www.vega.com Линии...
  • Page 63 10 Supplement VEGASON 64 • Profibus PA...
  • Page 64 All statements concerning scope of delivery, application, practical use and operating conditions of the sensors and processing systems correspond to the information avail- able at the time of printing. © VEGA Grieshaber KG, Schiltach/Germany 2008 28787-EN-081127 Subject to change without prior notice...
