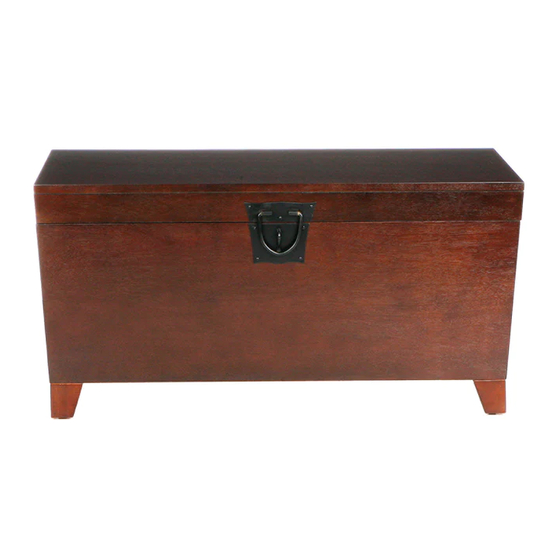

- Page 1 CK222400TX Espresso Pyramid Cocktail Table For assistance with assembly contact: Southern Enterprises Inc. Assembly Instructions Customer Service 1-800-633-5096 service@seidal.com www.seidal.com PO#11703 Max Top Load 80 lbs. Max Load Inside the Trunk 100 lbs.
- Page 2 CK222400TX Espresso Pyramid Cocktail Table Parts List Please review all parts and hardware before disposing of any packaging. Call Customer Service if missing hardware. Do not return to store/retailer. Using a screw that is too long will cause damage. Before beginning assembly, separate each type of screw.
- Page 3 8 PCS 8 PCS 1 PC Small Cam Screw Small Cam Lock ϕ6.8 x 36mm ϕ15 x 12mm Wrench 8 PCS 8 PCS 35 PCS ϕ8 x 30mm ϕ ¼” x 2 ¾” ϕ 3.5 x 16mm Dowel Bolt Screw 1 PC 1 PC 1 PC...
- Page 4 CK222400TX Espresso Pyramid Cocktail Table Assembly Instructions PLEASE DO NOT OVER-TIGHTEN CAMBOLTS. PLEASE STOP WHEN YOU FEEL TIGHT Step 1: Put all parts on a soft surface to prevent scratches. Attach handle-A (O) to the top (A) using screws (M) and tighten with Phillips screwdriver as shown.
- Page 5 Step 4: Attach handle (Q) to left side panel (D) and right side panel (G) using screws (M) and tighten with phillips screwdriver as shown. Step 5: Screw small cam screws (H) into back panel (C) as shown. Step 6: Insert dowels (K) into left side panel (D) and right side panel (G) as shown.
- Page 6 Step 7: Turn the trunk base upside down and attach legs (F) to the bottom of trunk using screws (L) as shown. Step 8: Attach Hinge (T) to back panel (C) and top panel(A) by using screws (M) as shown and then tighten all screw by phillips screwdriver(not included) Step 9:...
- Page 7 Parts Replacement Form Parts Replacement Form Customer Information Name Address City/State/Zip Code Phone Number Please indicate where you purchased this item: Store/Website/Catalog Please indicate color/size/style number: Style No Parts Letter Parts Description Quantity Needed Please immediately examine this product carefully. Any request for missing parts or damage replacement must be received within 90 days of your receipt of the product.
- Page 8 damages or missing parts are not reported within 90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. Please contact Southern Enterprises at 800-633-5096 or in Dallas 972-869-0111/ 9am – 4pm Mon-Fri Central time if you have product issues or email us at service@seidal.com. Please ask for customer service representative for issues involving damages or replacement parts.
