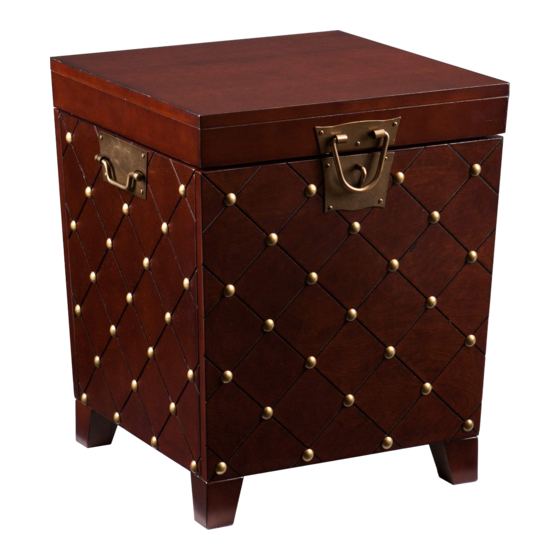

- Page 1 CK622500TX Nailhead End Table Trunk For assistance with assembly contact: Southern Enterprises Inc. Assembly Instruction Customer Service 1-800-633-5096 service@seidal.com www.seidal.com PO#11767 Max top load 20 lb. Max load inside trunk 20 lb...
- Page 2 CK622500TX Nailhead End Table Trunk Parts List Please review all parts and hardware before disposing of any packaging. Call Customer Service if missing hardware. Do not return to store/retailer. Using a screw that is too long will cause damage. Before beginning assembly, separate each type of screw.
- Page 3 8PCS 8PCS Small Cam Screw Small Cam Lock Flat Wrench φ6.8 x 36mm φ15 x 12mm 8PCS 8PCS 31pcs Dowel Bolts Screws φ8 x 30mm φ1/4” x 2-3/4” φ3.5 x 16mm Support Handle-A Handle-B 10PCS 2PCS Handle Sponge Cushion Care and Cleaning Instructions: For replacement parts or questions, please Before using , wipe with a clean , dry cloth.
- Page 4 CK622500TX Nailhead End Table Trunk Assembly Instructions Step 1 Put all parts on a soft surface to prevent scratches, attach handle-A (N) to the top (A) by using screw (L) and phillips screwdriver to tighten it as shown Step 2...
- Page 5 Step 4 Attach handle (P) to side panel (D) by using screw(L) and phillips screwdriver to tighten it as shown Step 5 Screw small cam screw(G) into back panel (C)as shown Step 6 Insert dowel(J) into to side panel (D)as shown. Then combining side panel(D), front panel(B) , back panel(C) and bottom panel(E) together...
- Page 6 Step 7 Turn the trunk base up side down and attach leg (F)to the bottom of trunk by using screw (K) as shown Step 8 Attach Hinge (R) to Tack panel (C) and top panel(A) by using screws (L) as shown and then tighten all screw by Phillips screwdriver(not included) Step 9...
- Page 7 Parts Replacement Form Customer Information Name Address City/State/Zip Code Phone Number Please indicate where you purchased this item: Store/Website/Catalog Please indicate color/size/style number: Style No Parts Letter Parts Description Quantity Needed Please immediately examine this product carefully. Any request for missing parts or damage replacement must be received within 90 days of your receipt of the product.
