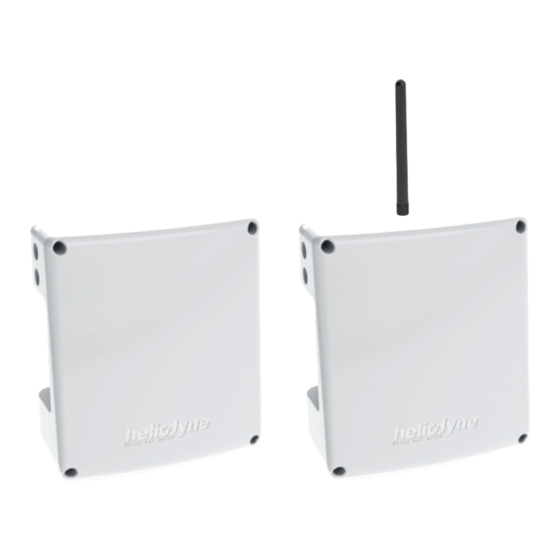

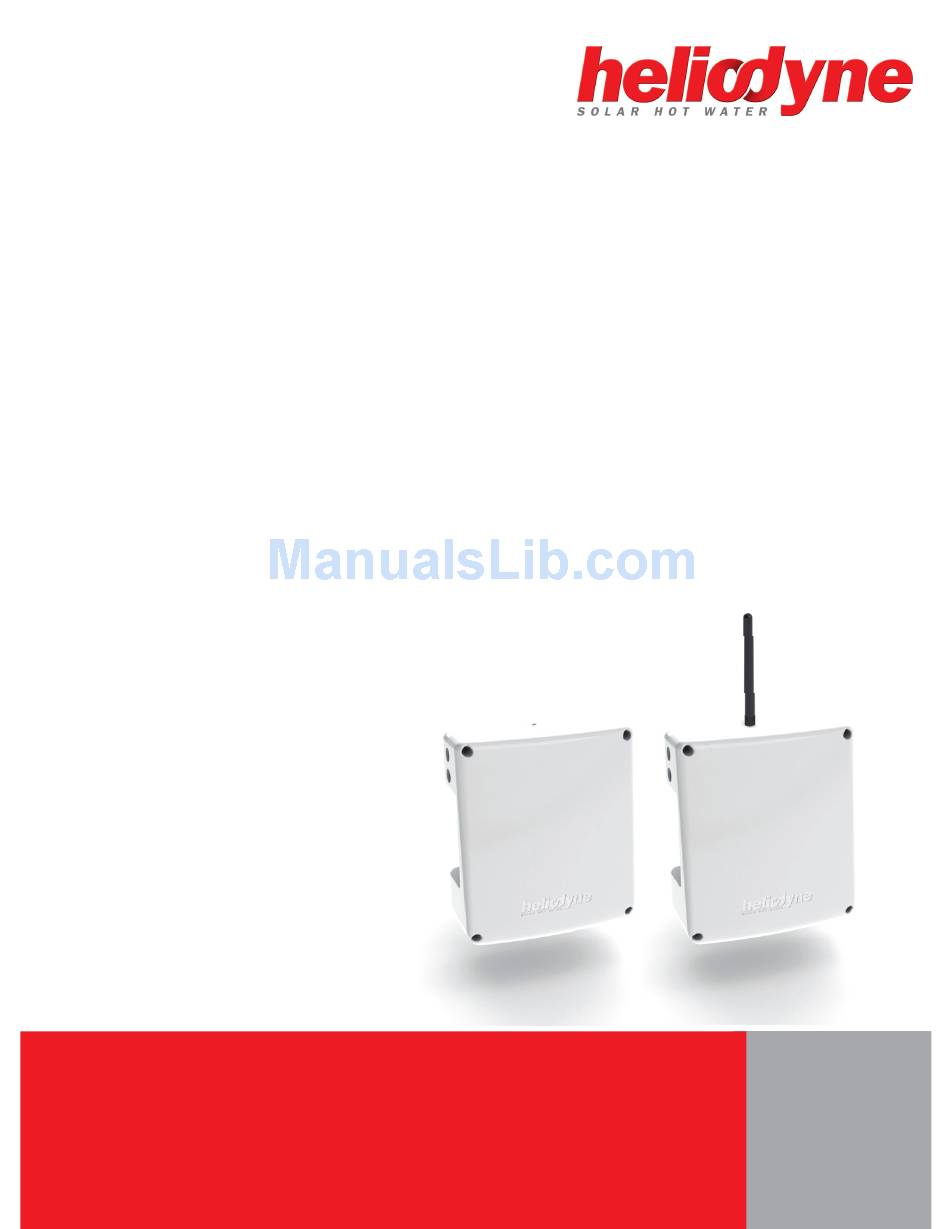

- Page 1 INStALLAtION GUIDE DELtA t PrO cONtrOL UNItS WIFI + EtHErNEt EXcELLENcE BY DESIGN...
-
Page 2: Table Of Contents
When the device is connected to an internet capable network, • Personal WPA will work but enterprise WPA will not the controller can transmit data to the Heliodyne monitoring !WeP oR oTHeR WPa/WPa2 enCRYPTIon alGoRITHMs aRe noT sUPPoRTeD! site for detailed data logging and system tracking. For best... -
Page 3: Install & Wiring
InsTallaTIon / ConTRolleR Io 2. INStALL & WIrING 2.0. Installation 2.0.0. Mounting the Standalone Box The Delta-T Pro should be mounted on a wall indoors, away from weather and interference. Using the mounting holes on the back of the box, securely install 3 screws into mounting plane leaving 1/4”... - Page 4 FIg. 2.2.2 NOTE: Contact Heliodyne if you have a Ver. 1 board. RelaY 2 WIRInG 2.2.3. relay 2 Wiring and Functionality Relay 2 has only a N.O. connection. For components with a ground wire, a connection can be made using the relay 2 ground connection.
- Page 5 2.3.2. Grundfos Sensors sensoR InsTallaTIon Heliodyne recommends grundfos VFS sensors for flow measurement. Because of the vortex principle, they are less expensive, last longer, and more accurate than pulse / paddle-wheel sensors. They also combine a temperature measurement.
- Page 6 sensoR PURPose 2.3.3. Collector Sensor T1 Supplied with HPAK, HCOM, and HFLO systems TYPE: 10kΩ Thermistor USE: REQUIRED FUNCTIONS: • ‘Hot’ differential operation • ‘Hot’ energy calculation • Freeze monitoring sensor for open loop • Low temperature monitor for vacation mode •...
- Page 7 WIRInG foR aDDITIonal boaRD fUnCTIons 2.4. Additional Functions NOtE: tHE FOLLOWING IMAGES IN SEc 2.4 HAvE tHE cONtrOLLEr BOArD rOtAtED SIDEWAYS 2.4.0. Functions The Delta-T Pro controllers can be wired to access several ZONE DEtEctION WIrING additional functions as described below. Control reset and manual operation of the relays is also addressed here.
-
Page 8: Networking
3. NEtWOrkING FIg. 2.4.7 3.0. Network Overview The Heliodyne controllers use internet protocol (IP) to display information on a web page. They use two types of physical connection for communication with devices: • Ethernet [Cat 5 cable connection - DLTA 000 001] •... - Page 9 Allow your computer to assign itself a link local address (this can take up to a minute). The Pro can be easily setup on a network using DHCP. Heliodyne Open a new browser window and enter the controller’s address: recommends an IT professional for static IP Configuration. For 169.254.148.50...
- Page 10 Delta-T Pro Discovery Tool to find the Controller and click on ‘Open Web Interface’ to view it in your web browser. This program is available for download at www.heliodyne.com/controls. 3.2.1.0. Setup With Static IP Address Follow steps 1-4 above in section 3.2.1.0.
-
Page 11: Settings
CHanGInG ConTRolleR oPeRaTIon seTTInGs 4. SEttINGS 4.0. Quick Start For fast setup, here is a list of parameters that may need to be adjusted to properly control simple DHW systems. Remember to save any adjusted settings. Adjust the system clock to reflect the local time. If using an open loop system, change the system type to Open Loop for enabling freeze protection. - Page 12 4.1.0.4. Links • ‘Setup Monitoring communication’ takes you to a page to register your controller with the Heliodyne Monitoring Service. Once you are registered with the service, this link is hidden. See section 5. • ‘test remote Monitoring communication’ will perform a test to see if the controller can contact the Heliodyne remote server.
- Page 13 CHanGInG ConTRolleR oPeRaTIon seTTInGs 4.1.1.1. relay two Aquastat Operation (cL combination System Only) To use relay two in aquastat operation, with or without thermostat input, ensure ‘Closed Loop Combination’ system is active in the SYSTEM bar. Inputs will be inactive without this system set. FUNCTION DESCRIPTION DEFAULT SETTINg LIMIT...
- Page 14 CHanGInG ConTRolleR oPeRaTIon seTTInGs 4.1.1.4. relay three Operation: Aquastat Operation Relay Three can also be operated in Aquastat Mode, identical to the Space Heating Function for Relay Two. Check the ‘Aquastat Operation’ button to enable this function. FUNCTION DESCRIPTION DEFAULT SETTINg LIMIT The temperature the selected sensor must exhibit to turn R3 ON.
- Page 15 The Pro WiFi and Pro-Lite WiFi controllers can be easily updated through the web browser. To upgrade, download the latest software from www.heliodyne.com/controls. There are several versions of software on the webpage, for WiFi Pro’s, WiFi Lite’s and Ethernet, so it is crucial to save the version that goes with your model.
- Page 16 If updating Pro controller, you need: » Pro Software Programming Cable p/n: 21425 available from Heliodyne » Pro Software USB to Serial Adapter Cable p/n: 21443 available from Heliodyne • If updating a Pro-Lite controlelr, you need a USB A/B cable •...
-
Page 17: Monitoring
Set the controller in Infrastructure Mode as in section 3. Navigate to the SETTINgS home page, under the SYSTEM bar and click on the ‘Setup System Monitoring’ link. You will be directed to an email form on the Heliodyne website. Fill out all the required fields and send it. -
Page 18: Troubleshooting
More in-depth knowledge is available at www.heliodyne.com/controls. Before contacting Heliodyne tech support, run through this entire section to see if it solves the problem. If the issue cannot be resolved by these tests and common problems, their answers will give Heliodyne a better idea of what the issue might be. - Page 19 neTWoRK / oPeRaTIon TRoUble 6.0.1. troubleshooting Network Issues continued ISSUE POSSIBLE CAUSE SOLUTION The Wi-Fi router must be able to handle 802.11 b/g communication. The encryption MUST be either Open, WPA - TKIP, or WPA2 - AES. If trouble exists with the [Wi-Fi] Router incompatible encryption, set the router to filter MAC addresses in open communication and add all •...
-
Page 20: Warranty
Conditions that may occur in the normal operation of the Product • Ten (10) year limited warranty (parts only, no labor, no shipping) shall not be invoked by HELIODYNE to reduce or defeat the from date of installation. coverage of this warranty. - Page 21 MOUNtING tEMPLAtE 4.00” 4.25” 7.00” 2.00” 6.50” SCALE = 1:1 S O L A R H O T W A T E R...
- Page 22 Heliodyne, Inc. • 4910 Seaport Avenue • Richmond, CA 94804 T: 510.237.9614 • F: 510.237.7018 www.heliodyne.com Sales Inquiries: sales@heliodyne.com Information and Support: info@heliodyne.com...
