EDGE
Produced for Forbes Lux Grou p,
Switzerland
Dubai Office:
Forbes Lux FZE, # 207, LOB Building 17, P .O. Box 261698,
Jebel Ali Free Zone, Dubai, UAE, Tel: +9714-8810115
For more information visit us at www.forbeslux.com
Fresh & Safe Water
Back page

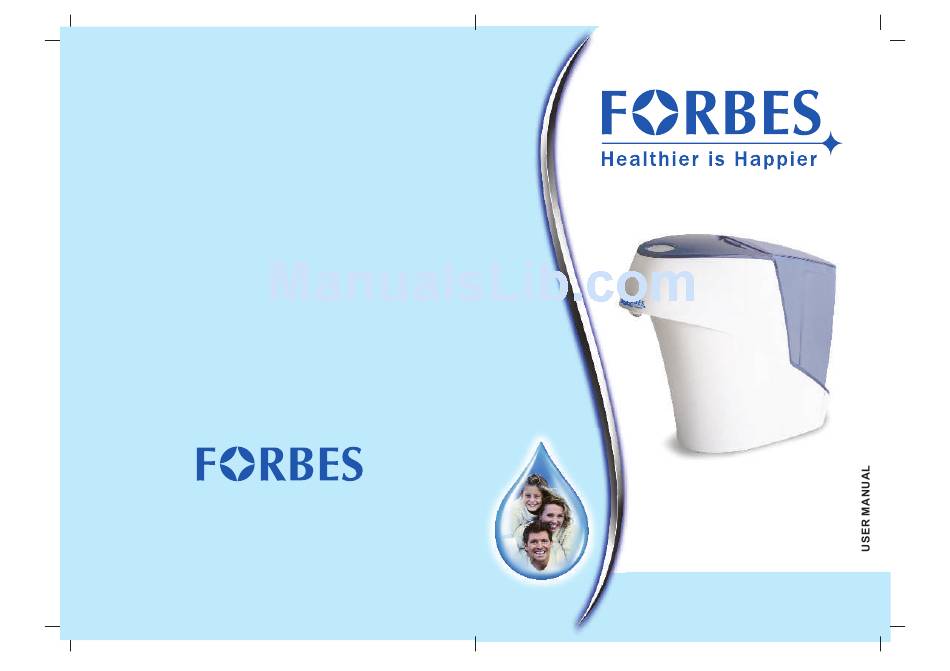

Cover page
Y:\EFL - AQUASURE-FORBES\Forbes international\EDGE\EDGE - user manual final.cdr
Advertisement
Related Manuals for Forbes EDGE
Summary of Contents for Forbes EDGE
- Page 1 Produced for Forbes Lux Grou p, Switzerland Dubai Office: Forbes Lux FZE, # 207, LOB Building 17, P .O. Box 261698, Jebel Ali Free Zone, Dubai, UAE, Tel: +9714-8810115 For more information visit us at www.forbeslux.com Fresh & Safe Water...
- Page 2 Why Forbes EDGE?------------------------------------------------------------------- • This appliance is for use with potable drinking water only. Never use this What makes your Forbes EDGE so special?----------------------------------- 6 appliance with unknown or unsafe sources Know your Forbes EDGE----------------------------------------------------------- Here's how your Forbes EDGE works-------------------------------------------- 9 •...
- Page 3 • Read all instructions contained in this user manual prior to using this appliance Cautions • When removing the water reservoir from the appliance, place one hand on top of • Only trained competent technicians should carry out repairs on the appliance the appliance securing it while using your other hand to remove the reservoir •...
-
Page 4: Box Contents
1. BOX CONTENTS 2. SET-UP GUIDE 1.1 Remove the EDGE from the box. To avoid damaging the appliance DO NOT Important use any sharp object to open the box 2.1 Check the unit for any damage, if the appliance is damaged then please return to the place of purchase 1.2 Please check the contents of the box and make sure that all items are present... - Page 5 2.5 Re-fit the reservoir to the appliance making sure it is firmly fitted 2.7 Repeat steps 2.3-2.6 five times (5x). This will flush the carbon from the new filter 2.8 Once step 2.7 has been completed you can drink purified, healthy and safe water from your appliance Note: For a cold refreshing drink the reservoir may be stored full of water in the fridge...
- Page 6 3. UV BULB AND FIL TER REPLACEMENT This product is a high performance water purifier, keeping it in good working order 3.3 Remove the top cover from the unit by slightly pushing it back and then will provide the reassurance of truly great drinking water lifting it up Please read and note section 5 “Indication &...
- Page 7 3.6 Insert the new UV lamp while holding the white end caps only. Insert the UV 3.8 To remove the Filter, do the following: lamp as shown in the illustration and push it all the way down until it cannot go Rotate the red rotating lever so that it is parallel with the side panel any further Insert your finger into the round hole of the lever, and pull the lever up to the...
- Page 8 3.9 Unscrew the filter body from the filter head by turning the base in an anti 3.11 Remove the new filter cartridge from the packaging and fit it by firmly pushing clockwise direction as per the illustration it into the filter head, making sure it is firmly and securely fitted. Make sure the new filter you are fitting comes in a sealed bag for hygienic purposes Note: Be careful as the filter body will contain water 3.10 Remove the filter cartridge from the head by pulling it out as per illustration.
- Page 9 3.13 Fit the filter assembly with the back into the appliance as follows: 3.14 Re-fit the top cover, making sure the front is attached first. If the top cover is not fitted correctly the unit will not switch on Insert the filter assembly back into its cradle, aligning the two male spigots with the female holes in the cradle Hint: Fit the top cover making sure the front is pushed in place first and then push the back end with the screws down to give a snug fit...
- Page 10 4. DE-SCALING OF THE WATER PURIFIER Remove the water reservoir from the main body of the appliance To remove the Filter, do the following: 1. Rotate the red rotating lever so that it is parallel with the side panel 2. Insert your finger into the round hole of the lever, and pull the lever up to the vertical position 3.
- Page 11 Remove the filter cartridge from the head by pulling it out as per illustration. Fit the filter assembly with the de-scaling solution back into the appliance as follows: Note: Be careful as the filter body will contain water 1. Insert the filter assembly back into its cradle, aligning the two male spigots with the female holes in the cradle 2.
- Page 12 4.11 Re-fit the two screws that hold the lid down using a screwdriver. 4.13 Place a glass or large container under the dispense area and touch the dispense button until you have dispensed 300ml of water. Caution: The screws should be hand tightened, do not over tighten. Insert the plug into the mains socket Touch the dispense button again to stop dispensing.
- Page 13 4.14 Remove the water reservoir from the main body of the appliance 4.17 To remove the Filter, do the following: Note: Remove the plug from the power source to isolate the electricity 1. Rotate the red rotating lever so that it is parallel with the side panel supply 2.
- Page 14 4.18 Unscrew the filter body from the filter head by turning it in an anti-clock wise 4.20 Screw the filter head and the filter body together, making sure it is firmly direction as per illustration. Empty the water that is left in the filter housing, tightened this can be disposed of by pouring it down the drain.
-
Page 15: Button Functions
5. BUTTON FUNCTIONS When the appliance is in standby mode the button will be blue but when it is 4.22 Re-fit the top cover, making sure the front is attached first. If the top cover is not touched it will turn green and water will be dispensed fitted correctly the unit will not switch on Note: If the button is not touched within 2 minutes of being activated then it Hint: Fit the top cover making sure the front is pushed in place first and then... -
Page 16: Troubleshooting
6. INDICATION AND WARNING ICONS 7. TROUBLESHOOTING Your product has been designed and internationally certified to the highest If there is no water being dispensed: standards of water purification, and guarantees at all times, to dispense the purest • Check that the unit is plugged in and switched on at the mains wall socket and cleanest water. - Page 17 8. CLEANING 9. STORAGE It is recommended that you maintain your appliance by cleaning it on a regular Never store the appliance with water in the reservoir and always store it the correct basis.The appliance can be cleaned using a damp lint free cloth. Never use any way up in a dry environment.
- Page 18 10. SAFETY 11. CERTIFICATION • Do not touch or look directly into the faucet The appliance has attained and complies with the following certifications and directives: CE, NSF 42 & 53, NSF 55a, NSF P231, RoHS, REACH • We recommend that the appliance should not be handled or lifted by holding the reservoir, especially when the reservoir is full of water •...
