Summary of Contents for Forbes Fridgemate

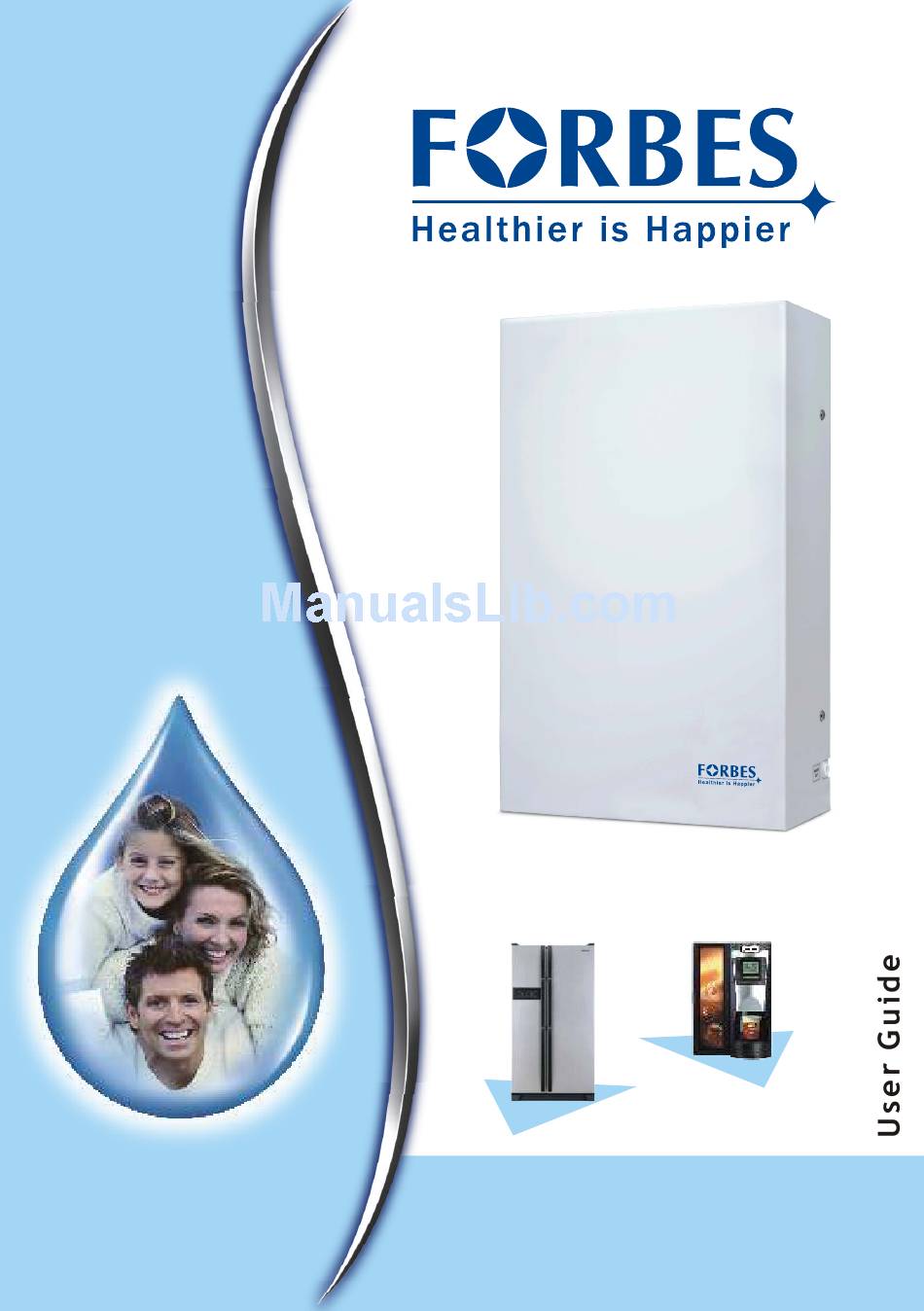

- Page 1 FRIDGEMATE Water Purifier FOR VENDING MACHINE FOR REFRIGERATOR Fresh & Safe Water...
- Page 2 This User Guide contains detailed information and tells you everything you need to know about Forbes FridgeMate Water Purifier. In case you have more queries, do get in touch with your dealer or our service personnel. Please avoid dealing with unauthorised service providers to ensure that your product performs at its best.
-
Page 3: Table Of Contents
CONTENTS Page No. Know Your Product Salient Features Stages of Water Purification Benefits offered by your Forbes FridgeMate Technical Specifications Installation Instructions Product Life Enhancement Tips... -
Page 4: Know Your Product
KNOW YOUR PRODUCT A specially designed and compatible product to suit the requirement of your refrigerator. Your FridgeMate water purifier will deliver safe and crystal clear water to your refrigerator, facilitating you to have purified cold water or ice from your refrigerator/vending machine. -
Page 5: Stages Of Water Purification
STAGES OF WATER PURIFICATION The Forbes FridgeMate Water Purifier has a 3-stage filter-cum-purifier. It delivers water as pure and safe as water boiled for 20 minutes plus more. THE FOUR STAGES ARE - Sediment Filter The water passes through the sediment filter which has a polypropylene yarn-wound type depth filter cartridge. -
Page 6: Benefits Offered By Your Forbes Fridgemate
0.01 micron pore size. These minute pores effectively trap sub micronic-particulates and also disease-causing bacteria, virus and protozoan micro-organisms including cysts, giving you crystal clear safe drinking water. BENEFITS OFFERED BY YOUR FORBES FRIDGEMATE Stage N o . Filtration Material... -
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS* DESCRIPTION SPECIFICATION Dimensions in mm (W x D x H) 252 x 115 x 412 Product Net Weight in kg. (excluding installation kit) Stages of Purification Flow Rate** (at 0.9 kg / cm Input Water Pressure) 600 ml / min. Input Water TDS Maximum 500 ppm Input Water Temperature... -
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS FOR YOUR FORBES FRIDGEMATE 01 WATER SOURCE 02 DIVERTER VALVE 03 NORMAL TAP 04 PRESSURE REDUCTION VALVE 05 N-HANCE WATER PURIFIER 06 REFRIGERATOR 07 WATER INLET 08 FLUSH WATER OUTLET 09 WATER OUTLET The Diverter Valve with PRV Assembly, ¼” Installation Tubing and ¼”... - Page 9 Diverter Valve Installation Fix the diverter valve with PRV assembly to the faucet and fasten the screws to the faucet properly with a Philips screwdriver. (The PRV is factory adjusted for 1.5 kg / cm .) In case of external threaded type faucet, the tap adapter of the diverter valve should be removed and then directly fix the diverter valve into the faucet.
- Page 10 Precarbon Filter Flushing Disconnect the outlet port tube of the precarbon filter. Connect a separate ¼” blue tube to the outlet port and keep the other end of the ¼” tube at the drain facility. Open the diverter valve and flush the precarbon filter till the manufacturing debris is fully driven out and outlet water becomes clear.
- Page 11 The flushing of ultrafilter is very essential to enhance the life of the membrane. A flush valve is provided at the bottom side of the product for the same. You need to turn the knob towards the ‘flush’ mode and allow the water to pass through for at least 2 to 3 minutes continuously.
-
Page 12: Product Life Enhancement Tips
PRODUCT LIFE ENHANCEMENT TIPS Always ensure that your product is clean and neat. Use only genuine components. Clean the sediment filter once in every 2 months or whenever it is required – based on the input water quality and water consumption. Replace the sediment filter and carbon filter, once in 6 months or after withdrawing 3000 litres from the product. - Page 13 Dubai Office: Forbes Lux FZE, # 207, LOB Building 17, P .O. Box 261698, Jebel Ali Free Zone, Dubai, UAE, Tel: +9714-8810115 For more information visit us at www.forbeslux.com...
