Copyright
This publication, including all photographs, illustrations and software, is protected under international
copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may
be reproduced without written consent of the author.
© Copyright 2016
Disclaimer
The information in this document is subject to change without notice. The manufacturer makes no
representations or warranties with respect to the contents hereof and specifically disclaims any implied
warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to
revise this publication and to make changes from time to time in the content hereof without obligation of
the manufacturer to notify any person of such revision or changes.

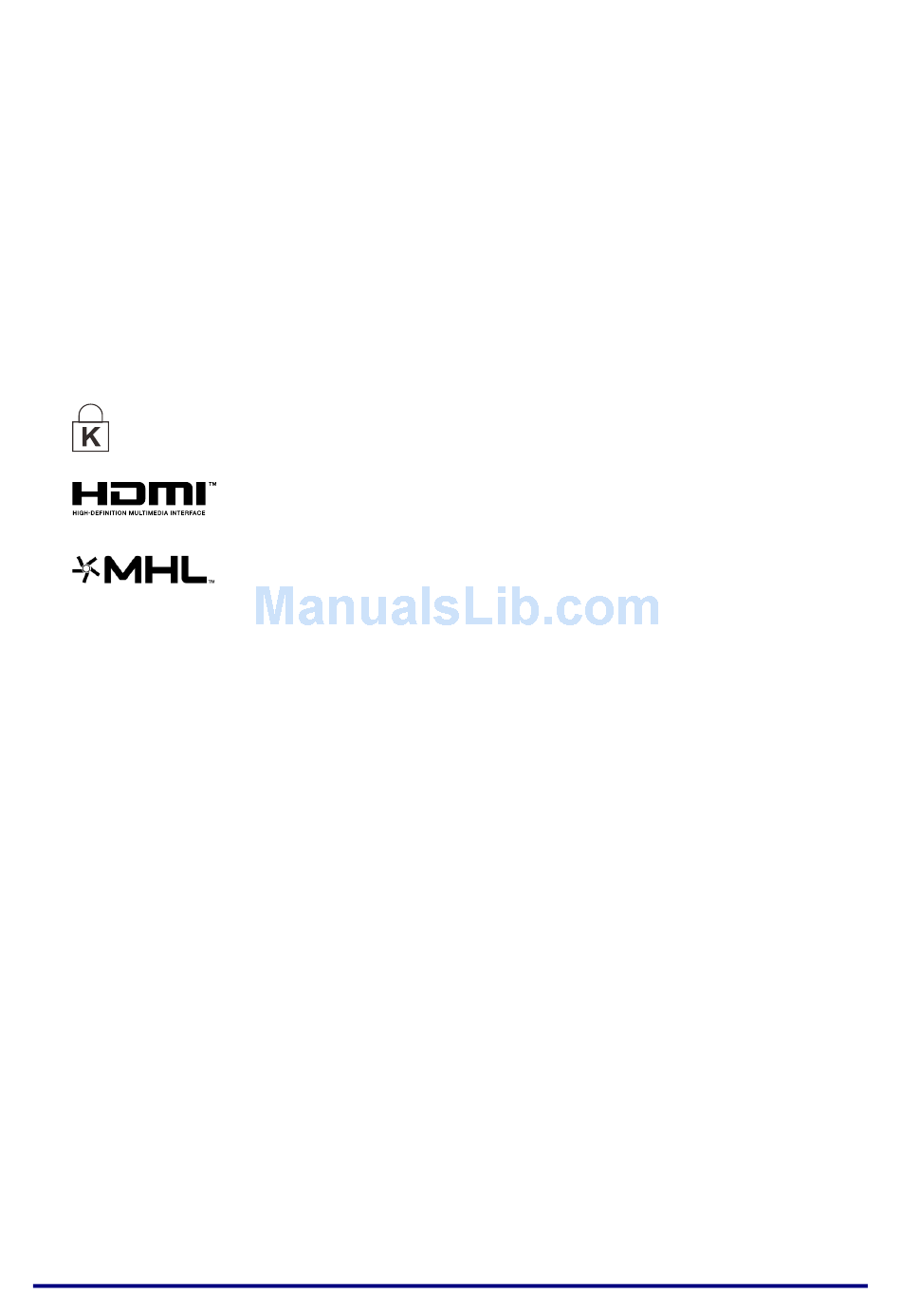

Trademark Recognition
Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations
and pending applications in other countries throughout the world.
All other product names used in this manual are the properties of their respective owners and are
acknowledged.
Ver.: 01
HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC in the United States and other countries.
MHL, the MHL logo, and Mobile High-Definition Link are trademarks or registered
trademarks of MHL licensing, LCC.
— i —

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H5098 and is the answer not in the manual?

Questions and answers

Related Manuals for Vivitek H5098

Summary of Contents for Vivitek H5098

  • Page 1 Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. © Copyright 2016 Disclaimer The information in this document is subject to change without notice.
  • Page 2 Important Safety Information Important: It is strongly recommended that you read this section carefully before using the projector. These safety and usage instructions will ensure that you enjoy many years of safe use of the projector. Keep this manual for future reference. Symbols Used Warning symbols are used on the unit and in this manual to alert you of hazardous situations.
  • Page 3 Preface Projector Installation Notice  Place the projector in a horizontal position The tilt angle of the projector should not exceed 15 degrees, nor should the projector be installed in any way other than the desktop and ceiling mount, otherwise lamp life could decrease dramatically, and may lead to other unpredictable damages.
  • Page 4 Verify Installation Location  To supply power, the 3-blade (with earthing lead) socket should be used to ensure proper grounding and equalized ground potential for all of the equipment in the Projector System.  The power code provided with the Projector should be used. In case of any missing item, other qualified 3-blade (with earthing lead) power cord can be used as substitution;...
  • Page 5 Preface Power Safety  Only use the supplied power cord.  Do not place anything on the power cord. Place the power cord where it will not be in the way of foot traffic.  Remove the batteries from the remote control when storing or not in use for a prolonged period. Replacing the Lamp Replacing the lamp can be hazardous if done incorrectly.
  • Page 6 Main Features  Lightweight unit, easy to pack away and transport.  Compatible with all major video standards including NTSC, PAL, and SECAM.  A high brightness rating allows for presentations in daylight or in lit rooms.  Supports resolutions up to WUXGA at 16.7 million colors to deliver crisp, clear images. ...

  • Page 7: Table Of Contents

    Preface Table of Contents GETTING STARTED ................................1 ................................1 ACKING HECKLIST ............................... 2 IEWS OF ROJECTOR ARTS Front-right View ................................2 Top view—On-screen Display (OSD) buttons and LEDs ..................3 Rear view ..................................4 Bottom view ................................... 6 ..............................7 EMOTE ONTROL ARTS...
  • Page 8 ..........................45 OMMON PROBLEMS AND SOLUTIONS ............................45 IPS FOR ROUBLESHOOTING LED E ..............................46 RROR ESSAGES ................................46 MAGE ROBLEMS ................................47 ROBLEMS ............................47 EMOTE ONTROL ROBLEMS ................................48 UDIO ROBLEMS ..........................48 AVING THE ROJECTOR ERVICED HDMI Q & A ..................................49 SPECIFICATIONS ................................

  • Page 9: Getting Started

    DLP Projector – User’s Manual ETTING TARTED Packing Checklist Carefully unpack the projector and check that the following items are included: ROJECTOR EMOTE ONTROL (1.8 HDMI C OWER ABLE AA B ATTERIES CD-ROM ARRANTY UICK TART ILTER ’ ANUAL PTIONAL Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work.

  • Page 10: Views Of Projector Parts

    Views of Projector Parts Front-right View 2 3 4 ABEL ESCRIPTION EE PAGE Screw For ensure the lens position Vertical lens shift Adjusts the image position vertically Press the release button before removing the Lens release button lens Horizontal lens shift Adjusts the image position horizontally IR receiver Receives IR signal from remote control...

  • Page 11: Top View-On-Screen Display (Osd) Buttons And Leds

    Top view—On-screen Display (OSD) buttons and LEDs ABEL ESCRIPTION PAGE MENU Opens and exits OSD menus Navigates and changes settings in the OSD Quick Menu – For Keystone ENTER Enter or confirm highlighted OSD menu item BLANK Displays a blank screen AUTO Optimizes image size, position, and resolution Navigates and changes settings in the OSD...

  • Page 12: Rear View

    Rear view ABEL ESCRIPTION EE PAGE Turns the projector on or off (main power switch must POWER be turned on first). Press to place the projector in standby mode. 3D SYNC OUT Connect 3D IR glasses receiver unit. HDMI1 Connect the HDMI cable from a HDMI device. Connect the HDMI/MHL cable from an HDMI/MHL device.
  • Page 13 ABEL ESCRIPTION EE PAGE AC IN Connects the power cable. Power switch Turns on/off the projector. Security chain Helps protect the projector from unauthorized use. lock Kensington Secures to permanent object with a Kensington Lock Security Slot system. Note:  To use this feature, you must plug in the connector before turn on/off the projector.

  • Page 14: Bottom View

    Bottom view ABEL ESCRIPTION EE PAGE Tilt adjustor Rotate adjuster lever to adjust angle position. Contact your dealer for information on mounting the projector on a Ceiling support holes ceiling Note: When installing, ensure that you use only UL Listed ceiling mounts. For ceiling installations, use approved mounting hardware and M4 screws with a maximum screw depth of 12 mm (0.47 inch).

  • Page 15: Remote Control Parts

    Remote Control Parts Important: 1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluorescent lights can disrupt remote control operation. 2. Be sure nothing obstructs the path between the remote control and the projector. If the path between the remote control and the projector is obstructed, you can bounce the signal off certain reflective surfaces such as projector screens.
  • Page 16 ABEL ESCRIPTION EE PAGE Power OFF Turns the projector off Displays the VGA source selection Up cursor / Navigates and changes settings in the OSD Quick Menu – For Keystone Keystone+ ENTER Enters and confirms settings in the OSD Right cursor Navigates and changes settings in the OSD Down cursor / Navigates and changes settings in the OSD...

  • Page 17: Remote Control Operating Range

    Remote Control Operating Range The remote control uses infrared transmission to control the projector. It is not necessary to point the remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or the rear of the projector, the remote will function well within a radius of about 7 meters (23 feet) and 15 degrees above or below the projector level.

  • Page 18: Setup And Operation

    ETUP AND PERATION Inserting the Remote Control Batteries Remove the battery compartment cover by sliding the cover in the direction of the arrow. Insert the battery with the positive side facing up. Replace the cover. Caution: 1. Only use AA batteries (Alkaline batteries are recommended). 2.

  • Page 19: Installing Or Removing The Optional Lens

    Installing or Removing the Optional Lens Caution:  Do not shake or place excessive pressure on the projector or the lens components as the projector and lens components contain precision parts.  Before removing or installing the lens, be sure to turn off the projector, wait until the cooling fans stop, and turn off the main power switch.

  • Page 20: Installing The New Lens

    Installing the New Lens Electrical contact pins Align the notches and correctly position the electrical contact pad as shown in the picture. Note: Pin of Electrical contact pins should be in the direction as shown in the picture. Rotate the lens clockwise until you feel it click into place.

  • Page 21: Starting And Shutting Down The Projector

    Starting and Shutting down the Projector Remove the lens cap. Securely connect the power cord and signal cable. When connected, the power led will turn red. Turn on the lamp by pressing “ ” button on the rear of the projector or “...
  • Page 22 If more than one input device is connected, press the SOURCE button and use ▲▼ to scroll among devices.  PC: Analog RGB  HDMI1/HDMI2: High-Definition Multimedia Interface compatible  COMPONENT: DVD input YCbCr / YPbPr , or HDTV input YPbPr ...

  • Page 23: Adjusting The Projector Level

    Adjusting the Projector Level Take note of the following when setting up the projector:  The projector table or stand should be level and sturdy.  Position the projector so that it is perpendicular to the screen.  Remove the Back Foot Holder on the rear adjuster foot before adjusting the projection angle.

  • Page 24: Adjusting Projected Image Position Using Shift

    Adjusting Projected Image Position Using Shift Note: Suggest to loosen the screw before lens shift adjustment and tighten up after finished adjustment. The Shift feature provides a lens shift function that can be used to adjust the position of the projected image either horizontally or vertically within the range detailed below.

  • Page 25: Adjusting The Horizontal Image Position

    Adjusting the horizontal image position With the lens in the center position the horizontal image position can be adjusted to the left or right by up to a maximum of 5% of the image width. Note that the maximum horizontal image height adjustment can be limited by the vertical image position.

  • Page 26: Adjusting The Zoom, Focus And Keystone

    Adjusting the Zoom, Focus and Keystone Use the Image-zoom control (on the projector only) to resize the projected image and screen size. Use the Image-focus control (on the projector only) to sharpen the projected image. Use the KEYSTONE buttons (on the projector or the remote control) to correct image-trapezoid (wider...

  • Page 27: On-Screen Display (Osd) Menu Settings

    (OSD) M CREEN ISPLAY ETTINGS OSD Menu Controls The projector has an OSD that lets you make image adjustments and change various settings. Navigating the OSD You can use the remote control cursor buttons or the buttons on the top of the projector to navigate and make changes to the OSD.

  • Page 28: Setting The Osd Language

    Setting the OSD Language Set the OSD language to your preference before continuing. 1. Press the MENU button. Press the cursor ◄► button to navigate to SETUP>>Basic. 2. Press the cursor ▲▼ button until Language is highlighted. 3. Press the cursor ◄► button until the language you want is selected. 4.

  • Page 29: Osd Menu Overview

    OSD Menu Overview Use the following illustration to quickly find a setting or determine the range for a setting. Main Menu Sub Menu Settings Presentation, Movie, Vivid , Bright, Picture >>Basic Display Mode Game, User1 Brightness 0 ~ 100 Contrast -50 ~ 50 Color -50 ~ 50...
  • Page 30 Main Menu Sub Menu Settings English, Français, Deutsch, Español, Português, 簡体中文, 繁體中文, Italiano, Setup >> Basic Language Norsk, Svenska, Nederlands, Русский, Polski, Suomi, Dansk, 한국어, 日本語 Front Table / Front Ceiling / Rear Table Projection / Rear Ceiling Auto Power On Off / On Auto Power Off Disable / 5 / 10 / 15 / 20 / 25 / 30min...

  • Page 31: Picture>>Basic Menu

    PICTURE>>Basic Menu Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the PICTURE>>Basic menu. Press the cursor ▲▼ button to move up and down in the PICTURE>>Basic menu. Press ◄► to change values for settings. ESCRIPTION Press the cursor ◄►...

  • Page 32: Picture>>Advanced Menu

    PICTURE>>Advanced Menu Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the PICTURE>>Advanced menu. Press the cursor ▲▼ button to move up and down in the PICTURE>>Advanced menu. Press ◄► to change values for settings. ESCRIPTION Press the cursor ◄►...

  • Page 33: Hsg Adjustment

    HSG Adjustment Press the ENTER button to enter the HSG Adjustment sub menu. ESCRIPTION Press the ◄► buttons to set the Primary Color. Primary Color Notes: There are six sets (R/ G/ B/ C/ M/ Y) of colors to be customized. Press the ◄►...

  • Page 34: Vividsettings

    VividSettings Press the ENTER button to enter the VividSettings sub menu. ESCRIPTION Press the ◄► buttons to select different MEMC level. VividMotion Press the ◄► buttons to adjust motion adaptive sharpness enhancement (2D VividPeaking Peaking) value. Press the ◄► buttons to adjust the display flesh tone. Flesh Tone —...

  • Page 35: Display Menu

    DISPLAY Menu Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the DISPLAY menu. Press the cursor ▲▼ button to move up and down in the DISPLAY menu. Press ◄► to change values for settings. ESCRIPTION Press the cursor ◄►...

  • Page 36: Pc Detail Adjustment

    PC Detail Adjustment Press the ENTER button to enter the PC Detail Adjustment sub menu. Note: Customizing the settings in PC Detail Adjustment menu is only available when PC input source (analog RGB) is selected. ESCRIPTION Press the ENTER/AUTO button on the control panel or the ENTER/AUTO button on Auto the remote control to automatically adjust frequency, phase, and position.

  • Page 37: White Balance

    White Balance Press the ENTER button to enter the White Balance sub menu. ESCRIPTION Press the ◄► buttons to adjust the Red Gain. Red Gain Press the ◄► buttons to adjust the Green Gain. Green Gain Press the ◄► buttons to adjust the Blue Gain. Blue Gain Press the ◄►...

  • Page 38: User Color Temp

    User Color Temp Press the ENTER button to enter the User Color Temp sub menu. ESCRIPTION Press the ◄► buttons to adjust the White Gain Red. White Gain Red Press the ◄► buttons to adjust the White Gain Green. White Gain Green Press the ◄►...

  • Page 39: 3D Setting

    3D Setting ESCRIPTION Press the ◄► buttons to enter and select different 3D mode. 3D Mode Press the ◄► buttons to enter and enable or disable 3D Sync. 3D Sync Press the ◄► buttons to enter and enable or disable 3D Sync Invert. 3D Sync Invert Note: 1.

  • Page 40: Setup>>Basic Menu

    SETUP>>Basic Menu Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the SETUP>>Basic menu. Press the cursor ▲▼ button to move up and down in the SETUP>>Basic menu. Press ◄► to change values for settings. ESCRIPTION Press the cursor ◄►...

  • Page 41: Menu Settings

    Menu Settings Press the ENTER button to enter the Menu Settings sub menu. ESCRIPTION Press the ◄► buttons to select from five OSD locations. Menu Position Press the ◄► buttons to set the Menu Display timer before the OSD times out. Menu Display Time Source Press the ENTER button to enter the Source sub menu.

  • Page 42: Setup>>Advanced Menu

    SETUP>>Advanced Menu Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the SETUP>>Advanced menu. Press the cursor ▲▼ button to move up and down in the SETUP>>Advanced menu. ESCRIPTION Lamp Press the ENTER button to enter the Lamp sub menu. See Lamp on page 35.

  • Page 43: Lamp

    Lamp Press the ENTER button to enter the Lamp sub menu. ESCRIPTION Press the ◄► buttons to adjust lamp brightness. Lamp Mode Reset Lamp Timer Press the ENTER button to reset the Lamp Hour after the lamp is replaced. Lamp Hour Displays the number of hours the lamp has been in use.

  • Page 44: Status Menu

    STATUS Menu Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the STATUS Menu. ESCRIPTION Source Displays the activated input source. Resolution Displays the native resolution of input source. Lamp Hour s Displays the number of hours the lamp has been in use.

  • Page 45: Maintenance And Security

    AINTENANCE AND ECURITY Replacing the Projection Lamp The projection lamp should be replaced when it burns out. It should only be replaced with a certified replacement part, which you can order from your local dealer. Important: a. The projection lamp used in this product contains a small amount of mercury. b.
  • Page 46 Unlock the lamp cover. Pull up and remove the cover. Use a screwdriver to remove the screws from the lamp module. Pull out the lamp module. — 38 —...
  • Page 47 Reverse steps 1 to 7 to install the new lamp module. While installing, align the lamp module with the connector and ensure it is level to avoid damage. Note: The lamp module must sit securely in place and the lamp connector must be connected properly before tightening the screws.

  • Page 48: Resetting The Lamp

    Resetting the Lamp After replacing the lamp, you should reset the lamp hour counter to zero. Refer to the following: Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the SETUP : Advanced menu.

  • Page 49: Cleaning The Filter (Filter: Optional Parts)

    Cleaning the filter (filter: optional parts) The air filter prevents dust from accumulating on the surface of the optical elements inside the projector. If the filter is dirty or clogged, your projector may overheat or degrading the projected image quality. Turn off the projector, and unplug the AC power cord from the AC outlet.

  • Page 50: Replacing The Filter

    Replacing the Filter Turn off the projector, and unplug the AC power cord from the AC outlet. Clean up the dust on the projector and around the air vents. Pull out the filter cover and remove from the projector Lift the filter from the filter cover.

  • Page 51: Cleaning The Projector

    Cleaning the Projector Cleaning the projector to remove dust and grime will help ensure trouble-free operation. Warning: 1. Be sure to turn off and unplug the projector at least 30 minutes before cleaning. Failure to do so could result in a severe burn. 2.

  • Page 52: Using The Physical Lock

    Using the Physical Lock Using the Kensington Security Slot If you are concerned about security, attach the projector to a permanent object with the Kensington slot and a security cable. Note: Contact your vendor for details on purchasing a suitable Kensington security cable. The security lock corresponds to Kensington’s MicroSaver Security System.

  • Page 53: Troubleshooting

    ROUBLESHOOTING Common problems and solutions These guidelines provide tips to deal with problems you may encounter while using the projector. If the problem remains unsolved, contact your dealer for assistance. Often after time spent troubleshooting, the problem is traced to something as simple as a loose connection.

  • Page 54: Led Error Messages

    LED Error Messages OWER RROR ESSAGES REEN Ready to Power on (Standby) System Power on Flash Lamp Lit , System stable Cooling Flashing 1W MCU detects scaler stops working 2 blinks (initial fail) Over Temperature Thermal Break Sensor error 4 blinks Lamp Fail 5 blinks 0 blinks...

  • Page 55: Lamp Problems

    Problem: The image is wider at the top or bottom (trapezoid effect) 1. Position the projector so it is as perpendicular to the screen as possible. 2. Use the Keystone button on the remote control to correct the problem. Problem: The image is reversed Check the Projection setting on the SYSTEM SETUP >>...

  • Page 56: Audio Problems

    Audio Problems Problem: There is no sound 1. Adjust the volume on the remote control. 2. Adjust the volume of the audio source. 3. Check the audio cable connection. 4. Test the source audio output with other speakers. 5. Have the projector serviced. Problem: The sound is distorted 1.

  • Page 57: Hdmi Q & A

    HDMI Q & A Q. What is the difference between a “Standard” HDMI cable and a “High-Speed” HDMI cable? Recently, HDMI Licensing, LLC announced that cables would be tested as Standard or High-Speed cables. ˙Standard (or “category 1”) HDMI cables have been tested to perform at speeds of 75Mhz or up to 2.25Gbps, which is the equivalent of a 720p/1080i signal.

  • Page 58: Specifications

    PECIFICATIONS Specifications Model H5098 0.65” 1080P DC3 S600 Display type Resolution 1920x1080 Projection distance 1.5 meters ~ 7 meters Projection screen size 35.1” ~ 205.3” Projection lens Manual Focus / Manual Zoom Throw ratio 1.54 ~ 1.93 Vertical keystone correction ±40°...

  • Page 59: Projection Distance Vs. Projection Size (1080P)

    Projection Distance vs. Projection Size (1080P) Projection Distance V-Sync Projection Distance and Size Table Standard projection lens: TR: 1.54 ~ 1.93; offset=60% Distance (m) 1.50 3.42 4.27 8.55 1.70 3.41 6.82 10.23 Diagonal (") 35.1 300* Image Width (mm) 1771 2214 4428 1107...
  • Page 60 New Short throw projection lens: TR: 0.778; offset=60% Distance (m) 0.80 1.38 1.72 2.58 3.44 4.31 5.00 Diagonal (") 46.5 290.2 Image Width (mm) 1029 1771 2214 3321 4428 5535 6424 Image Height (mm) 1245 1868 2491 3113 3614 h (mm) 1245 1557 1807...

  • Page 61: Timing Mode Table

    Timing Mode Table H-Sync V-Sync Composite DP/DVI Signal Resolution Component (KHz) (Hz) S-Video (Analog) HDMI (Digital) ○ － － － － NTSC 15.7 60.0 ○ － － － － PAL/SECAM 15.6 50.0 ○ ○ － － 640 x 400 37.9 85.1 ○...
  • Page 62 H-Sync V-Sync Composite DP/DVI Signal Resolution Component (KHz) (Hz) S-Video (Analog) HDMI (Digital) ○ ○ － － 1680 x 1050 64.7 59.9 ○ ○ － － 1680 x 1050 65.3 60.0 ○ ○ － － 1920 x 1200 74.0 60.0 ○...

  • Page 63: Projector Dimensions

    Projector Dimensions 431.12 [16.97"] 82.00mm [3.23"] – 55 –...

  • Page 64: Regulatory Compliance

    EGULATORY OMPLIANCE FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

  • Page 65: Rs-232C Protocol

    PPENDIX RS-232C Protocol RS232 Setting Baud rate: 9600 Parity None check: Data bit: Stop bit: Flow None Control Minimum delay for next command: 1ms Control Command Structure Header code Command code Data code End code Command Data ‘V’ ASCII Command Data Operation Command Note:...
  • Page 66 Command Group 01 ASCII Function Description Return Value VXXS0104n 56h Xh Xh 53h 30h 31h 30h 34h nh 0Dh Set Tint n=-50~50 VXXG0105 56h Xh Xh 47h 30h 31h 30h 35h 0Dh Get Sharpness 0~15 Pn/F VXXS0105n 56h Xh Xh 53h 30h 31h 30h 35h nh 0Dh Set Sharpness 0~15 0:Warm(D65) Get Color Temper-...
  • Page 67 Command Group 03 ASCII Function Description Return Value 0: Fill 1: 4:3 2: 16:9 VXXG0301 56h Xh Xh 47h 30h 33h 30h 31h 0Dh Get Scaling Pn/F 3: Letter Box 4: Real 5: 2.35:1 0: Fill 1: 4:3 2: 16:9 VXXS0301n 56h Xh Xh 53h 30h 33h 30h 31h nh 0Dh Set Scaling 3: Letter Box 4: Real...
