Asong POWER FEED Assembly & Operating Instructions page 6

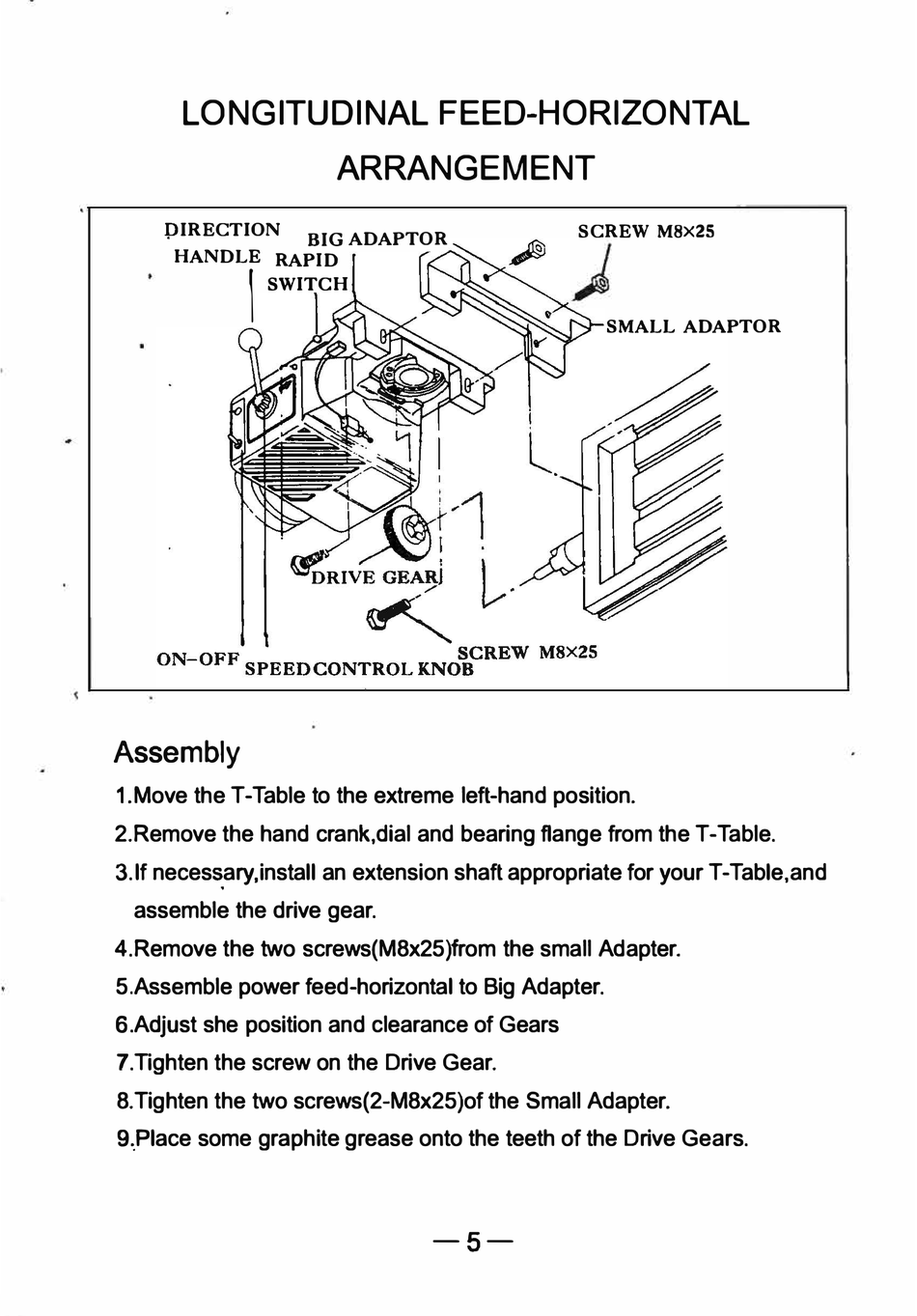

LONGITUDINAL FEED-HORIZONTAL
PIRECTION
HANDLE RAPID
SWITCH
\
Assembly
1.Move the T-Table to the extreme left-hand position.
2.Remove the hand crank.dial and bearing flange from the T-Table.
3.lf neces � ary,install an extension shaft appropriate for your T-Table,and
assemble the drive gear.
4.Remove the two screws(M8x25)from the small Adapter.
5.Assemble power feed-horizontal to Big Adapter.
6.Adjust she position and clearance of Gears
7. Tighten the screw on the Drive Gear.
8.Tighten the two screws(2-M8x25)of the Small Adapter.
9 .. Place some graphite grease onto the teeth of the Drive Gears.
ARRANGEMENT
BIG ADAPTOR
-5-
SCREW M8X25
SMALL ADAPTOR
