Asong POWER FEED Assembly & Operating Instructions page 3

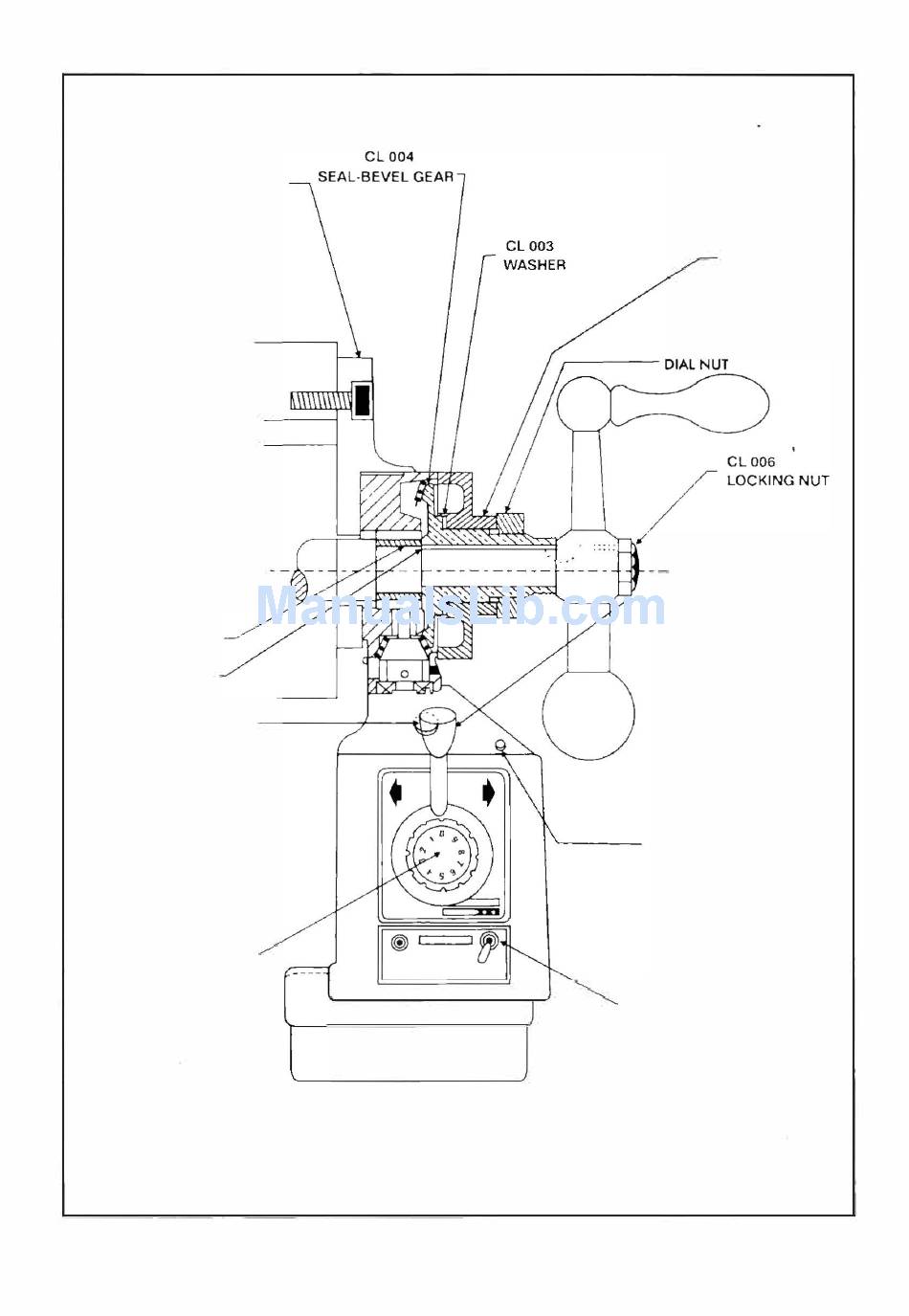

NAMES AND FUNCTIONS OF PARTS &
HOW TO INSTALL THE LONGITUDINAL FEED
CL 027
ADAPTOR
CL007
INNER RING
CLOOS
WASHER
RAPID SPEED AWITCH
{ To let the power feed drive at
maximum speed >
When hold down the yellow
button, the power feed will
drive at the speed.
maJ1:1mum
Once release it will revert to ils
original speed.
SPEED CONTROL KNOB
( Tei control the rotating speed
of the powerfeed )
The higher the number the
faster the speed
-2-
DIAL
CL 002
DIRECTION CONTROL
HANDLE
( To control the dnvmg d1ret1on
of the power feed.)
If the handle is moved to the
right the table will move to the
right.
If the handle is moved to the
left the table w1II move to the
lek.
POWER INDICATOR
{ To show if the power is on )
If the indicator glows the power
1s on.
If it does not glow the power is
not on.
MAINS ON-OFF SWITCH
( To switch on the power)
Push the crank to the ON
position to turn on the power.
Push the crank to the OFF
position to turn off the power.
