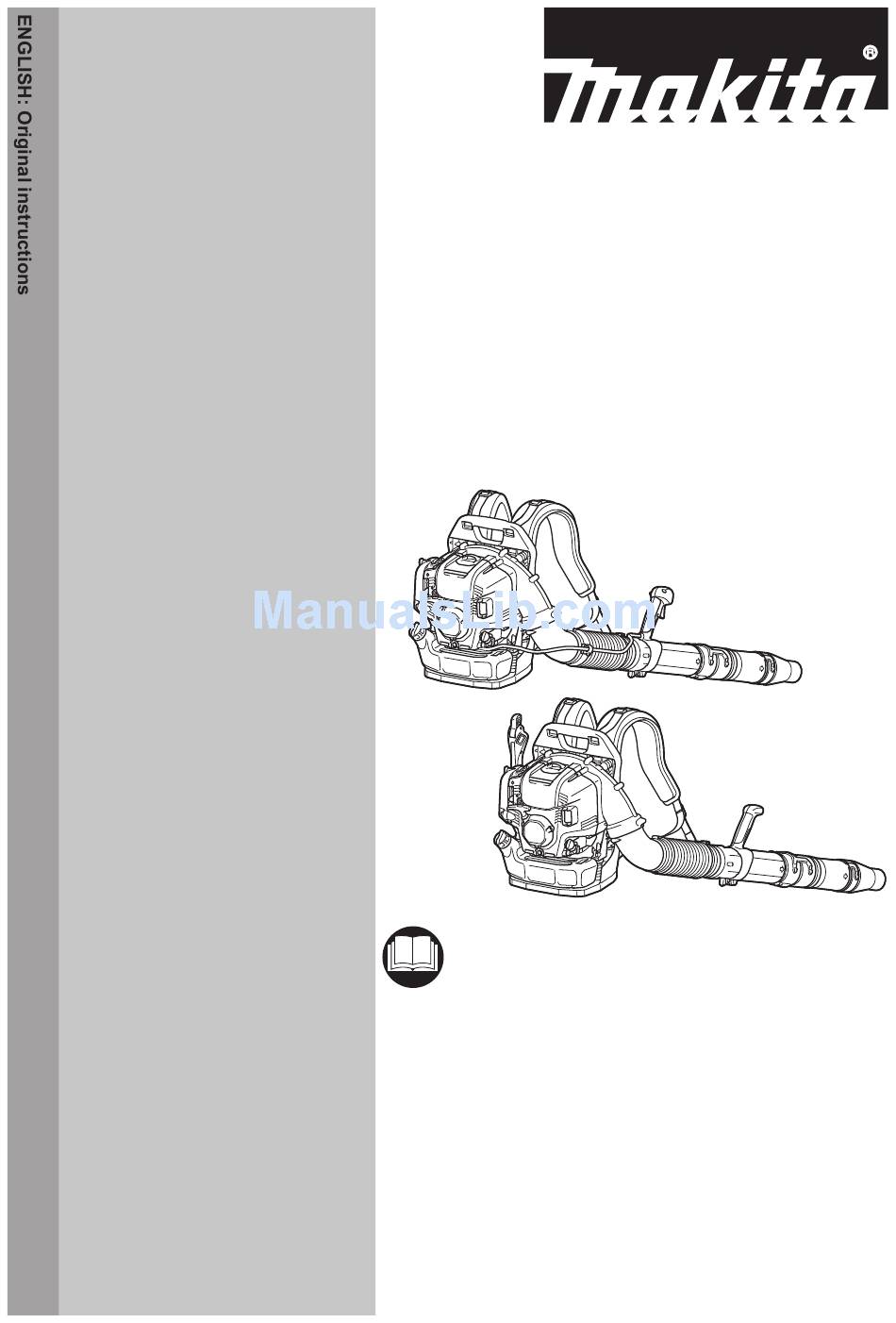

- Page 1 ORIGINAL INSTRUCTION MANUAL Petrol Blower EB5300TH EB5300WH Read before use.
-
Page 2: Table Of Contents
IMPORTANT SAFETY INSTRUCTIONS ...... 3 OPERATION ...............11 PARTS DESCRIPTION ..........7 MAINTENANCE ............15 ASSEMBLY ..............9 TROUBLESHOOTING ..........22 SPECIFICATIONS Model: EB5300TH EB5300WH Throttle type Tube throttle Hip throttle Dry weight without blower pipe / with cusion 8.9 kg 9.1 kg... -
Page 3: Important Safety Instructions
Noise Model EB5300TH EB5300WH Sound pressure level average 96.0 (dB(A)) 96.0 (dB(A)) PA eq to EN15503 Uncertainty K 0.4 (dB(A)) 0.4 (dB(A)) Sound power level average to 102.5 (dB(A)) 102.5 (dB(A)) WA eq EN15503 Uncertainty K 1.6 (dB(A)) 1.6 (dB(A)) - Page 4 10. Do not use the unit when you are tired. Use of gloves when working with the blower is rec- ommended. Wear sturdy shoes with non-slip soles. Save these instructions for future reference. Proper eye protection is a must. Even though 12.
-
Page 5: Refuelling
Use the blower and the tools supplied only for When transport the blower, bend your knee applications specified. and make sure you do not damage your shoul- der and lower back. Start the blower engine only after the entire tool has been assembled. Operation of the Refuelling tool is permitted only after all the appropriate accessories are attached. - Page 6 Makita will not accept any liability for accidents or damage caused by the use of 12. Operate the machine only at reasonable hours.
-
Page 7: Parts Description
PARTS DESCRIPTION EB5300TH Spark plug cover Muffler Swivel pipe Circular nozzle Anti icing lever Carry handle Knob bolt (of air cleaner Flat nozzle (optional cover) accessory) Choke lever Shoulder strap Air cleaner cover Cushion (optional accessory) Starter knob Elbow Primer pump... - Page 8 EB5300WH Control arm Oil cap Swivel pipe Circular nozzle Spark plug cover Muffler Knob bolt (of air cleaner Flat nozzle (optional cover) accessory) Anti icing lever Carry handle Air cleaner cover Cushion (optional accessory) Choke lever Shoulder strap Primer pump Hip belt (optional accessory) Starter knob...
-
Page 9: Assembly
ASSEMBLY CAUTION: Before performing any work on the blower, always stop the engine and pull the spark plug cap off the spark plug. CAUTION: Start the blower only after having assembled it completely. CAUTION: Always wear protective gloves. Assembling blower pipes ►... -
Page 10: Before Starting The Engine
BEFORE STARTING THE ENGINE Checking and refill of engine oil CAUTION: When refilling with engine oil, stop the engine and wait for the engine to cool down. Otherwise skin burn may result. NOTICE: Use of deteriorated oil will cause irregular start-up. NOTICE: Remove dust or dirt near the oil refill port before detaching the oil cap. -
Page 11: Operation
Never use gasoline mixed with any oil such as 2 stroke oil or motor oil. Otherwise, it • Makita genuine 4-stroke engine oil or causes excessive carbon accumulation or mechani- • API grade SF class or higher, SAE 10W-30 oil cal troubles. - Page 12 For tube throttle model: Set the stop control lever to “I” position. NOTICE: Never pull the rope to the full extension. ► 1. Stop control lever NOTICE: Return the starter knob gently into the For hip throttle model: Set the stop switch to “I” posi- housing.
- Page 13 When the engine is warm (warm start) Remove the screw and pull out the anti-icing lever. Insert the anti-icing lever as follows: CAUTION: Be careful not to burn your hand. Warmer environment than than 10°C Wear gloves when you start the engine. Set the nub to the sun mark (warmer position).
- Page 14 ► 1. Fastener ► 1. Fastener Roll up the end of the strap and hold it with the band. Hip belt Optional accessory The hip belt enables the operator to carry the tool more stably. ► 1. Band Pull the stabilizer strap until there are no space left between your back and the blower housing.
-
Page 15: Maintenance
► 1. Clamp screw ► 1. Throttle trigger 2. Stop control lever Adjust the angle of the control arm. For hip throttle model: To increase the engine speed, turn the throttle lever to high speed. To decrease the engine speed, turn the throttle lever to low speed. ►... - Page 16 Interval of replacement After first 20 operating hours, followed by every 50 operating hours Recommended oil • Makita genuine 4-stroke engine oil or • API grade SF class or higher, SAE 10W-30 oil (automobile 4-stroke engine oil) Oil replacement procedure Change the oil as follows: ►...
- Page 17 Cleaning procedure ► 1. Plug cover ► 1. Knob bolts 2. Air cleaner cover 3. Element Use the box wrench provided as an standard 4. Breather accessory to remove and install the spark plug. Loosen the knob bolts. Remove the air cleaner cover. Remove the element and clean off any dirt from the element with a cloth or air blow.
- Page 18 To close the plug cover, make a half turn of it, and Adjustment of idling speed press around the dented part. CAUTION: The carburetor is factory adjusted. Never adjust other than idling speed. For other adjustments, ask your authorized service center. Appropriate low-speed rotation is 2,800 min (rpm).
- Page 19 Loosen the fixing nut. Pass a slotted screwdriver through the hole on the engine cover. Release the clamp of the carburetor cover. If the throttle valve does not touch the throt- tle valve stopper, turn the cable adjusting bolt counterclockwise. If the throttle valve does not touch the idling adjusting screw, turn the cable adjusting bolt clockwise.
- Page 20 Drain fuel from the fuel tank and carburetor before Replacing gaskets and packings storing the machine as follows: Remove the fuel tank cap, and drain fuel com- Replace gaskets and packings if the engine is pletely. If there is any foreign materials remaining in the disassembled.
- Page 21 Interval of inspection and maintenance Before After Daily (10h) 200h 600h or 2 Before operation fuelling years which- storage ever earlier Engine oil Inspect / refill Replace (Note1) Tightening Inspect parts (bolt, nut) Cooling air Clean / inlet inspect Fuel tank Clean / inspect Drain fuel (Note3)
-
Page 22: Troubleshooting
Before asking for repairs, conduct your own inspection first. If you find a problem that is not explained in the manual, do not attempt to dismantle the tool. Instead, ask Makita Authorized Service Centers, always using Makita replace- ment parts for repairs. - Page 24 Makita Europe N.V. Jan-Baptist Vinkstraat 2, 3070 Kortenberg, Belgium Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885541-221 www.makita.com 20161124...
