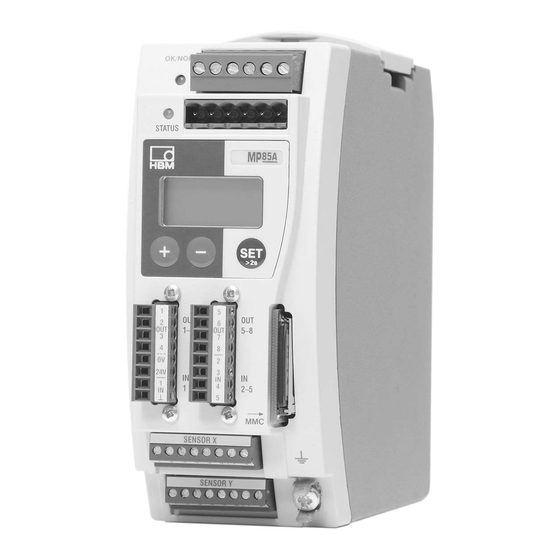

HBM MP85A Operating Manual

For monitoring fitting processes
Hide thumbs Also See for MP85A:
Table of Contents

Advertisement

Quick Links

Operating Manual
English
MP85A Program Help

Advertisement

Table of Contents
loading

Related Manuals for HBM MP85A

Summary of Contents for HBM MP85A

  • Page 1 Operating Manual English MP85A Program Help...
  • Page 2 64239 Darmstadt Tel. +49 6151 803-0 Fax +49 6151 803-9100 info@hbm.com www.hbm.com DVS: a3387-1.1 HBM: public 12.2016 © Hottinger Baldwin Messtechnik GmbH Subject to modifications. All product descriptions are for general information only. They are not to be understood as a guarantee of quality or...

  • Page 3: Table Of Contents

    Quick start ..........9 The MP85A measuring system....... 9 What needs to be done?.
  • Page 4 Range window ......... 136 MP85A a3387-1.1 en HBM: public...
  • Page 5 Assistant ..........189 12.1 How do I adjust the interface on the MP85A?....189 12.2 How do I set the IP address on my PC? .
  • Page 6 ..........226 12.19 What do the LEDs on the MP85A mean? ..... 234 12.20 What should be observed when saving process data, curves or process results? .
  • Page 7 Index..........247 MP85A a3387-1.1 en HBM: public...
  • Page 8 Contents MP85A a3387-1.1 en HBM: public...

  • Page 9: Quick Start

    The MP85A measuring system The MP85A measuring system comprises the PME Assis- tant program and the PME MP85A or MP85A DP hard- ware. The MP85A DP is provided with a PROFIBUS inter- face in addition to the CAN bus and Ethernet interface.

  • Page 10: What Needs To Be Done

    Starting with firmware version 2.22 the limit value results can be included into the OK/NOK evaluation with all mon- itoring methods. There is also Version MP85A-S for switch and haptic test with tolerance windows. However tolerance band moni- toring is not possible with these devices.

  • Page 11: Setting Up The Hardware

    Specify the necessary outputs (process results). Save all parameters. The structure of the MP85A settings tree in the left-hand side of the program window corresponds to the sequence in which you should carry out the settings.  If these steps have already been performed, the data can...

  • Page 12: Firmware Update

    With the program a new firmware version can also be transferred to several devices simultaneously. With the MP85A process controller, in order to avoid inter- fering with the running of a process (no measurement or evaluation is carried out during an update), from firmware version 2.22 you can specify that the firmware is updated...
  • Page 13 Quick start The device settings are also retained when updating the firmware. However, we recommend a backup is carried out before the update; refer to Store settings and system parameters saved on the PC (backup). MP85A a3387-1.1 en HBM: public...
  • Page 14 Quick start MP85A a3387-1.1 en HBM: public...

  • Page 15: System Settings

    Normally, the lan- guage version of the PME Assistant determines the lan- guage of the MP85A, i.e. when you start the German ver- sion of the Assistant, all menus and texts are also in German.
  • Page 16 However, only the measuring amplifiers are synchronized, not, say, the CAN bus interfaces or similar functions. You will find further information on this topic in the MP85A operating manual. Firmware update only possible after release on the device...

  • Page 17: Using Passcodes

    EASYsetup (FASTpress Suite) program module. If you do not have one of the entries listed in this Help, then the MP85A has been configured specially for you. Prepare passcode usage (activate) The passcode must first be defined under SYSTEM ...

  • Page 18: Interface Parameters

    If those menus shall be accessed again, a new passcode entry has to be made. Passcode entry If the MP85A is protected by a passcode, you can only access this menu item and menu MEASURE + VISU- ALIZE. The correct passcode must be entered before you can access all other menus.
  • Page 19 IP address (Ethernet address) and subnet mask you have to set. If you only want to establish a direct link between a PC and the MP85A, you can use any address, e.g. 192.168.169.xxx. The last group of three figures (xxx) must be a number between 1 and 254 and different for the PC and the MP85A.
  • Page 20 10. Confirm this query also by pressing SET. CAN bus interface You can only change most parameters manually; the PME Assistant software must not be connected to the MP85A over this interface during configuration. Terminate the pro- gram if necessary.
  • Page 21 PROFIBUS interface (only with MP85ADP) In the PME Assistant only the PROFIBUS address can be set. All other PROFIBUS system parameterization is car- ried out via appropriate software from other manufac- turers, e.g. PROFIBUS software from Siemens. MP85A a3387-1.1 en HBM: public...
  • Page 22 SYSTEM settings MP85A a3387-1.1 en HBM: public...

  • Page 23: Prepare Mp85A For Your Application

    Find and use TEDS on device restart and Find and use TEDS during operation of device. After restarting the MP85A (switch power supply off and on again), a search will be made for transducers with TEDS. They will be activated if found. If you cannot...
  • Page 24 Adjusting the measuring chain. No process (no measurement) is started as long as a transducer error is present and the MP85A is not capable of measuring.  You can find more information about MP85A, e.g. working...

  • Page 25: Specifying A Transducer

    Prepare MP85A for your application 3.1.1 Specifying a transducer If you have activated the options Find and use TEDS when restarting devices or Find and use TEDS in run- ning operation in one channel using PREPARE MEA- SUREMENT  Amplifier ...
  • Page 26 Potentiometer types of transducer are often used for the measurement quantities of displacement and angle. A measuring range of 1 V/V is set automatically for these transducers (fix); internally, the MP85A uses the same circuit as for half bridges. We recommend that the characteristic is measured this type of transducer.
  • Page 27 Prepare MP85A for your application LVDT The LVDT principle (Linear Variable Differential Trans- former) is often used for inductive displacement trans- ducers where the measuring ranges are 500 mV/V up to 1 V/V. However, displacement transducers with a half bridge and output signals below 100 mV/V are also common, so check the details in the data sheet.
  • Page 28 200 m. Please check the admissible values for your trans- ducer (see transducer data sheet). With transducers with the SSI interface the measurement is always read out 1200 times per second by the MP85A in response to an acceptance signal sent to the trans- ducers.

  • Page 29: Adjusting The Measuring Chain

    For active transducers, incremental transducers or trans- ducers with the SSI interface the supply can be provided via the MP85A (5 V) or an external power supply unit (10 … 30 V). The setting is made using a switch in the device;...
  • Page 30 Prepare MP85A for your application 3.1.2.1 Introduction and comparison of the proce- dures Transducers with linear characteristic must be used for all procedures, i.e. transducers where the input quantity (physical), e.g. force, and the output quantity (electrical), e.g. mV/V, show a linear connection. In other words: for linear force sensors, the outgoing signal is twice as high when the force is double.
  • Page 31 Prepare MP85A for your application transducer that is mounted at an angle to the load in- put direction will only measure a part of the force ex- hibited. This error can only be recognized by calibrat- ing with direct load.
  • Page 32 Find and use TEDS on device restart and Find and use TEDS during operation of device. After restarting the MP85A (switch power off and on again), a search will be made for transducers with TEDS. They will be activated if found. If you cannot restart or if no full bridge, half bridge or LVDT transducer is con- nected, you must click on Find and use TEDS.
  • Page 33 TEDS module has been recognized in the channel. indicates that all TEDS settings that could be carried out by the MP85A have been activated. (For example the template “Calibration table” is not supported as the MP85A can only make linear scaling.) indicates that not all settings could be activated.
  • Page 34 Prepare MP85A for your application SUREMENT  Amplifier  TEDS, you cannot then set the characteristic curve in any of the channels and can only display the set values. If required, deactivate these options to be able to make entries and then activate them again.
  • Page 35 Prepare MP85A for your application  The scaling can extend from 1/30 of the measuring range for 1,000,000 digits resolution to 10 digits resolution for the whole measuring range. With usage as a counter or with SSI transducers the scaling can be between 20 digits for one pulse (1:20) and 10,000 pulses per displayed digit (10,000:1).
  • Page 36 Prepare MP85A for your application Enter characteristic curve: Example 1 Force transducer with sensitivity 2.00147 mV/V (calibration certificate) at 50 kN nominal load Transducer: Measuring 4 mV/V range Zero-point electrical Zero-point physical Sensitivity electrical 2.00147 Nominal value physical  After these entries call the...
  • Page 37 Prepare MP85A for your application Enter characteristic curve: Example 3 Potentiometric transducer with 150 mm nominal measuring displacement Transducer: Measuring fix (1 V/V) range Zero-point electrical -500 mV/V Zero-point physical Sensitivity electrical 1000 mV/V Nominal value physical  We recommend that the characteristic is measured this transducer type.
  • Page 38 Prepare MP85A for your application 3.1.2.4 Measure transducer characteristic If you have activated the options Find and use TEDS on device restart or Find and use TEDS during operation of device for one channel using PREPARE MEASURE- MENT  Amplifier ...
  • Page 39 MP85A appears under 2nd point electrical.  Use Shunt: On to activate the shunt built into the MP85A. This resistor (87,1 k  ) is switched in parallel to bridge arm 2 and results in a signal of approximately +1 mV/V with a 350 ...

  • Page 40: Signal Conditioning (Zero Balance, Low-Pass Filter)

    Prepare MP85A for your application always specified symmetric to the mechanical zero point of the transducer and therefore must be determined first: 1. Set the Zero value to 0 (enter 0 and press ) in the Signal conditioning dialog. 2. Call the Display current values window via MEA- SURE + VISUALIZE.
  • Page 41 Prepare MP85A for your application Overwrite zero value on change of parameter set. The setting always applies to both channels and independent setting is not possible. When a value is entered in the Zero reference, this is then always displayed if the value shown under Zero value is measured.

  • Page 42: What Needs To Be Considered When Zero Balancing And How Long Does It Take

    Prepare MP85A for your application band. More data can be found in the Operating Manual of the MP85A. • To exclude run-time differences caused by different filter frequencies, only the same filter frequency can be used for both channels, the other channel will be automatically changed.

  • Page 43: How Are The Sample Rate And Filter Settings Connected

    Prepare MP85A for your application How are the sample rate and filter set- tings connected? Depending on the filter used, a certain (internal) sample rate is used initially, see table. Internal sample rate Low-pass filter (in samples per second) 0.05 Hz 1.15...
  • Page 44 Prepare MP85A for your application itself, i.e. the measurement and calculation either by a command via the interface or by a digital input. You can read out the status information Transducer test result… via the interface or as a digital output.

  • Page 45: What Is The Procedure For A Transducer Test And What Needs To Be Considered

    Prepare MP85A for your application 3.3.2 What is the procedure for a transducer test and what needs to be considered? With low filter cut-off frequencies the filter settling time must be allowed to pass before the test. A pulse of at least 5 ms duration is required on the digital input for the transducer test.
  • Page 46 Prepare MP85A for your application output when a limit value is triggered specify it in the Dig- ital outputs menu.  Limit values can be defined, but nevertheless deactivated (Monitoring: off). In this case all the settings are retained. Using Graph ...

  • Page 47: Digital Outputs

    Prepare MP85A for your application Considering the status in evaluation The function Consider status in evaluation enables you to specify values which have to be exceeded or undercut in order that a process is assessed as OK. When acti- vated, these limit values are taken into account in the pro- cess evaluation in addition to the specified windows, the tolerance band or the envelope curve, i.e.
  • Page 48 Manual. You will find diagrams which show the measure- ment sequence and the corresponding digital levels in section Timing diagrams for different Start/Stop/End con- ditions.  Different outputs are available depending on the MP85A type. Possible settings Setting Description Limit value …, Limit value status of this channel is output.
  • Page 49 Prepare MP85A for your application Setting Description The process or operation has been started. Process: Started See also Timing diagrams for different Start/Stop/End conditions The operation or process was started. Process: Running See also Timing diagrams for different Start/Stop/End conditions The operation or process has been finished.
  • Page 50 Loading parameter after the switchover, which can take up to 200 ms; the MP85A is only ready for measurement again after the switchover. Consequently, as long as the signal is active, no new process can be started.

  • Page 51: Digital Inputs

    Prepare MP85A for your application Example: Set a digital output via software To set Output 1 (Terminal 3, Out 1) via a software instruc- tion (SDO) (switching logic positive), specify the value 1 in the index 2320 (hex), subindex 0. This sets Bit 0, corre- sponding to Output 1.
  • Page 52 Start/End process—Start transducer test—Clear statis- tics—Clear total statistics—Save statistics.  Different inputs are available depending on the MP85A type. You may use up to four additional “software” digital inputs with the MP85ADP-S (version for switch and haptic testing), if the single digital input provided by the MP85ADP-S is not sufficient.
  • Page 53 Prepare MP85A for your application Possible settings Setting Description Corresponds to the zero adjustment under PREPARE Zero balance MEASUREMENT  Amplifier  Signal conditioning. See also Signal conditioning Corresponds to activation of the shunt resistance (Shunt: Enabled) under PREPARE MEASUREMENT Shunt calibration ...
  • Page 54 The switching time points are also displayed in a haptic test if an input has been allocated. See also Haptic test MP85A-S only, i.e. with switch test and haptic test option See also FAQ: MP85A and PME Assistant MP85A a3387-1.1 en HBM: public...

  • Page 55: Settings For Monitoring Using Tolerance Windows

    We recommend that you proceed as described in section Principal procedure if you are adjusting these settings for the first time. • Principal procedure • General information about the Configure evaluation parameters window • Control settings • Alarm window • Range window MP85A a3387-1.1 en HBM: public...

  • Page 56: Principle Procedure

    EASYteach Principle procedure  When you first use a new MP85A, the presetting (factory setting) for the alarm window and the range window corner points are identical, i.e. both windows are on top of each other. The presetting for the corner points is -10/-10 and +10/+10.
  • Page 57 Tolerance windows. Step 6 Set the Start, Stop and End conditions for the process on Control settings tab. Check and, if necessary, correct the data reduction settings and the Alarm and Range window settings. MP85A a3387-1.1 en HBM: public...

  • Page 58: The Configure Evaluation Parameter Window

    (toolbar). The line immediately above the graph in the dialog window shows the device name (General set- tings), the active parameter set and the workpiece name (Data storage), if this was set. MP85A a3387-1.1 en HBM: public...
  • Page 59 Settings for monitoring using tolerance windows Status messages comprise icons and text and are dis- played in the bottom line of the dialog window: indicates a fault in the MP85A shows that a MultiMediaCard or SD Card has been inserted...

  • Page 60: Control Settings

    The resolution selected can be seen on each curve after a measurement: the measuring points used for the evaluation are also displayed in the graph (Graph  Graph settings  Curve with connected points). After MP85A a3387-1.1 en HBM: public...

  • Page 61: Maximum Measuring Time

    ( ), send an interface command or use the external signal to end the process before the evaluation starts. The interface commands can be found in the MP85A Operating Manual under “Interface Description CAN/Pro- fibus/Ethernet”. MP85A a3387-1.1 en HBM: public...

  • Page 62: Start Conditions

    “Interface Description CAN/PRO- FIBUS/Ethernet” of the MP85A. No process (no measurement) is started as long as a transducer error is present and the MP85A is not capable of measuring. The process is also started when you have chosen starting via an external signal or internal condition and one of the two latter events occurs.
  • Page 63 3. Stop at reverse motion of channel x The operation is stopped as soon as the measured value in the x channel is smaller than the  x entered for the Data reduction. 4. External end signal (Stop condition None) MP85A a3387-1.1 en HBM: public...
  • Page 64 (event “End”), if you click on or if the corresponding interface command is issued. You can find the interface commands in the MP85A Operating Manual “Interface Description CAN/Pro- fibus/Ethernet”. • All Stop conditions are immediately evaluated using the (raw) data.
  • Page 65 For the Below limit condition the hysteresis lies above the reference value. Abb. 2: Example of stop/end condition: Undercutting ref- erence value on x channel For the Below limit condition the hysteresis lies above the reference value. MP85A a3387-1.1 en HBM: public...

  • Page 66: End Conditions

    1. With an external signal (Start/End process) or manu- ally via . An interface command works in the same way as the manual control. You can find the interface commands in the MP85A Operating Manual “Interface Description CAN/Pro- fibus/Ethernet”. MP85A a3387-1.1 en HBM: public...
  • Page 67 . The percentage refers to the respective axis of the range window. See Example End condition: below reference value in x channel and Example End condition below reference value in y channel MP85A a3387-1.1 en HBM: public...
  • Page 68 (RAM). If this is not the case, the system must wait, i.e. the test stand is stopped. For the Above limit condition the hysteresis lies below the reference value Abb. 4: Example of a start condition: exceeding an x channel reference value MP85A a3387-1.1 en HBM: public...
  • Page 69 For the Above limit condition the hysteresis lies below the reference value. Abb. 5: Example of a start condition: exceeding a y chan- nel reference value For the Below limit condition the hysteresis lies above the reference value. MP85A a3387-1.1 en HBM: public...
  • Page 70 Settings for monitoring using tolerance windows Abb. 6: Example of stop/end condition: Undercutting ref- erence value on x channel For the Below limit condition the hysteresis lies above the reference value. MP85A a3387-1.1 en HBM: public...

  • Page 71: Alarm Window

    Alarm window  When you first use a new MP85A, the presetting (factory setting) for the alarm window and the range window corner points are identical, i.e. both windows are on top of each other. The presetting for the corner points is -10/-10 and +10/+10.

  • Page 72: Range Window

    Range window  When you first use a new MP85A, the presetting (factory setting) for the range window and the alarm window corner points are identical, i.e. both windows are on top of each other. The presetting for the corner points is -10/-10 and +10/+10.
  • Page 73 In practice, the section marked red is not required for the evaluation and is omitted, see figure 2. See also Alarm window, Important information about toler- ance windows MP85A a3387-1.1 en HBM: public...

  • Page 74: Test Measurement (Start Measurement Manually)

    Abb. 9: Example of the application of a range window Test measurement (start measure- ment manually) Start a measurement manually or allow the measurement to be carried out automatically in order to be able to use MP85A a3387-1.1 en HBM: public...
  • Page 75 Standstill recognition with a correspond- ingly long time. No process (no measurement) is started as long as a transducer error is present and the MP85A is not capable of measuring. The status of the measurement (measuring or finished) is shown on the left-hand side of the status line at the bottom of the window.

  • Page 76: Important Information About Tolerance Windows

    With an online window (evaluation in real-time) this check is carried out as soon as x is exceeded. The evaluation NOK can therefore occur with an online window as soon as is exceeded. MP85A a3387-1.1 en HBM: public...
  • Page 77 OK in this window as long as one run fulfills the conditions defined. However, if the window has been evaluated once, e.g. because the entry condition was fulfilled, the window is no longer considered. MP85A a3387-1.1 en HBM: public...
  • Page 78 The side edges of a window may not overlap. For example, you cannot pull the bottom right-hand corner over the top right-hand corner. Abb. 10: Monitoring x on entry Abb. 11: Consider window sequence: Example 2 MP85A a3387-1.1 en HBM: public...

  • Page 79: Defining Tolerance Windows

    Settings for monitoring using tolerance windows Abb. 12: Consider window sequence: Example 3 Abb. 13: Possible window shapes Abb. 14: Impermissible window shapes Defining tolerance windows Tolerance windows must lie inside the range window. MP85A a3387-1.1 en HBM: public...

  • Page 80: Creating And Modifying Tolerance Windows

    Test measurement (start measurement manually), Data reduction 4.8.1 Creating and modifying tolerance windows Creating tolerance windows Up to nine windows can be defined, four of them may be real-time windows. The windows are created in the graph MP85A a3387-1.1 en HBM: public...
  • Page 81 Click on the window name in the graph to display the window settings. Click on Change on the Tolerance window tab to call the properties dialog and change settings. See also Important information about tolerance windows MP85A a3387-1.1 en HBM: public...

  • Page 82: Window Active

    OK. In example 1 manufacturing tolerances are monitored which indicate wearing of certain tool parts (Error 1 to 4). Abb. 15: Tool wear: Example 1 MP85A a3387-1.1 en HBM: public...

  • Page 83: Crossing Window With Min/Max Evaluation

    The window for this evaluation must be rectangular; the evaluation is carried out after the measurement. The corner points are changed automatically by the program if required. Details about entry and exit are not considered with this evaluation and are also not needed. MP85A a3387-1.1 en HBM: public...

  • Page 84: Crossing Window With Evaluation Of The X Mean

    Example: The mean is obtained of all x readings between and y . Then a check is made of whether this mean lies within the window shown in red here. MP85A a3387-1.1 en HBM: public...

  • Page 85: Y Limit

    This type of window is suitable for initiating trigger signals or for monitoring minimum values and is usually combined with the option Evaluate window in real time or Con- sider window sequence. MP85A a3387-1.1 en HBM: public...

  • Page 86: Limit

    This type of window is suitable for initiating trigger signals or for monitoring minimum values and is usually combined with the option Evaluate window in real time or Con- sider window sequence. MP85A a3387-1.1 en HBM: public...

  • Page 87: Block Window (End Window)

    "Open" to "Closed", otherwise specify Open. The check is made via one of the digital inputs of the MP85A-S; specify the input used under Switch input. If the switch bounce is to be ignored, activate the appro- MP85A a3387-1.1 en HBM: public...
  • Page 88  appears as a tag on the plot with I1:1 above it. In the following example switch-on occurs in the window (OK), switch-off outside (NOK); Input 3 is used as a digital input. MP85A a3387-1.1 en HBM: public...

  • Page 89: 4.8.11 Haptic Test

    4.8.11 Haptic test  The functions for the haptic test are only available with an MP85A-S (version for the switch test). The haptic test checks how the switch in this window changes its state, i.e. the "feel" during operation. Specify the required forces and displacements for this in the haptic test dialog: Set button.
  • Page 90 F . The restoration force is the force at r max which the spring mechanism switches back. The min- imum restoration force F is determined by the r min lower edge of the window. MP85A a3387-1.1 en HBM: public...

  • Page 91: Evaluation In Real Time Window Option (Online Window)

    However, with this option you can only use a rectangular window. The option also excludes evaluation via relative coordinates (relative window), because they are only fixed after the measure- ment. For a crossing window with min/max evaluation in MP85A a3387-1.1 en HBM: public...
  • Page 92 A maximum of four windows can be evaluated in real time. The window sequence can also be taken into account with evaluation in real time. MP85A a3387-1.1 en HBM: public...

  • Page 93: 4.8.13 Consider Window Sequence

    (Example 2): the MP85A a3387-1.1 en HBM: public...
  • Page 94 Examples • In Example 3 the curve must first cross Window 1 and then Window 2. Since the MP85A always monitors coordinate ranges, with the simultaneous monitoring of both windows without a sequence and the entry and exit directions identified by the blue arrows Window 1 would be evaluated as “OK”...
  • Page 95 Even the sequence F1  F2  F3 was main- tained here, so the process is “OK”. If however, as in Example 8 the Window F2 were larger, then the entry MP85A a3387-1.1 en HBM: public...
  • Page 96 Settings for monitoring using tolerance windows condition would be infringed and the total process would be “not OK”. Abb. 17: Consider window sequence: Example 1 Abb. 18: Consider window sequence: Example 2 MP85A a3387-1.1 en HBM: public...
  • Page 97 Settings for monitoring using tolerance windows Abb. 19: Consider window sequence: Example 3 Abb. 20: Consider window sequence: Example 4 MP85A a3387-1.1 en HBM: public...
  • Page 98 Settings for monitoring using tolerance windows Abb. 21: Consider window sequence: Example 5 Abb. 22: Consider window sequence: Example 6 MP85A a3387-1.1 en HBM: public...

  • Page 99: 4.8.14 Window Option Y Coordinates Relative

    With this option you can evaluate the plot relative to the minimum, maximum or mean which has been attained within the second tolerance window. The windows linked in this way are moved upwards or downwards in parallel MP85A a3387-1.1 en HBM: public...
  • Page 100 • You must set the second window for the calculation which corresponds to the condition applied here, i.e. for the evaluation "relative to the mean" the y mean the second window must be calculated. MP85A a3387-1.1 en HBM: public...

  • Page 101: 4.8.15 Window Option X Coordinates Relative To

    (no real-time evaluation). Evaluation referenced to the end position The end position reached is set to the specified value, all x coordinates are then recalculated before the relative windows are evaluated. MP85A a3387-1.1 en HBM: public...
  • Page 102 See also Presentation differences in relative windows Abb. 25: x coordinates relative: Example 1 MP85A a3387-1.1 en HBM: public...
  • Page 103 Settings for monitoring using tolerance windows Abb. 26: x coordinates relative: Example 2 Abb. 27: x coordinates relative: Example 3 MP85A a3387-1.1 en HBM: public...

  • Page 104: 4.8.16 Evaluation For Entry And Exit Of Window

    If the settings lead to another window type, also on the left of the dialog the window will be marked as another type, e.g. if you have not entered a side for the exit, a pass-through window will become a block window (end window). MP85A a3387-1.1 en HBM: public...
  • Page 105 The exit and entry sides and window coordinates must always be seen in connection with the evaluation. The MP85A always monitors the entry side coordinates first. The exit side is unimportant at this point. As soon as the window is entered, only the exit side is then monitored.
  • Page 106 With an infringement of the specified entry and exit sides of a tolerance window there are several possible error messages. To simplify the classification of the error mes- sages, you will find possible (incorrect) plot progressions in the following illustrations with examples. MP85A a3387-1.1 en HBM: public...
  • Page 107 Settings for monitoring using tolerance windows Entry condition not fulfilled Exit condition not fulfilled Exit condition fulfilled before entry condition MP85A a3387-1.1 en HBM: public...
  • Page 108 Settings for monitoring using tolerance windows Error Min. x (x too small) Error Max. x (x too large) Error Min. y (y too small) MP85A a3387-1.1 en HBM: public...
  • Page 109 Settings for monitoring using tolerance windows Error Max. y (y too large) Switching process repeated (only for MP85A-S and switch testing) MP85A a3387-1.1 en HBM: public...
  • Page 110 Settings for monitoring using tolerance windows No switching process or an unexpected switching process (only for MP85A-S and switch testing) Switch actuating force too small (only for MP85A-S and haptic test) MP85A a3387-1.1 en HBM: public...
  • Page 111 Settings for monitoring using tolerance windows Restoration force too large (only for MP85A-S and haptic test) Differential force undercut (only for MP85A-S and haptic test) MP85A a3387-1.1 en HBM: public...
  • Page 112 Settings for monitoring using tolerance windows Differential displacement undercut (only for MP85A-S and haptic test) Force/displacement ratio undercut (only for MP85A-S and haptic test) MP85A a3387-1.1 en HBM: public...

  • Page 113: Statistics And Distribution (Bin Counting)

    Settings for monitoring using tolerance windows Click ratio undercut (only for MP85A-S and haptic test) 4.8.17 Statistics and distribution (bin counting)  To delete statistical data, see 3D graph Specify which values should be used for statistics in the third column of the evaluation matrix. The edges lying ver- tical to the entry/exit sides are normally used.
  • Page 114 3.  Measuring reference curves also creates statistical values. Therefore deactivate the statistical data handling or delete the statistics after such measuring operations. Statistical data handling, 3D graph (MEASURE + VISUALIZE) MP85A a3387-1.1 en HBM: public...
  • Page 115 Settings for monitoring using tolerance windows Abb. 30: Class division for the statistics (y min/max) Abb. 31: Class division for the statistics (trapezoidal win- dow) MP85A a3387-1.1 en HBM: public...
  • Page 116 Settings for monitoring using tolerance windows 4.8.17.1 Bin counting (distribution) for statistics Abb. 32: Class division for the statistics (x min/max) MP85A a3387-1.1 en HBM: public...
  • Page 117 Settings for monitoring using tolerance windows Abb. 33: Class counting in NOK windows MP85A a3387-1.1 en HBM: public...
  • Page 118 Settings for monitoring using tolerance windows MP85A a3387-1.1 en HBM: public...

  • Page 119: Monitoring With Tolerance Band: Settings

    We recommend that you proceed as explained in the sec- tion Basic procedure, if you are making these settings for the first time. • Basic procedure • General information about the Set evaluation parame- ters window • Control settings MP85A a3387-1.1 en HBM: public...

  • Page 120: Principle Procedure

    Tolerance band Initiate a measurement sequence manually (trial mea- surement) to determine a suitable tolerance band.  With the version for switch and haptic testing, MP85A-S, it is not possible to monitor the tolerance band. Refer also to EASYteach Principle procedure ...
  • Page 121 Step 6 Set the Start, Stop and End conditions for the process on Control settings tab. Check and, if necessary, correct Data reduction settings and the Alarm and Range window settings. MP85A a3387-1.1 en HBM: public...

  • Page 122: The Configure Evaluation Parameter Window

    (Data storage), if this was set. Status messages comprise icons and text and are dis- played in the bottom line of the dialog window: indicates a fault in the MP85A shows that a MultiMediaCard or SD Card has been inserted MP85A a3387-1.1 en HBM: public...
  • Page 123 Use or go to Graph  Reset zoom to display the full area (alarm window). Use Graph  Graph settings to display the Curve with connected points or superimpose a Grid. MP85A a3387-1.1 en HBM: public...

  • Page 124: Control Settings

    (toolbar). Only saved values will be checked against the tolerance band. MP85A a3387-1.1 en HBM: public...

  • Page 125: Maximum Measuring Time

    ), send an interface command or use the external signal to end the process before the evaluation starts. The interface commands can be found in the MP85A Operating Manual under “Interface Description CAN/Pro- fibus/Ethernet”. As a rule, an End condition is used to end a process.

  • Page 126: Start Conditions

    “Interface Description CAN/PRO- FIBUS/Ethernet” of the MP85A. No process (no measurement) is started as long as a transducer error is present and the MP85A is not capable of measuring. The process is also started when you have chosen starting via an external signal or internal condition and one of the two latter events occurs.
  • Page 127  x entered for the Data reduction. 4. External end signal (Stop condition None) A digital input (Start/End process), for example from an end switch or the PLC, signals the end. This also stops the process. MP85A a3387-1.1 en HBM: public...
  • Page 128 (event “End”), if you click on or if the corresponding interface command is issued. You can find the interface commands in the MP85A Operating Manual “Interface Description CAN/Pro- fibus/Ethernet”. • All Stop conditions are immediately evaluated using the (raw) data.
  • Page 129 Monitoring with tolerance band: settings Abb. 35: Example of stop/end condition: Undercutting ref- erence value on x channel For the Below limit condition the hysteresis lies above the reference value. MP85A a3387-1.1 en HBM: public...

  • Page 130: End Conditions

    1. With an external signal (Start/End process) or manu- ally via . An interface command works in the same way as the manual control. You can find the interface commands in the MP85A Operating Manual “Interface Description CAN/Pro- fibus/Ethernet”. MP85A a3387-1.1 en HBM: public...
  • Page 131 . The percentage refers to the respective axis of the range window. See Example End condition: below reference value in x channel and Example End condition below reference value in y channel MP85A a3387-1.1 en HBM: public...
  • Page 132 (RAM). If this is not the case, the system must wait, i.e. the test stand is stopped. For the Above limit condition the hysteresis lies below the reference value Abb. 37: Example of a start condition: exceeding an x channel reference value MP85A a3387-1.1 en HBM: public...
  • Page 133 For the Above limit condition the hysteresis lies below the reference value. Abb. 38: Example of a start condition: exceeding a y chan- nel reference value For the Below limit condition the hysteresis lies above the reference value. MP85A a3387-1.1 en HBM: public...
  • Page 134 Monitoring with tolerance band: settings Abb. 39: Example of stop/end condition: Undercutting ref- erence value on x channel For the Below limit condition the hysteresis lies above the reference value. MP85A a3387-1.1 en HBM: public...

  • Page 135: Alarm Window

    Alarm window  When you first use a new MP85A, the presetting (factory setting) for the tolerance band, the alarm window and the range window corner points are identical, i.e. all windows are on top of each other. The presetting for the corner points is -10/-10 and +10/+10.

  • Page 136: Range Window

    Range window Range window  When you first use a new MP85A, the presetting (factory setting) for the range window and the alarm window corner points are identical, i.e. both windows are on top of each other. The presetting for the corner points is -10/-10 and +10/+10.
  • Page 137 (marked red) is rela- tively large and is not necessary for the current evalua- tion. In practice, the section marked red is not required for the evaluation and is omitted, see figure 2. See also Alarm window MP85A a3387-1.1 en HBM: public...

  • Page 138: Test Measurement (Start Measurement Manually)

    Monitoring with tolerance band: settings Abb. 41: Example of a process for a range window Abb. 42: Example of the application of a range window Test measurement (start measure- ment manually) There are three possibilities of doing this: MP85A a3387-1.1 en HBM: public...
  • Page 139 No process (no measurement) is started as long as a transducer error is present and the MP85A is not capable of measuring. The status of the measurement (measuring or finished) is shown on the left-hand side of the status line at the bottom of the window.

  • Page 140: Defining A Tolerance Band

    Monitoring with tolerance band: settings Defining a tolerance band  When you first use a new MP85A, the presetting (factory setting) for the tolerance band corner points is -10/-10 and +10/+10. Procedure 1. Make one or a few measurements as described in Test measurement (start measurement manually).
  • Page 141 If you want to exclude part of the measured curve via a range window, the tolerance band should extend beyond this side of the range window. Otherwise the curve will always be evaluated as NOK (not okay). MP85A a3387-1.1 en HBM: public...
  • Page 142 Therefore deactivate the statistical data han- dling or delete the statistics after such measuring operations. Statistical data handling, 3D graph (MEASURE + VISUALIZE) See also Alarm window, Range window, Test measure- ment (start measurement manually), Data reduction MP85A a3387-1.1 en HBM: public...

  • Page 143: Monitoring With Envelope Curve

    (no outward and return movement). When monitoring with an envelope curve, no measure- ment (no process) is started while a transducer error is present and the MP85A therefore cannot take measure- ments. Note •...
  • Page 144 Monitoring with envelope curve Refer to Statistical processing, 3D graph (MEASURE + VISUALIZE). Refer also to Plus Tools. MP85A a3387-1.1 en HBM: public...

  • Page 145: Saving Results, Data Storage

    Oth- erwise you must reduce the number of values to be stored MP85A a3387-1.1 en HBM: public...
  • Page 146 Storage medium MultiMediaCard/SD Card (target MMC/SD Card internal) Measuring curves, measuring results and parameter sets can be saved on the optional MMC/SD Card storage card. Depending on the card you can save a different amount of MP85A a3387-1.1 en HBM: public...
  • Page 147 The rate at which the data is transferred is restricted internally. MMC or SD Cards must use FAT16 format in order to be recognized by the MP85A, no NTFS format. If necessary, re-format your card. To optimize the access times of the MMC/SD Card, the card should be defragmented or re-formatted at regular intervals.

  • Page 148: Storage Medium External (Storage Via Can Bus Or Ethernet)

    MP85A Operating Manual. Data is only saved on the PC if a connection between PC and MP85A exists and one of the programs PME Assis- tant, EASYmonitor or INDUSTRYmonitor has been started. The respective program may however be mini- mized.

  • Page 149: Storage Methods

    See Timing diagram for a measurement with no data loss 2. Optimized process If data is not saved quickly enough on the PC or MMC/SD Card, the last data cannot be stored in the MP85A a3387-1.1 en HBM: public...

  • Page 150: Files To Save

    R85 (R = result) is used as the file name extension. Files with the R85 file name extension can also be imported into Excel; refer to File formats. MP85A a3387-1.1 en HBM: public...

  • Page 151: File Names And Directories

     In order that all data can be read into Excel (R85 file name extension), there is a special macro from HBM which imports all data still present after the import into column 256 of the first worksheet to the next (second) worksheet.
  • Page 152 (2 characters) and pro- cess number (6 characters), an underscore (_) and the CAN ID or the last group of the Ethernet address of the respective MP85A. The file extension depends on the type of file saved. Example for a results file: H3KL25__03000001_110.R85 describes the first file cre-...

  • Page 153: File Formats

    Retrieve saved data File formats ASCII and QDAS are available as file formats. Importing data to Excel You can also import files with the file extension R85 into Excel. When importing, state that the single values are MP85A a3387-1.1 en HBM: public...
  • Page 154 “UTILS\MP85A-ExcelMacro-Import_R-Files”. During the import the numbers for CAN index and sub- index are also converted so that they are easier to find in the tables of the MP85A operating manual in the section Interface description. Procedure for running the macro 1.
  • Page 155 1000 0000 0000 0000, i.e. only Bit 15 is set. Manual conversion of the coded details in the R85 files In order to translate the coded details in the R85 files yourself (without using the macro LargeDatabaseImport), MP85A a3387-1.1 en HBM: public...
  • Page 156 You can then assign these values to a command using the Interface description sec- tion in the MP85A operating manual. The values in the individual rows must be interpreted according to the spec- ifications (Float, UINT16, INT32) which are listed for the corresponding command.

  • Page 157: Save Statistical Data, Statistical Processing

    (safe from power failure) in the flash EPROM using Save in flash. Saving the statistical data also occurs automatically on switching off the device and – if set – at regular time inter- vals: Save statistical data automatically: On. MP85A a3387-1.1 en HBM: public...
  • Page 158 Since this is only ensured after about ten minutes after switching on, the data are immediately saved to the flash EPROM in this period after a change. MP85A a3387-1.1 en HBM: public...

  • Page 159: Save/Load Parameters

    This menu contains several submenus which are described in the following. Save all settings secure from power supply failure in the flash EPROM of the MP85A Here, provide a unique name for each parameter set. It is displayed during operation, e.g. in the graphs.
  • Page 160 Each parameter set contains all the settings and system parameters appli- cable at the time of saving. Also, those settings are saved which apply commonly to all parameter sets. MP85A a3387-1.1 en HBM: public...
  • Page 161 From firmware version 2.3 the same also applies when saving or loading from the PC or the MMC/SD Card: the system parameters are not restored. The system parameters are only also restored with a Restore (Restore PC -> flash). MP85A a3387-1.1 en HBM: public...
  • Page 162 XML format and up to 999 parameter sets in binary format; on the PC there is no limit. Files in XML format can be read both by an MP85A with any firmware version and also by other programs, e.g. you can evaluate the data via XML and XSLT.
  • Page 163 SAVE/LOAD PARAMETERS can only be loaded via the PME Assistant or an inter- face command. Refer also to Save results, Data storage, Retrieve saved data, General settings File names and folders. MP85A a3387-1.1 en HBM: public...
  • Page 164 SAVE/LOAD PARAMETERS MP85A a3387-1.1 en HBM: public...

  • Page 165: Measure + Visualize

    You can also double click in the Windows Explorer on all result or curve files. This opens the Retrieve saved data window and loads and displays the data. See also FAQ: MP85A and PME Assistant Display current values (measurement display) This window displays the currently measured values and information about the status of the limit switches (if defined).
  • Page 166 TEDS module has been recognized in the channel. indicates that all TEDS settings that could be carried out by the MP85A have been activated. (For example, the “Calibration table” template is not supported as the MP85A can only carry out linear scaling.)
  • Page 167 See also timing diagrams for process-optimized mea- full surement and measurement with no data loss If the memory is full, no ready message is issued, i.e. the test stand is stopped, until there is again enough space available. MP85A a3387-1.1 en HBM: public...

  • Page 168: Possible Error Messages And Instructions For Correction

    It is also possible that a Transducer error amplifier in the displacement transducer is not posi- [TrnsdErr] MP85A is over- tioned correctly (core is outside mea- loaded suring range) or a transducer or cable is faulty. The problem is similar to that encoun- tered with transducer error.
  • Page 169 CAN bus. This may be a one-time error. Please re-start the MP85A (switch off and Internal calibra- The factory cali- switch on after 30 seconds). If this...
  • Page 170 Storage medium MultiMediaC- ard/SD Card See also Status information, Display current values (mea- surement and status display), What do the LEDs on the MP85A mean?, Timing diagrams for different Start/Stop/End conditions MP85A a3387-1.1 en HBM: public...

  • Page 171: What Limitations Apply For (Transducer) Scaling

    You will see the process number and the number of mea- suring points acquired (see Control settings) on the right- hand side of the top line in the window (toolbar). The line MP85A a3387-1.1 en HBM: public...
  • Page 172 Status messages comprise icons and text and are dis- played in the bottom line of the dialog window: indicates a fault in the MP85A shows that a MultiMediaCard or PC Card (MMC/SD Card) has been inserted...
  • Page 173 Curve history mode to display up to five successive measured curves simultaneously. These may be used for comparison purposes. The current curve is displayed in red, all others in gray. After the menu point has been activated, use delete all displayed curves. MP85A a3387-1.1 en HBM: public...
  • Page 174 (example 2). Therefore the history curves are hidden in the absolute MP85A a3387-1.1 en HBM: public...
  • Page 175 However, the history curves are not deleted and you may toggle at any time between absolute display (current curve) and relative display (with history). Abb. 43: Differences with relative windows: Example 1 Abb. 44: Differences with relative windows: Example 2 MP85A a3387-1.1 en HBM: public...

  • Page 176: Results Of The Last Measurement

    999,999 and then begins again at 1. The number is also included in the file name, see File names and directories. • Parameter set number: specifies which MP85A Parameter set was used when the measurement was carried out. •...

  • Page 177: Statistics

    The two windows available under Statistics are used for the display of the statistical data obtained during the mea- surements, i.e. the process results (refer also to Statistics and classification of tolerance windows). The statistical MP85A a3387-1.1 en HBM: public...

  • Page 178: Graph

    With toler- ance windows which form the mean no statistical data is calculated. With a switch test (only MP85A-S), in addition No switching process is displayed when the switch has not changed its state or Switch process repeated if mul- tiple switching has taken place.

  • Page 179: Distribution (Bin Counting)

    OK/NOK counters and the statistical evaluation, see Save statistical data, statistical data handling. 9.4.2 Distribution (bin counting) This window is used for “detailed evaluation”. You can dis- play statistical data for a certain parameter set and toler- MP85A a3387-1.1 en HBM: public...

  • Page 180: Retrieve Saved Data

    In the window Retrieve saved data you can reload and display files which have been produced using Data storage and saved on the PC. As required, copy the files from the MMC/SD Card to the PC. Use this window too for MP85A a3387-1.1 en HBM: public...
  • Page 181 4. Depending on which data you have saved, you can load from the displayed files by simply clicking: • Process data, i.e. window coordinates or envelope curve or tolerance band and statistical data, if you have selected Save results (*.R85) in Data storage. MP85A a3387-1.1 en HBM: public...
  • Page 182 • In the table the window type (haptic or switch, i.e. switch test) is displayed after the window name. During a switch test the switching coordinates are dis- MP85A a3387-1.1 en HBM: public...

  • Page 183: Files On Mmc/Sd Card (Copy To/From Pc)

    • In order that all data can be read into Excel (R85 file name extension), there is a special macro from HBM which imports all data still present after the import into column 256 of the first worksheet to the next (second) worksheet.
  • Page 184 Add device address and workpiece description to PC file name: The CAN ID or the last group of the Ethernet address of the respective MP85A and the workpiece description (if assigned) is added to the file name. This leads to the same file names as if saving directly on the...

  • Page 185: Plus Tools

    You can define a new password at any time (Modify). However, do not forget to save this password, as you will have to send the device to HBM to be reset if you forget it. Use Save to file or Load from file if you wish to use dif- ferent profiles (activation settings).
  • Page 186 However the Configure evaluation parameter window may not be active when calling, otherwise the PME Assis- tant will be blocked as long as EASYteach is still running. Further information can be found in the EASYteach Online Help. MP85A a3387-1.1 en HBM: public...

  • Page 187: Options

    With this option you also see a window in which the corresponding message is displayed.  If a connection to the device is interrupted, the PME Assistant tries approx. every five seconds to reconnect the device. MP85A a3387-1.1 en HBM: public...
  • Page 188 Options MP85A a3387-1.1 en HBM: public...

  • Page 189: How Do I Adjust The Interface On The Mp85A

    IP address (Ethernet address) and subnet mask you have to set. If you only want to establish a direct link between a PC and the MP85A, you can use any address, e.g. 192.168.169.xxx. The last group of three figures (xxx) must be a number between 1 and 254 and different for the PC and the MP85A.
  • Page 190 FAQ: Questions and answers about MP85A and PME Assistant Setting the address and subnet mask on the MP85A: 1. Press the SET key for at least two seconds. The display CAN BUS appears. 2. Press the + key until ETHERNET appears in the dis- play.
  • Page 191 FAQ: Questions and answers about MP85A and PME Assistant  You do not need to terminate or close the online help when you terminate the PME Assistant software. Setting the baud rate on the MP85A 1. Press the SET key for at least two seconds.

  • Page 192: 12.2 How Do I Set The Ip Address On My Pc

    FAQ: Questions and answers about MP85A and PME Assistant 12.2 How do I set the IP address on my PC? Procedure with Windows 10 1. Open, for example using the symbol in the notifi- cation area of the taskbar, the Network and Sharing Center.
  • Page 193 FAQ: Questions and answers about MP85A and PME Assistant Network and Sharing Center (Display: Small icons) or Display network status and tasks (Dis- play: Categories). 2. In the area View active networks click on the intended link (usually LAN Connection).
  • Page 194 FAQ: Questions and answers about MP85A and PME Assistant 2. Click on Properties and specify an administrator account or confirm the confirmation query. 3. Mark Internet Protocol Version 4 (TCP/IPv4) and click on Properties. 4. Activate Use the following IP address and enter an...

  • Page 195: How Do I Connect The Pme Assistant To The Mp85A

    4. Enter the interface used. CAN bus: If necessary, select the CAN network to be used (Change). Ethernet (MP85A only): If you do not wish to search through all segment addresses (all addresses that have a field with a yellow background) with Scan, you can enter the individual IP addresses and insert these in the list of available devices.

  • Page 196: How Do I Recognize The File System On My Pc And Which Should I Use

    PME Assistant from the Internet. • MP85A only: If you wish to connect a device via the Ethernet interface and there is already another con- nection with the MP85A via this interface, you may disconnect this only if you confirm the new connection by entering the number shown in the dialog.

  • Page 197: How Do The Options In The Start Window Of The Pme Assistant Work

    FAQ: Questions and answers about MP85A and PME Assistant You need the NTFS file system if you record many pro- cesses. In this case, during a check more than 65,000 files may exist on the PC which requires NTFS. See also...
  • Page 198 FAQ: Questions and answers about MP85A and PME Assistant Automatically load all dialogs last time used: All win- dows and dialogs will have the same size and be in the same position as they were when the program was last closed.

  • Page 199: What Happens When Connecting Additionally To An Existing Ethernet Connection

    FAQ: Questions and answers about MP85A and PME Assistant The PME Assistant start window. 12.6 What happens when connecting addi- tionally to an existing Ethernet con- nection? If you wish to connect via the Ethernet interface and there is already another connection active via this interface with...

  • Page 200: 12.7 Requirements For Mmc/Sd Cards

    FAQ: Questions and answers about MP85A and PME Assistant number shown in the dialog. This ensures that the device cannot be unintentionally disconnected. By connecting with your PC the other connection is dis- connected, i.e. the other connection (PLC, other PC) will not receive any further data.

  • Page 201: How Are The Sample Rate And Filter Settings Connected

    FAQ: Questions and answers about MP85A and PME Assistant 12.8 How are the sample rate and filter set- tings connected? Depending on the filter used, a certain (internal) sample rate is used initially, see table. Internal sample rate Low-pass filter (in samples per second) 0.05 Hz...
  • Page 202 With transducers with the SSI interface however the measurement is always read out 1200 times per second by the MP85A in response to an acceptance signal sent to the transducers. One advantage is that measurements can be taken with a...
  • Page 203 FAQ: Questions and answers about MP85A and PME Assistant after the measurement in the row right at the top in the window (toolbar) on the right-hand side. Therefore, you can assess whether the number of the recorded mea- sured points is high enough, i.e. whether the resolution is fine enough for the evaluation.
  • Page 204 FAQ: Questions and answers about MP85A and PME Assistant Examples of too few measured points (x or y too large) The graph on the left leads you to think the result is OK. However the process is assessed as NOK: Since no mea- sured point lies within the window, there is neither an entry nor an exit and the result is NOK.

  • Page 205: What Possibilities Are There To Start, Stop And End The Measurement

    FAQ: Questions and answers about MP85A and PME Assistant outside of the window, so that the y coordinate is no longer relevant. Increase the number of measurements by, for example, by reducing  y (picture on the right). Then the exit at the lower edge is detected (the y value is already too low before the right edge of the window).
  • Page 206 FAQ: Questions and answers about MP85A and PME Assistant Start/end with external signal, manually or with inter- face commands You use an external signal (digital inputs) to start and stop the process or you do this manually with Interface commands have the same function and work like manual controls.
  • Page 207 FAQ: Questions and answers about MP85A and PME Assistant goes to “End”, you click on or the corresponding interface command is issued. • Only level changes (flanks) of the external signal are evaluated. Start with external signal, stop and end with condi-...
  • Page 208 FAQ: Questions and answers about MP85A and PME Assistant Start/stop/end with conditions Different conditions may be used to start, stop and end the process, e.g. start when a value is exceeded, stop and end when a value is undercut. See timing diagram d Notes •...
  • Page 209 FAQ: Questions and answers about MP85A and PME Assistant value is undercut. The end is determined by an external signal (digital inputs). See timing diagram e Notes • The process will be ended immediately without waiting for your Stop condition if the external signal goes to “End”, you click on...
  • Page 210 FAQ: Questions and answers about MP85A and PME Assistant channel and Example: Stop/End condition for under- cutting reference value y channel Start/stop with conditions, end when leaving the Start condition Different conditions may be used to start and stop the pro- cess, e.g.
  • Page 211 FAQ: Questions and answers about MP85A and PME Assistant signal (minimum start signal) to make sure that the process is not started if small disturbances occur in the signal. The hysteresis for the Stop condition is necessary so that noises or small disturbances cannot...
  • Page 212 FAQ: Questions and answers about MP85A and PME Assistant Abb. 46: Flow diagram b) for start/stop/end conditions MP85A a3387-1.1 en HBM: public...
  • Page 213 FAQ: Questions and answers about MP85A and PME Assistant Abb. 47: Flow diagram c) for start/stop/end conditions MP85A a3387-1.1 en HBM: public...
  • Page 214 FAQ: Questions and answers about MP85A and PME Assistant Abb. 48: Flow diagram d) for start/stop/end conditions MP85A a3387-1.1 en HBM: public...
  • Page 215 FAQ: Questions and answers about MP85A and PME Assistant Abb. 49: Flow diagram e) for start/stop/end conditions MP85A a3387-1.1 en HBM: public...
  • Page 216 FAQ: Questions and answers about MP85A and PME Assistant Abb. 50: Flow diagram f) for start/stop/end conditions For the Above limit condition the hysteresis lies below the reference value MP85A a3387-1.1 en HBM: public...
  • Page 217 FAQ: Questions and answers about MP85A and PME Assistant Abb. 51: Example of a start condition: exceeding an x channel reference value For the Above limit condition the hysteresis lies below the reference value. Abb. 52: Example of a start condition: exceeding a y chan-...
  • Page 218 FAQ: Questions and answers about MP85A and PME Assistant For the Below limit condition the hysteresis lies above the reference value. Abb. 53: Example of stop/end condition: Undercutting ref- erence value on x channel For the Below limit condition the hysteresis lies above the reference value.

  • Page 219: How Do I Work When Setting Up The Evaluation Criteria

    FAQ: Questions and answers about MP85A and PME Assistant Abb. 54: Example of stop/end condition: undercutting a y channel reference value 12.11 How do I work when setting up the evaluation criteria? In the test or set up phase of a system where often only a...

  • Page 220: What Needs To Be Considered When Zero Balancing And How Long Does It Take

    5. Save all process and evaluation parameters perma- nently in a parameter set in the flash EPROM of the MP85A (data will not be lost if there is a power failure), on the (optional) MMC/SD Card or on your SAVE/LOAD PARAMETERS 6.

  • Page 221: What Is The Procedure For A Transducer Test And What Needs To Be Considered

    FAQ: Questions and answers about MP85A and PME Assistant the zero balance. The zero balance terminates a further 5 ms later. Refer also to Signal conditioning (zero balance).  Only level changes, i.e. edges, are evaluated on the dig- ital inputs.

  • Page 222: What Limitations Apply For (Transducer) Scaling

    FAQ: Questions and answers about MP85A and PME Assistant  Only level changes, i.e. edges, are evaluated on the dig- ital inputs. 12.14 What limitations apply for (trans- ducer) scaling? The scaling can go from 1/30 of the measuring range for 1,000,000 digits resolution up to 10 digits resolution for the entire measuring range.

  • Page 223: What Has To Be Considered With Parameter Set Switching

    FAQ: Questions and answers about MP85A and PME Assistant 12.15 What has to be considered with param- eter set switching? Typically less than 200 ms are needed to activate a new parameter set. With very low filter cut-off frequencies the filter settling time must be added.

  • Page 224: How To Determine Changes To The Device Settings

    FAQ: Questions and answers about MP85A and PME Assistant 12.16 How to determine changes to the device settings?  Using the menu Options Modification log, you can track the configuration changes which take place via this PC and the currently logged-in (Windows) user. Once activated, all changes are logged in coded form (internal parameter IDs) in the file ChangeLog.LOG.
  • Page 225 FAQ: Questions and answers about MP85A and PME Assistant Message Reason What to do This can happen, for example, if there are The gross value high tare loads. The net value plus the Gross overflow lies outside the tare load gives the gross value.

  • Page 226: Mean

    FAQ: Questions and answers about MP85A and PME Assistant Message Reason What to do This error occurs if data is either not trans- ferred or not transferred fast enough from the RAM to the storage target. See timing diagrams process-optimized...
  • Page 227 FAQ: Questions and answers about MP85A and PME Assistant sages, you will find possible (incorrect) plot progressions in the following illustrations with examples. Entry condition not fulfilled Exit condition not fulfilled MP85A a3387-1.1 en HBM: public...
  • Page 228 FAQ: Questions and answers about MP85A and PME Assistant Exit condition fulfilled before entry condition Error Min. x (x too small) Error Max. x (x too large) MP85A a3387-1.1 en HBM: public...
  • Page 229 FAQ: Questions and answers about MP85A and PME Assistant Error Min. y (y too small) Error Max. y (y too large) MP85A a3387-1.1 en HBM: public...
  • Page 230 FAQ: Questions and answers about MP85A and PME Assistant Switching process repeated (only for MP85A-S and switch testing) No switching process or an unexpected switching process (only for MP85A-S and switch testing) MP85A a3387-1.1 en HBM: public...
  • Page 231 FAQ: Questions and answers about MP85A and PME Assistant Switch actuating force too small (only for MP85A-S and haptic test) Restoration force too large (only for MP85A-S and haptic test) MP85A a3387-1.1 en HBM: public...
  • Page 232 FAQ: Questions and answers about MP85A and PME Assistant Differential force undercut (only for MP85A-S and haptic test) Differential displacement undercut (only for MP85A-S and haptic test) MP85A a3387-1.1 en HBM: public...
  • Page 233 FAQ: Questions and answers about MP85A and PME Assistant Force/displacement ratio undercut (only for MP85A-S and haptic test) Click ratio undercut (only for MP85A-S and haptic test) MP85A a3387-1.1 en HBM: public...

  • Page 234: What Do The Leds On The Mp85A Mean

    FAQ: Questions and answers about MP85A and PME Assistant 12.19 What do the LEDs on the MP85A mean? LED 1 (OK/NOK) LED 1 (OK/NOK) / LED red LED yellow LED green Process status blinking Initializing after device power-on Alarm Process started...
  • Page 235 FAQ: Questions and answers about MP85A and PME Assistant LED 2 (status) / MP85A device LED red LED yellow LED green blinking status Transducer error, ADC overflow or gross overflow (one or both chan- nels) LCD error CAN bus: send- ing/receiving data “Pre-operational”...

  • Page 236: What Should Be Observed When Saving Process Data, Curves Or Process Results

    Data is only saved on the PC if a connection between PC and MP85A exists and one of the programs PME Assis- tant, EASYmonitor or INDUSTRYmonitor has been started. The respective program may however be mini- MP85A a3387-1.1 en HBM: public...
  • Page 237 FAQ: Questions and answers about MP85A and PME Assistant mized. The EASYmonitor and INDUSTRYmonitor pro- grams are components of the FASTpress Suite. In the presetting, the files are saved to directory DATA which is created as sub-directory to the installation direc- tory of the PME Assistant.

  • Page 238: How Does The Timing Diagram For A Process-Optimized Measurement Look Like

    FAQ: Questions and answers about MP85A and PME Assistant 12.21 How does the timing diagram for a pro- cess-optimized measurement look like? MP85A a3387-1.1 en HBM: public...

  • Page 239: How Does The Timing Diagram For A Measurement With No Data Loss Look Like

    FAQ: Questions and answers about MP85A and PME Assistant 12.22 How does the timing diagram for a measurement with no data loss look like? 12.23 How can a digital output be set? A digital output can be set through the following events: •...

  • Page 240: How Do I Create A Protocol Printout Of A Process

    FAQ: Questions and answers about MP85A and PME Assistant • There is a measuring error in a channel. • A transducer test was carried out. • A specified process condition was reached. • A certain tolerance window is OK. •...

  • Page 241: How To Transfer All Mp85A Settings To Another Device (Cloning)

    FAQ: Questions and answers about MP85A and PME Assistant 12.25 How to transfer all MP85A settings to another device (cloning)? All the settings of an MP85A can be saved to the MMC/SD Card via the MP85A keypad and then trans- ferred to another MP85A.

  • Page 242: How Do I Carry Out A Firmware Update And Can The Update Be Prevented

    FAQ: Questions and answers about MP85A and PME Assistant The data are now loaded from the MMC/SD Card. Wait until the process has finished. The progress is shown in the display. Ejecting the MMC/SD Card is described in Procedure for changing the MMC/SD Card.

  • Page 243: How To Update The Firmware

    FAQ: Questions and answers about MP85A and PME Assistant 12.26.2How to update the firmware  All device settings are preserved when updating the firm- ware. Nevertheless we recommend you store all settings on your PC prior to an update. Unzip the file containing the firmware into the DOWN- LOAD subfolder of the PME Assistant.

  • Page 244: What Does An Envelope Curve Look Like

    FAQ: Questions and answers about MP85A and PME Assistant With the tolerance band, the measured curve must remain within the region of the defined tolerance band, i.e. it must not enter nor exit it. 12.28 What does an envelope curve look...
  • Page 245 FAQ: Questions and answers about MP85A and PME Assistant reading out. This method is supported, for example, by the TEDS modules available from HBM. You will find further information in the publications about the standard, see Institute of Electrical & Electronics Engi- neers (IEEE) at http://www.ieee.org, National Institute of...
  • Page 246 FAQ: Questions and answers about MP85A and PME Assistant MP85A a3387-1.1 en HBM: public...

  • Page 247: Index

    Index Index Symbols * 159 Background information on MP85A operation 189 Numerics Basic settings 15 10 V 27 Below reference value 63 3D graph 178 Bin counting 113 Block window (end window) 87 Above reference value 64 Access blocked to menu/window 165...
  • Page 248 84 Ethernet interface 19 Crossing window with evaluation of Configure evaluation criteria 55 the y mean 83 Configuring the MP85A interface(s) 19 Crossing window with min/max evalu- Confirm connection (Ethernet) 189 ation 83 Confirm connection established 189...
  • Page 249 Error messages during tolerance win- dow violations 106 Distribution (bin counting) 113 Error status 168 Download firmware update 242 Ethernet 148 data storage 148 EASYsetup 185 Ethernet connector 236 EASYsetup password 185 Ethernet interface 19 MP85A a3387-1.1 en HBM: public...
