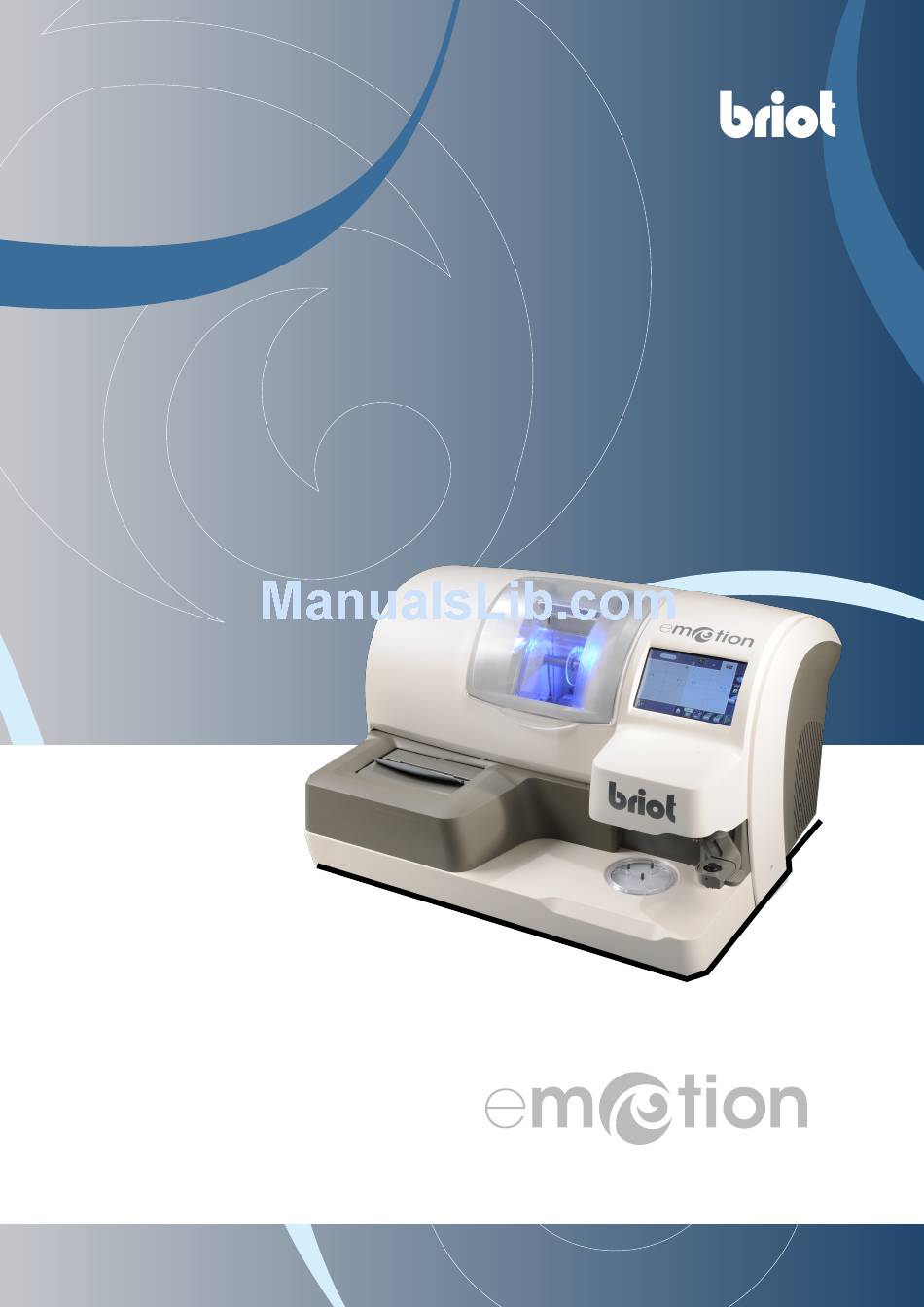

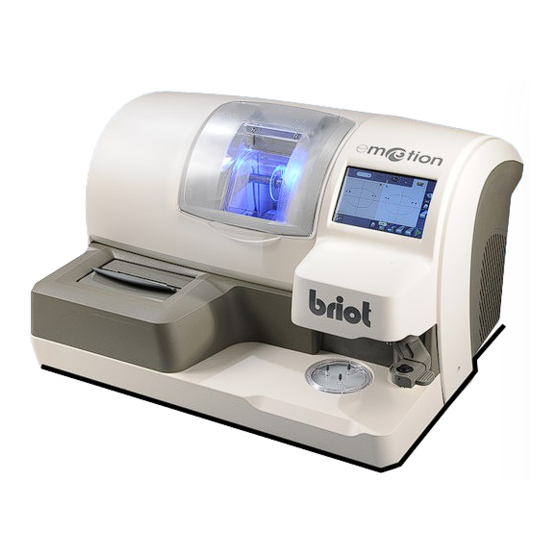

  • Page 1 Operation manual...
  • Page 2 Briot International cannot, in any circumstances, be held responsible for any possible operating faults that might result from such errors or omissions.
  • Page 4 Θ RAPHIC CODES Different graphic codes have been used in this manual to allow the user to distinguish between different types of information and easily spot the items which demand special attention (e.g. safety-related items). The table below lists all the codes and describes them: 1: D ABLE ESCRIPTION OF THE PICTOGRAMS...
  • Page 5 1: D ABLE ESCRIPTION OF THE PICTOGRAMS Graphic Description Code Overalls must be worn. Especially for cleaning and changing the tanks. Treatment Waste Electrical Electronic Equipment (applicable in the European Union and in European countries using a selective collection system) This symbol affixed to the product or to its packaging indicates that the product will not be treated like household waste.

  • Page 6: Table Of Contents

    \\Table of contents INSTALLATION General Edger Unpacking the machine 1.13 General Warning Lens materials Procedure Types of lenses Removing the shipping rails 1.15 Finishing Conditions Sub-finishing and associated parameters Procedure Safety-bevels Preparing the bench 1.17 Polishing Usual procedure 3.59 Machine dimensions Floor space and drilling required Job Creation/Selection Water connections 1.19...

  • Page 7: Table Of Contents

    \\Table of contents Regular maintenance of the edger 5.127 screen Screen description Replacing the flexible lens clamp adaptor pad Access / Exit Preliminary remarks Configuration of finishing parameters Procedure default values 4.97 Replacing the mill bit Preliminary remarks Presentation Procedure Principle Hints Screen description...
  • Page 8 \\Table of contents Messages 5.185 Types of messages List of messages. TESTS Presentation of test menus 6.197 Presentation of the test menus access screen Screen description Access / Exit Typical test screen Operating principle 6.199 Operating principle of a typical screen Tests involved Procedure Test sequence...
  • Page 9 \\Table of contents...
  • Page 10 REVISION FOLLOW-UP Revision 01 Page New/Modified Item New document...
  • Page 11 3-10...
  • Page 12 1 INSTALLATION...
  • Page 13 UNPACKING THE MACHINE #1&2 #3&4 Keep the case, the small carton and the hose near machine. #6&7 #8&9 1-12...

  • Page 14: Unpacking The Machine

    => Installation 1.1 UNPACKING THE MACHINE 1.1.1 W ARNING > Ensure that the machine is placed in accordance with the TOP and BOTTOM signs on the box. > Place the machine on a flat and stable surface. 1.1.2 P ROCEDURE Follow the steps below to unpack the machine: #1 Place the machine on the floor in its packing with the help of another person.
  • Page 15 Installation...Unpacking the machine 1-14...

  • Page 16: Removing The Shipping Rails

    => Installation 1.2 REMOVING THE SHIPPING RAILS 1.2.1 C ONDITIONS > The machine is placed on the work bench. > There is enough space around the machine. 1.2.1.1 P ROCEDURE To remove the shipping rails, follow the procedure below: #1 With the help of a second person, tip the machine gently to the rear so as to have access to the 4 rail fixing screws.
  • Page 17 Installation...Removing the shipping rails 1-16...

  • Page 18: Preparing The Bench

    => Installation 1.3 PREPARING THE BENCH 1.3.1 M ACHINE DIMENSIONS The following illustrations show the machine dimensions. 728 mm D = 600 mm Flow chart 1-3: Edger dimensions Height = 442 mm → Width = 728 mm → Depth = 600 mm →...
  • Page 19 Installation...Preparing the bench 1.3.2 F LOOR SPACE AND DRILLING REQUIRED Θ LLUSTRATION The following sketch shows the positioning of the machine on the bench and the openings which must be provided.  Position your machine correctly before drilling the bench! Discharge Illustration 1-2: Positioning the machine on the bench and drilling to be made Θ...

  • Page 20: Water Connections

    => Installation 1.4 WATER CONNECTIONS 1.4.1 S PECIFICATIONS 1.4.1.1 G ENERAL > Water intake with a stop-valve fitted with a 20 x 27 mm female connector and a filter seal. This stop-valve must be reserved for the machine and placed at a maximum of 80 cm from the place provided for the machine.
  • Page 21 Installation...Water connections 1.4.2.2 P ROCEDURE → As shown... => Level! Pump power connector => DIRECT WATER SUPPLY => CLOSED CIRCUIT 1-20...
  • Page 22 Installation...Water connections → Flow chart To connect the water supply to the edger and fit the pipes, follow the procedure below: #1 Check that the machine is switched off: On/Off switch OFF and mains plug disconnected. #2 Check that the water supply is closed. #3 Ensure that the machine is level =>...
  • Page 23 Installation...Water connections 1-22...

  • Page 24: Electrical Connections

    #3 If you operate in closed circuit, plug in the pump. Flow chart 1-5: Electrical connections → As shown... Bar code ON/OFF switch Pump Power supply Illustration 1-4: Electrical connections Note: The pump and reader illustrations are not the property of Briot and are used purely as examples. 1-23...
  • Page 25 Installation...Electrical connections #1 / 3 1-24...

  • Page 26: Starting The Edger

    => Installation 1.6 STARTING THE EDGER 1.6.1 P ROCEDURE → Flow chart To start the edger proceed as follows: #1 Check that the machine is switched off: On/Off switch OFF and mains plug disconnected. #2 Fit the lens clamping and lens holder adaptors on the shafts. #3 Plug in the machine and switch on (On/Off switch lit).
  • Page 27 Installation...Starting the edger 1.6.2 S ON/OFF WITCHING THE MACHINE ON position «1» pushed in - Lit OFF position «0» pushed in - Unlit Flow chart 1-7: Switching the machine ON/OFF 1-26...
  • Page 28 2 SAFETY PRECAUTIONS...
  • Page 29 2-28...
  • Page 30 Keep the machine away from any source of dust. > Any servicing or work on the machine (with the cover open or closed) must be undertaken by a Briot technician. HE MANUFACTURER CANNOT BE HELD RESPONSIBLE FOR DAMAGE CAUSED BY ANY USE OF THE MACHINE...
  • Page 31 Safety precautions...Safety 2-30...

  • Page 32: Recommendations

    Comply with the machine maintenance messages. > Protect the machine's power cords. > Contact a Briot technician for all repairs and always order Briot spare parts. > Use only products delivered and specified by Briot. > The machine is guaranteed to function correctly if the procedures stipulated in this manual are complied with.
  • Page 33 Safety precautions...Recommendations 2-32...
  • Page 34 3 USING YOUR EDGER...
  • Page 35 3-34...
  • Page 36 => Using your Edger 3.1 PRESENTATION 3.1.1 P RESENTATION OF THE MACHINE Θ ENERAL ILLUSTRATION The illustration below (Illustration 3-1) is an overall view of the machine. Touch screen Edging chamber Centering/ Scanform / blocking Digiform system Illustration 3-1: Overall view of the edger Θ...
  • Page 37 Using your Edger...Presentation 3.1.2 D ESCRIPTION OF THE STATIONS The emotion is composed of the following stations: 3.1.2.1 T OUCH SCREEN The touch screen allows you to: > Use the emotion > Enter the job data > Display the shape of the frame and the lens >...
  • Page 38 Using your Edger...Presentation 3.1.3 P RESENTATION OF THE APPLICATION SCREEN 3.1.3.1 W ORK INTERFACE The screen below (Screen 3-1) is displayed after initialising the equipment at start-up. Screen 3-1: Application screen 3.1.3.2 Z ONE IDENTIFICATION The application screen below (Screen 3-2) can be divided into zones. Tab-related function Job No.
  • Page 39 Using your Edger...Presentation 3.1.3.3 R EADING SEQUENCE The screen is organised so that you can follow the steps in logical order. The interface includes 4 tabs giving access to the preparation/production steps of the spectacles.  1 Job Creation (Scanform) /Selection ...
  • Page 40 Using your Edger...Presentation 3.1.3.4 V ISUAL REFERENCES 3.1.3.4.1 T YPES OF BUTTONS There are different types of buttons corresponding to the different types of action or information to be entered : Θ N ALL OF THE MENUS > The action button: Produces an immediate action or is used to make a selection in a pull-down list. Example: >...
  • Page 41 3-40...

  • Page 42: General Principles Of Use

    => Using your Edger 3.2 GENERAL PRINCIPLES OF USE The standard procedure is carried out by using the different tabs successively. 3.2.1 U SUAL PROCEDURE OB CREATION SELECTION Enable the JOB tab 3.2.1.1 C ALLING REATING A JOB PATTERN Calling an existing pattern from the data base: Calling an existing job from the data base: Creating a new profile: Calling a job from the server data base:...
  • Page 43 Using your Edger...General principles of use 3.2.1.2 E NTERING THE FRAME DATA OR A PATTERN Create a job number. Enter the new a job number. Entering the frame data Entering a pattern Select the Scanform Insert the pattern or demonstration lens blocked on the pattern holder.
  • Page 44 Using your Edger...General principles of use 3.2.2 U SUAL PROCEDURE IGIFORM RILLING Enter the Drilling tab 3.2.2.1 M ODIFYING THE SHAPE OF A PATTERN To modify the shape of a pattern, use the functions on the bottom of the screen. 3.2.2.2 P OSITIONING THE DRILLING HOLES To get access to the drilling menu, use this key:...
  • Page 45 Using your Edger...General principles of use Blocker arm Blocker head 3-44...
  • Page 46 Using your Edger...General principles of use 3.2.3 U SUAL PROCEDURE LOCKING CENTERING SYSTEM Enter the blocking/centering tab. Select the side to be blocked. Place a lens holder, corresponding to the lens to be blocked, on the ground glass screen. Place the lens to be blocked on its holder. Select the blocker type.
  • Page 47 Using your Edger...General principles of use 3.2.4 U SUAL PROCEDURE DGING Enter the Edging tab 3-46...
  • Page 48 => Using your Edger 3.2.4.1 F LOW CHART The following flow chart shows the usual edging procedure. > To obtain more information about a step or to see the relevant icons, click on the zone concerned. Call a job number. Select the lens material.
  • Page 49 Using your Edger...General principles of use 3.2.4.2 I NSERTING EMOVING THE LENS 3.2.4.2.1 T O INSERT THE LENS IN THE EDGING CHAMBER  When all the edging characteristics have been entered, insert the lens in the edging chamber.  Always check that the correct clamping adaptors for the job have been fitted. 19 mm diameter adaptors 25 mm diameter adaptors If the job being run requires special adaptors, a warning message will be displayed automatically.
  • Page 50 Using your Edger...General principles of use 3.2.4.4 N ORMAL EDGING CYCLE SEQUENCE Once you have started the edging cycle, the following steps follow automatically: emotion Automatic closing of the lens clamp shaft Lens roughing Lens finishing (Rimless or Bevel) Lens chamfering (if selected)
  • Page 51 Using your Edger...General principles of use 3-50...

  • Page 52: Application Screen Icons

    Using your Edger...Application screen icons 3.3 APPLICATION SCREEN ICONS The screens and tables below present and describe all the icons of the user interface classified in type or menu order. 3.3.1 J Short press: The calculator is displayed Access to Scanform screen for you to enter a job No.
  • Page 53 Using your Edger...Application screen icons 3.3.2 D RILLING IGIFORM 3.3.2.1 M ODIFYING THE PATTERN Access to drilling screen Half- Oversize Width Height Perimeter height thickness ratio ratio Screen 3-5: Pattern modification screen icons 3.3.2.2 D RILLING SCREEN Increment Decrement Numeric entry Remove a Drill an...
  • Page 54 Using your Edger...Application screen icons 3.3.3 C ENTERING BLOCKING SYSTEM 3.3.3.1 G ENERAL Horizontal offset Vertical offset Bridge Right half-pupillary Left pupillary height distance Save in the Right pupillary Left half-pupillary pattern base height distance Screen 3-7: Blocking screen icons 3-53...
  • Page 55 Using your Edger...Application screen icons 3.3.4 E DGER 3.3.4.1 G ENERAL Lens selection Lens materials Finishing Sub-Finishing Launch the edging process Rear safety- Tighten the lens Types of lenses Polishing bevels Front safety-bevels Oversize to boxing width Screen 3-8: Edging tab general icons. 3.3.4.2 L ENS MATERIALS Note: The presence and order of the icons displayed on the screen depend on the job data...
  • Page 56 Using your Edger...Application screen icons 3.3.4.3 T YPES OF LENSES Note: The presence and order of the icons displayed on the screen depend on the job data (see “When job data are received ”, page 49). Fragile Normal Hydrophobic Screen 3-10: Lens Type Icons >...
  • Page 57 Using your Edger...Application screen icons 3.3.4.5 S FINISHING AND ASSOCIATED PARAMETERS > The following screen is a montage to show all possible sub-finishing. BEVEL GROOVE Manual Auto Front face Rear face Screen 3-12: Sub-finishing type icons > Groove/Manual Bevel By selecting this type of finish, you can check and reposition the bevel/the groove during the edging cycle using a special screen which is displayed after the second lens feeling cycle.
  • Page 58 Using your Edger...Application screen icons 3.3.4.6 S AFETY BEVELS No rear face No front face Rear face Rear face Rear face Front face safety-bevel safety-bevel 0.6mm 0.4mm 0.2mm 0.2mm Screen 3-13: Safety-Bevel Type icons MPORTANT NOTES > A safety-bevel can only be made when: - The distance between the apex of the bevel and the front/rear face of the lens is greater than 1.6 - The distance between the front edge of the groove and the front face of the lens is greater than 0.4 mm, and the distance between the rear edge of the groove and the rear face of the lens is greater...
  • Page 59 Using your Edger...Application screen icons 3.3.5 P OLISHING Note: The presence and order of the icons displayed on the screen depend on the job data (see “When job data are received”, page 49). WITHOUT WITH Screen 3-14: Polishing Icons 3-58...

  • Page 60: Usual Procedure

    Using your Edger...Usual procedure 3.4 USUAL PROCEDURE To familiarize you with the emotion interface and its general operation, we suggest that you carry out the following jobs. Job Creation/Selection. 3.4.1 J REATION ELECTION 3.4.1.1 C ALLING UP A JOB SAVED IN THE MEMORY The numbers of this illustration refer to the step numbers below.
  • Page 61 Using your Edger...Usual procedure PRODUCING A JOB WITH DRILLING Increment Decrement Numeric entry Add a hole Confirm Delete a Drill an elongated Navigation arrow in hole hole the table Illustration 3-3: Example of the production of a job with Drilling 3-60...
  • Page 62 Using your Edger...Usual procedure 3.4.2 D RILLING 3.4.2.1 P ROCEDURE Call a job number. Add a drilling hole. NOTE: The hole is displayed in the center. Use the navigation keys and select the coordinate to be entered / modified (X, Y and hole diameter). Enter the desired value using the calculator or the increment / decrement buttons.
  • Page 63 Using your Edger...Usual procedure Note: When the job is received on the edger, if it includes at least one hole whose diameter is smaller than that of the bit, the machine will display the following warning message: « Bit diameter > hole diameter. Do you want to drill? » If you reply Yes: The minimum diameter of the holes will be equal to the bit dia meter.
  • Page 64 Using your Edger...Usual procedure Application examples Case 1 Purpose: Drill two holes with the following parameters: " Dia. = 1.5 mm "Temporal side "Y coordinate for the two holes = 7 mm "Distance between the two X centres = 4 mm "Distance between a hole edge and the lens edge D = 2 mm 1 Create the first hole.
  • Page 65 Using your Edger...Usual procedure Centering lens marked with frontofocometer - The central point must be on the red cross. The lateral points must be on the horizontal line. Centering a bifocal lens - The top of the segment must be tangential to the red line.
  • Page 66 6 Place a block fitted with an adhesive in the blocker head. CAUTION THE USE OF ADHESIVES WHICH ARE NOT SPECIFICALLY RECOMMENDED BY BRIOT MAY RESULT IN MALFUNCTIONS DURING SUBSEQUENT EDGING PHASES. 7 Start the lens blocking operation. 8 When the blocking operation is complete, remove the blocked lens from its holder.
  • Page 67 Using your Edger...Usual procedure PRODUCING A JOB WITH RIMLESS FINISHING Polycarbonate lens Rimless Normal Type With polishing Without safety-bevel Start the edging process Screen 3-15: Example of the production of a job with rimless finishing 3-66...
  • Page 68 Using your Edger...Usual procedure 3.4.4 E DGING 3.4.4.1 P RODUCING A JOB WITH RIMLESS FINISHING 3.4.4.1.1 O BJECT Produce a job with the following characteristics: Polycarbonate > Normal lens > Rimless finishing > No safety-bevel > Polishing 3.4.4.1.2 P ROCEDURE To carry out the job described above, proceed as follows: Call a job number.
  • Page 69 Using your Edger...Usual procedure PRODUCING A JOB WITH GROOVE FINISHING HI plastic lens Groove Finishing 33% sub-finishing Normal Type With polishing Start edging process 0.2 mm front face 0.2 mm rear face safety-bevel safety-bevel Illustration 3-4: Example of the production of a job with Groove finishing 3-68...
  • Page 70 Using your Edger...Usual procedure 3.4.4.2 P RODUCING A JOB WITH GROOVE FINISHING 3.4.4.2.1 O BJECT Produce a job with the following characteristics: HI plastic > Normal lens > Grooving > 33 % Groove > Front and rear safety-bevels > Polishing Safety-bevel parameters: front depth = 0.20 mm / rear depth = 0.20 mm 3.4.4.2.2 P ROCEDURE...
  • Page 71 Using your Edger...Usual procedure PRODUCING A JOB WITH BEVEL FINISHING Mineral lens Bevel finishing 50% Bevel Fragile type Without oversize Rear face safety-bevel Without polishing Screen 3-16: Example of the production of a job with a bevel 3-70...
  • Page 72 Using your Edger...Usual procedure 3.4.4.3 P RODUCING A JOB WITH BEVEL FINISHING 3.4.4.3.1 O BJECT Produce a job with the following characteristics: Mineral > Fragile lens > 1/2-1/2 bevel > Rear safety-bevel = 0.40 mm > Without polishing 3.4.4.3.2 P ROCEDURE To carry out the job described above, proceed as follows: Call a job number.
  • Page 73 Using your Edger...Usual procedure MODIFYING A SHAPE - DIGIFORM Call up a shape Storage source Confirm shapes and templates Shape modification keys Illustration 3-5: Example of shape modification - Digiform 3-72...

  • Page 74: Special Cases

    3.5.1.1 I NTRODUCTION In some cases the pattern used for drilled frames or nylor frames does not match the required shape. The Digiform function used on the emotion can modify any shape to produce a new pattern. 3.5.1.2 P ROCEDURE The numbers of this illustration refer to the step numbers below.
  • Page 75 Using your Edger...Special cases 3-74...
  • Page 76 Using your Edger...Special cases 3.5.2 A PPLYING AN OVERSIZE 3.5.2.1 W If you find that the overthickness applied to the job by default is not suitable, you can decide to apply an oversize which will be applied to the lens to be edged. 3.5.2.2 H 3.5.2.2.1 P RELIMINARY CONDITION...
  • Page 77 Using your Edger...Special cases 3.5.3 E DGING THE LEFT LENS WITH DIFFERENT PARAMETERS FROM THOSE OF THE RIGHT LENS 3.5.3.1 P RINCIPLE > If the left and right lenses of your job do not have the same characteristics, you may modify the edging data from one lens to another using the buttons available in the Edging tab.
  • Page 78 Using your Edger...Special cases 3.5.4 E DGING SEVERAL LENSES IDENTICALLY 3.5.4.1 P RINCIPLE > You wish to edge several lenses with similar characteristics. 3.5.4.2 P ROCEDURE Fit a new lens on the lens holder shaft. Do you want to re-edge the same lens ? Flow chart 3-8: Edging lenses with identical characteristics The lens is edged again, with the same characteristics as the previous edging.
  • Page 79 Using your Edger...Special cases 3.5.5 C HECKING A FINISHING BEFORE THE LENS IS EDGED 3.5.5.1 P RINCIPLE > You may wish to check the position of the desired finishing - bevel and groove - before beginning the lens edging cycle. >...
  • Page 80 Using your Edger...Special cases 3.5.5.2.2 M ANUAL GROOVE SCREEN Re-feeling Developed lens profile Front face developed curve Groove centre developed curve Rear face developed curve Angular position Index Lens shape Lens section seen from the at position of index front Sub-Finishing Lens thickness Depth...
  • Page 81 Using your Edger...Special cases 3.5.5.3 V ISUALISE A FINISHING 3.5.5.3.1 S ITUATION > You are not sure about the finishing position and wish to visualise it before it is run. 3.5.5.3.2 P ROCEDURE After opening the job and entering the characteristics, proceed as follows: Check that finishing = At the end of the lens feeling cycle, the manual finishing screen is displayed.
  • Page 82 Using your Edger...Special cases 3.5.5.4 P LACING A FINISHING MANUALLY 3.5.5.4.1 P RINCIPLE > You wish to visualise the lens thickness and adjust the finishing position. 3.5.5.4.2 G ENERAL PROCEDURE After opening the job and entering the characteristics, proceed as follows: Check that finishing = At the end of the second lens feeling cycle, the manual finishing screen is displayed.
  • Page 83 Using your Edger...Special cases Flow chart 3-11: Produce a manual bevel Check that finishing = The manual finishing screen is displayed. By default, the apex of the bevel is positioned at 1/3 of the lens thickness from the front face. [If necessary] [If desired] Select the bevel point whose position you wish to modify:...
  • Page 84 Using your Edger...Special cases 3.5.5.5 P RODUCE A MANUAL BEVEL 3.5.5.5.1 P RINCIPLE > You wish to visualise the lens thickness and adjust the finishing position. 3.5.5.5.2 P ROCEDURE To produce a manual bevel: 1. Call up the job. 2. Enter its characteristics. 3.
  • Page 85 Using your Edger...Special cases Flow chart 3-12: Producing a manual groove Check that finishing = - The manual finishing screen is displayed. By default the middle of the groove is positioned at 1/3 of the lens thickness from the front face. [If necessary] [If desired] Select the groove point whose position you wish to modify:...
  • Page 86 Using your Edger...Special cases 3.5.5.6 P RODUCE A MANUAL GROOVE 3.5.5.6.1 P RINCIPLE > You wish to visualise the lens thickness and define the curve and the position of the groove. 3.5.5.6.2 P ROCEDURE To produce a manual groove: 1. Start the edging process 2.
  • Page 87 Using your Edger...Special cases 3-86...

  • Page 88: Operating Ranges:

    Using your Edger...Operating ranges: 3.6 OPERATING RANGES: 3.6.1 P OINTS TO REMEMBER → Lens Diameter of uncut lens before edging = diameter of 80 mm plus 10 mm of maximum eccentricity, i.e. a diameter of 100 mm without decentering. Thicknesses: Maximum thickness at the edge of the uncut (plastic) lens = 18 mm Maximum thickness at the edge of the uncut (mineral) lens = 16 mm Minimum thickness at the centre of the uncut lens = 1.2 mm.
  • Page 89 Using your Edger...Operating ranges: → Safety-bevel Maximum depth = 0.6 mm in increments of 0.1 mm Retouching with safety-bevel is possible if the value of the retouch is less than 0.2 mm (at Boxing width) Minimum distance between the apex of the bevel and the front/rear face to produce a safety-bevel 1.6 mm Minimum distance between the front face of the lens and the front edge of the groove (or rear face and rear edge) to produce a safety-bevel = 0.4 mm...
  • Page 90 Using your Edger...Operating ranges: 3.6.2 I LLUSTRATION OF FINISHING LIMITS 3.6.2.1 R IMLESS INISHING Min. height of finished lens = 17.50 mm Front face Rimless Illustration 3-6: Limits of production of a rimless lens 3.6.2.2 B EVEL INISHING Min. height of finished lens = 19.10 mm Front face Bevel width = 2.8 mm Bevel height = 0.8 mm...
  • Page 91 Using your Edger...Operating ranges: 3.6.3 D RILLING 3.6.3.1 C ONDITIONS > Only CR39, polycarbonate, high index (HI) and Trivex™ materials can be drilled. > A mineral lens cannot be drilled. 3.6.3.2 L IMITS OF HOLE POSITIONING > Whatever the type of hole, it must be drilled in a specific zone which is defined following the diagrams below. >...
  • Page 92 Using your Edger...Operating ranges: 3.6.3.3 L IMITS RELATED TO THE THICKNESS OF THE LENS The position of the hole and the strength of the lens to be drilled effect the drilling depth. These two parameters can cause non-through holes which must then be finished manually. →...
  • Page 93 Using your Edger...Operating ranges: 3.6.4 L IMITATION OF THE LENS CHARACTERISTICS BLOCKER PATTERN The emotion is designed to block lenses with the following characteristics: 3.6.4.1 L ENS CHARACTERISTICS IAMETER Diameter of uncut lens : 30 to 100 mm & The index and colour have no effect on the centering function.
  • Page 94 4 CONFIGURATION...
  • Page 95 4-94...

  • Page 96: Presentation Of Configuration Menus

    => Configuration 4.1 PRESENTATION OF CONFIGURATION MENUS 4.1.1 P RESENTATION OF THE CONFIGURATION MENUS ACCESS SCREEN 4.1.1.1 S CREEN DESCRIPTION The first user technical screen provides access to the user technical menus, such as the settings menu and the statistics menu. The tests, maintenance and personalisation menus are intended for the technician. PERSONALISATION menu You are in the User Technical menu...
  • Page 97 Configuration...Presentation of configuration menus 4.1.2 P RESENTATION OF THE PERSONALISATION MENUS ACCESS SCREEN 4.1.2.1 S CREEN DESCRIPTION The personalisation menus access screen is shown below. personalisation menu Frame and lens values Adjustment of the correction screen setting values General operation Screen 4-2: Personalisation menus access screen 4.1.2.2 A CCESS...

  • Page 98: Default Values

    => Configuration 4.2 CONFIGURATION OF FINISHING PARAMETERS DEFAULT VALUES 4.2.1 P RESENTATION 4.2.1.1 P RINCIPLE > You have your own way of working and wish to gain time by configuring your own default values. 4.2.1.2 S CREEN DESCRIPTION The configuration screen for the finishing parameters default values is shown below: Screen 4-3: Default values configuration screen ...
  • Page 99 The information given in the tables below completes the values referred to in Using > Application screen icons > Sub-finishings and associated parameters. The default values that you wish to be memorised must be within the limits given by Briot. Any value outside the interval shown cannot be validated.
  • Page 100 Configuration...Configuration of finishing parameters default values 4.2.4.1 B EVEL ABLE Sub- Briot Lower Upper finishing default Incrementation limit limit type values 1 mm -5 mm 5 mm 0.01 mm 0.25 D 12 D 0.25 D 100% 0.8 mm 0.8 mm 3 mm 0.1 mm...
  • Page 101 Configuration...Configuration of finishing para meters default values 4.2.4.3 S AFETY BEVEL ABLE Briot Safety-bevel Lower Upper default Incrementation type limit limit values 0.2 mm 0.6 mm 0.1 mm 0.2 mm 0.6 mm 0.1 mm 4-100...
  • Page 102 Configuration...Configuration of finishing parameters default values 4-101...
  • Page 103 Configuration...Configuration of finishing para meters default values To adjust the depth To adjust the depth of the front safety-bevel of the rear safety-bevel RESET DURING ADJUSTMENT To adjust the position To adjust the position of the apex of the bevel of the middle of the groove Adjustment of the setting values...

  • Page 104: Adjustment Of The Setting Values

    Configuration...Adjustment of the setting values 4.3 ADJUSTMENT OF THE SETTING VALUES 4.3.1 P RELIMINARY REMARKS > The machine is factory adjusted to meet the needs and requirements of the majority of users. > Any modifications of the standard setting values can affect the performance of the machine. >...
  • Page 105 Configuration...Adjustment of the setting values NOT TAKEN INTO To enter a correction ACCOUNT To enter a correction for plastic and metal DURING for plastic frames frames ADJUSTMENT Adjustment of the setting values To enter a correction To enter a correction for High Index lenses for Polycarbonate lenses Exit...

  • Page 106: Correction Of Frame And Lens Values

    Configuration...Correction of frame and lens values 4.4 CORRECTION OF FRAME AND LENS VALUES 4.4.1 P RELIMINARY REMARKS > The machine is factory adjusted to meet the needs and requirements of the majority of users. > Any modifications of the standard setting values can affect the performance of the machine. >...
  • Page 107 Configuration...Correction of frame and lens values 4-106...

  • Page 108: Configuration Of General Operating Parameters

    Configuration...Configuration of general operating parameters 4.5 CONFIGURATION OF GENERAL OPERATING PARAMETERS 4.5.1 P RESENTATION 4.5.1.1 P RINCIPLE > You define the machine's general operating mode. 4.5.1.2 S CREEN DESCRIPTION The setting screen for the machine's general operating parameters is shown below: You are in the machine's general operating mode Dialog language...
  • Page 109 Configuration...Configuration of general operating parameters 4.5.2 C ONFIGURATION OF THE FUNCTIONS 4.5.2.1 S ELECTING THE DIALOG LANGUAGE  To select the dialog language, press this button : until the desired language is displayed. 4.5.2.2 A CTIVATING SIZE COMPENSATION ACCORDING TO TEMPERATURE 4.5.2.2.1 P RINCIPLE >...

  • Page 110: Configuration Of Communication Parameters

    Configuration...Configuration of Communication parameters 4.6 CONFIGURATION OF COMMUNICATION PARAMETERS 4.6.1 P RESENTATION 4.6.1.1 P RINCIPLE > You enable or disable the communication functions according to the peripheral equipment connected to the machine 4.6.1.2 S CREEN DESCRIPTION The setting screen for the machine communications is shown below: You are in the communication parameters screen To save the settings...
  • Page 111 Configuration...Configuration of Communication parameters 4.6.1.4 E NABLING ISABLING COMMUNICATION FUNCTIONS 4.6.1.4.1 P RINCIPLE > According to the peripheral equipment connected to the machine, the associated communication function must be enabled / disabled. 4.6.1.4.2 P ROCEDURE  To enable / disable the communication function: 4-110...
  • Page 112 5 MAINTENANCE...
  • Page 113 5-112...

  • Page 114: Presentation Of Maintenance Menus

    => Maintenance 5.1 PRESENTATION OF MAINTENANCE MENUS 5.1.1 P RESENTATION OF THE MAINTENANCE MENUS ACCESS SCREEN 5.1.1.1 S CREEN DESCRIPTION The first user technical screen gives access to the user technical menus, including Maintenance, as shown in yellow below: PERSONALISATION menu You are in the User Technical menu TESTS menu...
  • Page 115 Maintenance...Presentation of maintenance menus 5.1.2 P RESENTATION OF THE MAINTENANCE SCREEN 5.1.2.1 S CREEN DESCRIPTION The maintenance menus access screen is shown below: You are in the User Emptying the Remote Maintenance menu settling tank maintenance Dressing the wheels Changing the Remote lens feeler tips maintenance...

  • Page 116: Visualising The Components

    => Maintenance 5.2 VISUALISING THE COMPONENTS The illustrations below will help you to identify the parts of the edger on which you will be working during maintenance operations. Visor > Cleaning and replacement Lens feeler tips > Replacement > Adjustment Lens clamp adaptor pad >...
  • Page 117 Maintenance...Visualising the components 5-116...

  • Page 118: Task List

    => Maintenance 5.3 TASK LIST To ensure optimum performance of your emotion, you must carry out a few maintenance operations at regular intervals. Maintenance of the Scanform™ unit → Cleaning the Scanform™ → Replacing a stylus tip → Replacing the frame clip tube →...
  • Page 119 Maintenance...Task list 5-118...
  • Page 120 5.4 MAINTENANCE OF THE TOUCH SCREEN UNIT 5.4.1 C LEANING THE TOUCH SCREEN #1 Switch OFF the emotion if it is ON. #2 Clean the touch screen gently with a soft, dry lint-free cloth. CAUTION Do not use products such as water or chemical agents. Ethyl alcohol can be used when a dry cloth is not sufficient enough to remove stubborn stains.
  • Page 121 Maintenance...Maintenance of the touch screen unit Illustration 5-1: Scanform 5-120...

  • Page 122: Maintenance Of The Scanform Unit

    CANFORM To clean the Scanform™, proceed as follows: #1 Switch OFF the emotion if it is ON.. #2 Lift up the stylus tip manually. #3 Clean the stylus tip with a brush, making sure no dusts enter the Scanform™ unit.
  • Page 123 EPLACING THE FRAME CLIP TUBES To replace the frame clip tubes, proceed as follows: #1 Switch OFF the emotion if it is ON. #2 Manually open the Scanform™ and hold it in this position without applying force. #3 Pull the concerned frame clip tube horizontally and remove it (Example (Figure 1)).
  • Page 124 Maintenance...Maintenance of the Scanform unit 5-123...
  • Page 125 Maintenance...Maintenance of the Scanform unit Illustration 5-1: Centering/blocking system 5-124...

  • Page 126: Maintenance Of The Centering/Blocking System Zone

    Maintenance...Maintenance of the centering/blocking system zone 5.6 MAINTENANCE OF THE CENTERING/BLOCKING SYSTEM ZONE 5.6.1 C LEANING THE GROUND GLASS SCREEN To clean the ground glass screen, proceed as follows: #1 Remove any parts which might interfere with the operation (e.g. lens holder placed on the ground glass screen).

  • Page 127: Technical Specifications

    #1 Switch OFF the emotion if it is ON. #2 Disconnect the power cord from the wall plug. #3 Remove the fuse from the fuse holder on the left of the emotion mains plug. #4 Fit a new fuse (see Technical specifications, chapter 7.2) in its housing.

  • Page 128: Regular Maintenance Of The Edger

    Maintenance...Regular maintenance of the edger 5.7 REGULAR MAINTENANCE OF THE EDGER 5.7.1 R EPLACING THE FLEXIBLE LENS CLAMP ADAPTOR PAD 5.7.1.1 P RELIMINARY REMARKS Caution! The lens holder adaptor is serrated and the lens feeler tips are pointed.  Make sure that your hands are protected when handling the lens holder adaptor and feeler tip. 5.7.1.2 P ROCEDURE To replace the flexible lens clamp adaptor pad, follow the procedure below:...
  • Page 129 Maintenance...Regular maintenance of the edger Illustration 5-2: Replacing the mill bit #5-11 Mill bit Chuck nut Spacer Tighten/Loosen the nut Block the rotation with an Allen key or with one turn of the screwdriver! Flat organic lens Diameter > 57 mm 10 00 205 Flushing point 5-128...
  • Page 130 Worn bit (chips around the holes on the internal side of the lens?) > Excessive use of the bit. The machine is guaranteed to operate correctly if Briot mill bits are mounted. 5.7.2.2 P ROCEDURE To change the mill bit, follow the procedure below: #5 Insert an Allen key or a screwdriver in the spacer hole to block the rotation of the spindle.
  • Page 131 Maintenance...Regular maintenance of the edger 5-130...
  • Page 132 During step 8, the bit may be difficult to remove from the chuck because of possible scale deposits. In this case apply a small quantity of a common scale remover, leave it for a few moments then remove the bit. > Use bits supplied by your Briot representative. 5-131...
  • Page 133 Maintenance...Regular maintenance of the edger Illustration 5-3: Replacing the lens feeler tips FRAGILE MOUNTING! Place the feelers in the replacement position. Removable lens feeler tip #5,6,7.8 Place the feelers in the position to receive the tool.  Confirm and switch automatically to the feeling adjustment screen.
  • Page 134 EPLACING THE LENS FEELER TIPS 5.7.3.1 P RELIMINARY REMARKS > Always contact your Briot representative before replacing the lens feeler tips. 5.7.3.2 P ROCEDURE To replace the feeler tip, follow the procedure below: #5 Hold the holder and immobilize the feeler arm.
  • Page 135 Maintenance...Regular maintenance of the edger 5-134...
  • Page 136 When you are handling the feeler tips, do not apply pressure on the feeler arms because that could alter the quality of the work produced by the machine. If you observe any malfunctioning after changing the feeler tips, contact your Briot representative. 5-135...
  • Page 137 Maintenance...Regular maintenance of the edger Illustration 5-4: Dressing a wheel => Ensure that dressing disk correctly centered using the indentations intended to receive the adaptors. 5-136...
  • Page 138 Maintenance...Regular maintenance of the edger 5.7.4 D RESSING A WHEEL 5.7.4.1 P RELIMINARY REMARKS > Dressing the polishing wheel is not recommended. > Too frequent dressing of the wheels reduces their working life. 5.7.4.2 P ROCEDURE Follow the steps below to dress a wheel: According to your selection #5 Make sure large adaptors are fitted.
  • Page 139 Maintenance...Regular maintenance of the edger Screw Outer visor Inner visor #5 or #6 Illustration 5-5: Cleaning and replacing the removable visor 5-138...
  • Page 140 Maintenance...Regular maintenance of the edger 5.7.5 C LEANING REPLACING THE REMOVABLE VISOR 5.7.5.1 P RELIMINARY REMARKS > Before undertaking any operation, ensure that the machine is switched off: On/Off switch OFF and mains plug disconnected. 5.7.5.2 R EPLACING THE VISOR 5.7.5.2.1 P ROCEDURE To replace the visor, proceed as described above.
  • Page 141 Maintenance...Regular maintenance of the edger Illustration 5-6: Presentation of the tanks Settler Pump tank Settling tank (also called main tank) Drawer-filter Illustration 5-7: Cleaning the drawer-filter Illustration 5-8: Complete cleaning of the tanks and filters #2.3 Dump pipe valve closed 5-140...
  • Page 142 > Cleaning frequency is left to the discretion of the user, according to the number of lenses which have been edged. However, Briot recommends cleaning every 500 lenses (mineral and plastic). > Gloves and eye shields must be worn. It is advisable to wear an overall.
  • Page 143 Maintenance...Regular maintenance of the edger Dump pipe valve closed Water supply pipe connected to the valve Pump connected PUMP socket Drain pipe placed above clean drawer-filter 5-142...
  • Page 144 Maintenance...Regular maintenance of the edger #9 Remove the settler carefully. #10 Clean the settler with a plastic spatula and a brush above the drainage system (bucket, waste bin, drain, etc.). #11 Clean the settler. #12 Remove the used plastic bag from the settling tank and dispose of it. #13 Clean the settling tank if necessary.
  • Page 145 Maintenance...Regular maintenance of the edger Illustration 5-9: Emptying the settling tank #5;8 Open/Close the discharge valve Discharge pipe Example of drainage system Illustration 5-10: Water connections Discharge valve Closed position Discharge connection Supply connection 5-144...
  • Page 146 Maintenance...Regular maintenance of the edger 5.7.7 E MPTYING THE WATER TANK 5.7.7.1 P RELIMINARY REMARKS > Use a standard discharge pipe with a 20x27 connection. 5.7.7.2 P ROCEDURE To empty the settling tank, follow the procedure below: #1 Fit a discharge pipe on the same side as the valve and connect it to the drainage system (bucket, sink, drain etc.).
  • Page 147 Maintenance...Regular maintenance of the edger 5-146...

  • Page 148: Handling The Covers

    Maintenance...Handling the covers 5.8 HANDLING THE COVERS 5.8.1 R EMOVING THE COVERS 5.8.1.1 W > The machine is clamped during transport to ensure maximum stability. To reach the clamping screws, the machine covers must be taken off by a technician. 5.8.1.2 H To remove the machine covers, follow the procedure below: #1 Loosen and remove the four fixing screws from the upper cover...
  • Page 149 Maintenance...Handling the covers 5-148...

  • Page 150: Preventive Maintenance

    Maintenance...Preventive maintenance 5.9 PREVENTIVE MAINTENANCE 5.9.1 H INTS > You will optimize the working life of your edger by using only Briot spare parts. > Change the blocks regularly - every 100 lenses. 5.9.2 R EPLACEMENT TABLE FOR STANDARD PARTS The following table summarizes the replacement frequency for standard parts, calculated according to the number of lenses edged.
  • Page 151 Maintenance...Preventive maintenance 5-150...

  • Page 152: Adjustments

    Maintenance...Adjustments 5.10 ADJUSTMENTS 5.10.1 P RESENTATION OF THE SETTINGS MENUS ACCESS SCREEN 5.10.1.1 S CREEN DESCRIPTION The settings menus access screen is shown below: You are in the User Settings menu Feeling adjustment Size adjustment Mineral roughing wheel adjustment Scanform adjustment Axis adjustment Touch screen adjustment Consultation of setting values...
  • Page 153 Note: If one or more dots are red, repeat the step by pressing the key. If the problem cannot be solved, please contact your distributor. #9 Remove the tool. Press Result: The emotion validates this adjustment and proceeds to the next one. 5-152...
  • Page 154 If the problem cannot be solved, please contact your distributor. #15 Remove the tool. #16 Press Result: The emotion validates this adjustment and proceeds to the next one. #17 When the icon is displayed, insert the round pattern No. 14 04 192 on the pattern holder.
  • Page 155 If the problem cannot be solved, please contact your distributor. #22 Remove the tool. #23 Press Result: The emotion validates this adjustment and proceeds to the next one. #24 When the icon is displayed, insert the rectangular pattern No. 14 04 191 on the pattern holder.
  • Page 156 Maintenance...Adjustments 5-155...
  • Page 157 Maintenance...Adjustments Screen 5-4: Feeling adjustment 5-156...
  • Page 158 Maintenance...Adjustments 5.10.3 A DJUSTING THE FEELING 5.10.3.1 W > If a message asks you to do so. > If you observe that the feeler tips are beginning to be worn. > After replacing the feeler tips - the machine then switches automatically to this screen. 5.10.3.2 P ROCEDURE Follow the steps below to adjust the feeling:...
  • Page 159 Maintenance...Adjustments Screen 5-5: Adjusting the sizes - Screen 1 5-158...
  • Page 160 Maintenance...Adjustments 5.10.4 A DJUSTING THE SIZES 5.10.4.1 W > Perform this adjustment regularly. The wear of the wheels has a direct influence on the lens sizes, which increases over time. This will help you to avoid retouch. > Centre the adjustment lens 10 00 205 exactly in the centre so as to be able to use it from start to finish size adjustment.
  • Page 161 Maintenance...Adjustments #13 Fit the lens on the lens holder shaft again. > Lens edged to 50 mm diameter - Bevel finishing #15 At the end of the edging process, open the lens holder shaft and remove the lens. #16 Measure the size of the lens with a caliper. #18 Enter the value using the numeric key pad.
  • Page 162 Maintenance...Adjustments #28 Check the position of the apex of the bevel with a linen-counter. The apex must be in the centre of the edge of the lens. #29 If the apex of the bevel is off-centered, enter the value of the shift using the numeric key pad.
  • Page 163 Maintenance...Adjustments Screen 5-6: Adjustment of the flush of the mill bit 5-162...
  • Page 164 Maintenance...Adjustments 5.10.5 A DJUSTING THE FLUSH OF THE MILL BIT 5.10.5.1 W > When you observe an error in the position or the depth of the drilling holes produced by the machine. > After replacing the mill bit - the machine then switches automatically to this screen. 5.10.5.2 P ROCEDURE To adjust the mill bit flush, proceed as follows:...
  • Page 165 Maintenance...Adjustments Screen 5-7: Adjustment of the touch screen 5-164...
  • Page 166 Maintenance...Adjustments 5.10.6 A DJUSTING THE TOUCH SCREEN 5.10.6.1 W The machine switches automatically to this screen when the touch screen has not been detected. When you observe a difference between the displayed icon and the touch area of the screen. 5.10.6.2 P ROCEDURE Follow the steps below to adjust the touch screen:...
  • Page 167 Maintenance...Adjustments Screen 5-8: Example of a setting values display screen 5-166...
  • Page 168 Maintenance...Adjustments 5.10.7 C ONSULTING THE SETTING VALUES 5.10.7.1 P RESENTATION > A hotline technician may ask you for some setting values, in order to diagnose a possible problem for example. > The setting values cannot be modified from these screens. 5.10.7.2 A CCESS AVIGATION...
  • Page 169 Maintenance...Adjustments 5-168...

  • Page 170: Consulting The Statistics

    Maintenance...Consulting the statistics 5.11 CONSULTING THE STATISTICS 5.11.1 P RESENTATION OF THE STATISTICS MENU 5.11.1.1 S CREEN DESCRIPTION The statistics menus access screen is shown below: You are in the Job creation Statistics menu Digiform Incident log Drilling Centering/ blocking system Machine statistics Edger Maintenance...
  • Page 171 Maintenance...Consulting the statistics 5.11.1.2 A CCESS 5.11.1.2.1 T O ACCESS THE SCREEN 5.11.1.2.2 T O EXIT THE SCREEN 5.11.2 C ONSULTATION PRINCIPLES The statistics relate to two types of information: • Displayed messages, or incident log • The machine's general operation. The screens associated with each type of information have different operating principles, as described below: 5.11.2.1 I NCIDENT LOG...
  • Page 172 Maintenance...Consulting the statistics → Consultation of the last 128 incidents listed according to their order of appearance: SCREEN 128 incidents You are in the General List menu more information about Incident 127 is the an incident, press most recent; the corresponding occurred lens line.
  • Page 173 Maintenance...Consulting the statistics 5-172...
  • Page 174 Maintenance...Consulting the statistics 5.11.2.2 G ENERAL OPERATION OF THE MACHINE 5.11.2.2.1 C ONTENT The statistics related to the general operation of the machine allow you to consult: → Statistics based on jobs → Statistics based on digiforms → Statistics based on drilling →...
  • Page 175 Maintenance...Consulting the statistics 5.11.2.2.3.2 Edger general statistics display screen The display screen for the edger general statistics is shown below: Edging Number of machine Digiform Server starts communication You are in the Machine Scanform Centering/ Statistics menu Blocking system communication Number of Digiform Number of saved saved operations...
  • Page 176 Maintenance...Consulting the statistics 5.11.2.2.3.3 Display screen for statistics based on the last wheel dressing The display screen for statistics based on the last wheel dressing is shown below: Dressing of 4th Dressing of 2nd disc disc Exit Screen 5-13: Dressing maintenance screen Number of lenses edged since the last wheel change Statistics based...
  • Page 177 Maintenance...Consulting the statistics 5.11.2.2.3.4 Display screen for statistics based on the type of lens material The display screen for statistics based on the type of lens material is shown below: Exit Subject of the statistics Screen 5-15: Display screen for statistics based on the type of lens material 5.11.2.2.3.5 Display screen for statistics based on bevel finishing The display screen for statistics based on finishing is shown below: Exit...
  • Page 178 Maintenance...Consulting the statistics 5.11.2.2.3.6 Display screen for statistics based on polishing The display screen for statistics based on polishing is shown below: Subject of the statistics Statistics based on polishing Average edging time Number of lenses edged since the last wheel change Total number of lenses edged since the machine installation Exit...
  • Page 179 Maintenance...Consulting the statistics 5.11.2.2.3.7 Display screen for statistics based on safety-bevel The display screen for statistics based on safety-bevel is shown below: Exit Subject of the statistics Screen 5-18: Consulting statistics based on safety-bevel 5.11.2.2.3.8 Display screen for statistics based on groove finishing The display screen for statistics based on groove finishing is shown below: Exit Subject of the statistics...
  • Page 180 Maintenance...Consulting the statistics 5.11.2.2.3.9 Display screen for statistics based on drilling finishing The display screen for statistics based on drilling finishing is shown below: Drilled lenses Drilled holes Exit Subject of the statistics Screen 5-20: Consulting statistics based on drilling finishing 5.11.2.2.3.10Display screen for statistics based on the number of retouches The display screen for statistics based on the number of retouches is shown below: Statistics based on...
  • Page 181 Maintenance...Consulting the statistics 5.11.2.2.3.11Display screen for statistics based on user maintenance The display screen for statistics based on user maintenance is shown below: Number of replaced mill bits Statistics Number of replaced feeler tips based on user maintenance Number of dressing operations for the finishing wheel Number of dressing operations for the chamfering and...
  • Page 182 Maintenance...Consulting the statistics 5.11.2.2.3.12Display screen for statistics based on Digiform Screen 5-23: Consulting statistics based on Digiform 5.11.2.2.3.13Display screen for drilling statistics Screen 5-24: Consulting drilling statistics 5-181...
  • Page 183 Maintenance...Consulting the statistics 5.11.2.2.3.14 Display screen for Scanform statistics Screen 5-25: Consulting Scanform statistics 5.11.2.2.3.15 Display screen for Rimless Edging statistics Subject of the statistics Screen 5-26: Consulting Rimless Edging statistics 5-182...
  • Page 184 Maintenance...Consulting the statistics 5.11.2.2.3.16 Display screen for Edging, Drilling and Grooving statistics Subject of the statistics Screen 5-27: Consulting Edging, Drilling and Grooving statistics 5.11.2.2.3.17 Display screen for time statistics Subject of the statistics Screen 5-28: Consulting time statistics 5-183...
  • Page 185 Maintenance...Consulting the statistics 5.11.2.2.3.18Display screen for the centering/blocking system statistics Screen 5-29: Consulting the centering/blocking system statistics 5.11.2.2.3.19Display screen for settings statistics Screen 5-30: Consulting settings statistics 5-184...

  • Page 186: Messages

    Maintenance...Messages 5.12MESSAGES 5.12.1T YPES OF MESSAGES There are three types of messages: > Information messages > Warning messages > Fault messages 5.12.2L IST OF MESSAGES The table below shows all the messages, the conditions for their display and the action to undertake. Condition(s) for Message Action(s)
  • Page 187 Maintenance...Messages Condition(s) for Message Action(s) display Incompatible edger The job you have loaded calls Confirm the message. configuration. High Index (HI) lens If you wish to load this job HI lens not allowed. material. nonetheless, change In the personalisation menus, personalisation of the pull-down have excluded...
  • Page 188 Maintenance...Messages Condition(s) for Message Action(s) display 0x12 Incompatible edger The job you have loaded calls Confirm the message. configuration. for Drilling finishing. If you wish to load this job Drilling finishing In the personalisation menus, nonetheless, change allowed. have excluded this personalisation of the pull-down parameter.
  • Page 189 Maintenance...Messages Condition(s) for Message Action(s) display 0x19 Incompatible edger The job you have loaded calls Confirm the message. configuration. Automatic groove sub- If you wish to load this job Automatic groove sub- finishing. nonetheless, change finishing not allowed. In the personalisation menus, personalisation of the pull-down have excluded...
  • Page 190 Maintenance...Messages Condition(s) for Message Action(s) display 0x1F Incompatible edger The job you have loaded calls Confirm the message. configuration. for Drilling normal to front face. If you wish to load this job Drilling normal to front face In the personalisation menus, nonetheless, change not allowed.
  • Page 191 Maintenance...Messages Condition(s) for Message Action(s) display 0x25 Incompatible edger The job you have loaded has the Confirm the message. configuration. parameter Safety-bevel to be If you wish to load this job Safety-bevel to be defined defined. nonetheless, change not allowed. In the personalisation menus, personalisation of the pull-down have...
  • Page 192 Condition(s) for Message Action(s) display 0x103 Corrupt OMA frame. The OMA frame sent by the Contact a Briot technician. server displays a fault which princidents reception. 0x104 Invalid OMA frame. The OMA frame sent by the Contact a Briot technician.
  • Page 193 Maintenance...Messages Condition(s) for Message Action(s) display 0x40C Safety-bevels and groove Safety-bevels groove YES: the lens is edged without will not be made. cannot be made. the safety-bevels or the groove. Do you want to continue? The lens is too thin and/or the NO: the lens is not edged.
  • Page 194 Maintenance...Messages Condition(s) for Message Action(s) display 0x41B Lens too small. Feeling carried out 3 successive Confirm the message. times, 0.5 mm closer to the Remove the lens from the interior each time. edging station. Lens too small or too off- centered in comparison with the shape.
  • Page 195 Maintenance...Messages Condition(s) for Message Action(s) display 0x909 Adjustment impossible: Lens The diameter of the felt lens is Confirm the message. too small. less than 11 mm. Fit another lens blocked at the centre. 5-194...
  • Page 196 6 TESTS...
  • Page 197 6-196...
  • Page 198 => Tests 6.1 PRESENTATION OF TEST MENUS 6.1.1 P RESENTATION OF THE TEST MENUS ACCESS SCREEN 6.1.1.1 S CREEN DESCRIPTION The tests access screen is shown below/ Machine's Scanform Centering Edger Tests general tests System Tests Tests You are in the Tests menu Power Display Visor Opening/ Spraying...

  • Page 199: Operating Principle

    Tests...Presentation of test menus 6.1.1.2 A CCESS 6.1.1.2.1 T O ACCESS THE SCREEN 6.1.1.2.2 T O EXIT THE SCREEN 6.1.2 T YPICAL TEST SCREEN The following screen (lens feeling test) is typical of most tests (see “Operating principle”, page 199): SCREEN You are in the lens feelers test screen Stopping...
  • Page 200 => Tests 6.2 OPERATING PRINCIPLE 6.2.1 O PERATING PRINCIPLE OF A TYPICAL SCREEN 6.2.1.1 T ESTS INVOLVED The following test screens operate on the same principle: • Lens feeling • Lifting jack movement • Wheel unit translation movement • Lens rotation •...
  • Page 201 Tests...Operating principle 6.2.2 O PERATION OF THE OTHER SCREENS 6.2.2.1 S CREEN WITH SWITCH 6.2.2.1.1 P RESENTATION The following screen corresponds to the solenoid valve and pump tests: Wheels Spraying Pump Visor spray Rear of Edging spray Chamber Exit Screen 6-2: Test screen with switch 6.2.2.1.2 P ROCEDURE ...
  • Page 202 Tests...Operating principle 6.2.2.2 S CREEN WITH MICRO SWITCHES AND PHOTOCELLS 6.2.2.2.1 P RESENTATION The following screen corresponds to the solenoid valve and pump tests: Micro- switches Exit Screen 6-3: Test of micro-switches and photocells 6.2.2.2.2 P ROCEDURE  Manually operate the micro-switch or photocell of the element you wish to test. ...
  • Page 203 Tests...Operating principle 6-202...
  • Page 204 7 TECHNICAL SPECIFICATIONS...
  • Page 205 7-212...
  • Page 206 => Technical specifications 7.1 CHARACTERISTICS > Automatic initialisation > Feeling front & rear lens faces in 3 dimensions > Equipment: Mineral roughing wheel All plastics roughing wheel Bevel/rimless finishing wheel Bevel/rimless polishing wheel. > Automatic clamping pressure > Automatic edging pressure adjusted according to material to be edged >...
  • Page 207 Technical specifications...Technical specifications 7.2 TECHNICAL SPECIFICATIONS 7.2.1 C HARACTERISTICS Θ ENERAL > Designed for internal use > Dimensions: Width: 728 mm Depth: 600 mm Height: 442 mm > Weight: 75 kg > Voltage: 230 V-50 Hz, 115 V-60 Hz > Power consumption: 1150 W >...
  • Page 208 => Technical specifications 7.2.2 EC S TANDARDS Θ EETS THE FOLLOWING SAFETY DIRECTIVES EN 61010-1 Di 2006/42/EC Di 2006/95/EC Di 2002/95/EC Di 2002/96/EC Θ EETS THE FOLLOWING DIRECTIVES Di 2004/108/EC EN 55022 « Class B » EN 61000-3-2 EN 61000-3-3 EN 61000-6-2 Θ...
  • Page 209 Technical specifications...Technical specifications 7-216...
  • Page 210 2, rue Roger Bonnet 27340 PONT DE L'ARCHE FRANCE Tel. : (33) 02 32 98 91 32 Fax : (33) 02 35 02 02 94...

Table of Contents

Save PDF
