Summary of Contents for Alcatel one touch 219C
-

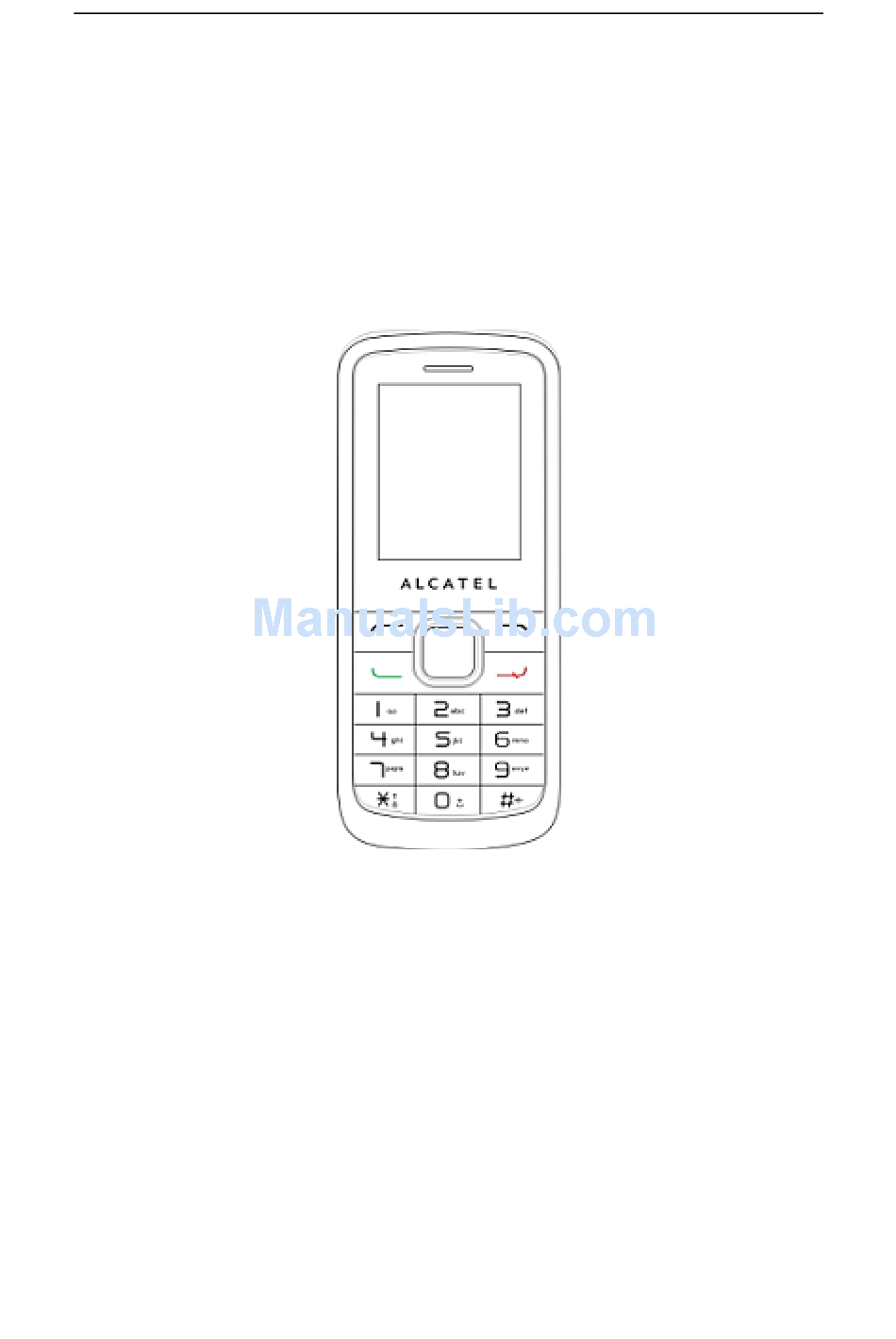

Page 1: User Manual
USER MANUAL one touch 219C... -
Page 2: Table Of Contents
Contents Contents ..................... 1 1. Your mobile ....................1 2. Getting started ................... 4 3. Basic functions ................... 5 4. Messages ....................7 5. Contacts ....................10 6. Recent Calls .................... 12 7. Profiles ....................13 8. Settings ....................13 9. -
Page 3: Contents
1. Your mobile 1.1 Basic specifications Item Specifications Size: 108mm[L]×46mm[W]×12.5mm[Thickness] Mobile Phone Weight: 85g (Battery included) Screen resolution 128*160 pixels Contacts 500 entries Recent calls 60 entries Messages 350 entries Operating temperature -20℃~50℃ Type: Lithium Capacity: 850mAh Battery Talk time: 180 minutes(approx.) Standby time: 120 hours (approx.) Charging time: 3 hours (approx.) ... - Page 4 Number Item Function Left: Alarm Right: Profiles Navigation Keys Up: Messages Down: Create message OK: Menu/Confirm an option Confirm Left Soft Contacts List Right Soft Key In Menu: Back/Delete Recent Call Send Key Answer/Send a call Power on/Power off End Key End a call...
- Page 5 Contacts Phone Recent Calls Contacts List Call Missed Calls Search Auto Power On Dialed Calls Add New Auto Power Off Call Time Groups Security Last Call Speed Dial Profiles Contacts Delete All Management Normal Entertainment Messages Silent Tetris Create Meeting Brick Attack Inbox Outdoor...
-
Page 6: Getting Started
Indicate the phone is in outdoors state Your phone is connected with a earphone Indicate the phone is making a call You have missed one or more calls Alarm has been set Indicate the phone have set Voice privacy You are using FM radio Indicate the phone is roaming 2. -
Page 7: Basic Functions
3. Basic functions 3.1 Power on/off When power is sufficient, press and holds the end key to power on. If you have activated a password, you will be prompted to enter it. Normally the phone is ready for use as soon as you enter the password;... - Page 8 Enter emergency number, and then press the send key. In any situation, with or without phone lock activated, your phone can still make an emergency call. 3.3 Functions available during a call During a call, access the Menu by pressing the left soft key. 3.4 Input mode You may enter letters, numbers and symbols in the Contact, SMS, Note and other menu functions.
-
Page 9: Messages
4. Messages Press down key directly to access the message editing screen. Press upper key or press the left soft key to select Messages to access the Messages menu. 4.1 Create new message Select Menu/Messages/Create to access the message editing screen. Please refer to “Input mode”... - Page 10 card message to phone. 4.3 Outbox Select Menu/ Messages/Outbox to access the list of messages in this box. Press the left soft key for the following options: View, Resend, Forward and Delete. About the operations, please refer to the related options in the “Inbox”. 4.4 Drafts Select Menu/ Messages/Drafts to access the list of messages in the drafts box.
- Page 11 4.7 Delete message Select Menu/ Messages/Delete Messages to access delete function. You may delete the messages in Inbox, Outbox, Draft, Reserved Messages, and also clear all the messages. 4.8 Settings Select Menu/ Messages/Settings to access submenu with below options: Send Option, Priority, Delivery Reports, Callback Number, Save Location, Message Validity, Reserved Messages and Auto Delete.
-
Page 12: Contacts
Voice Mail: Check how many voice messages are in the phone, press 1 to access to the voicemail, press 2 to clear voice mail. Listen Voice Mail: Dial the voice mail number. Voice Mail Number: Set the voice mail number 5. - Page 13 5.3 Add New Select Menu/Contacts/Add New, to add a new contact to phone or UIM Card. If the default save position is phone memory, you can enter Name, Mobile number, home number, office number, fax number, email address, address, website address, memo, group, and ring tone.
-
Page 14: Recent Calls
you select to delete all contacts. Save Position: Make default position when add a new contact. You can select: Phone, UIM Card or Select When Save. View Mode: Select one mode to view contacts list. If you select Phone, you can view only phone contacts when you open contacts list, and you can view only UIM card contacts if you select UIM Card. -
Page 15: Profiles
6.4 Delete All Select Recent Calls/Delete All you can clear all Missed Calls, Received Calls, Dialed calls and All Calls. 7. Profiles Select Menu/Profiles, you can enter the profile menu. Here 4 modes are provided: Normal, Silent, Meeting, and Outdoor. Select left soft key to enter the operation submenu, you can see the following operations: Activate: active the present mode Personalize: Set the volume or the ring tone of incoming call, SMS, Alarm, and the alert... - Page 16 Date Format: Set date format and you may have three options: dd/mm/yy, mm/dd/yy, yy/mm/dd. Auto Key Guard: You can turn on/off the key guard. Reception Alert: There two options: On and Off. When it is on, if the phone disconnect to the network, you will hear audible alert.
-
Page 17: Tools
8.6 Security Select menu/settings/security, then enter the security submenu by inputting the phone code (default phone code: 0000). You can set entry code for your Messages, Contacts, and Recent Calls here. Phone Lock: including phone code activation and inactivation, and password resetting, if you activate the phone code, you have to enter the phone code every time when the cell phone powers on. -
Page 18: Fm Radio
There is a monthly-view calendar for you to keep track of important meetings, appointments, etc. Days with events entered will be marked with an alarm icon. 9.3 Calculator Your phone can carry out simple operations, i.e. the [Four Arithmetic Operations]. Numbers are entered using number keys, “.”... -
Page 19: Entertainment
Minimize: Select Option/Minimize to make FM screen invisible, meanwhile you can use other functions (SMS, Games, Add names etc.). The quality of FM radio depends on the coverage of the radio station in that particular area. 11. Entertainment The phone is embedded with three games: Tetris, Brick attack and Black Jack. Please refer to the game instructions for details and operations. - Page 20 Item to be checked The telephone does not Make sure that the charger is correctly connected to the charge properly phone and the power socket. Make sure you are using a charger specifically designed for this phone. The phone does not Check the battery charge level.
-
Page 21: Safety And Use
Item to be checked The phone displays “out Check if you are in an area where the signal is weak (in a of network” or tunnel or surrounded by building). Move to another “network failure”. location and try again. Make sure you are not trying to use a service that you haven’t subscribed to. - Page 22 or Cardiac Care Unit (CCU). Pay attention to the settings of the sound volume and the vibration to avoid disturbing the patients. Flammable or explosive areas Turn off your phone near flammable or explosive areas. Do not install/remove or charge the battery or use the phone in these areas to prevent any explosion or fire.
- Page 23 Do not store the phone, battery or charger in an environment with a strong magnetic field, such as an electromagnetic pot or a microwave oven, to avoid causing the phone to malfunction, catch fire or explode. Do not subject the phone, battery or charger to heavy impact or vibration to avoid battery leakage, phone malfunction, overheating, fire or explosion Do not place sharp metallic items such as needles, near the receiver because the receiver will attract them and you may be injured when using the phone.
- Page 24 inch (2.5 cm) away from your body when holding your phone or using its data functions. If you feel unwell (epileptic seizures or blackouts) after playing the games with your phone for a long period of time, please seek medical assistance immediately. Move your mobile phone away from your ear while using the hands-free mode, because the amplified volume might cause hearing damage.
- Page 25 be used to make an emergency call. However, emergency call numbers may not be reachable on all networks; you should never rely on your mobile phone for emergency calls. Using the battery/charger Only use batteries and chargers approved by the manufacturer. Do not use batteries or chargers that are not compatible with your model to avoid any explosion.
- Page 26 Warning: The manufacturer disclaims any liability for damage, which may result as a consequence of improper use of this mobile phone or use contrary to the instructions contained in this manual. ALCATEL is trademark of Alcatel-Lucent and is used under license by TCT Mobile Limited.
- Page 27 the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
