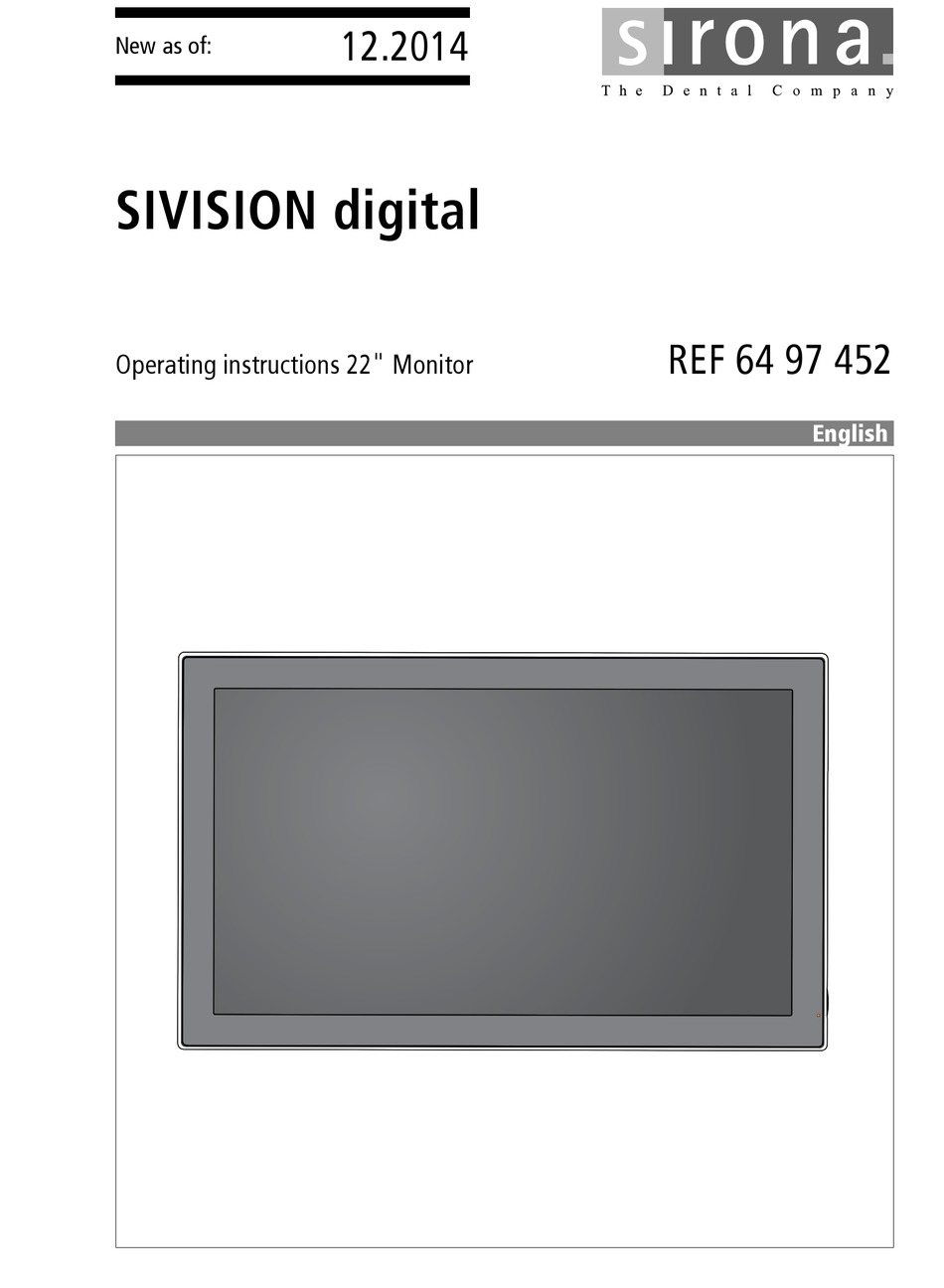

- Page 1 NOKOMNQ kÉï=~ë=çÑW== pfsfpflk=ÇáÖáí~ä obc=SQ=VT=QRO léÉê~íáåÖ=áåëíêìÅíáçåë=OO?=jçåáíçê båÖäáëÜ...
-
Page 3: Table Of Contents
Sirona Dental Systems GmbH Table of contents Operating Instructions 22" Monitor Table of contents General information ....................4 Dear Customer, ..........................Contact data ............................. General information on the Operating Instructions ................Warranty and liability ........................Intended use ............................. Formats and symbols used....................... -
Page 4: General Information
Dear Customer, You have decided to equip your dental treatment center with the integrated SIVISION digital communication system from Sirona. As such, you have made a significant step towards improving your patient communication. You can therefore easily discuss the source situation, status and the success of treatment with your patients. -
Page 5: General Information On The Operating Instructions
In the event that the system owner fails to fulfill the obligation to perform scheduled inspections and preventive maintenance activities or ignores error messages, Sirona Dental Systems GmbH and its authorized dealers cannot assume any liability for damages. 65 38 297 D3655... -
Page 6: Intended Use
1.5 Intended use Operating Instructions 22" Monitor Intended use The 22" monitor is intended for use on dental units made by Sirona. It serves for viewing intraoral images and any other images resulting from the PC connection. This device is not intended for operation in areas subject to explosion hazards. -
Page 7: Safety Information
Tip: Information on making work easier. Information on the unit This symbol can be found on the rating plate on the unit. Meaning: The accompanying documents are available on the Sirona homep- age. Maintenance and repair As manufacturers of dental medical units and in the interest of the operational... -
Page 8: Modifications And Extensions Of The System
For reasons of product safety, this product may be operated only with original Sirona accessories or third-party accessories expressly approved by Sirona. The user assumes the risk of using non-approved accessories. If any devices not approved by Sirona are connected, they must comply with the applicable standards, e.g.: ●... -
Page 9: Unit Description
Sirona Dental Systems GmbH 3 Unit description Operating Instructions 22" Monitor 3.1 Standards/approvals Unit description Standards/approvals The 22" monitor complies with the following standards: ● IEC 60950-1 (information technology equipment, e.g. PC) ● IEC 60601-1-2 (electromagnetic compatibility) Technical data Model designation: 22"... - Page 10 3 Unit description Sirona Dental Systems GmbH 3.2 Technical data Operating Instructions 22" Monitor Transport and storage Temperature: -20 °C – +60 °C conditions: (-4 °F - 140 °F) Relative humidity: 10 % – 95 % Air pressure: 500 hPa – 1060 hPa Operating conditions: Ambient temperature: 10 °C –...
-
Page 11: External Dimensions Landscape
Sirona Dental Systems GmbH 3 Unit description Operating Instructions 22" Monitor 3.3 External Dimensions Landscape External Dimensions Landscape • The specifications and appearance will be changed for improvement without notice 65 38 297 D3655 D3637.201.02.01.02... -
Page 12: Operation
4 Operation Sirona Dental Systems GmbH 4.1 Operating and display elements Operating Instructions 22" Monitor Operation Operating and display elements Control Function Control Dial The Control Dial is a multi-functional device located behind the LED Indicator on the right side of the front bezel. It has three movements-rotate upward, rotate downward and press inward as a button. -
Page 13: Brightness
Sirona Dental Systems GmbH 4 Operation Operating Instructions 22" Monitor 4.2 Brightness Brightness Adjust brightness of the screen. The larger the value is, the screen is , and vice versa. Adjustable at the range from 0 to 100 by a couple of steps. -
Page 14: User
4 Operation Sirona Dental Systems GmbH 4.5 User Operating Instructions 22" Monitor User User can adjust and set tones. • Exit: Return to Main Menu. • Red: Adjust red and equivalent colors at the range from 0 to 100. • Green: Adjust green and equivalent colors at the range from 0 to 100. -
Page 15: Osd Display
Sirona Dental Systems GmbH 4 Operation Operating Instructions 22" Monitor 4.6 Management 4.6.1 Scaling You can select the control to adjust below items relate to image scaling of Main channel. • Exit: Return to Main Menu. 4.6.2 OSD Display • Exit: Return to Main Menu. - Page 16 4 Operation Sirona Dental Systems GmbH 4.6 Management Operating Instructions 22" Monitor 4.6.2.2 OSD V. Position Adjust the vertical position of OSD. When rotating control dial clockwise, OSD moves to the up, and vice versa. 4.6.3 Language Selecting this control to select the language you want.
- Page 17 Sirona Dental Systems GmbH 4 Operation Operating Instructions 22" Monitor 4.6 Management 4.6.5 Recall Initialize the data such as display position and auto- matic adjustment data to factory default. 4.6.6 Audio 4.6.6.1 Audio (HDMI) Below menu is under HDMI Source.
- Page 18 4 Operation Sirona Dental Systems GmbH 4.6 Management Operating Instructions 22" Monitor 4.6.6.1.2 Volume Adjust the volume of the audio sound.Selecting this control to volume a scaling. At the range from 0 to 100. 4.6.6.1.3 Audio Source Selecting this control allows you to manually select Audio source from HDMI or Line-In.
- Page 19 Sirona Dental Systems GmbH 4 Operation Operating Instructions 22" Monitor 4.7 Operation Hours 4.6.6.2.1 Mute To control the audio sound of monitor. • ON: mute • Off: no mute 4.6.6.2.2 Volume Adjust the volume of the audio sound.Selecting this control to volume a scaling. At the range from 0 to 100.
-
Page 20: Care And Cleaning Instructions For The Practice Team
The glass screen and housing of the monitor can be disinfected by wiping them with a soft cloth. ATTENTION Use only cleaning agents which have been approved by Sirona (see above, "Care and cleaning agents")! ATTENTION Never spray the monitor with a disinfectant or clean-... - Page 21 Sirona Dental Systems GmbH 6 Disposal Operating Instructions 22" Monitor Disposal Your product is marked with the adjacent symbol. Environmentally sound disposal Within the European Economic Area, this product is subject to Directive 2002/96/EC as well as the corre- sponding national laws. This directive requires envi- ronmentally sound recycling/disposal of the product.
-
Page 22: Disposal
