Fish Hawk X4/X4D Components
The Fish Hawk can be purchased as a complete system or as an Upgrade Kit for
previous models. Replacement Probes are available separately if needed. Depending
on which configuration you have purchased, your package will include the following:

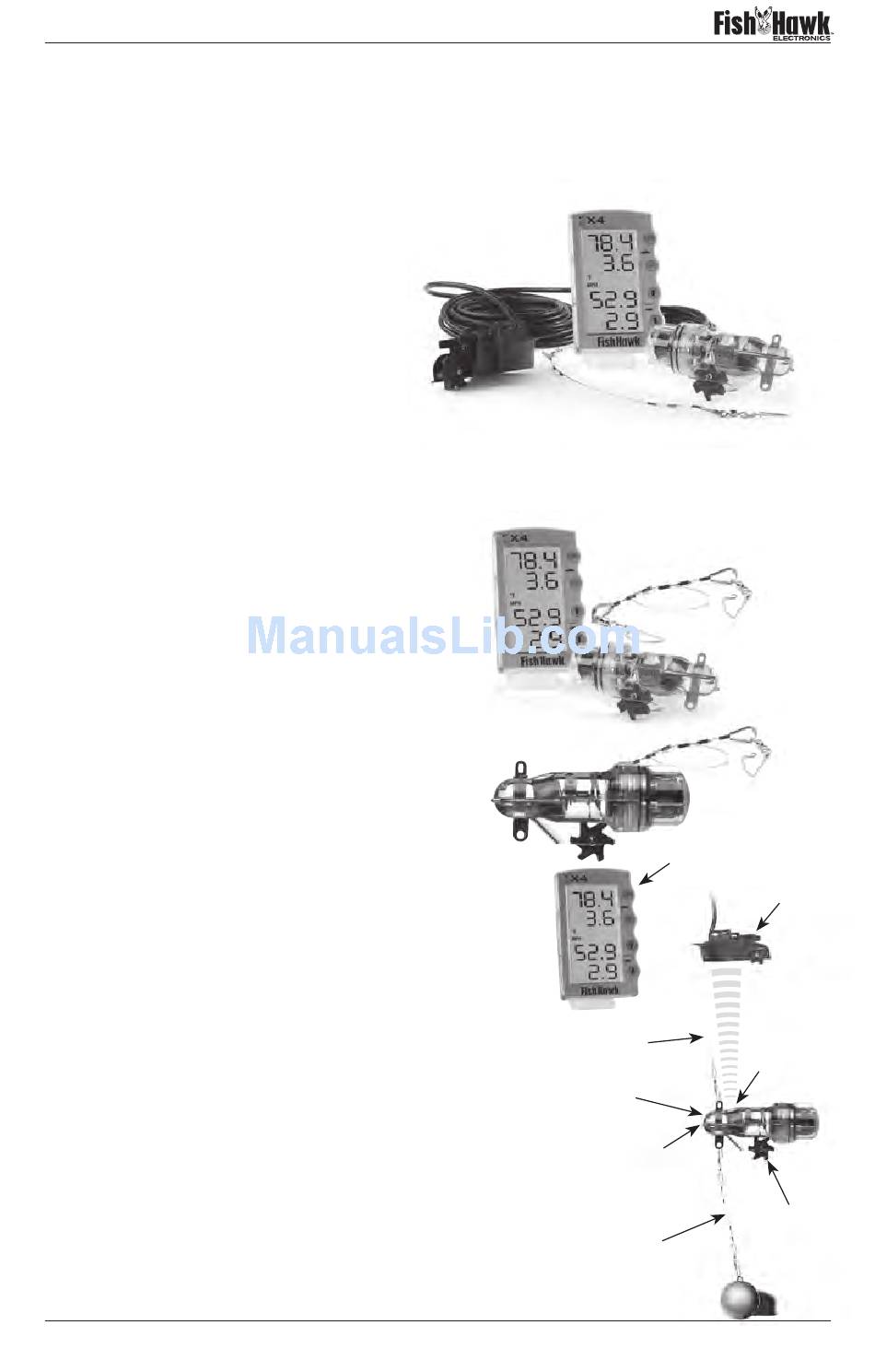

Fish Hawk System

• Transducer with 30' cable
• Transducer mounting kit
• LCD display
• Power cord for LCD display
• LCD display stand

• Fish Hawk Probe

• Breakaway cannonball wire safety lead
• Protective rubber probe bumper
• This Owner's Manual

Fish Hawk Upgrade Kit

• LCD display
• LCD display stand
• Fish Hawk Probe
• Breakaway cannonball wire safety lead
• Protective rubber probe bumper
• This Owner's Manual
Fish Hawk Probe
• Fish Hawk Probe
• Breakaway cannonball wire safety lead
• Protective rubber probe bumper
• This Owner's Manual

How the Fish Hawk Operates

The Fish Hawk Probe is fastened to the downrigger
cable just above the downrigger ball and has sensors that
constantly monitor water temperature and speed as it
travels through the water. The probe sends a sonar signal
with that information to the Transducer mounted on the
back of the boat. The Transducer, which is hooked up to
the LCD display, sends the data from the Probe and the
water's surface to the liquid crystal display (LCD) mount-
ed in the boat.
As the water temperature, speed or depth (model X4D
only) changes, the LCD updates to reflect the new infor-
mation. To compensate for wave action, speed is calculated
over a 20-second period. The probe operates at depths
from 1 to 300 feet.
Downrigger
Line
Probe
Temperature
Sensors
Break-Away
Lead
Downrigger
www.fishhaw electronics.com 5
X4 Digital Display
Transducer
Transmitter
Speed
Sensor
Ball
