Thank you for your purchase. For over 30 years anglers have relied on Fish Hawk
Electronics to give them accurate speed and water temperature information to help
them catch more fish. As a family owned and operated small business, we enjoy
working personally with each of our customers.
If you like our products and customer service, please tell your fishing friends
about us and take a moment to write a review or visit us at facebook.com/Fish-
HawkElectronics.
If you have any questions about your Fish Hawk, please contact us. Thank you
again, and have a safe and enjoyable fishing season
Sincerely,
Trevor Sumption
President, Grayden Outdoor, LLC.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fish Hawk X4D
Summary of Contents for Fish Hawk X4D
- Page 1 Thank you for your purchase. For over 30 years anglers have relied on Fish Hawk Electronics to give them accurate speed and water temperature information to help them catch more fish. As a family owned and operated small business, we enjoy working personally with each of our customers.
- Page 2 2015 Fish Hawk X4D Owner's Manual...
-
Page 3: Table Of Contents
Setting the Temperature Unit of Measure – Screen #2 ........1 1 Setting the Speed Unit of Measure – Screen #3 ........... 1 1 Calibrating the Sensors – Screen #4 ............1 1 Using the Fish Hawk Mobile App ................1 2 Routine Maintenance ................1 2 Trouble Shooting ..................13 Warranty ..................13... -
Page 4: The Search For The Right Water Temperature
Fish suspend in the water column by water temperature. Using your Fish Hawk will allow you to find them. With the Fish Hawk you can create a temperature profile of the water column by lowering the probe close to the bottom and observing the water temperature as you slowly raise the probe to the surface. -
Page 5: Fish Hawk Components

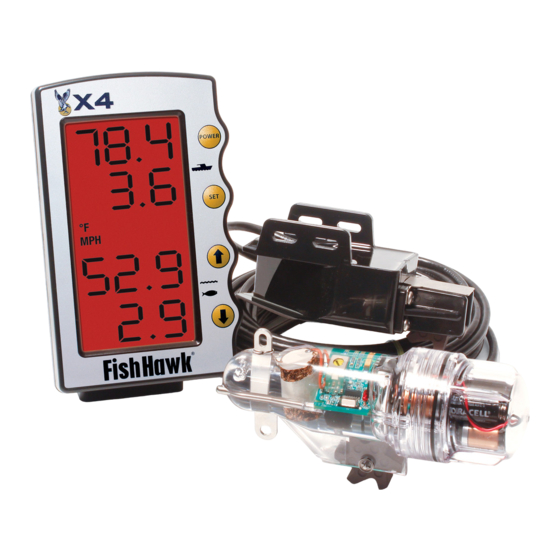

Fish Hawk X4/X4D Components The Fish Hawk can be purchased as a complete system or as an Upgrade Kit for previous models. Replacement Probes are available separately if needed. Depending on which configuration you have purchased, your package will include the following: Fish Hawk System •... -
Page 6: The Fish Hawk Probe
Fish Hawk Probe. Attach using a high quality snap run through the stamped stainless steel loop on top of the Fish Hawk Probe. -
Page 7: Attaching The Downrigger Ball
Probe and the downrigger ball. Attach one end of this lead to the stamped stainless steel loop on the bottom of the Fish Hawk Probe and the other end to the downrigger ball. The break-away lead is approximately 60lb test... -
Page 8: More Transducer Mounting Tips
20 kHz of the 70 kHz Fish Hawk Transducer. When possible, mount your Fish Hawk Transducer on the opposite side of the boat from other trans- ducers. The Transducer has a wide angle of 77-degrees that permits the signal to be received near the surface while increasing reception the deeper the probe goes. -
Page 9: Sonar Interference
Actual Probe depth is displayed as the top number on the model X4D. If the probe signal is not detected, dashes will appear for both the probe temperature and speed. To... -
Page 10: Setting The Gain-Screen #1
Enable the backlight by pressing the UP arrow or turn the backlight off by pressing the DOWN arrow. The model X4D has three levels of backlighting. The display has four screen settings. To access each setting press the SET but- ton, each time the SET button is pressed, the display will move to the next setting. -
Page 11: Setting The Temperature Unit Of Measure-Screen #2
The Fish Hawk model X4D features built in Bluetooth® Smart wireless technol- ogy that sends display data to mobile devices. Download the free Fish Hawk Elec- tronics Mobile App from the App Store (for Apple® devices with iOS 8 or newer) or Google Play (for Android®... -
Page 12: Routine Maintenance
The Catch Log is organized by date, and you easily share logged catch infor- mation with fishing buddies in other boats via text message or email Routine Maintenance Your Fish Hawk requires simple maintenance to keep it working properly. Use the following schedule to keep your Fish Hawk in top working order: Item... -
Page 13: Warranty
“HELP, I can’t fish without my Fish Hawk!” Many customers tell us that their Fish Hawk is so important to their fish catching success that they won’t fish with- out it. Fishing season is too short and we want you to maximize every trip out –... -
Page 14: Flat Rate Repair Charge Chart
• Attach an address label to each piece you send to us Contact Information: Grayden Outdoor, LLC. Phone (218) 454-4760 Fax (218) 824-1422 www.fishhawkelect onics.com Return Shipping Address: Grayden Outdoor, LLC. Attn: Fish Hawk Service 211 NW 4th St. Brainerd, MN 56401 14 Fish Hawk Owners Manual...
