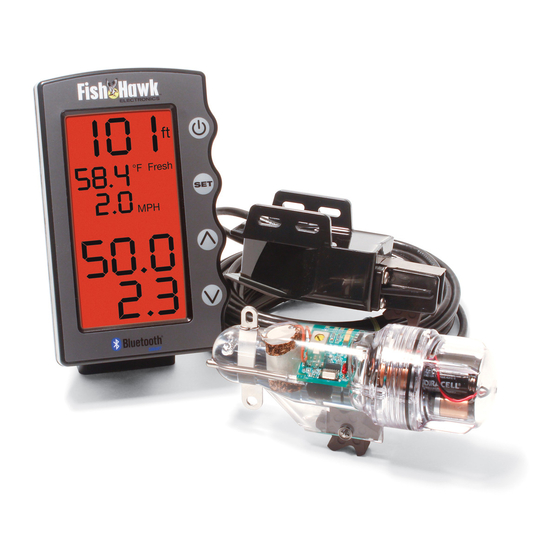

Fish Hawk X4D User Manual
  1. Manuals
  2. Brands
  3. Fish Hawk Manuals
  4. Fishing Equipment
  5. X4D
  6. User manual

Fish Hawk X4D User Manual

Hide thumbs Also See for X4D:

Advertisement

Table of Contents

User GUide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X4D and is the answer not in the manual?

Questions and answers

Related Manuals for Fish Hawk X4D

Summary of Contents for Fish Hawk X4D

  • Page 1 User GUide...
  • Page 2 We’ve built a reputation around personalized customer service. No call centers here! If you have a question or problem with your Fish Hawk, please contact us immediately. We’ll help you figure it out and do what needs to be done.
  • Page 3 Fish suspend in the water column by water temperature. Using your Fish Hawk will allow you to find them. With the Fish Hawk you can create a temperature profile of the water column by lowering the probe close to the bottom and observing the water temperature as you slowly raise the probe to the surface.

  • Page 4: How The Fish Hawk Operates

    • Protective rubber probe bumper hoW the fish haWk oPerates The Fish Hawk Probe is fastened to the downrigger cable just above the downrigger ball and has sensors that constantly monitor water temperature and speed as it travels through the water.
  • Page 5 Turning the Probe On and Off The Fish Hawk Probe features a water sensitive auto on/off switch that turns the probe on when it is lowered into the water and shuts the probe off when it is removed from the water, conserving battery life.

  • Page 6: Attaching The Probe To The Downrigger Cable

    Note The X4/X4D probe is very durable, but denting the temperature sensor probes will cause your probe to read 03.9 or 04.0. Remove the probe from the downrigger cable and store in a protected place when not in use.

  • Page 7: Installing The Transducer

    20 kHz of the 70 kHz Fish Hawk Transducer. When possible, mount your Fish Hawk Transducer on the opposite side of the boat from other trans- ducers. The Transducer has a wide angle of 77-degrees that permits the signal to be received near the surface while increasing reception the deeper the probe goes.
  • Page 8 Sonar interference is caused when similar sonar frequencies are used in close proximity to one another. The Fish Hawk uses a 70 kHz frequency while most fish finders operate around 200 KHz, meaning the Fish Hawk will not interfere with most fish finders.

  • Page 9: Using The Fish Hawk Display

    Actual Probe depth is displayed as the top number on the model X4D. If the probe signal is not detected, dashes will appear for both the probe temperature and speed. To indicate that the probe is functioning correctly, every time a new signal is received the decimal points in the probe readings will flash.
  • Page 10 This screen allows you to select the unit of measure for speed. The surface and probe speeds will automatically be in the same unit of measure. The Fish Hawk will display speeds from .4 MPH to 11 MPH at the probe and from .4MPH to planning speeds at the surface.
  • Page 11 The Fish Hawk model X4D features built in Bluetooth® Smart wireless technol- ogy that sends display data to mobile devices. Download the free Fish Hawk Elec- tronics Mobile App from the App Store (for Apple® devices with iOS 8 or newer) or Google Play (for Android®...

  • Page 12: Routine Maintenance

    Your Fish Hawk requires simple maintenance to keep it working properly. Use the following schedule to keep your Fish Hawk in top working order: Item Check Action Interval Liquid Crystal Check for dirt and wa- Clean with soft cloth.

  • Page 13: Troubleshooting

    Fish Hawk fish finder ad. You can also try reducing transducer (70 KHz) on the the Gain setting on the Fish Hawk display transom. by pressing the SET button and then the arrow down key, or separating transducer cables if tied together.

  • Page 14: Out-Of-Warranty Service

    Warranty serviCe If your Fish Hawk is out-of-warranty we will repair it for a fee. If it can’t be repaired, we’ll replace it for the flat rate shown below. Return shipping is $10 inside the Continental U.S. Actual shipping charges plus applicable taxes, duties and brokerage apply for international shipping.
  • Page 15 serviCe adviCe • Please consult the Troubleshooting page on our website before sending your product in. • It is best to send your probe and display in together to be tested as a set. • If you think you have a problem with the transom mount transducer, contact us prior to removing it.
  • Page 16 Made in the U.S.A. Grayden Outdoor LLC Fish Hawk Electronics 7845 Brians Way Brainerd, MN 56401 Phone (218) 454-4760 www.fishhawkelectronics.com...

This manual is also suitable for:

X4
