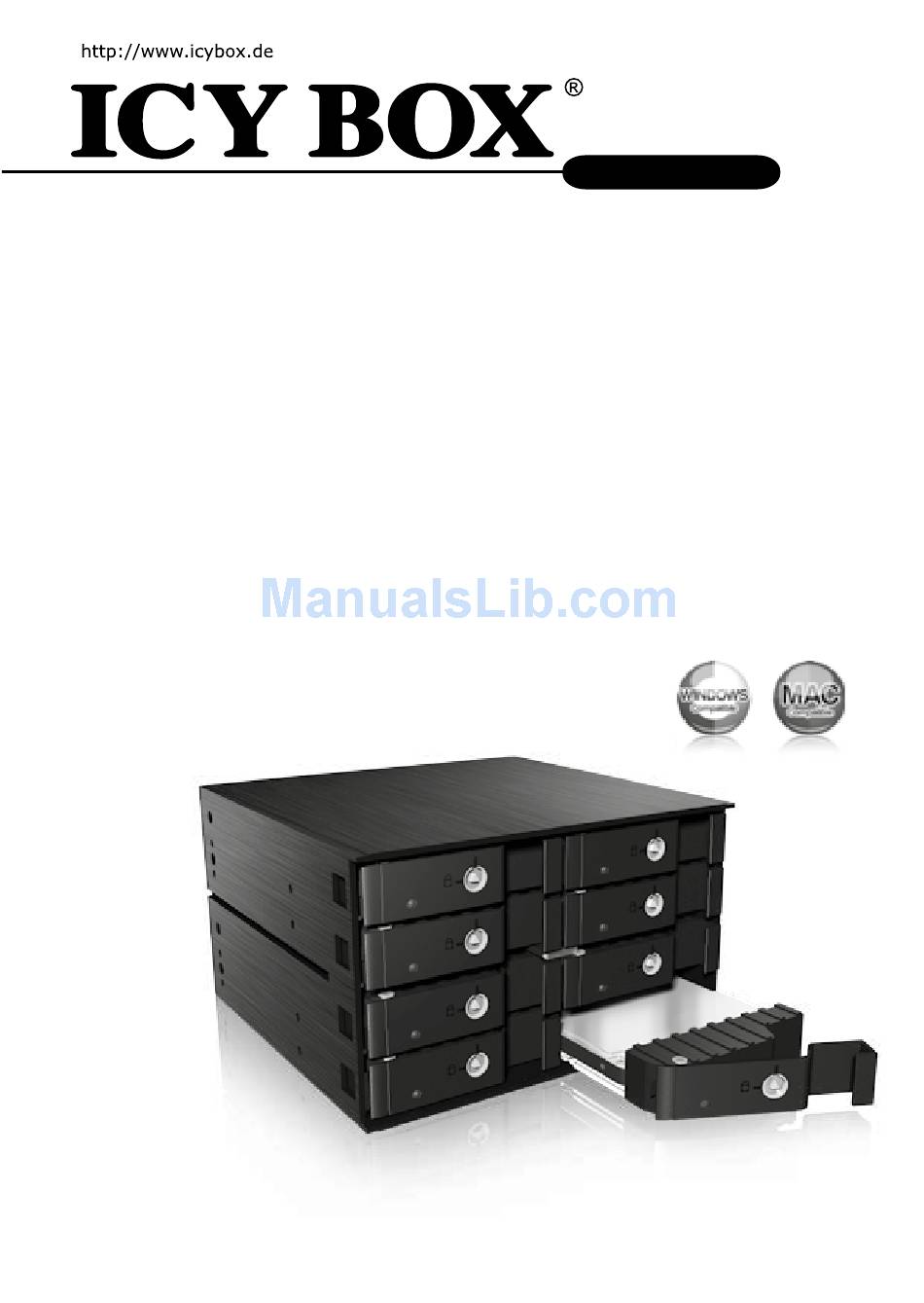

- Page 1 IB-2280SSK Manual IB-2280SSK 8bay 2.5" SATA/SAS HDD backplane Handbuch IB-2280SSK 8Fach 2,5" SATA/SAS HDD backplane Manuel IB-2280SSK SATA/SAS Backplane pour 8 disques durs 2.5"...
- Page 2 2x SATA Power Connector 15pin • 8x Data Signal Connector 7pin 2. Packing Content 1x IB-2280SSK, 8x SATA cables, 2x keys, 24x screws, 1x short Manual 3. Product view Front view Rear view 1. HDD power LED (blue) & HDD access 1.
- Page 3 IB-2280SSK 6. LED Function HDD connected: LED 1. = blue HDD access: LED 1. = pruple blinking Fan failure: LED 3. = red Temperature failure: LED 4. = red 7. Technical Data HDD/SSD 8x 2.5" SATA/SAS HDD/SSD HDD height 6 ~ 15 mm Form factor 2x 5.25"...
- Page 4 IB-2280SSK Eigenschaften • 8x 2,5" SATA oder SAS HDD/SSD in nur 2x 5,25" Einbauschacht • Anti-Vibration Technology • Festplatten bis 15 mm Höhe • Gehäuse aus Aluminium und Metall • Alarm für Übertemperatur und Lüfterfehler • SATA I/II/III host interface bis zu 6.0 Gbit/s •...
- Page 5 IB-2280SSK Caractéristiques • 8x 2.5" disques durs SATA ou SAS dans deux baie 5,25" • Anti-Vibration Technology • Disques durs jusque á 15 mm • Aluminium et métal • Commande de ventilateur intelligent • Interrupteur d‘alimentation indépendante • Interface SATA I/II/III 6.0 Gbit/s •...
- Page 6 www.icybox.de © Copyright 2015 by RaidSonic Technology GmbH. All Rights Reserved The information contained in this manual is believed to be accurate and reliable. RaidSonic Technology GmbH assumes no responsibility for any errors contained in this manual. RaidSonic Technology GmbH reser- ves the right to make changes in the specifications and/or design of the above mentioned product without prior notice.
