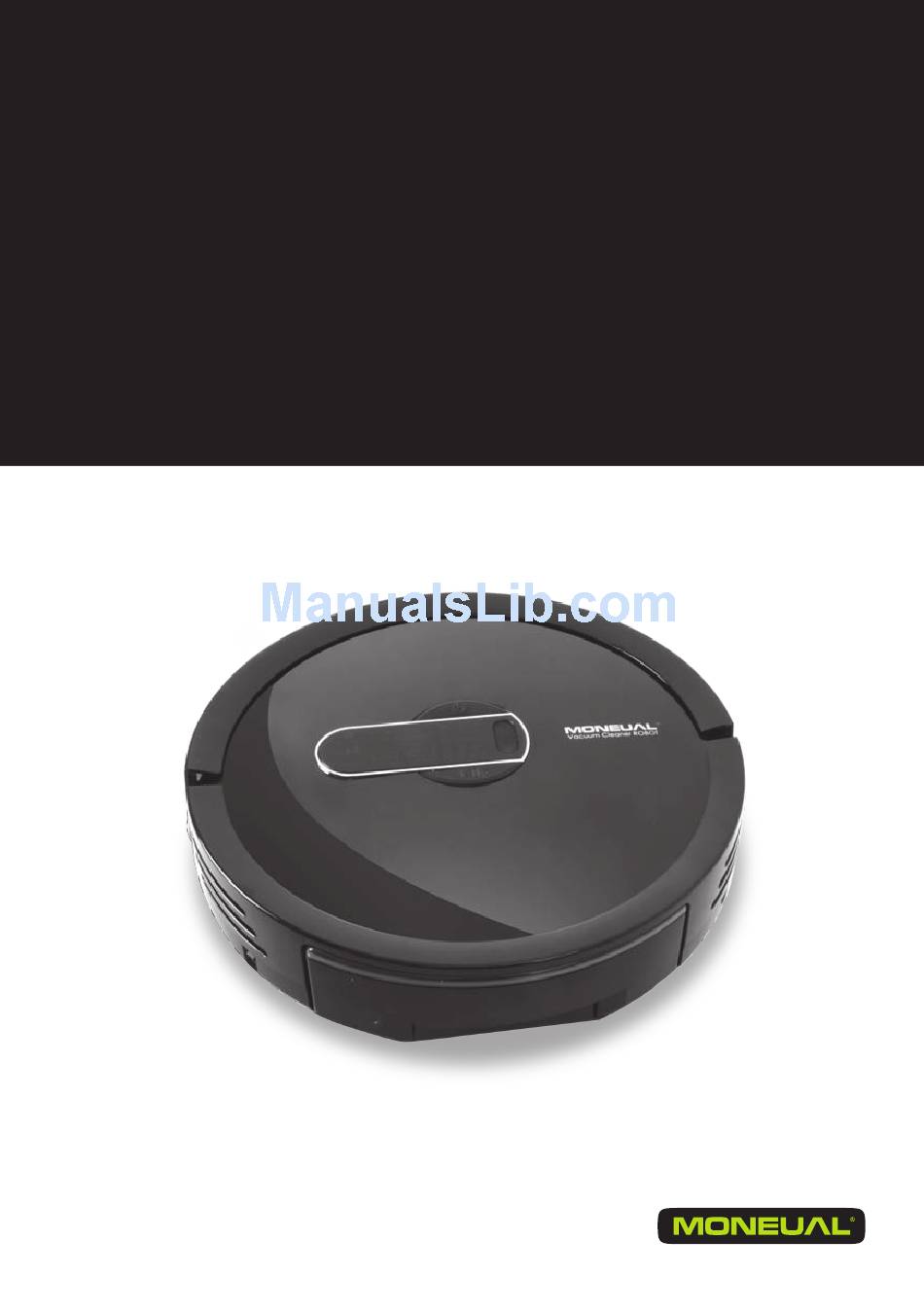

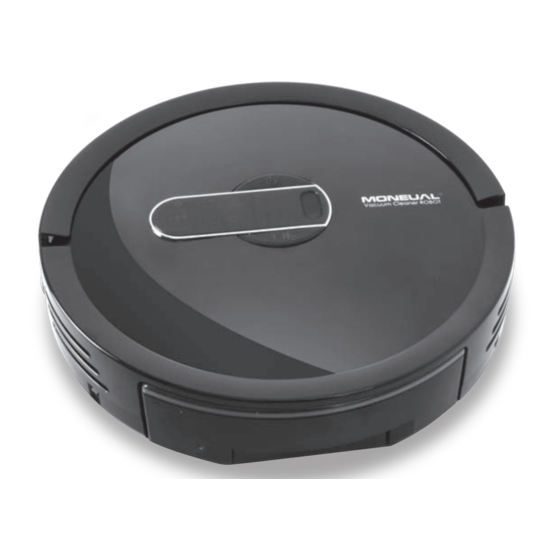

- Page 1 User Manual RYDIS R750 Copyright ⓒ 2010 MONEUAL Inc. All rights reserved. The MONEUAL, MONCASO, MiNEW, RYDIS, SONAMU are trademarks, or registered trademarks of MONEUAL Inc. in the Republic of Korea and/or other counties.
- Page 2 RYDIS R750 User Manual...
-
Page 3: Table Of Contents
Cleaning the dust box Replacing the filter Cleaning the falling point-detecting sensor Cleaning wheels Cleaning the dust intake Battery usage and management Voice announcement list System error codes list Checkpoints before request for after-sales service Specifications 4 RYDIS R750 User Manual... -
Page 4: Cautions For Safety
A child or an elderly person can be frightened or injured. Make sure that the power of the charger is always supplied. Otherwise, you cannot use the function of making the robot go back to the charger for automatic charging after it finishes cleaning. RYDIS R750 User Manual 5... - Page 5 Do not use the product in a utility room, on a wet floor, in stairs, on a table or shelf, in an un- derground room, a warehouse, a commercial building or the outdoors. If you have dropped the product or caused an impact to the product, contact the designated service center immediately. 6 RYDIS R750 User Manual...
- Page 6 For indicator power, use rated batteries and adapters. If not, the product can be damaged and then set afire or it may not work. In case of insufficient indicator battery, replace with a new one. Or, indicator functions may not work normally. RYDIS R750 User Manual 7...
- Page 7 Do not place hot or flammable objects such as cigarette, candle, heater, match or gasoline. The product can be badly damaged or a fire may break out. Do not use the product near an explosive object or in an explosive place. 8 RYDIS R750 User Manual...
-
Page 8: Parts
The life span of the dust box filter is around six months and it can increase/decrease depending on usage environments. Make sure to use expendables in standard. For inquires for appropriate standards, please contact our customer care center. RYDIS R750 User Manual 9... -
Page 9: Before Using The Product
At an entrance and a place whose height is different from that of the living room, if shoes are placed at entrance, the robot might see the shoes as floor, falling from the living room. Use the product carefully in a narrow site (e.g. desks, tables, etc.) where the robot may fall. 10 RYDIS R750 User Manual... -
Page 10: Name Of Parts
⑤ Sucking power lamp ⑥ Battery status lamp ⑦ Reservation information lamp ⑧ Room selection lamp ⑨ Time lamp ⑩ Operation mode lamp Robot cleaner(Rear) ① Dust box ② Air outlet ③ Power switch ④ Adapter jack RYDIS R750 User Manual 11... -
Page 11: Indicator
④ Side brush mounting pin ⑤ Dust intake ⑥ Dustcloth guard mounting holes Indicator(Top) ① Signal transmission sensor ② Mode switch button ③ Distance setup button ④ Indicator number setup button Indicator(Bottom) ① Battery cover 12 RYDIS R750 User Manual... -
Page 12: Charger
Charger(Front) ① Operation lamp ② Guide signal transmission sensor ③ Charging terminal Charger(Rear) ① Adapter jack ② Adapter compartment RYDIS R750 User Manual 13... -
Page 13: Installing Product
The wall facing the rear of the charger should not be made of glass or glossy materials. Insert the adapter into the compartment of the charger, properly. If you put it in a site under direct sunlight, automatic charging may not be made or the product can be discolored/ decolorized. 14 RYDIS R750 User Manual... - Page 14 After 1-hour charging, you can use the product for around one (1) hour. Usage time may vary depending on the strength of the sucking power. Being charged Blinks 1 time/sec Battery lamp Charging completed Stops blinking Low battery Blinks 4 times/sec RYDIS R750 User Manual 15...
- Page 15 You need to insert the battery in a correct position following the polarity data indicated in the insertion position. 08. Install the indicator in a desired position. The product can perform cleaning, anyway, with no indicator installed. For detailed installation methods, see the page 27. 16 RYDIS R750 User Manual...
-
Page 16: Basic Cleaning (Automatic Cleaning)
If the product gets equipped with a dustcloth panel, it gets ready for dustcloth cleaning and it does not go to the sites with carpets. If there is a carpet or other objects ahead of the charger in cleaning with the dustcloth, the cleaner may fail to reach the charger. RYDIS R750 User Manual 17... -
Page 17: Using Advanced Cleaning Functions
The main body shows the [Cleaning corners] indication. Main body button Remote controller button Press the mode selection button (None) repetitively 02. Press the [Start/Stop] button. After the cleaning is completed, the product will stop at the current place. 18 RYDIS R750 User Manual... -
Page 18: Cleaning Under The Bed
Remote controller button (None) Every time you press the button, the number/status is changed among 1-2-3-4-5-no selection. 02. Press the [Start/Stop] button. After the cleaning is completed, the product will stop at the current place. RYDIS R750 User Manual 19... -
Page 19: Cleaning Through Manual Control
02. Press the [Start/Stop] button if the robot is in operation. 03. Press the button seen below to change the remote controller operation mode for the motion control mode. 04. Use the motion shown in the figure below to manually control the robot. 20 RYDIS R750 User Manual... - Page 20 [Turning on/off cleaning mode - [OK/Manual cleaning] button from the remote controller] Move the remote controller to the left/right direction quickly. [Adjusting the sucking power - [Sucking power] button from the remote controller] Quickly move the remote controller downward. RYDIS R750 User Manual 21...
- Page 21 Given this, it is recommended to release the motion control mode by pressing the button to convert the motion control mode if you don’t want to use the motion control function. 22 RYDIS R750 User Manual...
-
Page 22: Setup Of Time And Reservation
When you press the “Left” direction key, you can go back to the previous stage. 05. Use the “Up” and “Down” direction keys to set the ‘Day of the week’. 06. When all the settings are completed, press the [OK/Manual cleaning] button. RYDIS R750 User Manual 23... -
Page 23: Setting Reservation
For any date requiring no reservation, you can set the time as [00:00]. 05.After all the settings for the day of the week are completed or if you want to go out of the setup mode, press the [Reservation setup] button. 24 RYDIS R750 User Manual... -
Page 24: Setup And Execution Of Macros
With the voice announcement for the completed setup being heard, the macro setup will be terminated (At this time, the upper display may blink). 09. If you press the [Macro setup] button from the remote controller during the control, the macro setup will be cancelled. RYDIS R750 User Manual 25... -
Page 25: Executing Macros
07. The robot will automatically let the inhalation fan work at the time when the inhalation fan was operated during the saving work. 08. If you press the [Start/stop] button during the execution, the macro execution will be terminated. 26 RYDIS R750 User Manual... -
Page 26: Using The Indicator
Repeat the pressing until the setup is made for the door width. 1m(●) - 3m(●●) - 5m(●●●) For common home, 1m setup is available. If you set the distance excessively, the robot cleaner may wrongly decide the path. RYDIS R750 User Manual 27... -
Page 27: Using Through Setup Of Cleaning Areas
Transmission signal (up to 5m) Robot cleaner 01. Press the [Mode] button to set the [Set cleaning areas] mode. When the lamp gets turned on, repeat the pressing until the [Set cleaning areas] lamp is turned on. 28 RYDIS R750 User Manual... - Page 28 It is recommended not to install indicators in a place with the charger in it. The emitting signals of the charger (in the radius of 5 meters) may be overlapped with the signals of indicators, which can be ignored. Charger Emitting signals of the charger RYDIS R750 User Manual 29...
-
Page 29: Descriptions For Remote Controller Buttons
Selects the focused cleaning (See the page 18.) ⑨ Automatic cleaning button Selects the automatic cleaning or the basic cleaning mode ⑩ Cleaning under the bed button Selects the cleaning under the bed (See the page 19.) 30 RYDIS R750 User Manual... - Page 30 If the main body is 3 meters or more distant from the remote controller, the synchronization will fail. 5. Turn off and then on the power switch at the side of the main body. 6. Pull out and then re-insert the battery of the remote controller. The synchronization will be completed. RYDIS R750 User Manual 31...
-
Page 31: Managing The Product
02. Lift the cover of the dust box. 03. Remove the dust filter. The dust filter can be water-cleaned. After cleaning the filter with water, dry it completely in the shade. In water-cleaning the filter, do not use any detergent. 32 RYDIS R750 User Manual... -
Page 32: Replacing The Filter
For removal of the filter, see the Step 3 at the “Cleaning the dust box”. The life span of the filter is around six (6) months. Any end-of-life filter shows worsened performance. The life span of the filter can decrease depending on usage environments. RYDIS R750 User Manual 33... -
Page 33: Cleaning The Falling Point-Detecting Sensor
01. Turn over the robot cleaner. In cleaning, it is advised to use only the brush. Turn one wheel a bit to clean the whole wheel part. Remove hairs and other foreign substances, which disturb operation of wheels. 34 RYDIS R750 User Manual... -
Page 34: Cleaning The Dust Intake
04. Clean the removed brush with the brush. 05. Insert back the rubber brush. Check the groove shape and insert it into the fixing hole of the rubber brush. Then, fix the wing of the fixing pin to the fixing pin. RYDIS R750 User Manual 35... - Page 35 06. Insert the cover of the dust intake. Insert the protruding part of the cover before others. Then, it will be fixed due to the magnetic power. 36 RYDIS R750 User Manual...
-
Page 36: Battery Usage And Management
Make sure to use standard batteries. For purchase of additional batteries, please contact our service center. Replacing the battery manually If you feel difficulty in manually replacing the battery, please contact our service center. 01. Turn over the robot cleaner. RYDIS R750 User Manual 37... - Page 37 03. Remove the battery and pull out the battery pin. In pulling out the battery pin, you need to press the lock at the same time. 04. Fix the battery pin of the new battery in and then insert the battery. 38 RYDIS R750 User Manual...
- Page 38 If you use the product filled with foreign substances and dust, it can cause increase in rotation of inter- nal motors and then shortened life span of the battery. Charge the battery all the time before using the product. In charging or long-term storage, keep the product avoid direct sunrays and fire. RYDIS R750 User Manual 39...
-
Page 39: Voice Announcement List
Overload is generated due to foreign substances in the main brush. Check the side brush. Overload is generated due to foreign substances in the side brush. Errors are generated. Errors occur (See the error code). 40 RYDIS R750 User Manual... -
Page 40: System Error Codes List
Lift the robot cleaner to another site. Measures Reason The product detects risks of fall successively (over a reference level). [E.13] Lift the robot cleaner to another site. Measures Other errors Reason [E.15] Measures Please contact our service center. RYDIS R750 User Manual 41... -
Page 41: Checkpoints Before Request For After-Sales Service
(2) Check if a reservation setup has been made. Q. The robot does not work with any If the main body is directly connected with the adapter for charging, button. no button input will work. 42 RYDIS R750 User Manual... -
Page 42: Specifications
(IR) Remote control Model RC-750 Dimension 132.7 x 23.4 x 46.9mm (LxHxW) Weight Signal transmission distance (IR) ※ The output distance for each signal can vary depending on adjacent environments and the remaining battery capacity. RYDIS R750 User Manual 43... - Page 43 MEMO...
- Page 44 MEMO...
- Page 45 MEMO...
- Page 46 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 47 Copyright ⓒ 2010 Moneual Inc. all rights reserved. The MONEUAL, MONCASO, MiNEW, RYDIS, SONAMU are trademarks, or registered trademarks of Moneual Inc. in the Republic of Korea and/or other countries.
