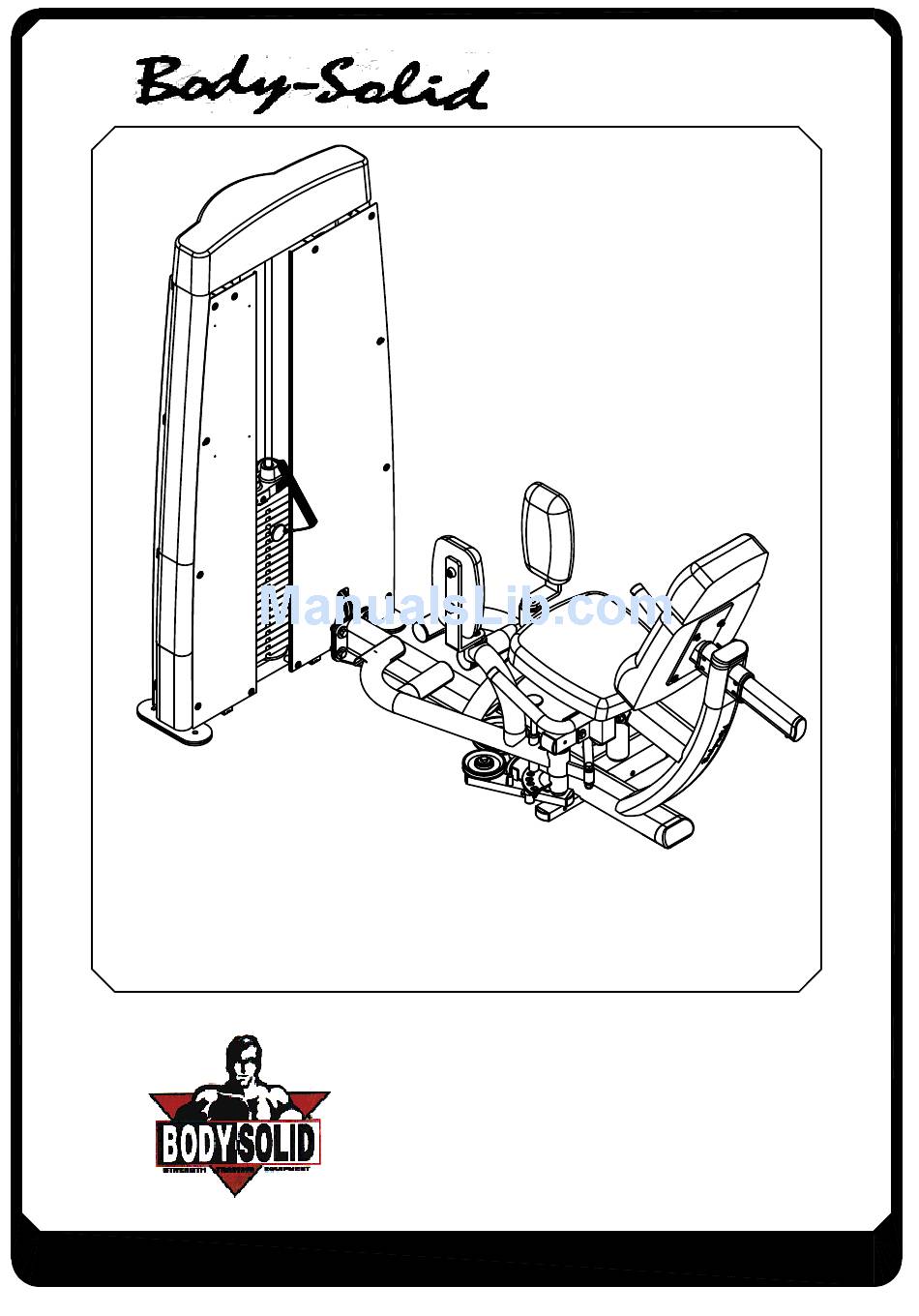

- Page 1 BODY-SOLID,Inc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com DIOT.2 OWNER'S MANUAL...
- Page 2 ASSEMBLY INSTRUCTIONS DIOT HARDWARE ILLUSTRATION (A1)HEX BOLT 1/2"x1 1/2"L PARTIAL THREAD QTY.4 (A2)HEX BOLT 1/2"x5 3/4"L PARTIAL THREAD QTY.2 (A3)HEX BOLT 3/8"x3"L PARTIAL THREAD QTY.2 (A4)HEX BOLT 5/16"x1"L PARTIAL THREAD QTY.4 (A5)ROUND ALLEN HEAD 5/16"x1 1/4"L PARTIAL THREAD QTY.4 Page DIOT.2-042007...
- Page 3 ASSEMBLY INSTRUCTIONS DIOT HARDWARE ILLUSTRATION (A7)HEX BOLT 5/16"x3"L PARTIAL THREAD QTY.2 (A19)HEX BOLT 3/8"x1"L PARTIAL THREAD QTY.1 Page DIOT.2-042007...
- Page 4 (A12)HEX BOLT 3/8"x3 1/2"L PARTIAL THREAD QTY.1 Optional Purchase (A10)HEX BOLT M4X65L PARTIAL THREAD QTY.2 TOP CAP(9211-111) (C12)M4(I.D.)FLAT WASHER 12 QTY.2 TOP CAP(9211-119) "M4X65L HEX BOLT" and "M4 WASHER" is used to assemble with 9211-111 and 9211-119 TOP CAP Page DIOT.2-062007...
- Page 5 DIOT ASSEMBLY INSTRUCTIONS FRAME HARDWARE ILLUSTRATION (A13)ELASTIC BOLT QTY.1 (A14)10LB PIN (8250-071) QTY.1 (A16)ROUND ALLEN HEAD M6X20L PARTIAL THREAD QTY.20 (A17)ROUND ALLEN HEAD 5/32"X1/4"L PARTIAL THREAD QTY.4 Page DIOT.2-042007...
- Page 6 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (C3)3/8"(I.D.)FLAT WASHER 27 QTY.6 (B1)NYLON LOCK NUT 1/2" QTY.6 (C4)5/16" SPRING WASHER QTY.6 (B2)NYLON LOCK NUT 3/8" QTY.3 (C6)5/16"(I.D.)FLAT WASHER 24 QTY.6 (C1)1/2"(I.D.)FLAT WASHER 25 QTY.10 (B7)NYLON LOCK NUT 1/2"X8H QTY.2 (C2)1/2"(I.D.)FLAT WASHER 34 QTY.4 Page DIOT.2-072007...
- Page 7 DIOT ASSEMBLY INSTRUCTIONS FRAME HARDWARE ILLUSTRATION (B5)NYLON LOCK NUT 1/2" QTY.4 (C9)3/8"(I.D.)FLAT WASHER 19 QTY.2 (B6)NYLON LOCK NUT 3/8" QTY.1 (C10)3/8" SPRING WASHER QTY.1 (C11)M6(I.D.)FLAT WASHER 13 QTY.20 (C8)1/2"(I.D.)FLAT WASHER 34 QTY.6 (C13)1/2"(I.D.)FLAT WASHER 25 QTY.2 Page DIOT.2-062007...
- Page 8 DIOT ASSEMBLY INSTRUCTIONS Selector Rod HARDWARE ILLUSTRATION (A20)ROUND ALLEN HEAD M10X30L PARTIAL THREAD QTY.1 (A21)FIRM SHEATH(8890-046) QTY.1 (B8)NYLON LOCK NUT M10 QTY.1 Page DIOT.2-042007...
- Page 9 DIOT ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION 1" CU WASHER (8520-008)-------------------------------------[7PCS] 60 END CAP (9211-065)------------------------------------------[4PCS] D4.1"X2" END CAP (9211-086)----------------------------------------[3PCS] D5.2"X2" END CAP (9211-087)----------------------------------------[3PCS] D6.50X100(40X80)NYLON BUSHING(9211-107)-----------------[2PCS] D7.58X116X2.5T FOOT CAP(9211-109)----------------------------[2PCS] D8.58X116 END CAP(9211-112)--------------------------------------[2PCS] D9.40X80 END CAP(9211-113)----------------------------------------[1PCS] D10.RUBBER BOLT HEAD PROTECTOR 5/16"(9214-030)----[4PCS] D11.95X140L RUBBER PAD(9310-035)-----------------------------[2PCS] D12.
- Page 10 DIOT ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION D18.TOP PLATE(8400-006)------------------------------------------[1PCS] D19.1860mm STEEL CABLE(FDIOTA)----------------------------[1PCS] D20.2220mm STEEL CABLE(FDIOTB)----------------------------[1PCS] D21.DIOT For DGYM Steel Cable(FDIOTC)----------------------[1PCS] D22.WEIGHT SELECTOR BAR(8210-042B)---------------------[1PCS] 2220 2220 1860 Page DIOT.2-042007...
- Page 11 DIOT ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET A2[1PCS] B1[1PCS] E1[1PCS] C[1PCS] D2[1PCS] F[1PCS] G[1PCS] H[1PCS] I1[2PCS] Direction L[1PCS] K[1PCS] J[1PCS] 8312-090 Direction Page DIOT.2-092008...
- Page 12 DIOT ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET N[1PCS] P[2PCS] O[1PCS] 9111-055 9131-017 9121-052 AC[2PCS] 8220-141 Short Ø25X257L Long Page DIOT.2-042007...
- Page 13 ASSEMBLY INSTRUCTIONS FRAME PARTS ILLUSTRATION SHEET S[1PCS] Q[1PCS] 8380-048 8380-046 R[1PCS] 8380-047 T[2PCS] 3/4"X1410L AD[1PCS] V[2PCS] 9211-111A 8313-144 X[9PCS] 8321-040 both side 50.5 Y[1PCS] W[1PCS] 8321-040 6610-002 one side 50.5 Z[2PCS] 8321-040 AB[1PCS] one side 9440-166 AA[1PCS] 6640-001 50.5 Page DIOT.2-072009...
- Page 14 DIOT ASSEMBLY INSTRUCTIONS Above shows STEP 1 assembled and completed M12X35 HEX BOLT 1/2" WASHER Page DIOT.2-092008...
- Page 15 ASSEMBLY INSTRUCTIONS AC[2PCS] 8220-141 Ø25X257L Short Above shows STEP 2 Long assembled and completed *: After installing the shaft ( part AC ), please tighten it( the shaft). Long Edge Long Edge M12X35L HEX BOLT 1/2" WASHER STOP MAT Page DIOT.2-092008...
- Page 16 ASSEMBLY INSTRUCTIONS DIOT ALLEN SCREW Above shows STEP 3 assembled and completed After installation, the space between B1 and E1 can be adjusted by stop mat. Page DIOT.2-042007...
- Page 17 ASSEMBLY INSTRUCTIONS DIOT Above shows STEP 4 assembled and completed 1/2" WASHER X2 1/2"X3/4"L HEX BOLT X2 Page DIOT.2-042007...
- Page 18 ASSEMBLY INSTRUCTIONS DIOT Above shows STEP 5 assembled and completed Page DIOT.2-042007...
- Page 19 DIOT ASSEMBLY INSTRUCTIONS Above shows STEP 6 assembled and completed M10X25L CONE BOLT X8 Page DIOT.2-042007...
- Page 20 DIOT ASSEMBLY INSTRUCTIONS Above shows STEP 7 assembled and completed Page DIOT.2-042007...
- Page 21 ASSEMBLY INSTRUCTIONS DIOT Above shows STEP 8 assembled and completed Page DIOT.2-042007...
- Page 22 ASSEMBLY INSTRUCTIONS DIOT Above shows STEP 9 assembled and completed Page DIOT.2-072007...
- Page 23 ASSEMBLY INSTRUCTIONS DIOT Above shows STEP 10 assembled and completed C9 B6 Ø10 cable wire head Selector Rod DETAIL VIEW 15.1 Page DIOT.2-042007...
- Page 24 DIOT ASSEMBLY INSTRUCTIONS Above shows STEP 11 assembled and completed M6 WASHER X4 M6X20L ROUND BOLT X4 M6 WASHER M6X12L ROUND BOLT Page DIOT.2-072009...
- Page 25 ASSEMBLY INSTRUCTIONS DIOT DGYM DIOT DIOT Page DIOT.2-042007...
- Page 26 ASSEMBLY INSTRUCTIONS DIOT Cable to match illustration Double strength(D9) Cable for DGYM only(D21) Page DIOT.2-042007...
