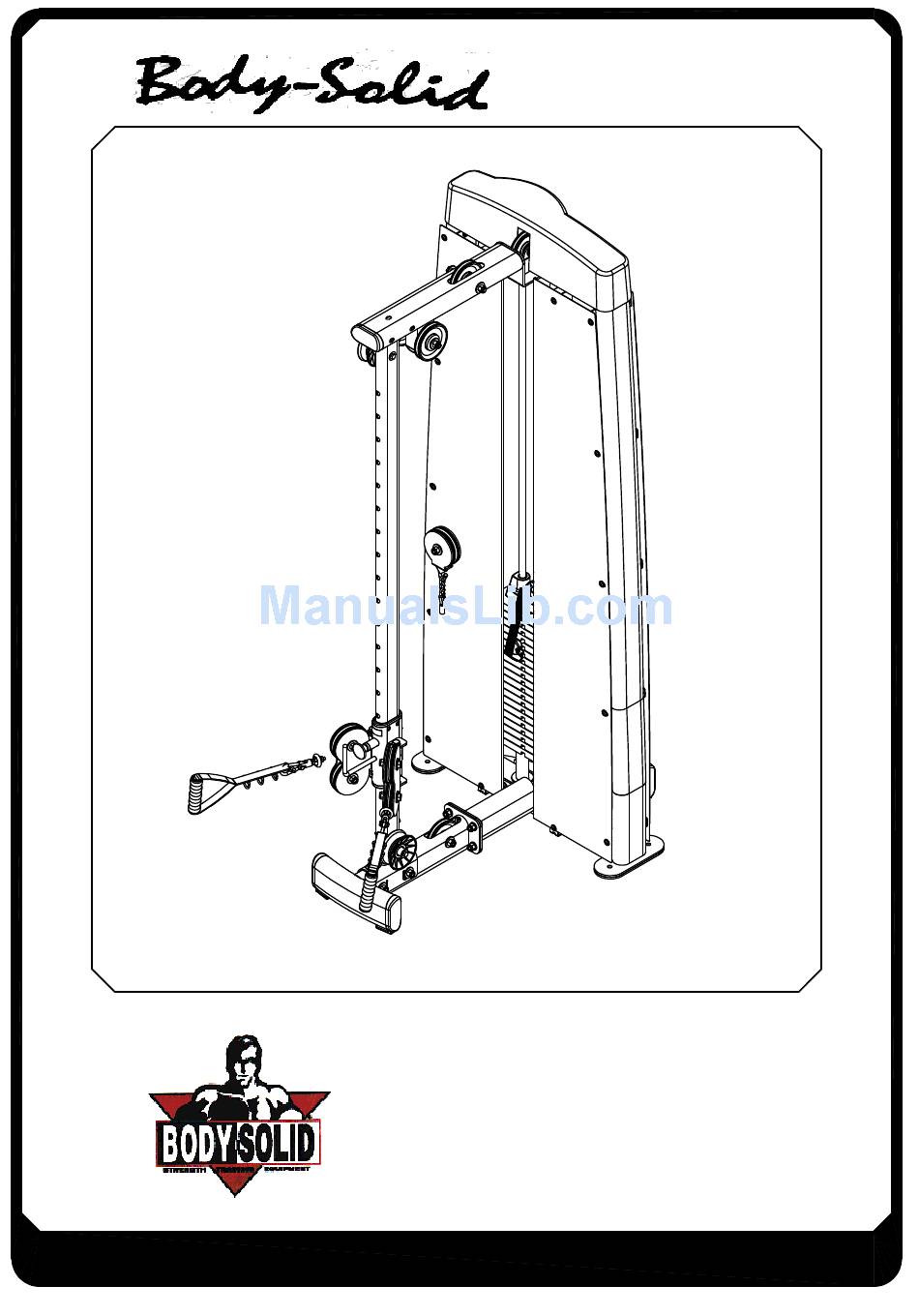

- Page 1 DPCC BODY-SOLID,Inc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com DPCC.2 OWNER'S MANUAL...
- Page 2 DPCC ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (A1)HEX BOLT 1/2"X1-1/4"L PARTIAL QTY.4 (A2)HEX BOLT 1/2"X2"L PARTIAL QTY.4 (A3)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.1 (A4)HEX BOLT 1/2"X3"L PARTIAL QTY.1 (A5)HEX BOLT 1/2"X3-1/2"L PARTIAL QTY.2 (A6)HEX BOLT 1/2"X4-1/4"L PARTIAL QTY.2 DPCC.2-042007 Page...
- Page 3 DPCC ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (A7)HEX BOLT 1/2"X5-1/2"L PARTIAL QTY.1 (A8)HEX BOLT 1/2"X6-1/2"L PARTIAL QTY.2 (A9)HEX BOLT 3/8"X4-1/4"L PARTIAL QTY.1 (A10)ROUND ALLEN HEAD 3/8"X5"-1/4"L PARTIAL QTY.2 (A11)ROUND ALLEN HEAD M10X75L PARTIAL THREAD QTY.2 (A12)HEX BOLT 1/2"X6-1/4"L PARTIAL QTY.1 DPCC.2-042007 Page...
- Page 4 DPCC ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (B1)NYLON LOCK NUT1/2" QTY.18 (C1)1/2"(I.D.)FLAT WASHER 34 QTY.24 (B2)NYLON LOCK NUT 3/8" QTY.3 (C2)1/2"(I.D.)FLAT WASHER 25 QTY.12 (C3)3/8"(I.D.)FLAT WASHER 27 QTY.4 (C4)M10(I.D.)FLAT WASHER 27 QTY.2 DPCC.2-042007 Page...
- Page 5 DPCC ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (AA2)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.1 (AA4)ROUND INNER HEAD 3/8"X2"L PARTIAL QTY.1 (AA5)ROUND INNER HEX SCREW M6X20L PARTIAL QTY.24 (AA6)ROUND CROSS SCREW 5/32"X1/4"L PARTIAL QTY.4 (AA7)10LB PIN(8250-071) QTY.1 DPCC.2-062007 Page...
- Page 6 (AA8)ELASTIC BOLT QTY.1 (CC1)1/2"(I.D.)FLAT WASHER 25 QTY.2 (AA10)ROUND INNER HEX SCREW M10X30L PARTIAL QTY.1 (CC2)M6(I.D.)FLAT WASHER 13 QTY.24 (AA11)FIRM SHEATH(8890-046) QTY.1 (CC4)SPRING WASHER 1/2" QTY.1 (BB2)NYLON LOCK NUT1/2" QTY.1 (CC5)SPRING WASHER 3/8" QTY.1 (BB3)NYLON LOCK NUT M10 QTY.1 DPCC.2-062007 Page...
- Page 7 (D11)Ø4 1/2" PULLEY(9213-010B) ------------------------ [2PCS] (D12) 2-1/2"RUBBER DOUNT(9310-010) ------------------------- [2PCS] (D13)95X250 RUBBER PAD(9310-060) ------------------------------------------- [2PCS] (D14)HANDLE(9630-125) ---------------------------------------- [1PCS] (D15)TOP PLATE(8400-006) ---------------------------[1PCS] (D17)6845mm STEEL CABLE(FDPCCA) --------------------------[1PCS] (D18)4160mm STEEL CABLE(FDPCCB) ------------------------[1PCS] (D19)DPCC FOR DGYM CABLE(FDPCCC) --------------------[1PCS] (D20)WEIGHT SELECTOR BAR(8210-042B) 6845 4160 DPCC.2-062007 Page...
-
Page 8: Parts Illustration
DPCC ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION A [1PCS] C [1PCS] B [1PCS] D [2PCS] E[1PCS] F [1PCS] G[1PCS] H [1PCS] I [2PCS] DPCC.2-042007 Page... - Page 9 ASSEMBLY INSTRUCTIONS DPCC PARTS ILLUSTRATION AA[1PCS] BB[1PCS] 6610-001 8380-044 CC[1PCS] DD[1PCS] 8380-052 8380-045 FF[1PCS] EE[2PCS] 3/4"X1930L 9440-177 II[12PCS] 8321-040 KK[1PCS] both side 9211-119A 50.5 JJ[2PCS] 8321-040 HH[2PCS] one side 8313-144 50.5 DPCC.2-062007 Page...
- Page 10 ASSEMBLY INSTRUCTIONS DPCC Above shows STEP1 assembled and completed A5X2 C1X2 D8X2 C1X2 A10X2 DPCC.2-042007 Page...
- Page 11 ASSEMBLY INSTRUCTIONS DPCC Above shows STEP 2 assembled and completed DPCC single weight stack assembly instructions M10X25L CONE BOLT X8 DPCC.2-042007 Page...
- Page 12 ASSEMBLY INSTRUCTIONS DPCC Above shows STEP 3 assembled and completed M10X25L HEX Bolt X2 M10 Washer X2 3/8"X3/4"L HEX Bolt 3/8" Washer 3/8"X3/4"L HEX Bolt 3/8" Washer 3/8" Washer 3/8"x2-3/4"L HEX Bolt DPCC.2-042007 Page...
- Page 13 DPCC ASSEMBLY INSTRUCTIONS Above shows STEP 4 assembled and completed DPCC.2-042007 Page...
- Page 14 DPCC ASSEMBLY INSTRUCTIONS Above shows STEP 5 assembled and completed DPCC.2-042007 Page...
-
Page 15: Detail View
ASSEMBLY INSTRUCTIONS DPCC Above shows STEP 6 assembled and completed DETAIL VIEW Step 1 A2 C1 Step 2 Step2 Step1 DPCC.2-042007 Page... - Page 16 ASSEMBLY INSTRUCTIONS DPCC D17. DETAIL VIEW Above shows STEP 7 assembled and completed Step 1 DETAIL VIEW Step 2 Step2 Step1 DPCC.2-042007 Page...
- Page 17 ASSEMBLY INSTRUCTIONS DPCC D18. Above shows STEP 8 assembled and completed DETAIL VIEW WEIGHT STACK CABLE AA11 M4 SCREW AA10 Selector Rod D14X2 D4X2 DPCC.2-042007 Page...
- Page 18 DPCC ASSEMBLY INSTRUCTIONS Above shows STEP 9 assembled and completed M6 Washer X4 M6X20L Round Bolt X4 M6X12L Round Bolt X21 M6 Washer X21 AA6X4 DPCC.2-062007 Page...
- Page 19 DPCC ASSEMBLY INSTRUCTIONS Above shows STEP 10 assembled and completed D17. A11X2 C4X2 D19. C2X4 B1X4 A1X4 C2X4 DPCC.2-042007 Page...
- Page 20 DPCC ASSEMBLY INSTRUCTIONS DGYM [ B ] [ A ] DPCC DPCC.2-042007 Page...
