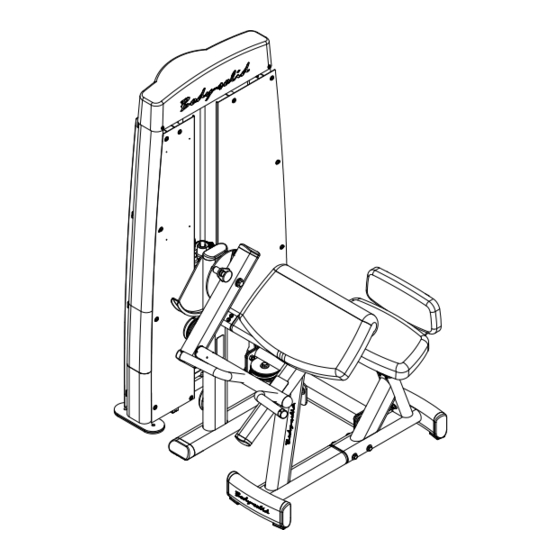

- Page 1 BODY-SOLID,Inc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com DBTC.5 OWNER'S MANUAL...
- Page 2 W a r n i n g , S a f e t y & M a i n t e n a n c e ...
- Page 3 I m p o r t a n t S a f e t y I n s t r u c t i o n s Before beginning any fitness program, you should obtain a complete physical examination from your physician. Il est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise. Si vous avez des etourdissements ou des faiblesses, arretez les exercices immediatement.
- Page 4 DBTC ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (A1)HEX BOLT 1/2"X1-1/4"L PARTIAL QTY.5 (A2)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.1 (A3)HEX BOLT 1/2"X3-1/2"L PARTIAL QTY.1 (A4)HEX BOLT 5/16"X1"L PARTIAL QTY.12 (A5)HEX BOLT 5/16"X1-3/4"L PARTIAL QTY.1 (A6) 1/2"X 8.5X23L STEEL BUSHING(8110-062) QTY.1 DBTC.5-022017 Page...
- Page 5 DBTC ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (B1)NYLON LOCK NUT1/2" QTY.7 (C4)5/16"(I.D.)FLAT WASHER 24 QTY.12 (B2)NYLON LOCK NUT 5/16" QTY.1 (C5)SPRING WASHER 5/16" QTY.12 (C1)1/2"(I.D.)FLAT WASHER 34 QTY.8 (C2)1/2"(I.D.)FLAT WASHER 25 QTY.6 (C3)5/16"(I.D.)FLAT WASHER 16 QTY.2 DBTC.2-082009 Page...
- Page 6 DBTC ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (AA2)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.3 (AA4)ROUND INNER HEAD 3/8"X2"L PARTIAL QTY.1 (AA5)ROUND INNER HEX SCREW M6X20L PARTIAL QTY.20 (AA6)ROUND CROSS SCREW 5/32"X1/4"L PARTIAL QTY.4 (AA7)10LB PIN(8250-071) QTY.1 DBTC.5-082009 Page...
- Page 7 (CC2)M6(I.D.)FLAT WASHER 13 QTY.20 (AA8)ELASTIC BOLT QTY.1 (AA10)ROUND INNER HEX SCREW M10X30L PARTIAL QTY.1 (CC5)SPRING WASHER 3/8" QTY.1 (AA11)FIRM SHEATH(8890-046) QTY.1 (CC6)1/2"(I.D.)FLAT WASHER 25 QTY.2 (BB2)NYLON LOCK NUT1/2" QTY.3 (BB3)NYLON LOCK NUT M10 QTY.1 (CC1)1/2"(I.D.)FLAT WASHER 34 QTY.4 DBTC.5-082009 Page...
- Page 8 ------------------------------------------- [1PCS] (D14) 131X30 END CAP(9211-116) -----------------------------------------------[1PCS] (D15)3620mm STELL CABLE(FDBTCA) -------------------------------------------[1PCS] (D16) 3/4" SHAFT COLLAR(9211-046) --------------------------------------------[2PCS] (D17) 4" RUBBER DOUNT(9310-017) ---------------------------------------------[2PCS] (D18)TOP PLATE(8400-006) -------------------------------------------------------[1PCS] ---------------------------------------------[2PCS] (D20)95X250 RUBBER PAD(9310-060) (D21)DBTC FOR DGYM STEEL CABLE(FDBTCB) ------------------------------[1PCS] (D22)WEIGHT SELECTOR BAR(8210-042B) -----------------------------------[1PCS] 3620 DBTC.5-082009 Page...
-
Page 9: Parts Illustration
PARTS ILLUSTRATION A2 [1PCS] C [1PCS] B [1PCS] D [1PCS] F2 [1PCS] G2 [1PCS] H1 [1PCS] I [1PCS] J [1PCS] K [1PCS] L [1PCS] M [1PCS] 13CPTB 8312-062 9132-019 N [1PCS] O [1PCS] P [1PCS] 9122-038 9111-060 9440-162 DBTC.5-082009 Page... - Page 10 DBTC ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION AA[1PCS] AB[1PCS] 6610-002 8380-046 AC[1PCS] AD[1PCS] 8380-047 8380-048 AK[1PCS] AE[2PCS] 9211-111A 260158A 3/4"X1.6tX1407L AG[2PCS] AH[9PCS] 8313-144 8321-040 50.5 AJ[2PCS] AI[1PCS] 8321-040 8321-040 50.5 50.5 DBTC.5-082009 Page...
- Page 11 DBTC ASSEMBLY INSTRUCTIONS Above shows STEP 1 assembled and completed 1/2" Washer X2 1/2"X3/4"L HEX Bolt X2 A1X2 C1X2 C1X2 B1X2 M10X16L HEX Bolt X5 M10 Washer X5 DBTC.5-082009 Page...
- Page 12 DBTC ASSEMBLY INSTRUCTIONS Above shows STEP2 assembled and completed M6X12L HEX Bolt X8 M6 Washer X8 1/2" Washer 1/2" X3-1/4"L HEX Bolt DBTC.5-082009 Page...
- Page 13 DBTC ASSEMBLY INSTRUCTIONS Above shows STEP 3 assembled and completed 1/2"X3/4"L HEX Bolt 6X6X45L Key 1/2" Washer 1/2" Washer 1/2"X3/4"L HEX Bolt 1/2"X3/4"L HEX Bolt 1/2" Washer DBTC.5-082009 Page...
- Page 14 Detail View Above shows STEP 4 assembled and completed 5/16"X5/16"L Allen Head Bolt X4 1/2" Washer 1/2"x3/4"L HEX Bolt 1/2" Washer 1/2" Round End Cap Washer 1/2"X1-1/2"L HEX Bolt 1/2" Washer 1/2" Round End Cap Washer 1/2"X1-1/2"L HEX Bolt DBTC.5-082009 Page...
- Page 15 DBTC ASSEMBLY INSTRUCTIONS Above shows STEP 5 assembled and completed A4X4 C5X4 C4X4 C4X4 C5X4 A4X4 C4X4 C5X4 A4X4 3/8" Spring Washer 3/8"x3/4"L Round Inner Head DBTC.5-082009 Page...
- Page 16 DBTC ASSEMBLY INSTRUCTIONS Above shows STEP 6 assembled and completed M6X12 Round Bolt X4 M6 Washer X4 AGx2 M10X25L Cone Bolt x8 D20x2 DBTC.5-082009 Page...
- Page 17 DBTC ASSEMBLY INSTRUCTIONS Above shows STEP 7 assembled and completed D16X2 AEX2 D17X2 DBTC.5-082009 Page...
- Page 18 ASSEMBLY INSTRUCTIONS DBTC Above shows STEP 8 assembled and completed DBTC.5-082009 Page...
- Page 19 DBTC ASSEMBLY INSTRUCTIONS Above shows STEP 9 assembled and completed 1/2"X1"L HEX Bolt 1/2" Washer A1X3 C2X3 B1X3 C2X3 DBTC.5-082009 Page...
- Page 20 DBTC ASSEMBLY INSTRUCTIONS Detail View WEIGHT STACK CABLE AA10 Above shows STEP 10 assembled and completed M4 SCREW AA11 Selector Bar Detail View 1/2" Washer 1/2" Round End Cap Washer 1/2"x1-1/2"L HEX Bolt DBTC.5-082009 Page...
- Page 21 DBTC ASSEMBLY INSTRUCTIONS Above shows STEP 11 assembled and completed M6X12L Round Bolt X21 M6 Washer X4 M6 Washer X21 M6X20L Round Bolt X4 AA6X4 DBTC.5-082009 Page...
- Page 22 DBTC ASSEMBLY INSTRUCTIONS Above shows STEP 12 assembled and completed D21. 1/2"X1"L HEX Bolt 1/2" Washer DBTC.5-082009 Page...
