MELAG Vacuklav 24 B+ User Manual

Steam sterilizer

Hide thumbs Also See for Vacuklav 24 B+:

Technical description (57 pages)

Operating manual (36 pages)

Technical manual (26 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the Vacuklav 24 B+ and is the answer not in the manual?

Questions and answers

Ольга Леонидовна Давыдова

April 10, 2025

Выключили электричество. И автлклав стал писать сбой вакуумной системы.

1 comments:

Mr. Anderson

April 10, 2025

If the MELAG Vacuklav 24 B+ shows a vacuum system error after a power outage, check the following:

- Inspect the door seal and chamber flange for cleanliness; clean if contaminated.
- Check the door seal for damage and replace if necessary.
- Ensure the door seal is correctly inserted.
- Repeat the vacuum test with the device completely cold.

If the leakage rate remains above the maximum permissible value (1.3 mbar), contact MELAG customer service.

This answer is automatically generated

Summary of Contents for MELAG Vacuklav 24 B+

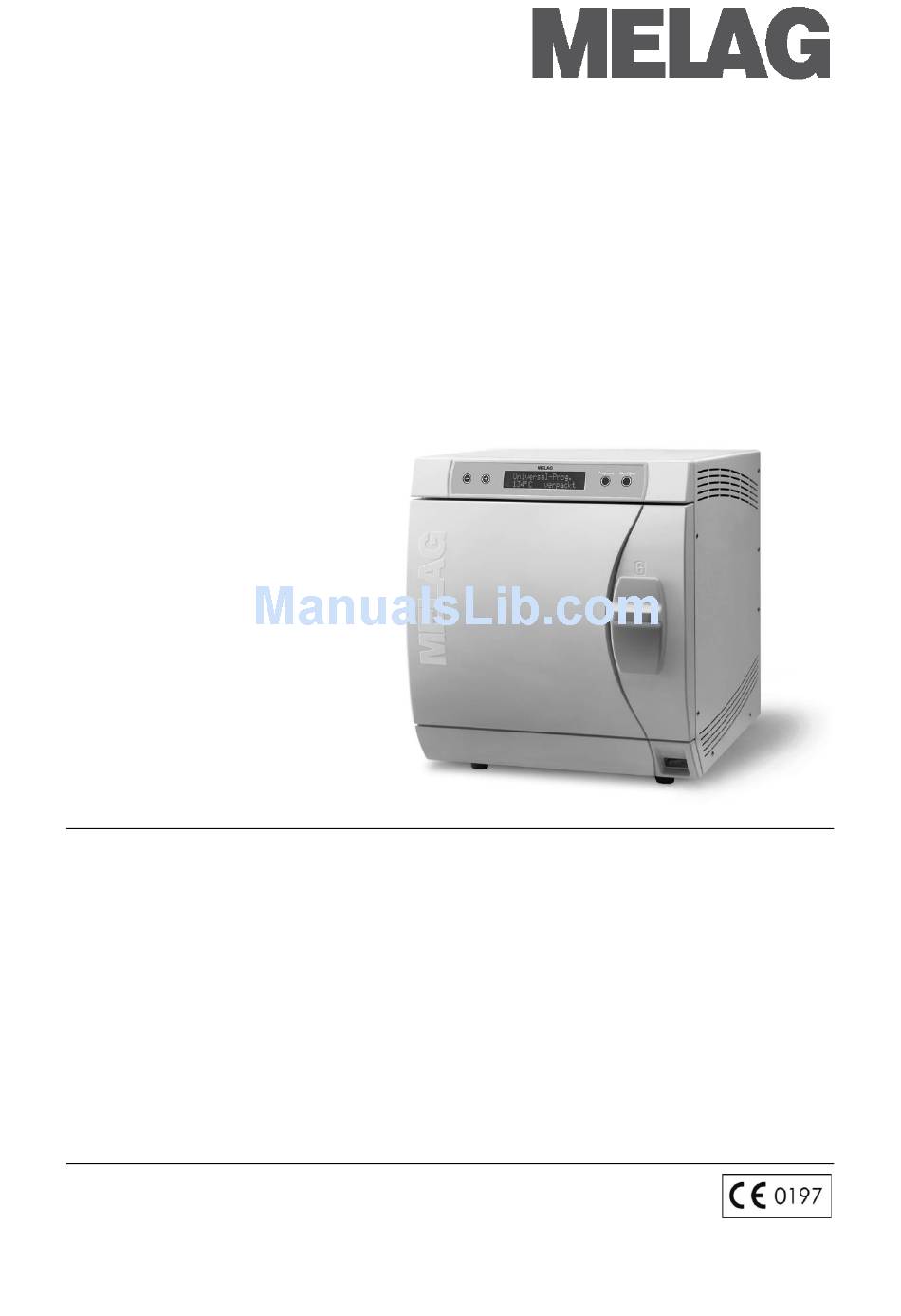

Page 1 Our certified quality management systems is subject to close monitoring: one instrument to this end is our annual multi-day audit conducted in accordance with ISO 13485 and ISO 9001. This guarantees that all MELAG products are manufactured and tested in accordance with strict quality criteria. The MELAG management and team.
Page 2 30 B+ ® ® Valid for Vacuklav 24 B+, Vacuklav 30 B+ as of software version 5.15 Responsible for the contents: MELAG Medizintechnik oHG Geneststraße 6-10 10829 Berlin Germany E-mail: info@melag.de www.melag.de © 2017 Document: BA_EN_24B+_30B+_v11.docx/ Revision: 11 – 17/0824...
Page 3 Foreword Thank you for deciding to buy this Pro Class MELAG steam sterilizer. This User Manual describes both the steam sterilizers Vacuklav 24 B+ and Vacuklav 30 B+. They are identical except for their chamber depth and device depth. Device name The device name "steam sterilizer"...
Page 4 MELAG devices are synonymous for long-term quality. When you eventually need to decommission your MELAG device, we offer a special disposal service. Simply contact your stockist.
Page 5 Setting up, installation, ■ Only have the steam sterilizer set up, installed, and commissioned by people authorised by MELAG. commissioning ■ Only operate the steam sterilizer in areas which are not subject to explosion hazards.
Page 6: Table Of Contents
Contents Contents Chapter 1 – Performance Specification ....7 Computer as output medium ........ 33 Automatic immediate log output ......34 Proper use .............. 7 Output the logs subsequently ....... 34 User benefit ............7 Display protocol memory ........36 Overview of sterilization programs ......
Page 7: Chapter 1 - Performance Specification
■ Use the steam sterilizer only for the intended purposes outlined in the related technical documents and only in connection with the devices and components approved by MELAG. Warning! ■ The sterilization of instruments and textiles with this steam sterilizer, like the foregoing instrument preparation, is only to be done by competent personnel.
Page 8 Chapter 1 – Performance Specification Automatic pre-heating The cold chamber is preheated on activation of preheating or can be maintained at a specific temperature between two sterilizations. This shortens the program time periods and reduces the formation of condensate to give improved drying results. The steam sterilizer functions according to the feed water one-way Clean feed water according system.
Page 9: Overview Of Sterilization Programs
Chapter 1 – Performance Specification Overview of sterilization programs Type tests Universal- Quick- Quick- Gentle- Prion- Program Program B Program S Program Program Program type as per Type B Type B Type S Type B Type B DIN EN 13060 Dynamic pressure test of the sterilization chamber Air leak...
Page 10: Chapter 2 - Device Description
Chapter 2 – Device Description Chapter 2 – Device Description In this chapter you learn Which components are included in the standard scope of delivery  Which components the steam sterilizer contains  What safety devices the steam sterilizer has ...
Page 11: Device Views
Chapter 2 – Device Description Device views Front side Operating and display field Door (pivots opens to the left) sliding closure grip Mains switch Front foot of the unit (adjustable) Front side below with opened door Serial data and printer connection (RS232)* Cap for emergency switch-on of the vacuum pump 2x Device fuses Reset button for protective motor switch...
Page 12: Effective Capacity
Chapter 2 – Device Description Interior view Chamber Mounting to hold trays/ cassettes Door locking pin Chamber sealing surface Blue door seal Round blank Fig. 2: Interior view Effective capacity Device type Diameter Depth Volume Vacuklav 24 B+ 45 cm 22 litres ∅...
Page 13: Control Panel
Only use water according to DIN EN 13060 as feed water. Water storage container The water storage container from MELAG has a capacity of maximum 11.5 litres. This quantity of feed water suffices for up to 25 sterilizations. from MELAG A water treatment unit is connected to the domestic water supply.
Page 14: Supply With Cooling Water
Both MELAG steam sterilizers can be supplemented with a water treatment unit. NOTICE! Please first consult with MELAG if you would like to employ water treatment units of other manufacturers. Supply with cooling water The pump for the vacuum creation is cooled with water.
Page 15: Chapter 3 - Initial Start-Up
■ Only have the steam sterilizer set up, installed, and started up by people authorized by MELAG. ■ According to the currently valid VDE standards, this device is not suitable for use in areas subject to explosion hazards.
Page 16: Connections Required
Space requirements for sterilizer. A position above or below the steam sterilizer is also possible. external water storage The space requirements for the MELAG water storage container is 19 container centimetres in width, 32 centimetres in height and 23 centimetres in depth.
Page 17 (Art. No. 26635) instead of the existing siphon On a separate drain pipe when using the surface-mounted siphon  from MELAG (Art. No. 37410 – not in the standard scope of delivery) The drain must be located below the steam sterilizer. NOTICE: The waste-water hose must be laid dip-free with continuous descent.
Page 18: Prerequisites For Initial Start-Up
As documentation of proper setting up, installation and setting up as well as for your warranty claim, the record of installation must be filled out by the person responsible and a copy sent to MELAG. Switch on steam sterilizer Switch on mains Turn the mains switch on to power the steam sterilizer (page 11, Fig.
Page 19: Chapter 4 - Sterilization
NOTICE: In order to prevent water damage, MELAG recommends the use of a leak monitor, e.g. water stop valve from MELAG (Art. No. 01056). If you are employing a water storage container for the feed water and the...
Page 20 Chapter 4 – Sterilization NOTICE: If possible, sterilize textiles and instruments separately from each other in separate sterilization containers or sterilization packages. This way you achieve improved drying results. Observe the following instructions for treating textiles and putting Textiles the textiles into sterilization containers: ■...
Page 21: Load The Steam Sterilizer
NOTICE: Use perforated trays, such as the trays from MELAG. Only this way can condensate run off. If you use closed materials or shell halves to bear the items to be sterilized, you risk bad drying results. Please note that the use of tray insertions made of paper can perhaps likewise lead to worse drying results.
Page 22 Chapter 4 – Sterilization ■ When stacking the sterilization containers, take care that the perforations are not covered. Danger! in case of non-observance, the condensate cannot drip off to the vessel bottom. It would soak sterilizing materials lying underneath. The consequence would be bad drying results. This can ultimately lead to unsterile instruments and thereby to endangering the health of the patient and the practice team.
Page 23: Close The Door
Maximum total weight 7 kg 2.5 kg 5 kg 2 kg *Mountings, trays, sterilization containers, norm-tray cassettes from MELAG, see Appendix A – Accessories Close the door When closing the door of the steam sterilizer, observe the following instructions: Close the door with light pressure against the chamber flange and ...
Page 24: Select Automatic Pre-Heating
Chapter 4 – Sterilization Universal- Quick- Quick- Gentle- Prion-Program Program Program B Program S Program Sterilization 134 ˚C 134 °C 134 ˚C 121 ˚C 134 ˚C temperature Sterilization pressure 2.1 bar 2.1 bar 2.1 bar 1.1 bar 2.1 bar Sterilization time 5.5 min.
Page 25: Select Additional Drying
Unsupervised operation of electrical devices, including this WARNING sterilizer at the operator’s risk. MELAG accepts no liability what so ever for any damage resulting from unsupervised operation. Press the K (S), in order to start the program.
Page 26: Manually Terminate Program
Chapter 4 – Sterilization Sterilization phase After achieving the sterilization parameters of pressure and temperature, the sterilization phase begins. In alternation with pressure and temperature the remaining time of the sterilization phase is also displayed. A pressure discharge with a corresponding display is carried out at the end of the sterilization phase.
Page 27: Sterilization Phase Is Finished
Chapter 4 – Sterilization After pressing the (-) you can open the door. A reference to Program stopped/ load not sterile is issued to the logging printout. Manual termination In the drying phase you can cancel the program with the K (S).
Page 28: Drying Phase
Chapter 4 – Sterilization Drying phase The steam sterilizer does an excellent job of drying the items to be sterilized. In the event of difficult drying tasks it might however be necessary to take the following measures to further improve drying: Improve drying results Load the steam sterilizer correctly for drying.
Page 29: Remove Sterilized Items
Chapter 4 – Sterilization Remove sterilized items After the end of a program observe the following instructions for removing the sterilized items: Danger of burning! ■ Never open the door by force. The steam sterilizer could be damaged and/or hot steam could escape. ■...
Page 30: Chapter 5 - Logging
Chapter 5 – Logging Chapter 5 – Logging In this chapter you learn Why and how you document batches  Which output media you can employ for the batch documentation in which way  How to read the logs correctly ...
Page 31: Set Date And Time
Chapter 5 – Logging Set date and time Observe time re-settings Date and time of the steam sterilizer must be correctly set for proper batch documentation. Observe the time re-settings in autumn and spring ("daylight saving time"), since this is not reset automatically. Set date and time as described below: Select the SETUP Menu Function by short simultaneous pressing ...
Page 32 Chapter 5 – Logging Close the log printer MELAprint 42 according to the pertinent operating manual. Initialisation of the log In order to be able to print out logs on the connected log printer, you printer must initialise MELAprint 42 once by making the following setting at the MELAprint 42 steam sterilizer: If the steam sterilizer is still not switched on, switch it on.
Page 33: Employing Melaflash As Output Medium
You can download a current version of the software on the internet page of MELAG on www.MELAG.de in the download area. Connect the MELAflash CF card Printer with the serial interface like the log printer MELAprint 42 (see page 31). and set at the steam sterilizer as output medium MELAflash in the SETUP Menu.
Page 34: Automatic Immediate Log Output
If it is not possible to output a log report for the immediate output because for example the activated output medium is not connected, a warning message appears. MELAG recommends that you employ the immediate output of logs. Output the logs subsequently You also have the option of outputting the logs subsequently and independently from the time of the end of the program.
Page 35 Chapter 5 – Logging Press the K (P). The current report number blinks.  In order to output a log of another cycle, navigate with the  KEYS or (-) up to the desired number, here e.g. 25. Press the K (P) in order to start the output of the selected ...
Page 36: Display Protocol Memory
Chapter 5 – Logging By again pressing the K (S), you completely leave the menu and  return to the starting position of the display. Display protocol memory With a connected and initialised printer or another output medium you Start-Stop Program can verify how many logs are already saved in the log memory of the steam sterilizer.
Page 37 Chapter 5 – Logging ------------------------------------------ Header MELAG Vacuklav 24-B ------------------------------------------ Program : Universal program Started program 134°C Packaged Date : 27.03.2015 Current date Time of day : 08:36:39 (Start) Time at program start Batch number: 10 Daily batch number : 201524-B1150...
Page 38: Chapter 6 - Maintenance
Chapter 6 – Maintenance Chapter 6 – Maintenance In this chapter you learn How to clean the steam sterilizer and which cleaning agents are suitable  How to avoid the formation of spots  How to exchange the door seal ...
Page 39: Avoid Formation Of Spots
Chapter 6 – Maintenance To conclude the cleaning, rinse the water storage container without fail with a litre of feed water. Avoid formation of spots Formation of spots due to Only if you correctly clean the instruments before sterilization can you avoid the detachment of residues resulting from loading or instrument improperly cleaned preparation under steam pressure during the sterilization.
Page 40: Replacing The Door Seal
Chapter 6 – Maintenance Replacing the door seal The door seal may not be greased or oiled. It should be kept clean and dry. If the door seal becomes worn and looses form, it must be replaced. Otherwise, this could result in leaks which will enable steam egress, or too high a leakage rate in the vacuum test.
Page 41: Changing The Sterile Filter
Chapter 6 – Maintenance Press your thumb between the two sealing lips and separate the  sealing lips once around with your thumb. Insert the door seal into the groove. The wide sealing surface points  towards the chamber. PLEASE NOTICE Note the differences in the widths of the sealing surfaces when inserting the door seal.
Page 42 Chapter 6 – Maintenance Replace the sterile filter or sterilize the current sterile filter as  described under the point "Sterilizing the sterile filter". Exert a little pressure on the sterile filter and turn to insert it into the  holding sockets.
Page 43: Cleaning The Filter In The Chamber
Maintenance ■ Have maintenance carried out only by trained field service technicians or technicians of the specialist trade. Turn to your specialist dealers or MELAG customer service in your vicinity. Warning! ■ Comply with the predetermined maintenance intervals. Malfunctions at the steam sterilizer can occur on continuation of operation despite the servicing message.
Page 44: Chapter 7 - Operating Pauses
Chapter 7 – Operating pauses Chapter 7 – Operating pauses In this chapter you learn How quickly you can start sterilization programs in sequence  What you must observe for longer operating pauses  How to put the steam sterilizer out of operation, transport it and re-start it ...
Page 45: Shut-Down
Chapter 7 – Operating pauses Shut-down If you would like to shut down the steam sterilizer (put it out of operation) for a longer period of time, for instance because of holidays or a planned transport, proceed as follows: Switch the steam sterilizer off at the mains switch. ...
Page 46: Chapter 8 - Function Test
Chapter 8 – Function test Chapter 8 – Function test In this chapter you learn How the steam sterilizer automatically carries out the function test  Which possibilities you have for the manual function test  Which function tests should be conducted in daily operation ...
Page 47: Testing In Daily Operation
Chapter 8 – Function test Testing in daily operation Vacuum test Weekly in routine operation, Conduct a vacuum test in the following situations:  at initial start-up, after Once weekly in routine operations  pauses longer than two At initial start-up ...
Page 48: Helix Test Body System Melacontrol /Pro
Chapter 8 – Function test After successful completion of the program the display shows in  alternation with the current batch number of the day and Quit with button ’+’. After pressing the (+) you can open the door. Helix test body system MELAcontrol /PRO The test specimen system MELAcontrol /PRO is an indicator and batch Batch-related tests monitoring system which satisfies the standard DIN EN 867-5.
Page 49: Chapter 9 - Errors
Chapter 9 – Errors Chapter 9 – Errors In this chapter you learn Which type of messages exist  What you should do in case of errors  What you can do before calling the Hotline  What you can do if no display appears ...
Page 50: Before You Call
If you do not find the event in the table below or your efforts do not lead to success, turn to your specialist dealer or the authorised MELAG customer service centre in your vicinity. In order to help you, keep the serial number of your steam sterilizer and a detailed fault description of the fault report ready.
Page 51 Operating Manual for the water treatment unit MELAdem 47 and examine the unit On repeated occurrence, have maintenance carried out by MELAG customer service or service of the specialist trade. Possibly the pre- and activated carbon filter must be exchanged in addition.
Page 52 Check door seal for correct seating Repeat vacuum test with completely cold device Warning! Battery empty The monitoring of the device's The battery must be exchanged by MELAG internal battery voltage has customer service or service of the specialist trade determined a too low voltage...
Page 53 Chapter 9 – Errors Error message Possible causes What you can do Error 1: Vacuum system Door seal, sealing surface at the Check door seal and sealing surface at the chamber is polluted or defective chamber for contamination and possibly clean Check door seal for defects, possibly switch, see page 12 Door seal wrongly inserted...
Page 54 Chapter 9 – Errors Error message Possible causes What you can do Error 21: Preheating The monitoring time from On repeated occurrence select option Automatic pre-heating No ( see page switching on the pre-heating until the achievement of the 24) and notify specialist dealers respective pre-heating temperature was exceeded Error 22: Overheat...
Page 55 Chapter 9 – Errors Error message Possible causes What you can do Error 35: Sterilization TO1 Exceeding the maximum Carry out vacuum test permissible sterilization Check door seal for wear temperature (temperature sensor 1) On repeated occurrence notify your specialist dealer Error 36: Sterilization PU Shortfall of the minimum...
Page 56: No Display On The Screen
Chapter 9 – Errors No display on the screen After switching on the steam sterilizer the display remains empty. What you can do Check whether the power plug is correctly in the socket.  Check the supply voltage at the socket. ...
Page 57: Glossary
European standard: Packaging materials and systems for medical devices to be sterilized Medical specialist dealers, technician from depots or with customer service designated by MELAG, who were trained DIN EN ISO 11140-1 by MELAG European standard – Sterilization of products for health Batch care –...
Page 58 Glossary sterilization; typical values for the water quality according Porous partial load – Check of porous to DIN EN 285 or DIN EN 13060 partial load Serves to verify that for the values set on the control, the steam quickly and uniformly penetrates into the defined (engl.: File Transfer Protocol) is a data communication test packet method which serves for the transmission of data from the...
Page 59 Glossary Sterilization chamber Interior of a sterilizer Takes up the items to be sterilized (engl. transmission control protocol) designates a standard-protocol for a connection between computers and networks Vacuum colloquially: Space free of matter in the technical sense: Volume with reduced gas pressure (usually air pressure) Vacuum drying Gentle drying;...
Page 60: Technical Data
Technical Data Technical Data Device type Vacuklav 24 B+ Vacuklav 30 B+ Device dimensions (HxWxD) 49 x 42,5 x 72 cm 49 x 42,5 x 65 cm Sterilization chamber (diam x Ø 25 cm | 45 cm Ø 25 cm | 35 cm depth) Volume of the sterilization 22.6 litres...
Page 61: Appendix A - Accessories
Appendix A – Accessories Appendix A – Accessories Article Order number* Vacuklav 24 B+ Vacuklav 30 B+ Tray mounts A for 5 trays or 3 standard-tray cassette 40244 40233 B for 4 standard-tray cassettes 40224 40234 D for 2 high cassettes or 4 trays 46840 15K depth/ width/ height in cm: 18/ 12/ 4,5 01151...
