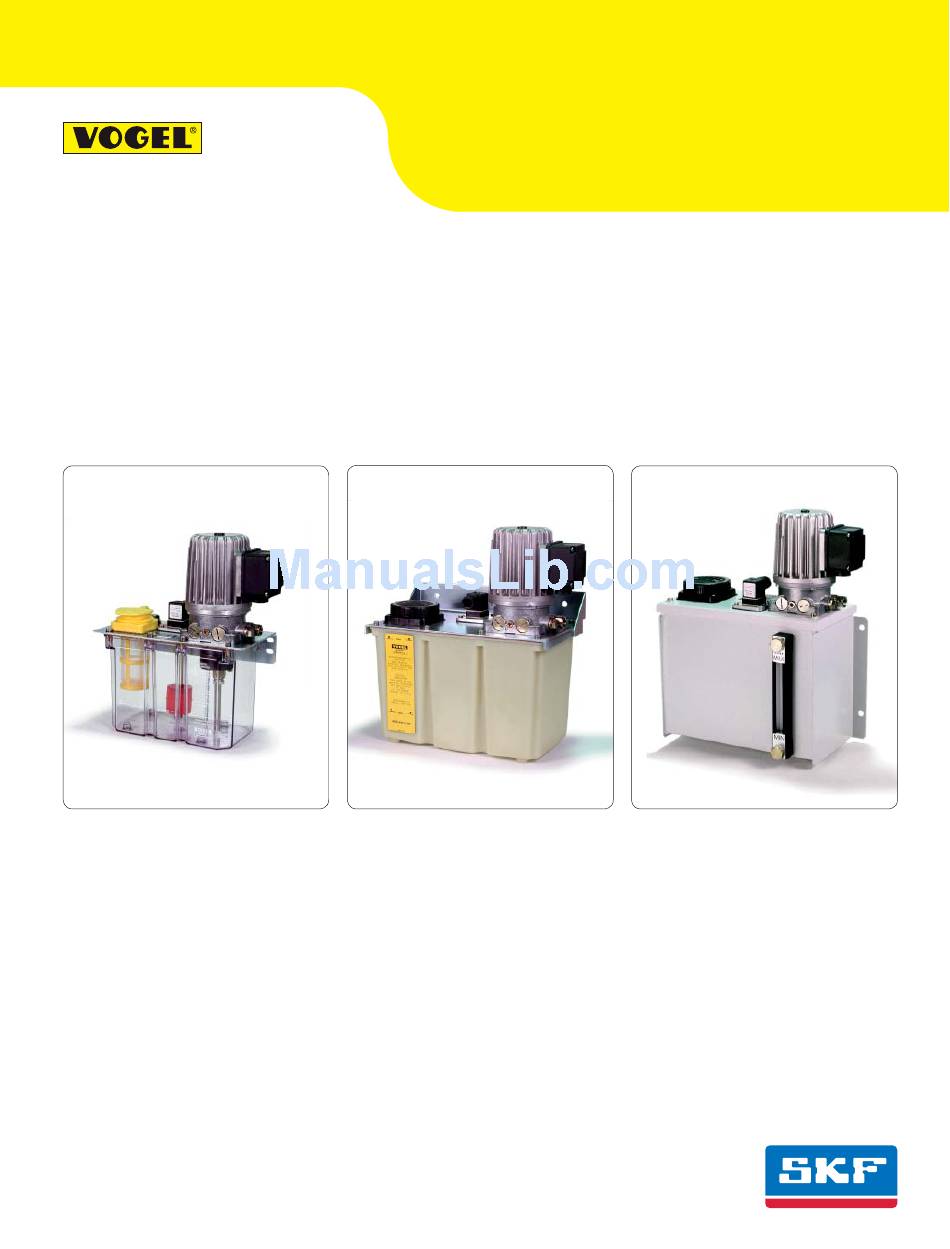

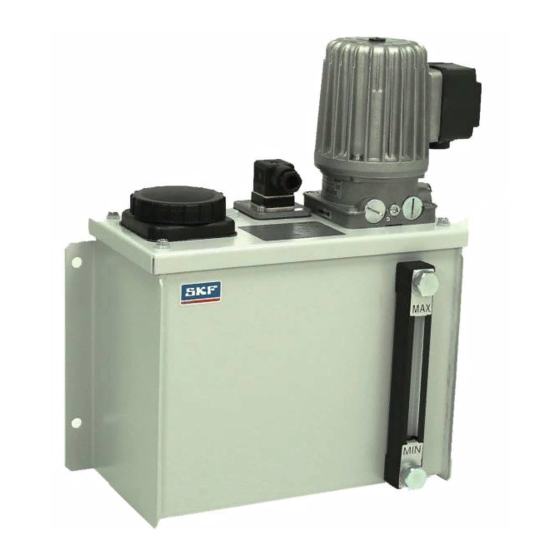

Gear Pump Units
For single-line centralized lubrication systems
MFE5-KW3-2
These units comprising the MFE Group are
designed to supply the lubricant used in in-
termittently operated, single-line centralized
lubrication systems.
The basic setup includes a gear pump unit
with motor, a 3- or 6-liter lubricant reservoir
– optionally of metal or plastic – or a 15-liter
metal reservoir and float switch to monitor
the minimum permissible level of lubricant.
MFE5-KW6
In addition to the basic models it is also
possible for the units to be outfitted with
add-ons.
Special models for a wide variety of applica-
tions are listed in the overview table on
page 3.
MFE5-BW7
1-1202-US
Advertisement
Table of Contents
Related Manuals for Vogel MFE5-KW3-2
Summary of Contents for Vogel MFE5-KW3-2
- Page 1 1-1202-US Gear Pump Units For single-line centralized lubrication systems MFE5-KW3-2 MFE5-KW6 MFE5-BW7 These units comprising the MFE Group are In addition to the basic models it is also designed to supply the lubricant used in in- possible for the units to be outfitted with termittently operated, single-line centralized add-ons.
- Page 2 Gear pump units for single-line centralized lubrication systems 001 003 006 010 016 003 006 010 345-4 343-4 Example of a single-line central lubrication system for automobile makers The system consists essentially of: – a gear pump unit – 6-liter metal reservoir –...
- Page 3 Gear pump units for single-line centralized lubrication systems Overview table for gear pump units Order No. Reservoir capacity Reservoir material Design features [liters] MFE5-KW3-2 Plastic Basic version with WS32-2 float switch MFE5-KW3-2-S4 Plastic Basic version with WS35-2 float switch MFE5-KW3-2-S9...
- Page 4 Gear pump units for single-line centralized lubrication systems Gear pump unit mounted separate from oil reservoir Order No. Fig. 1 Fig. 2 Gear pump unit for flange-mounting on oil reservoir MFE5 Order No. Fig. 3 Fig. 4 Please quote voltage and frequency when A special sealed pump must be used for Gear pump unit model MFE5 complete with ordering.
- Page 5 Gear pump units for single-line centralized lubrication systems Explanation of hydraulic function Fig. 5 Both types have the same hydraulic function. ø96 Oil is sucked in at S and flows under pressure through the duct in the direction P. The oil pressure closes valve V and opens valve E3, at the same time closing valve E1 against spring tension.
- Page 6 Gear pump units for single-line centralized lubrication systems Multivoltage motors for pump units (assembly M..) Many exportoriented companies have to deal with voltages/frequen- They are the following units: cies that deviate from those in Germany. To make it easier for them to M2, MF2, MFE2, M5, MF5, MFE5, FLM12-3, FLMF12-3, M202 buy the most common pump units for centralized lubrication systems we have developed 3 multirange motors that cover a wide range of...
- Page 7 Gear pump units for single-line centralized lubrication systems MFE5 gear pump unit MFE5-BW3-2 with 3 or 6-liter metal reservoir ) Port tapped for solderless tube connection, for 8 mm diam. tube ) Connection for cable 7 to 9 mm diam. ) Connection for cable 4 to 11 mm diam.
- Page 8 MFE5-K6 See page 5 for further technical details. See page 7 for technical data on the float switch.. Hydraulic layout for MFE5-KW3-2 MFE5-KW6 ) Port tapped for solderless tube connection, for 8 mm diam. tube ) Connection f. cable 7 to 9 mm diam.
- Page 9 Gear pump units for single-line centralized lubrication systems MFE5 gear pump unit MFE5-BW16 with 15-liter sheet steel reservoir ) Port P tapped for solderless tube connection, M14x1.5 for 8 mm diam.tube. ) Connection for cable 7 to 9 mm diam. Flow Reservoir Reservoir...
- Page 10 Gear pump units for single-line centralized lubrication systems Notes 1-1202-US...
- Page 12 All products from VOGEL may be used only for their intended purpose. If operating instructions are supplied together with the products, the provi sions and information therein of specific relevance to the equipment must be observed as well.
