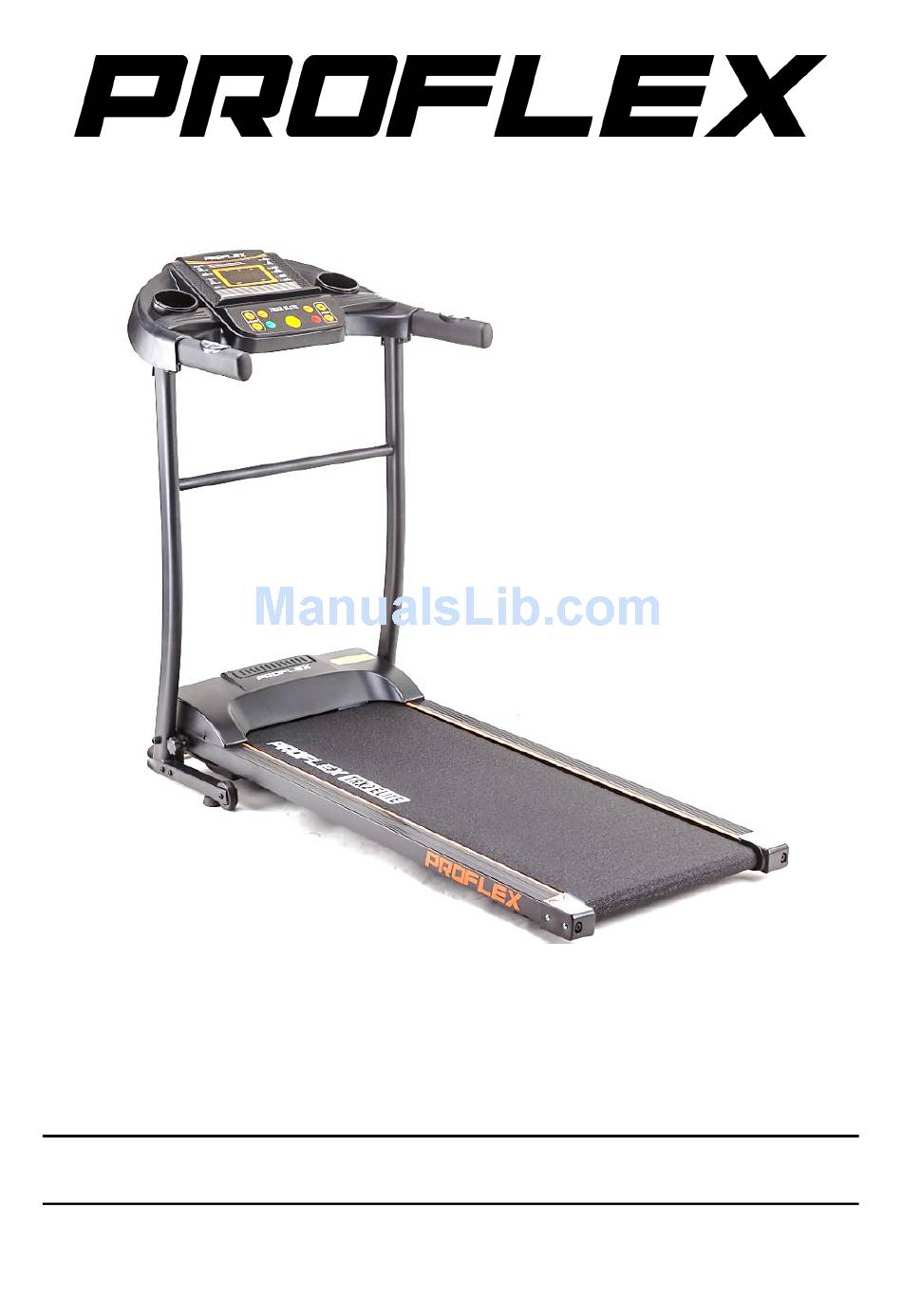

TRX2 Elite Electric Treadmill
User Manual
[Revision 1.0 June 2017]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY
DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by
this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
E&OE
© 2017 Proflex
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Proflex TRX2
Summary of Contents for Proflex TRX2
-
Page 1: User Manual
TRX2 Elite Electric Treadmill User Manual [Revision 1.0 June 2017] READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging. -
Page 2: Safety
TRX2 Elite Electric Treadmill Safety Basic precautions, including the following important safety instructions, should always be followed when using this equipment. Read all instructions before use. To reduce the risk of electric shock, always unplug the equipment from the electrical outlet after use and before cleaning, assembling, or servicing. - Page 3 TRX2 Elite Electric Treadmill • Children should not be allowed to play or operate the equipment at any time. • To disconnect, turn all controls to the OFF position, then remove plug from the wall outlet. • This equipment is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the equipment by a person responsible for their safety.
-
Page 4: Table Of Contents
TRX2 Elite Electric Treadmill Table of Contents Safety ............................. 2 Parts Identification .......................... 5 Assembly ............................6 Operation ............................8 Safety Tether and Emergency Stop ..................... 8 Program and Manual Modes ....................... 8 Console and Functions ........................ 8 Manual Mode Training ....................... 10 Program Mode Training ...................... -
Page 5: Parts Identification
TRX2 Elite Electric Treadmill Parts Identification The equipment comes partially assembled. The unit comes with the following parts. Ensure that all parts are included before assembly. Qty. Description Qty. Description Treadmill (includes belt platform, Fasteners / Accessories / Tools: console, motor, handlebar etc) -
Page 6: Assembly
TRX2 Elite Electric Treadmill Assembly Take all parts out of the carton and place them on a firm, flat surface. Remove all packing materials. Position the equipment on its right side, then insert a stabiliser foot (1) into the frame (A). Secure the side parts together using 2 M6x10 screws (2) and 1 M8x20 screw (3). - Page 7 TRX2 Elite Electric Treadmill The machine should resemble the image below and is ready for use. Folding / Unfolding To fold, remove (rotate left) the locking bolt (A) – this allows the belt platform to be raised. Lift the end of the belt platform up and hold firmly so that it cannot fall, then secure the belt platform to the frame using the locking bolt (A) and tighten (rotate right) it firmly by hand.
-
Page 8: Operation
TRX2 Elite Electric Treadmill Operation Safety Tether and Emergency Stop The equipment comes with a "safety tether" (A). The safety tether must be attached to the console for the equipment to run. It is designed to attach to your clothing so that if you leave or fall from the equipment it will stop automatically, helping prevent injury. - Page 9 TRX2 Elite Electric Treadmill Control Description Display When the treadmill is running, press to switch between display modes (speed, time etc). For each mode, the function indicator for it illuminates when selected and the display shows the applicable information. Display modes include: •...
-
Page 10: Manual Mode Training
TRX2 Elite Electric Treadmill Manual Mode Training The equipment has a "Manual" mode of operation, which gives you the freedom to adjust the equipment operation as desired at any time. In this mode, once started, the equipment runs until you stop it or can run a pre-set for a session duration, distance or target number of calories to use. -
Page 11: Care, Maintenance And Troubleshooting
TRX2 Elite Electric Treadmill Care, Maintenance and Troubleshooting Some maintenance activities described may be beyond the scope of some users. For procedures that you are not comfortable with or have the tools or experience for, have the unit serviced by a service centre or qualified technician. • To prevent electrical shock, switch OFF and unplug the equipment before cleaning or performing any maintenance tasks. -
Page 12: Maintenance
TRX2 Elite Electric Treadmill Display shows "E07" Safety tether not in place. Place safety tether in correct location on console. Set-up equipment on a flat surface. • If applicable, Equipment unsteady Surface not flat. rotate feet under front of machine to move up or down as needed so equipment is steady. -
Page 13: Specifications
TRX2 Elite Electric Treadmill Specifications Electrical 240VAC / 50Hz Weight Capacity 90kg Belt Platform Size 1100 x 400mm Speed 1.0 to 14.0km/h Warm-Up and Cool-Down Routine The warm-up routine is an important part of any workout. The purpose of warming up is to prepare your body for exercise and to minimize injuries. - Page 14 ©2017 Proflex. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
