DynaPulse DP5200A Pathway (USB & Bluetooth)
Hardware Instruction Quick Guide
Thank you for choosing DynaPulse DP5200A/Pathway noninvasive blood pressure
monitoring system. Please read this instruction and other product information in the
included CD before installation of software and operating the monitor.
I. Check product contents:
Check for any damages of the package received:
After opening the package, check for following contents:
1. DP5200A Pathway Monitor
Advertisement
Table of Contents
Related Manuals for DYNAPULSE DP5200A Pathway
Summary of Contents for DYNAPULSE DP5200A Pathway

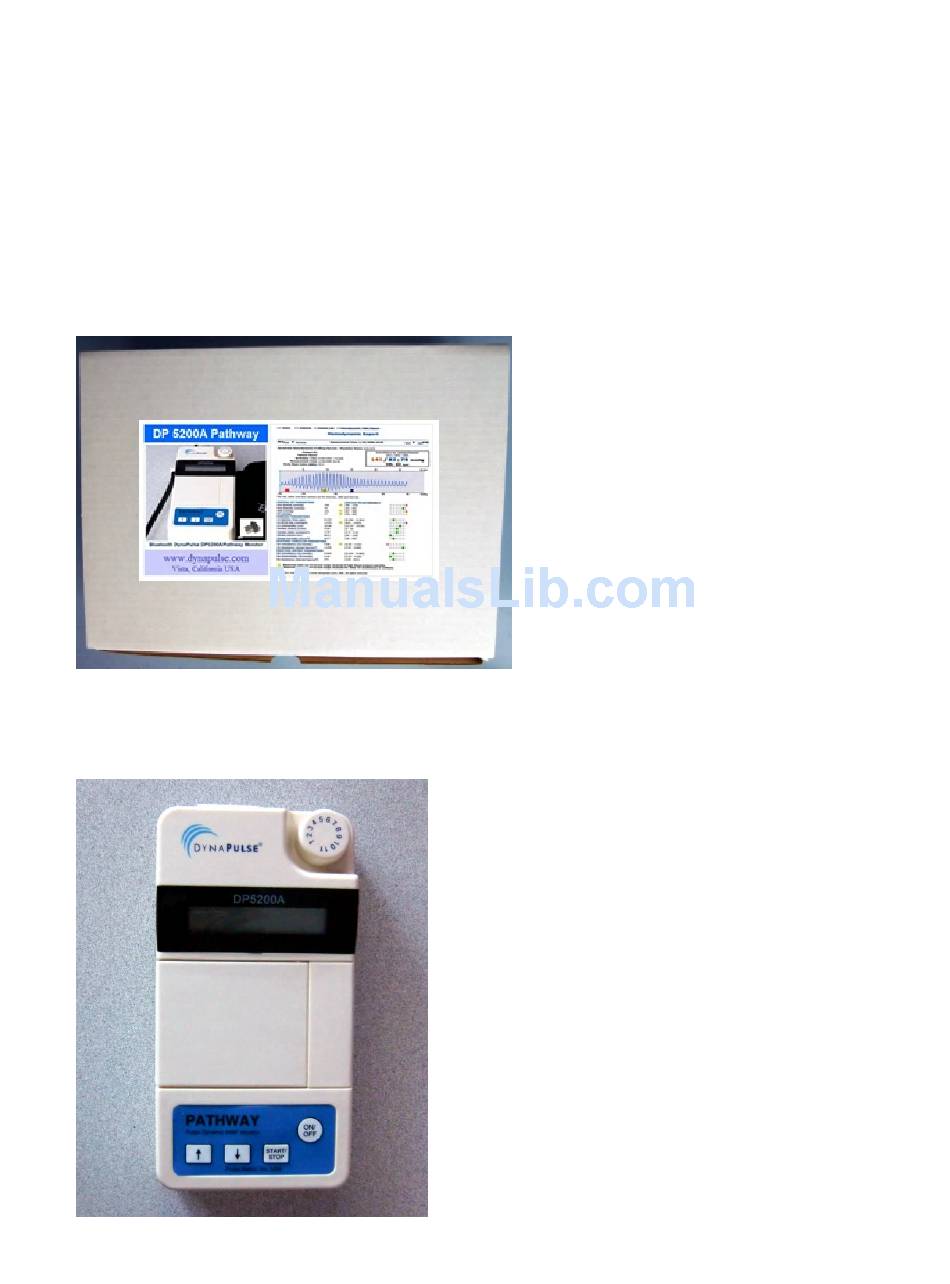

- Page 1 DynaPulse DP5200A Pathway (USB & Bluetooth) Hardware Instruction Quick Guide Thank you for choosing DynaPulse DP5200A/Pathway noninvasive blood pressure monitoring system. Please read this instruction and other product information in the included CD before installation of software and operating the monitor.
- Page 2 2. AC adaptor 3. USB cable 4. Bluetooth dongle...
- Page 3 5. Three cuff assembles (Large, Standard and Small adult size cuffs) 6. CD with software for Windows OS & User's Guides...
- Page 4 II. Descriptions of components and understanding the features: 1. DP5200A monitor: * Hardware features described below: * 6V DC power input: Use supplied AC adaptor only * Battery compartment: Use (4) AA battery, Alkaline recommended (NOT supplied)
- Page 5 * ON/OFF, START/STOP and Move (Up or down) buttons - to turn ON/OFF of the monitor, Start or Stop a BP measurement, and to select a patient from patient list. * CUFF connection: for connecting to cuff * USB connection: for connecting to PC USB port. Use supplied USB cable only.
- Page 6 * LCD display: Displays status or patient list when powered ON, and ready for BP measurement with USB or Bluetooth communication is set correctly. * Thumb dial for adjusting air release rate: 2. AC adaptor: Make sure the voltage requirement meets the AC power specification of your Country (In USA its 110 Volts, 60 Hz)
- Page 7 American Heart Association (AHA). 6. CD with software for Windows OS & User's Guides: Include DynaPulse software for Windows (XP, Vista, Win-7 and Win-8), USB drivers, User's Guides, and other clinical information. Please make a copy of the CD contents to your PC for future reference.
- Page 8 The illustration below demonstrates a Wireless DynaPulse DP5200A Pathway BP Monitor Hub. allowing for connections to not only the DAC, but also user's own proprietory cloud to provide the best and most cost effective care and management of high blood pressure and cardiovascular health.
