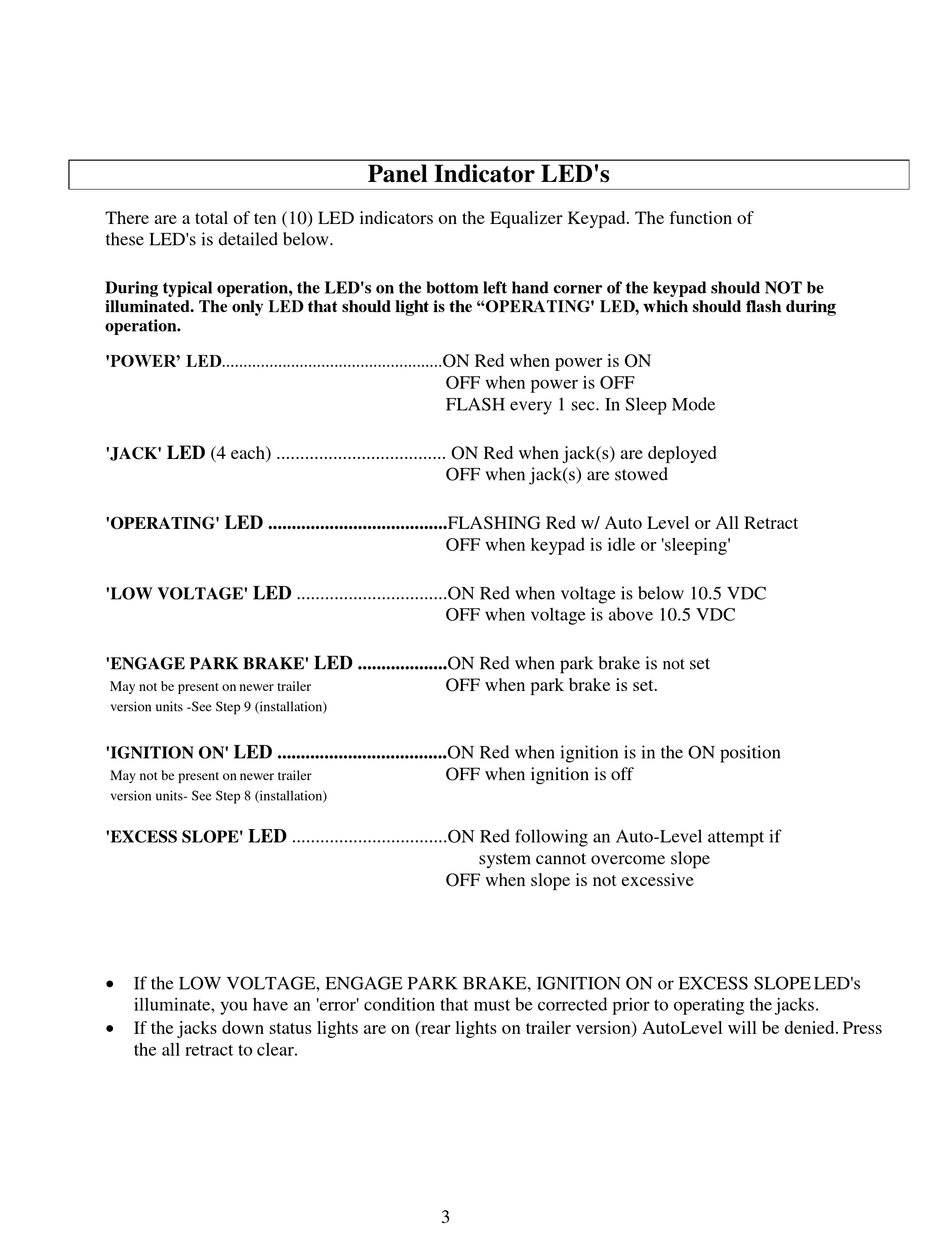

Panel Indicators - Equalizer Systems Auto-Level Troubleshooting & Warranty Manual

There are a total of ten (10) LED indicators on the Equalizer Keypad. The function of
these LED's is detailed below.
During typical operation, the LED's on the bottom left hand corner of the keypad should NOT be
illuminated. The only LED that should light is the "OPERATING' LED, which should flash during
operation.
'POWER' LED...................................................
LED (4 each) .................................... ON Red when jack(s) are deployed
'JACK'
LED ......................................FLASHING Red w/ Auto Level or All Retract
'OPERATING'
LED ................................ON Red when voltage is below 10.5 VDC
'LOW VOLTAGE'
'ENGAGE PARK BRAKE'
May not be present on newer trailer
version units -See Step 9 (installation)
LED ....................................ON Red when ignition is in the ON position
'IGNITION ON'
May not be present on newer trailer
version units- See Step 8 (installation)
LED .................................ON Red following an Auto-Level attempt if
'EXCESS SLOPE'
 If the LOW VOLTAGE, ENGAGE PARK BRAKE, IGNITION ON or EXCESS SLOPE LED's
illuminate, you have an 'error' condition that must be corrected prior to operating the jacks.
 If the jacks down status lights are on (rear lights on trailer version) AutoLevel will be denied. Press
the all retract to clear.
Panel Indicator LED's
ON Red when power is ON
OFF when power is OFF
FLASH every 1 sec. In Sleep Mode
OFF when jack(s) are stowed
OFF when keypad is idle or 'sleeping'
OFF when voltage is above 10.5 VDC
LED ...................ON Red when park brake is
OFF when park brake is set.
OFF when ignition is off
system cannot overcome slope
OFF when slope is not excessive
3
set
not
