Panel Indicator Led's - Equalizer Systems Auto-Level Installation Manual

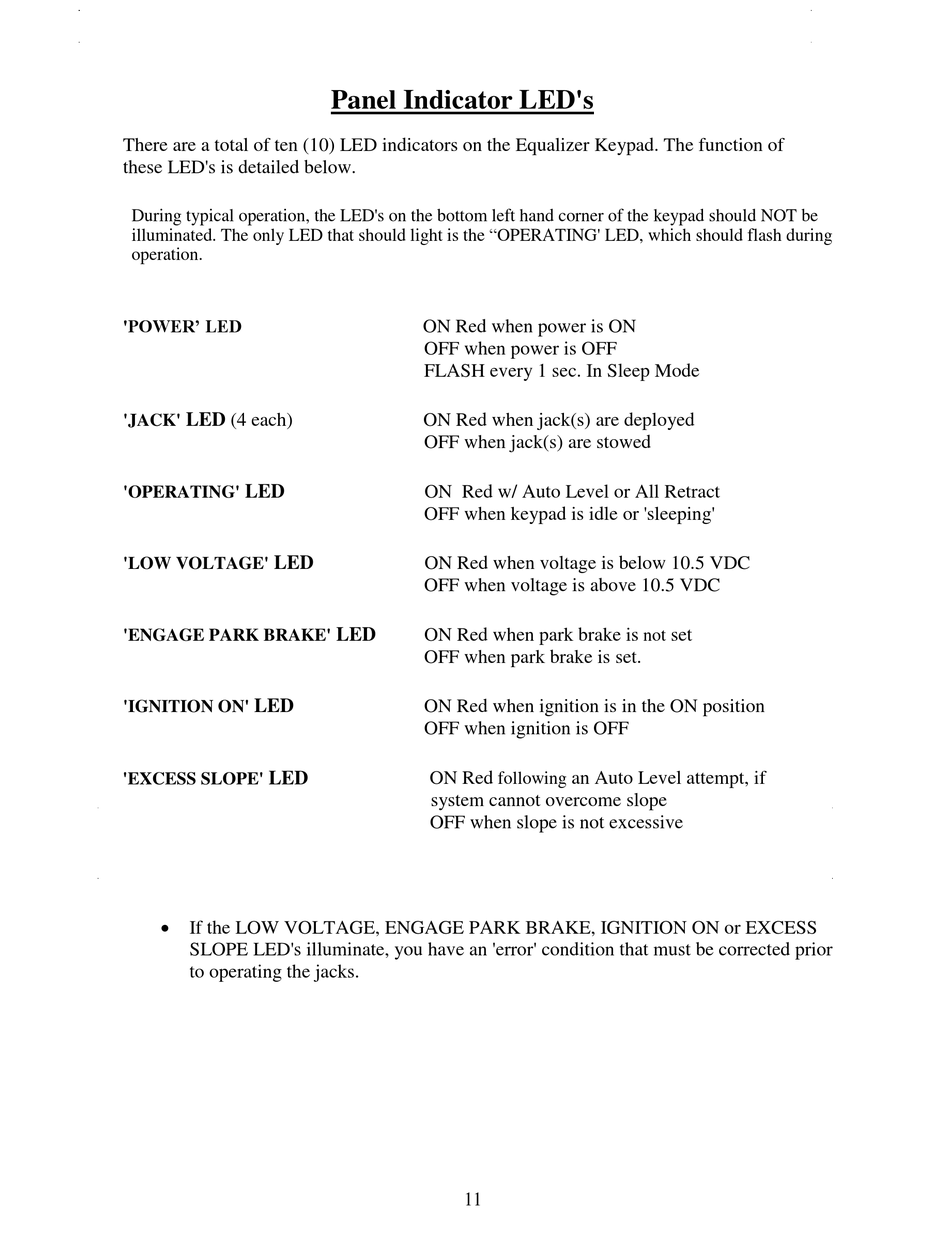

There are a total of ten (10) LED indicators on the Equalizer Keypad. The function of
these LED's is detailed below.
During typical operation, the LED's on the bottom left hand corner of the keypad should NOT be
illuminated. The only LED that should light is the "OPERATING' LED, which should flash during
operation.
'POWER' LED
LED (4 each)
'JACK'
LED
'OPERATING'
LED
'LOW VOLTAGE'
'ENGAGE PARK BRAKE'
LED
'IGNITION ON'
LED
'EXCESS SLOPE'
 If the LOW VOLTAGE, ENGAGE PARK BRAKE, IGNITION ON or EXCESS
SLOPE LED's illuminate, you have an 'error' condition that must be corrected prior
to operating the jacks.

Panel Indicator LED's

ON Red when power is ON
OFF when power is OFF
FLASH every 1 sec. In Sleep Mode
ON Red when jack(s) are deployed
OFF when jack(s) are stowed
ON Red w/ Auto Level or All Retract
OFF when keypad is idle or 'sleeping'
ON Red when voltage is below 10.5 VDC
OFF when voltage is above 10.5 VDC
LED ON Red when park brake is
OFF when park brake is set.
ON Red when ignition is in the ON position
OFF when ignition is OFF
ON Red
following
system cannot overcome slope
OFF when slope is not excessive
11
set
not
an Auto Level attempt, if
