Zerotech DOBBY Quick Start Manual
Pocket drone
Hide thumbs
Also See for DOBBY:
- User manual (55 pages) ,
- Quick start manual (12 pages) ,
- Quick start manual (12 pages)
Subscribe to Our Youtube Channel
Related Manuals for Zerotech DOBBY
Summary of Contents for Zerotech DOBBY

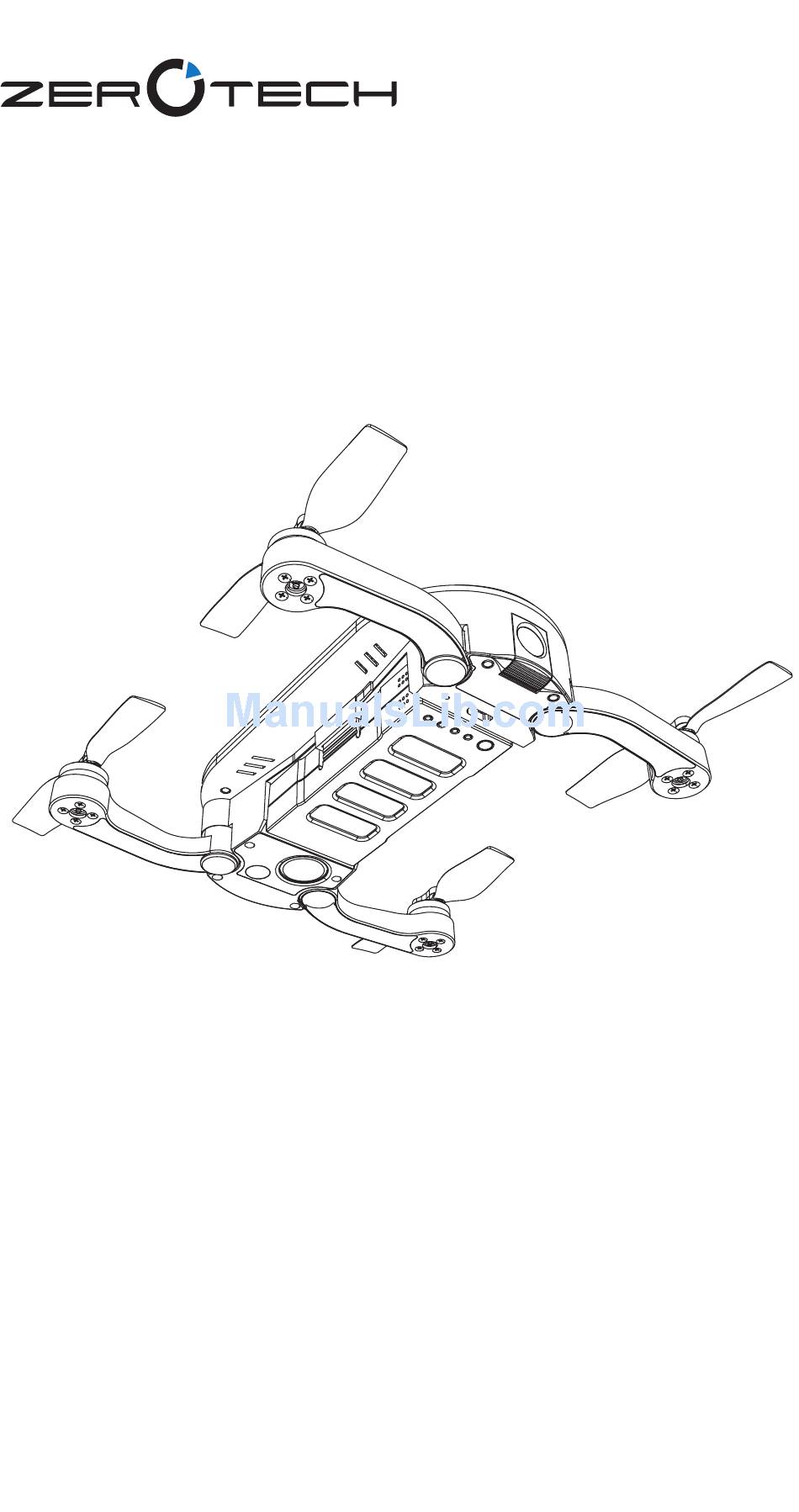

- Page 1 DOBBY Pocket Drone Quick Start Guide V2.1...
- Page 2 Aircraft The DOBBY Pocket Drone is pocket-sized and foldable flying camera for everyone, featuring Auto Pull-away Short Video, Target Tracking, Orbit shooting and other intelligent functions. It captures 4k, produces 1080P FHD Video and 13 megapixel photos. The aircraft is controlled by Do.fun App on smart phone using Wi-Fi connection.
- Page 3 ⑦ ⑧ ⑨ ⑩ ⑪ ⑬ ⑭ ⑫ ⑦ ⑧ Aircraft Status Indicator Visual Positioning Camera ⑨ ⑩ Ultrasonic Sensor Battery ⑪ ⑫ Batter Level Check Button Battery Level LEDs ⑬ ⑭ Micro-USB Port Reset Ostiole...
-
Page 4: Appendix Specifications
Appendix Specifications Product name: DOBBY Model: DB16-100B SW Version：DB20160617 HW Version：1B Aircraft Weight 199g Size Expanded: 135mmx145mmx36.8mm； Folded up: 135mmx67mmx36.8mm Max. operating altitude 3000m Flight duration 9 minutes (at sea level) Operating temperature 0~40°C Highest wind resistance 28km/h Outdoor: GPS&GLONASS dual satellite positioning Positioning system Indoor: optical flow &... - Page 5 Power Supply Model DBS15Q Input AC 100-240V 50/60Hz 500mA Output DC 5V/2A 9V/2A 12V/1.5A Battery Model D151 / D150 Rated capacity 970mAh Rated energy 7.37Wh Nominal voltage 7.6V Battery type LiPO 2S Operating temperature (charge) 5~45°C Operating temperature (discharge) 5~45°C Max.
- Page 6 1. Download the Do.fun App Search for “Do fun” on the APP Store or Google Play, or scan the QR code to download the app on your mobile device. Read the guide on your App interface to understand each button. Before the flight, you have to register your account on Do.fun.
-
Page 7: Preparing The Aircraft
3. Preparing the Aircraft ⒜． Fully unfold arms ⒝． Insert the battery, make sure the battery is in the same directi -on as above. Plug the Battery in the direction shown above. Do not reverse it! - Page 8 4. Connect Wi-Fi and activate the APP control Check the Wi-Fi name at side edge of aircraft. Search the Wi-Fi started with DOBBY and enter the default password “zerotech”. After the connection of Wi-Fi, open the Do.fun App and tap the icon “...
- Page 9 The Wi-Fi signal projector is on the aircraft. The Wi-Fi name and password can be changed in the Do.fun APP. Do.Fun 5. Calibrate and Prepare for the take-off In the flying/photography interface, tap in the top right corner, enter “Settings” - “Calibrate Compass” , and follow the on-screen prompts to calibrate the compass.
- Page 10 16G memory of DOBBY and can be previewed/downloaded in the media library on App. 7. Fly Safe <50m Do the first flight in outdoor open area with strong GPS signal. Do stay away from the rotating propellers and motors.
- Page 11 Register Pls register according to local laws and regulations. This guide only covers basic information on DOBBY’s operation. Please read the instructions in the app or download User Manual from our official website (http://www.zerotech.com/en/index.html) for more details. This guide will be irregularly updated as necessary, and is subject to renewal without prior notice.
- Page 12 DOBBY Do.Fun & ZEROTECH (Beijing) Intelligence Technology Co., Ltd. www.zerotech.com...
