Zerotech dobby Quick Start Manual

Hide thumbs Also See for dobby:

Advertisement

Quick Links

Download this manual See also: User Manual
Quick Start Guide V1.4
2016.8

Advertisement

loading
Need help?

Need help?

Do you have a question about the dobby and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zerotech dobby

Summary of Contents for Zerotech dobby

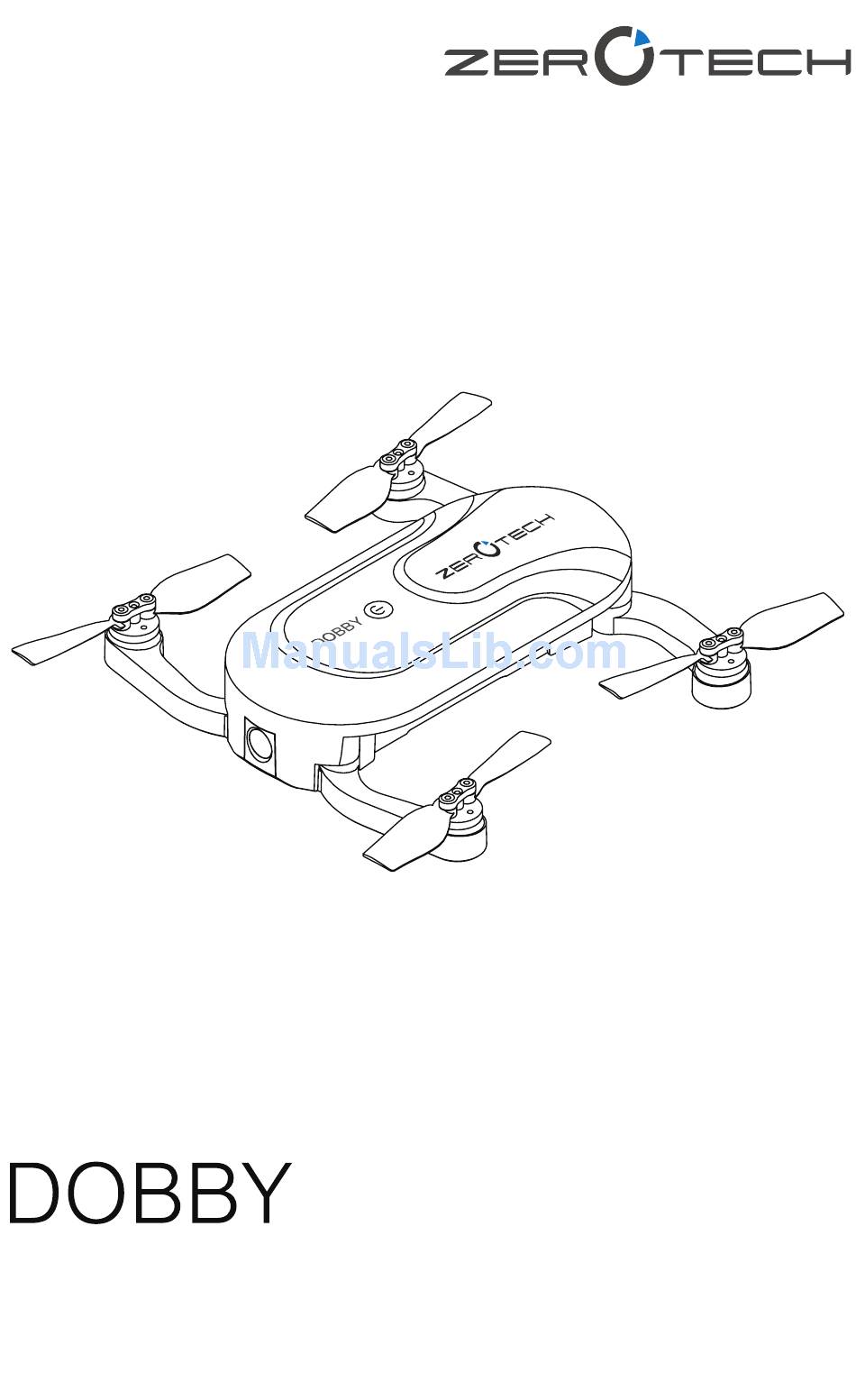

  • Page 1 Quick Start Guide V1.4 2016.8...
  • Page 2 1. Get to Know Your DOBBY DOBBY is ZEROTECH’s compact, portable, multi-axis aircraft that has been tailor-made for selfie-lovers. It comes with a high definition camera that can take 4208 x 3120 photos and can shoot 1080p videos @30fps. The accompanying Do.Fun app lets you control DOBBY’s flight.
  • Page 3 2. Get to Know Your Do.Fun Do.Fun is specifically designed for DOBBY. Through the app, users can use their mobile as a remote controller for flight control and to take photos and record videos. You can also directly share your photos and videos to social networks.

  • Page 4: Charging The Battery

    Outdoors Don’t fly DOBBY in bad weather conditions, such as in wind, rain, snow etc. Please fly in open area, do not fly near buildings and keep a good distance from tall buildings, for fear that the GPS signal would be blocked.

  • Page 5: Preparing The Aircraft

    Indoors During indoor flight, DOBBY uses the optic flow and ultrasonic positioning. The flight area needs to be above a textured surface that is not too bare or too cluttered. If you can’ t find an appropriate textured surface, you can put a square cloth on the ground, table or any large, flat surface to provide the required textured surface.

  • Page 6: Connecting The Aircraft To Do.fun

    6. Connecting the Aircraft to Do.Fun Connect your mobile device to the aircraft’s Wi-Fi. The default SSID is Dobby-XXXXXX, please check the label on the bottom of the aircraft to acquire the SSID, and the default password is zerotech.
  • Page 7 7. Flying The rotating propeller blades may cause damage to nearby people and objects. Please don’ t fly DOBBY near groups of people and keep a good distance from the propeller blades. Take-off/Landing Hold the ‘One Click Take-off’ button, when the...
  • Page 8 After tapping the direction icon in the top right hand corner, you can control DOBBY’s direction by swiping left and right; control up and down movements by swiping up and down. Swipe and hold to continue the movement. Tapping again will exit direction control.
  • Page 9 On the short video interface, hold the ‘Record’ button to record a video. Meanwhile, DOBBY will fly in the direction of the set lens angle. Release your finger off the button will stop recording and DOBBY will automatically fly back toward you. You can also record short videos during DOBBY’s return flight.

  • Page 10: Battery Level Indicator

    Appendix Indicators Aircraft Status Indicator Solid blue GPS positioning normal Slow blue flashing Optic flow and ultrasonic positioning normal Fast green flashing GPS failure Fast yellow/green flashing Ultrasonic failure Fast yellow/red flashing Optic flow failure Slow yellow flashing No-fly zone warning Fast red flashing Low battery warning Solid Red...
  • Page 11 Supported mobile device OS Android 4.3 and higher, iOS 8.0 and higher This guide only covers basic information on DOBBY’ s operation. Please read the DOBBY User Manual for more details. This guide will be irregularly updated as necessary, and is subject to renewal without prior notice.
  • Page 12 ZEROTECH (Beijing) Intelligence Technology Co., Ltd. www.zerotech.com...
