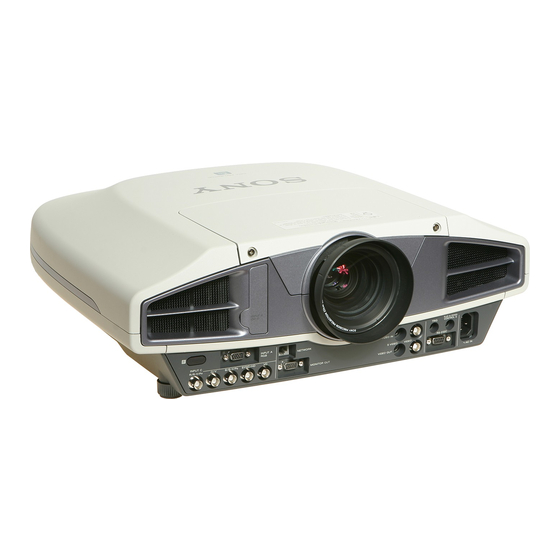

DATA PROJECTOR
VPL-FX52
VPL-FX52L
SERVICE MANUAL
1st Edition (Revised 1)

Advertisement

Table of Contents
loading

Related Manuals for Sony VPL-FX52

Summary of Contents for Sony VPL-FX52

  • Page 1 DATA PROJECTOR VPL-FX52 VPL-FX52L SERVICE MANUAL 1st Edition (Revised 1)
  • Page 2 For more information regarding recycling of re- chargeable batteries, call toll free 1-800-822-8837, or visit http://www.rbrc.org/ Caution: Do not handle damaged or leaking Lithium-Ion batteries. VPL-FX52/FX52L...
  • Page 3 Gerät abschaltet und signalisiert “Batterie leer” oder nach längerer Gebrauchsdauer der Batterien “nicht mehr einwandfrei funktioniert”. Um sicherzugehen, kleben Sie die Batteriepole z.B. mit einem Klebestreifen ab oder geben Sie die Batterien einzeln in einen Plastikbeutel. 1 (P) VPL-FX52/FX52L...
  • Page 4 Hävitä käytetty paristo valmistajan ohjeiden Remplacer uniquement avec une batterie du même mukaisesti. type ou d’un type équivalent recommandé par le constructeur. Mettre au rebut les batteries usagées conformément aux instructions du fabricant. 2 (P) VPL-FX52/FX52L...

  • Page 5: Table Of Contents

    B (1/4), C (1/3), H, NR, QB (1/2) ..........5-4 1-2-9. Lamp Power Supply Removal ....... 1-7 B (2/4), QB (2/2) ............... 5-5 1-2-10. Lens Assy Removal (VPL-FX52) ......1-7 B (3/4) ..................5-6 1-2-11. Optical Block (G) Assy and S Board Removal ..1-8 C (2/3) ..................5-7 1-2-12.
  • Page 6 GA (3/3) ................ 6-41 GB (1/2) ................ 6-45 GB (2/2) ................ 6-46 Printed Wiring Boards QA ................... 6-3 QB ................... 6-8 B ..................6-26 C ..................6-28 H ................... 6-37 NR ................. 6-37 S ..................6-37 GA ................. 6-42 GB ................. 6-44 VPL-FX52/FX52L...

  • Page 7: Service Information

    Section 1 Service Information 1-1. Board Layout LAMP POWER VPL-FX52/FX52L...

  • Page 8: Disassembly

    1-2-1. Top Cabinet Assy Removal Two claws Three claws 2 Remove the lens cover assy in the direction of the arrow. 1 Loosen the two screws. (Special screw M4) 5 Top cabinet assy 3 Screw (+B 4x10) CN2200 4 Six screws (+B 4x10) VPL-FX52/FX52L...

  • Page 9: H Board Removal

    (+BVTP 4x10) 1-2-3. GA Board Removal CN301 CN105 CN302 CN303 CN101 CN202 2 Six screws (+PSW 3x8) CN201 3 Insulating sheet GA 4 Remove the GA board in the direction of the arrow. CN103 1 Two screws (+PS 4x12) VPL-FX52/FX52L...

  • Page 10: Gb And S Boards Removal

    4 S board CN2400 1-2-5. Lamp Fan Duct Assy Removal 1 Screw 2 DC fan (Sirocco) (+PSW 3x8) 3 Loosen the three screws 4 Remove the lamp fan duct assy in the direction of the arrow. Connector (3P) Connector (3P) VPL-FX52/FX52L...

  • Page 11: C Board Removal

    ![ Bch in-polarization panel Note on replacing the OUT-POLARIZER ASSY. There are two combination methods when replacing the OUT-POLARIZER ASSY. Check which one of the combination methods is to be used when replacing the OUT-POLARIZER ASSY. (Refer to 4-11) VPL-FX52/FX52L...

  • Page 12: B Board Removal

    7 B block holder 5 B sheet 4 Two screws (+PSW 3x8) 6 Two screws (+PSW 3x8) 1 Two screws 2 Disconnect the two cords. (+PSW 4x10) CN3011 3 Remove the B block assy CN3001 in the direction of the arrow A. VPL-FX52/FX52L...

  • Page 13: Lamp Power Supply Removal

    1 Two screws (+PSW 3x8) 2 Four screws (+PSW 3x8) 3 Lamp power supply 1-2-10. Lens Assy Removal (VPL-FX52) Stopper (Chassis side) Stopper (Lens side) * When replace a Lens Assy, secure the lens assy to where it stops at the stopper of chassis.

  • Page 14: Optical Block (G) Assy And S Board Removal

    1-2-12. DC Fan Removal * To remove the DC fan, remove the C board beforehand. Four claws 3 Lamp duct (top) 4 Two screws (+PSW 3x25) 1 Three screws 5 DC fan (+PSW 4x10) 2 Lamp duct (bottom) Connector (3P) VPL-FX52/FX52L...

  • Page 15: Front Panel Assy Removal

    (+PSW 3x8) 4 Three screws (+PSW 3x8) CN2100 8 QA board CN2101 5 QB board CN2000 6 Four screws 3 Two screws 1 Three screws (+PSW 4x10) 2 Remove the connector block assy in the direction of the arrow. VPL-FX52/FX52L...

  • Page 16: Extension Boards And Extension Cables

    Cable 2P B-QB x 1 XC-C x 1 Cable 9P Cable 3P B-QB x 1 XC-C x 1 Cable 4P XC-C x 1 Cable 7P XC-C x 1 Cable 11P XC-C x 1 Cable 50P XC-C x 1 1-10 VPL-FX52/FX52L...

  • Page 17: Extension Board Connection

    CN11 (32P) (7P) CN12 (32P) CN3000 QA board (2P) CN500 Board to board (6P) (CN5, CN301) CN501 X702 board (9P) CN700 (3P) QB board NR board Fix the XC board with the screw. XC board S board CN600 (2P) 1-11 VPL-FX52/FX52L...

  • Page 18: Warning On Power Connection

    COX-07 YP332 Female end VM0089 386A YC-13B COX-02 VM0310B YC-13 Cord type H05VV-F H05VV-F N13237/CO-228 VCTF Rated Voltage & Current 10A/125V 10A/125V 10A/250V 10A/250V 10A/250V 7A/125V Safety approval UL/CSA UL/CSA DENTORI Cord length (max.) 4.5m (177 1/4 inches) 1-12 VPL-FX52/FX52L...

  • Page 19: Electrical Adjustments

    Select [Yes : ↑]. [Supplementary information: How to Exit the Factory Mode] Perform the step 3 KEY operation. The message [Do you want to return to the User Mode? Yes : ↑ No : ↓] appears. Select [Yes : ↑]. VPL-FX52/FX52L...

  • Page 27: Service Know-How

    INPUT-C connector, and set the GAIN and BIAS for 1. If the white balance is significantly poor, perform the the white balance LOW mode to the following values, white balance adjustment. . (Refer to Section “2-5. then SAVE. White Balance Adjustment”.) GAIN BIAS GREEN BLUE VPL-FX52/FX52L...

  • Page 28: High Mode Of Input-C Computer

    GREEN BLUE 2. Measure the chromaticity (x, y) at the center of the screen. 3. Adjust the GAIN R and GAIN B in the LOW mode of W/B until the chromaticity (x, y) becomes (0.313, 0.330). 4. SAVE. 2-10 VPL-FX52/FX52L...

  • Page 29: Memory Structure

    Dynamic Dynamic Picture Memory Standard Standard Dynamic Dynamic Standard Standard Dynamic Dynamic Standard Standard Picture Picture Memory Memory Dynamic Dynamic Standard Standard Dynamic Dynamic Standard Standard CPU RAM External NVM CPU ROM Memory Initialize Active memory copy 2-11 VPL-FX52/FX52L...
  • Page 30 The adjustment items (W/B, Device Adjust) that can be adjusted in the Service Mode or in the Factory Mode, are memorized in the NVM at the time when the user performs adjustment and performs the memory operation. Note that the factory adjustment data will be lost at this moment. 2-12 VPL-FX52/FX52L...

  • Page 31: Semiconductors

    74VHC02MTCX HA17431UA-TL TC74VHCT540AFT(EL) 2 : GND HA4314BCB-E2 3 : OUT TC74VHCT541AFT(EL) SN74AHCT04PWR TDA7309D013TR SN74LV08APWR TPA2000D2PWPR SN74LV125APWR BA00AST TC74VHCT04AFT(EL) BA00AST-V5 TC74VHCT08AFT(EL) TC74VHCT08FT(EL) TOP VIEW 20pin SOP HD64F2377VFQ33V M62392FP TOP VIEW 14pin SOP TOP VIEW TOP VIEW 144pin QFP 24pin SOP VPL-FX52/FX52L...
  • Page 32 156pin PGA TA7805S PST3628UL 2SK2876-01MR-F119 RK3055E-TL 4pin CHIP INPUT PW164B-20TK OUTPUT SPW47N60C3 TC7SET08FU(TE85R) GATE DRAIN SOURCE BOTTOM VIEW DTA144EE 256pin PGA DTA144EE-TL DTC144EE-TL 5pin CHIP RCV4-A1T-MASK-25 G D S TC7SZ125FU(TE85R) SSM6N15FU(TE85R) TOP VIEW 34pin SOP TOP VIEW 5pin SOP VPL-FX52/FX52L...
  • Page 33 CATHOD E MARK CATHOD E MARK ANODE CATHODE ANODE CATHODE BZA456A DAN202K DAN202K-T-146 SF20L60U MA3J14700LSO CATHODE D10SC4M ANODE D10SC6M DAN202U D10SC6M(RECTI) DAN202UT106 NSCW100 KATHODE ANODE CATHODE ANODE RD3.9SB RD3.9SB-T1 DAP202K(DUAL) UF4005PKG23 DAP202K-T-146 CATHODE D10XB80 ANODE RM11A RM11C(RECTI) CATHODE ANODE VPL-FX52/FX52L...

  • Page 35: Spare Parts

    Ne les remplacer que par une pièce portant le numéro spécifié. 2. Standardization of Parts Some repair parts supplied by Sony differ from those used for the unit. These are because of parts common- ality and improvement. Parts List has the present standardized repair parts.

  • Page 36: Exploded Views

    Cover 4-2. Exploded Views +PSW 3x8 +B 4x10 +PSW 4x40 +PSW 3x10 +BVTP 4x10 +PSW 3x8 +BVTP 4x8 +BVTP 4x10 +PSW 4x10 +PSW 4x10 +BVTP 4x10 +B 4x10 VPL-FX52/FX52L...
  • Page 37 2-665-223-01 s SHEET (FAN DUCT) 7-682-562-09 s SCREW +B 4X10 7-682-948-01 s SCREW +PSW 3X8 7-682-949-09 s SCREW +PSW 3X10 7-682-962-01 s SCREW +PSW 4X10 7-682-970-09 s SCREW +PSW 4X40 7-685-659-79 s SCREW,+BVTP 4X8 7-685-660-11 s SCREW +BVTP 4X10 VPL-FX52/FX52L...
  • Page 38 Chassis 1 +PSW 3x8 +PSW 4x10 +PSW 3x8 +PSW 3x8 +PSW 4x10 +PSW 3x8 +PSW 3x8 +PS 4x12 +PSW 3x8 +B 4x30 +PSW 3x8 VPL-FX52/FX52L...
  • Page 39 1-763-874-12 s FAN, D.C. 2-659-940-01 s MASK 3-701-822-11 s HOLDER, WIRE 4-812-134-21 s RIVET, NYLON 3.5 4-640-554-31 s CABLE CLAMP 7-682-568-09 s SCREW +B 4X30 7-682-948-01 s SCREW +PSW 3X8 7-682-962-01 s SCREW +PSW 4X10 7-682-663-09 s SCREW +PS 4X12 VPL-FX52/FX52L...
  • Page 40 Chassis 2 Optical Unit +PS 4x12 +PSW 3x 25 +PSW 4x10 +PSW 4x10 +PSW 4x10 +PSW 3x8 +PSW 3x8 +PSW 4x10 +PSW 4x10 +PSW 4x10 +PSW 3x8 +PSW 3x8 +BVTP 4x10 +PSW 4x10 VPL-FX52/FX52L...
  • Page 41 A-1142-792-A s MOUNTED CIRCUIT BOARD, S 2-660-998-01 s SHEET, LAMP FAN 4-640-554-31 s CABLE CLAMP 7-682-663-09 s SCREW +PS 4X12 7-682-948-01 s SCREW +PSW 3X8 7-682-954-09 s SCREW +PSW 3X25 7-682-962-01 s SCREW +PSW 4X10 7-685-660-11 s SCREW +BVTP 4X10 VPL-FX52/FX52L...
  • Page 42 Base +PSW 4x10 +PSW 4x10 +PSW 4x10 +K 3x8 +PSW 3x8 +B 4x10 VPL-FX52/FX52L...
  • Page 43 2-658-379-01 s COVER, FILTER (IN) 4-033-712-01 s WASHER 4-047-260-02 s SCREW (B)(4X15) 4-083-191-01 o RIVET 2-664-769-02 s CUSHION (M) 7-682-248-09 o SCREW +K 3X8 7-682-948-01 s SCREW +PSW 3X8 7-682-962-01 s SCREW +PSW 4X10 7-682-562-09 s SCREW +B 4X10 VPL-FX52/FX52L...
  • Page 44 Optical Unit +PSW 3x8 +P 3x5 +P 3x5 VPL-FX52 +B 2x4 +PSW 4x12 +PSW 3x8 +PSW 3x8 +BTP 3x10 +PSW 3x8 +PSW 3x8 +PSW 3x8 VPL-FX52L +PSW 4x12 +PSW 3x8 4-10 VPL-FX52/FX52L...
  • Page 45 Optical Unit Part No. SP Description A-1158-674-A s OPTICAL BLOCK (G) ASSY 9-885-096-87 s PROJECTION LENS (VPL-FX52) 9-885-012-55 s CAP, LENS (VPL-FX52) A-1158-675-A s PRISM BLOCK (G) ASSY 9-885-097-04 s OUT-POLARIZER (R) JSB ASSY 9-885-097-05 s OUT-POLARIZER (R) JRB ASSY...
  • Page 46 8-753-251-93 LCX023JSB-3 429 B 8-753-251-92 LCX023JRB-1 Check the combination of the Combination 2 part numbers to the left by looking 427 R 8-753-251-94 LCX023JSB-2 at this part of the LCD. 428 G 8-753-251-90 LCX023JRB-2 429 B 8-753-251-95 LCX023JSB-1 4-12 VPL-FX52/FX52L...

  • Page 47: Electrical Parts List

    1-164-854-11 s CAPACITOR,CHIP CERAMIC 15PF/50 C1130 1-164-943-11 s CAPACITOR,CHIP CERAMIC 0.01MF C1240 1-164-854-11 s CAPACITOR,CHIP CERAMIC 15PF/50 C1131 1-164-943-11 s CAPACITOR,CHIP CERAMIC 0.01MF C1241 1-128-004-11 s CAPACITOR ELECT 10MF/16V(CHIP) C1134 1-126-395-11 s CAPACITOR,ELECT 22MF/16V(CHIP) C1242 1-131-992-11 s CAP, CERAMIC 100000PF F 1608 4-13 VPL-FX52/FX52L...
  • Page 48 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V C1343 1-124-778-00 s CAPACITOR,ELECT 22MF/6.3V C1518 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V C1344 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V C1519 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V C1400 1-164-868-11 s CAPACITOR,CHIP CERAMIC 56PF C1520 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V 4-14 VPL-FX52/FX52L...
  • Page 49 1-164-943-11 s CAPACITOR,CHIP CERAMIC 0.01MF C1823 1-164-943-11 s CAPACITOR,CHIP CERAMIC 0.01MF C2005 1-164-943-11 s CAPACITOR,CHIP CERAMIC 0.01MF C1824 1-164-943-11 s CAPACITOR,CHIP CERAMIC 0.01MF C2006 1-164-943-11 s CAPACITOR,CHIP CERAMIC 0.01MF C1825 1-164-943-11 s CAPACITOR,CHIP CERAMIC 0.01MF C2007 1-164-943-11 s CAPACITOR,CHIP CERAMIC 0.01MF 4-15 VPL-FX52/FX52L...
  • Page 50 FB2004 1-469-670-11 s FERRITE, EMI (SMD) C2200 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V FB2005 1-469-670-11 s FERRITE, EMI (SMD) C2201 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V FB2100 1-414-921-11 s INDUCTOR, FERRITE BEAD C2202 1-165-908-11 s CAP, CERAMIC 1MF B 1608 4-16 VPL-FX52/FX52L...
  • Page 51 6-805-992-01 s IC S29AL016D70TFI020-823IP100 Q1404 8-729-905-35 s TRANSISTOR 2SC4081-R IC2004 6-704-843-01 s IC AIC1117A-PEJTR IC2100 6-703-012-01 s IC R2061K01-E2 Q1405 8-729-905-35 s TRANSISTOR 2SC4081-R IC2102 6-705-177-01 s IC W95640-WDW6T Q1406 8-729-026-53 s TRANSISTOR 2SA1576A-T106-QR Q1407 8-729-905-35 s TRANSISTOR 2SC4081-R 4-17 VPL-FX52/FX52L...
  • Page 52 1-218-941-81 s RESISTOR,CHIP 100,1/16W (1005) R1200 1-218-953-11 s RESISTOR, CHIP 1K 1/16W R1049 1-218-965-11 s RESISTOR, CHIP 10K 1/16W R1201 1-218-955-11 s RESISTOR, CHIP 1.5K R1050 1-218-973-11 s RESISTOR,CHIP 47K 1/16W (1005) R1202 1-218-949-11 s RESISTOR,CHIP 470 1/16W 4-18 VPL-FX52/FX52L...
  • Page 53 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005) R1418 1-218-977-11 s RESISTOR,CHIP 100K 1/16W(1005) R1261 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005) R1419 1-218-976-11 s RESISTOR, CHIP 82K 1/16W(1005) R1262 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005) R1420 1-218-973-11 s RESISTOR,CHIP 47K 1/16W (1005) 4-19 VPL-FX52/FX52L...
  • Page 54 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005) R1828 1-218-965-11 s RESISTOR, CHIP 10K 1/16W R1501 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005) R1830 1-218-965-11 s RESISTOR, CHIP 10K 1/16W R1502 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005) R1833 1-218-937-11 s RESISTOR, CHIP 47 4-20 VPL-FX52/FX52L...
  • Page 55 1-218-859-11 s RESISTOR,CHIP 3.3K 1/10W(1608) R2126 1-208-659-11 s RESISTOR CHIP 100 1/16W (1005) R2014 1-208-651-11 s RESISTOR CHIP 47 1/16W (1005) R2127 1-208-651-11 s RESISTOR CHIP 47 1/16W (1005) R2015 1-218-285-11 s RESISTOR,CHIP 75 1/16W (1608) R2128 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005) 4-21 VPL-FX52/FX52L...
  • Page 56 1-234-371-11 s RES, NETWORK 47X4 (1005) RB1805 1-234-371-11 s RES, NETWORK 47X4 (1005) RB1501 1-234-371-11 s RES, NETWORK 47X4 (1005) RB1806 1-234-371-11 s RES, NETWORK 47X4 (1005) RB1502 1-234-371-11 s RES, NETWORK 47X4 (1005) RB1807 1-234-371-11 s RES, NETWORK 47X4 (1005) 4-22 VPL-FX52/FX52L...
  • Page 57 1-535-757-11 s CHIP, CHECKER (CONNECTOR) TP1501 1-535-757-11 s CHIP, CHECKER (CONNECTOR) TP1502 1-535-757-11 s CHIP, CHECKER (CONNECTOR) TP1503 1-535-757-11 s CHIP, CHECKER (CONNECTOR) TP1504 1-535-757-11 s CHIP, CHECKER (CONNECTOR) TP1800 1-535-757-11 s CHIP, CHECKER (CONNECTOR) TP1900 1-535-757-11 s CHIP, CHECKER (CONNECTOR) 4-23 VPL-FX52/FX52L...
  • Page 58 1-115-339-11 s CAPACITOR,CERAMIC 0.1MF/50V CN3100 1-815-339-21 o PIN, CONNECTOR CN3101 1-785-306-21 o CONNECTOR, BOARD TO BOARD C3317 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF CN3200 1-779-884-11 s PLUG, CONNECTOR 4P C3318 1-164-943-11 s CAPACITOR,CHIP CERAMIC 0.01MF CN3300 1-794-823-61 s CONNECTOR (ZIF), FPC/FFC 32P 4-24 VPL-FX52/FX52L...
  • Page 59 1-218-965-11 s RESISTOR, CHIP 10K 1/16W IC3102 6-701-174-01 s IC MM1573DNLE R3013 1-218-965-11 s RESISTOR, CHIP 10K 1/16W R3014 1-218-973-11 s RESISTOR,CHIP 47K 1/16W (1005) IC3201 8-759-831-52 s IC TC7WH125FK(TE85R) IC3202 8-759-447-77 s IC TC7WH74FU (TE12R) R3015 1-218-973-11 s RESISTOR,CHIP 47K 1/16W (1005) 4-25 VPL-FX52/FX52L...
  • Page 60 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005) RB3212 1-234-371-11 s RES, NETWORK 47X4 (1005) R3253 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005) RB3213 1-234-371-11 s RES, NETWORK 47X4 (1005) R3301 1-218-965-11 s RESISTOR, CHIP 10K 1/16W RB3214 1-234-371-11 s RES, NETWORK 47X4 (1005) 4-26 VPL-FX52/FX52L...
  • Page 61 1-127-692-91 s CAP, CHIP CERAMIC 10MF B 3216 C238 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V C322 1-164-227-11 s CAPACITOR,CERAMIC 0.022MF/25V C323 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF C324 1-131-998-11 s CAP, SOLID ELECT 82MF 6.3 V C325 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C C326 1-164-227-11 s CAPACITOR,CERAMIC 0.022MF/25V 4-27 VPL-FX52/FX52L...
  • Page 62 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608) IC205 6-708-371-01 s IC MP1580HS-LF-Z R119 1-218-899-11 s RESISTOR,CHIP 150K 1/10W(1608) R120 1-218-904-11 s RESISTOR,CHIP 240K 1/10W(1608) IC303 8-759-937-36 s IC TL1451ACNS R121 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608) IC304 8-759-100-93 s IC UPC393G2 4-28 VPL-FX52/FX52L...
  • Page 63 1-218-863-11 s RESISTOR,CHIP 4.7K 1/10W(1608) VDR101 1-804-995-21 s VARISTOR VDR102 1-804-996-21 s VARISTOR R234 1-216-825-11 s RESISTOR,CHIP 2.2K 1/10W 1608 R235 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608) R236 1-216-827-11 s RESISTOR, CHIP 3.3K 1/10W 1608 R237 1-216-841-11 s RESISTOR, CHIP 47K 1/10W 1608 4-29 VPL-FX52/FX52L...
  • Page 64 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608) D503 8-719-036-94 s DIODE RD5.6SB-T1 R430 1-216-851-11 s RESISTOR,CHIP 330K 1/16W 1608 D504 8-719-036-94 s DIODE RD5.6SB-T1 D505 8-719-036-94 s DIODE RD5.6SB-T1 R431 1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608) R432 1-216-833-11 s RESISTOR,CHIP 10K 1/10W (1608) 4-30 VPL-FX52/FX52L...
  • Page 65 1-771-105-11 s SWITCH, TACTILE S801 1-771-105-11 s SWITCH, TACTILE S802 1-771-105-11 s SWITCH, TACTILE S803 1-771-215-11 s SWITCH, TACTILE S804 1-771-105-11 s SWITCH, TACTILE S805 1-771-105-11 s SWITCH, TACTILE S806 1-771-105-11 s SWITCH, TACTILE S807 1-771-105-11 s SWITCH, TACTILE 4-31 VPL-FX52/FX52L...
  • Page 66 1-115-156-11 s CAPACITOR,CERAMIC 1MF/10V(1608 C307 1-164-505-11 s CAPACITOR,CHIP CERAMIC 2.2MF C308 1-126-209-11 s CAPACITOR,ELECT 100MF/4V C309 1-164-505-11 s CAPACITOR,CHIP CERAMIC 2.2MF C310 1-126-209-11 s CAPACITOR,ELECT 100MF/4V C311 1-164-943-11 s CAPACITOR,CHIP CERAMIC 0.01MF C312 1-164-943-11 s CAPACITOR,CHIP CERAMIC 0.01MF 4-32 VPL-FX52/FX52L...
  • Page 67 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005) FB301 1-414-921-11 s INDUCTOR, FERRITE BEAD R131 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005) R132 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005) FB302 1-414-921-11 s INDUCTOR, FERRITE BEAD R133 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005) 4-33 VPL-FX52/FX52L...
  • Page 68 1-218-929-11 s RESISTOR,CHIP 10 1/16W (1005) R400 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005) R209 1-218-935-11 s RESISTOR,CHIP 33 1/16W (1005) R401 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005) R210 1-218-935-11 s RESISTOR,CHIP 33 1/16W (1005) R402 1-218-937-11 s RESISTOR, CHIP 47 4-34 VPL-FX52/FX52L...
  • Page 69 FB502 1-412-363-11 s FERRITE, EMI (SMD) IC500 8-759-285-61 s IC PC74HC123D-T IC501 8-759-252-59 s IC MAX202CSE J500 1-563-935-11 s JACK (DIA 3.5)(BLK) J501 1-563-935-11 s JACK (DIA 3.5)(BLK) L500 1-414-771-91 s INDUCTOR 10.0UH L501 1-414-771-91 s INDUCTOR 10.0UH 4-35 VPL-FX52/FX52L...
  • Page 70 1-218-969-11 s RESISTOR,CHIP 22K 1/16W (1005) R539 1-218-972-11 s RESISTOR,CHIP 39K 1/16W (1005) R540 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005) R541 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005) R542 1-218-969-11 s RESISTOR,CHIP 22K 1/16W (1005) R543 1-218-972-11 s RESISTOR,CHIP 39K 1/16W (1005) RY500 1-755-384-21 s RELAY 4-36 VPL-FX52/FX52L...

  • Page 71: Block Diagrams

    H SYNC DHS(2/2) IC1407 SEL_V V SYNC DVS(2/2) IC100 HS(2/2) WRITE_EN VS(2/2) H POL(2/2) IC400 V POL(2/2) DDC WRITE SEL SDA_100K2 SCL_100K2 IC300 DDC SW0 EDID IC401 DDC WRITE SEL DDC SDA (2/2) DDC SCL (2/2) DDC SW1 WRITE_EN VPL-FX52/FX52L...
  • Page 72 CN1001 S800 & S600 SDA Q(1/2) FANCTION KEY2 FIL COVER PWROM SCL Q(1/2) S801,802 FANCTION KEY1 SDA 100K(1/2) S803-S807 SCL 100K(1/2) IC1004 FANCTION KEY0 SDA 400K(1/2) RESET LEVEL EEPROM CONV SCL 400K(1/2) D808 D809 D810 S600 LAMP COVER D811 VPL-FX52/FX52L...
  • Page 73 AB10 GGE7 DDC DATA Q302 LEVEL_CONV AB22 GGO0 DDC CLK AB25 GGO7 SDA2 GBE0 Q301 GBE7 LEVEL_CONV GBO0 AB17 AB20 SCL2 GBO7 H.SYNC 48 Y.SYNC 47 DE 46 TMDS_DE DCK 44 GCLK PD0 9 TMDS_EN Q300 PD 2 WRITE_EN VPL-FX52/FX52L...

  • Page 74: B (1/4), C (1/3), H, Nr, Qb (1/2)

    106-113, 34,36,37, DATA31 145, 39,40,42, RESET TXCOL +3.3V 147-149, IC2104 45,47,48, 50,51,53, RESET RESET 54,56,74, 76,77,79, TRST 80,82,83, IC2100 SIO 1 X2100 OSCOUT RTCDATA 14-18, 32.768kHz OSCIN SCLK 2 RTC_CLK 20,21,23, 68,72,73, ADDR0 75,114, ADDR23 116-121, BT2100 153-156, ADDR0-23 VPL-FX52/FX52L...
  • Page 75 SYS CLK TP1400 SCK/CLK BUFF GCLK2 Q1404 Q1406 TP1401 PEAK TMDS DE1 HOLD ADC EN +9V-3 Q1402 CN1101(2/4) IC1401 IC1404 TP1403 +3.3V-2 OUT H PEAK HOLD OUT V D1600 QA BOARD BUFF CN401 Q1401 Q1403 PEAK HOLD PC DTV VPL-FX52/FX52L...
  • Page 76 FCEN DS CLK OUT ROM WEN DS CLK SYS CLK ROMWE ROM WEN ROMOE ROM OEN IC1901 ROM OEN SPREAD MCKEXT BHEN BHENN X651 SPECTRUM 16.384MHz BOOT WE BOOT WE DCKEXT VPPEN VPPEN IC1903 IC1902 RESETN RESET 1 RESET VPL-FX52/FX52L...
  • Page 77 Q3001 DAC_OFST_G LAMP PROT LAMP COVER LAMP ON LAMP MODE IC3001 CN3002 BUFF Q3002 LAMP PROT CN3003 GB BOARD LAMP PS BUFFER LAMP MODE CNT_PLS USHIO CN502 LAMP ON ENC0 ENC1 IC3000 LENS DET ENC2 SCL1000K_5V ZDET SDA1000K_5V FDET VPL-FX52/FX52L...
  • Page 78 NR BOARD SUB5V CN700 2.5V-2 SUB1.5V-IP VOUT ON/OFF IC1116 2.5V REG CN3004 TP1112 SUB3.3V-IP SUB3.3V H BOARD 2.5V-4 CN800 VOUT D3.3V ON/OFF IC1109 3.3V REG TP1101 TP1103 SUB3.3V IC1113 -3V REG CN1101 TP1109 AB30 A-5V QA BOARD CN401 AB31 A-5V VPL-FX52/FX52L...
  • Page 79 F CON1 POWER FPRO +6.3V 1, 2 +13.5V GB BOARD CN506 (2/2) +6.3V Q312 L309 DD CONV Q313 Q314, Q315 GB BOARD CN506 (1/2) CONSTANT CONSTANT CURRENT CURRENT Q316 DD CONV IC303 DC/DC CONV IC304 D307 Q317 PROTECT PROTECT VPL-FX52/FX52L...
  • Page 80 PROTECT PROTECT IC405 DRIVER Q404 IC404 FAN +B4 REG PROTECT CTL 1 6, 7 CNT 5 GA BOARD IC406 CN201 (2/2) DRIVER CN506 (2/2) FCON1 FCON2 Q405 FCON3 POWER PSAVE FCON SAVE FPRD Q409 Q408 PROTECT PROTECT 5-10 5-10 VPL-FX52/FX52L...
  • Page 81 Section 6 Diagrams Index Board Name Function Page RGB Input Buffer S-Video Input Main CPU, Signal Processor 6-11 Main CPU 6-28 Key Matrix 6-37 EMI Filter 6-37 Cover Switch 6-37 Active Filter 6-39 DC-DC Converter 6-44 VPL-FX52/FX52L...

  • Page 82: Frame Schematic Diagrams

    LAMP PROT LAMP PROT LAMP LED GCLK GCLK P.SAVE LED LAMP ON LAMP ON P.SAVE LED TMDS_EN TMDS_EN LAMP COVER LAMP MODE LAMP MODE LAMP COVER WRITE EN WRITE EN FIL COVER POWER ON POWER ON FIL COVER FRAME VPL-FX52/FX52L...

  • Page 83: Schematic Diagrams And Printed Wiring Boards

    R219 R228 D203 D204 J L 1 1 0 CN200 J L 1 1 3 J L 1 1 2 J L 1 1 1 J L 1 0 9 CN101 -A SIDE- -B SIDE- SUFFIX: -11 SUFFIX: -11 VPL-FX52/FX52L...
  • Page 84 C107 R120 C133 1/10W 1/10W 6.3V D110 1/16W RN-CP RN-CP CHIP JL100 MA3J14700LSO 0.5 % 0.5 % R192 PROTECT 1/16W CHIP C120 R146 R140 1/16W 1/16W CHIP (1/4) CHIP 3216 C134 R193 D111 1/16W CHIP MA3J14700LSO (INPUT BUFFER) PROTECT VPL-FX52/FX52L...

  • Page 85: Qa (2/4)

    RN-CP RN-CP R217 1/10W C210 RN-CP D203 MA3J14700LSO 4:8B OUT_SYNC PROTECT OUT_H IC203 R229 C214 SN75453BPSR 1/10W BUFF RN-CP D204 1608 OUT_H_SYNC MA3J14700LSO PROTECT R209 1/16W CHIP OUT_V R230 1/10W RN-CP (2/4) (MONITOR OUT DRV.) OUT_V_SYNC R210 1/16W CHIP VPL-FX52/FX52L...

  • Page 86: Qa (3/4)

    R325 Q301 R335 R336 SSM6N16FU R334 CHIP LEVEL_CONV RB305 RB303 RB307 RB309 1/16W 1/16W 1/16W CHIP CHIP CHIP R301 1/16W CHIP Q300 DTC144EUA-T106 C_DDC_SCL2 4:4D C_DDC_SDA2 4:5C R338 R302 1/16W 1/16W CHIP CHIP Q302 SSM6N16FU (3/4) LEVEL_CONV (TMDS RECEIVER) VPL-FX52/FX52L...

  • Page 87: Qa (4/4)

    3.3V-2 JL429 D3.3V C402 D3.3V D3.3V JL412 3216 5V-3 JL424 JL425 JL426 JL427 JL428 A+5V A+5V A+5V A+5V JL413 -5V-3 A-5V A-5V A-5V A-5V CN400 JL414 MODULAR JACK JL415 JL416 JL417 JL418 (4/4) CN401 (DDC WRITE SEL) TO B VPL-FX52/FX52L...
  • Page 88 D 5 1 3 R 5 2 2 D 5 0 7 D 5 1 0 Q501 D 5 0 9 D 5 1 2 C515 C514 L500 IC501 R531 CN501 -A SIDE- -B SIDE- SUFFIX: -11 SUFFIX: -11 VPL-FX52/FX52L...
  • Page 89 2CLR CHIP 1/16W CHIP PROTECT D506 Q503 C500 2R/C DTC144EUA-T106 470p R506 C501 C506 DAP202UT106 470k PROTECT INV BUFF 1/16W Q504 1608 CHIP DTC144EUA-T106 2012 C503 INV BUFF JL503 (S-VIDEO, RS-232C INPUT) JL500 1005 J500 CONTROLS-IN JL502 FB502 JL501 VPL-FX52/FX52L...
  • Page 90 SENSE AMP R/W CONTROL 1 2 3 NC NC NC QA (1/4) TC74HC4052AF (IC103) QA (3/4) M24C02-WMN6T (IC300) QB MAX202CSE-T (IC501) QA (4/4) TC74HC4052AF (EL)(IC401) 2 k BIT EEPROM SELECT A SELECT A SELECT B SELECT B 6-10 6-10 VPL-FX52/FX52L...
  • Page 91 OUT2 NON INV IN2 INV IN2 B (2/13) TC74VHCT08AFT (EL)(IC1100) B (10/13) ICS332-SX1738 (IC1901) OUTPUT CLK2 BUFFER WITH PLL DIVIDER CLOCK VALUES SYNTHESIS AND CONTROL CIRCUITRY X1/ICLK CRYSTAL OUTPUT CLK1 OSCILLATOR BUFFER PDTS (BOTH OUTPUTS AND PLL) 6-11 6-11 VPL-FX52/FX52L...
  • Page 92 GND 4 LEVEL CLOCK SHIFT 4 VSB DELAY 2 OE 1 2 3 3 OE B (13/13) TC7WH74FK (TE85R)(IC2202) B (13/13) 74VHC221AMTCX (IC2200) 1Rext/ Cext Cext B (13/13) TC7WH04FK (TE85R)(IC2203) 2Rext/ Cext Cext B (13/13) TC7WH14FK (TE85R)(IC2204) 6-12 6-12 VPL-FX52/FX52L...
  • Page 93 4.7k 1/16W DTC144EUA-T106 1/16W CHIP Q1002 CHIP IC1002 HN1C03FU-TE85R TC74VHCT08AFT(EL) IN_B LEVEL_CONV 1005 SDA_100K_5V R1006 IN_A SCL_100K_5V 1A 1B 1Y 2A 2B 2Y GND (1/13) WRITE_EN 8:4G (MAIN CPU) R1025 C1006 C1000 470p 1/16W CHIP 1005 1005 6-13 6-13 VPL-FX52/FX52L...
  • Page 94 LAN 11:5G SIRCS_NF IRIN1 IREN1 NF_ON 1:6G SIRCS_NR NR_ON 1:6G IRIN2 IREN2 R1104 IR_OUT 13:11E IROUT 1/16W CHIP R1108 (2/13) 1/16W IC1101 CHIP IRMF-A0T-QTP (POWER SUPPLY) C1101 C1102 C1103 SIRCS IF 100p 100p 1005 1005 1005 JL1120 JL1121JL1122JL1123JL1124 6-14 6-14 VPL-FX52/FX52L...
  • Page 95 1/10W 1/16W 1/16W 6.3V 1/16W TP1201 RN-CP CHIP CHIP CHIP 1/16W I2C_100K_5V 1608 CHIP 1:4H;2:11E Q1200 2SA1576A-T106-QR SDA_Q SDA_100K_5V BUFF R1204 JL1204 XX 1/16W CHIP TP1202 TP1200 (3/13) SCL_Q SCL_100K_5V (3D COMB) R1205 JL1205 XX 1/16W CHIP 6-15 6-15 VPL-FX52/FX52L...
  • Page 96 1/16W CHIP RN-CP R1320 0.5 % CHIP R1316 R1324 R1315 1/10W 1/10W R1323 1/10W RN-CP RN-CP R1318 RN-CP 1/10W R1319 1/10W RN-CP RN-CP 1/10W RB1300 RN-CP RB1301 3:12D C-NT 3:12D Y-NT (4/13) (VIDEO DEC & A/D CONV.) 6-16 6-16 VPL-FX52/FX52L...
  • Page 97 3216 1/16W 1CLR 1CEXT 1005 CHIP R1470 C1438 R1484 100p R1479 R1471 CHIP 1/16W 1/16W CHIP 1005 CHIP 2CEXT 2CLR R1480 R1472 1/16W C1444 1/16W 2REXT CHIP CHIP R1481 1005 1/16W CHIP (5/13) OUT_SYNC 2:2D (SYNC SEP.) 6-17 6-17 VPL-FX52/FX52L...
  • Page 98 C1524 10V 0.1 1/16W CHIP 1005 1005 C1527 R1517 3.3k 3900p 1/16W RN-CP RB1503 RB1505 0.5 % 1005 FB1501 C1526 0.039 3.3V-5 1608 GBO[0] GBO[1] R1518 GBO[2] 1/16W CHIP GBO[3] GBO[4] GBO[5] GBO[6] (6/13) GBO[7] (A/D CONV.) 6-18 6-18 VPL-FX52/FX52L...
  • Page 99 C1605 0.01 1005 GBO[2] GBUS1_GBO2 BOO2 C1606 0.01 1005 GBO[1] GBUS1_GBO1 RB1615 BOO1 C1607 0.01 1005 GBO[0] GBUS1_GBO0 BOO0 C1608 0.01 1005 R1611 1/16W CHIP GCLK2 9:6B;9:6E;10:1A TMDS_DE1 GPENSOG 8:10G R1617 10:2B (7/13) 1/16W CHIP (SW IC) 6-19 6-19 VPL-FX52/FX52L...
  • Page 100 RB1711 1005 RB1712 RB1719 GHS1 GVS1 TMDS_DE TMDS_DE1 7:9G GCLK GCLK1 TMDS_EN GFBK D1700 WRITE EN WRITE_EN 1SS355 1:1H R1701 DELAY 1/16W CHIP R1700 2.2k 1/16W CHIP IC1703 TMDS_EN 1:9E SN74LV541APWR BUFFER C1700 (8/13) 1608 (BUS SW) 6-20 6-20 VPL-FX52/FX52L...
  • Page 101 C1830 C1813 C1816 C1818 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 (SYSTEM IC) 1005 1005 1005 1005 1005 1005 1005 1005 1005 1005 1005 1005 1005 IC1800 (4/4) CXD9763GG-A SYSTEM IC 6-21 6-21 VPL-FX52/FX52L...
  • Page 102 3216 VB/UV/V3 C1914 C1916 C1918 C1920 C1922 C1924 C1926 C1928 C1932 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 VB/UV/V4 6.3V 1005 1005 1005 1005 1005 VB/UV/V5 1005 1005 1005 3216 (10/13) VB/UV/V6 TP1904 VB/UV/V7 (SCAN CONV.) 6-22 6-22 VPL-FX52/FX52L...
  • Page 103 1005 1005 1005 1005 1005 R2056 1/16W CHIP JL2000 PLL_GND 12:9H FB2005 TP2001 C2009 C2016 0.01 C2011 1005 1005 T2000 C2017 R2015 1005 C2013 R2018 (11/13) 1/10W R2032 RN-CP 1/10W RN-CP CHIP (TRANSCEIVER) R2033 C2015 CHIP 1000p 6-23 6-23 VPL-FX52/FX52L...

  • Page 104: B (12/13)

    0.5 % 0.5 % 1/16W RN-CP 0.5 % PLL_1.5V 11:12G (12/13) R2108 PLL_GND 11:12G R2101 SCLK 1/16W BT2100 RN-CP 0.5 % (NETWORK CONT) 0.5 % R2102 R2105 R2106 1/16W 0.5 % 1/16W RN-CP RN-CP 0.5 % 0.5 % 6-24 6-24 VPL-FX52/FX52L...

  • Page 105: B (13/13)

    C2201 C2205 IC2203 JL2205 TC7WH32FK(TE85R) TC7WH14FK(TE85R) 1:9E SIRCS_CPU TC7WH04FK(TE85R) SIRCS-CPU SMT-INV JL2206 2:5H IR_OUT SIRCS-IR 1005 1005 1005 JL2207 R2203 5:11G H_BUFFO D2201 C2208 R2202 1/16W CHIP 1005 (13/13) RS ON RS OFF TP2200 (RS-232C SW) S2200 6-25 6-25 VPL-FX52/FX52L...
  • Page 106 * E-4 TP1900 IC2101 TP1901 IC2102 * C-5 TP1902 IC2103 TP1903 IC2104 TP1904 IC2200 TP1905 IC2201 TP1906 IC2202 * F-4 TP1907 IC2203 * F-4 TP2000 IC2204 TP2001 IC2205 * F-4 TP2002 IC2206 TP2100 TP2200 Q1000 * G-4 6-26 6-26 VPL-FX52/FX52L...
  • Page 107 R 2 1 4 3 R 2 1 4 5 I C 2 1 0 2 C N 2 1 0 0 R 2 1 4 6 C 2 1 2 1 C 1 1 4 8 -B SIDE- SUFFIX: -11 6-27 6-27 VPL-FX52/FX52L...
  • Page 108 JL3019 FB3007 TP3302 JL3020 FB3008 JL3403 TP3303 JL3021 FB3009 TP3304 JL3022 FB3010 TP3400 JL3014 FB3011 TP3401 JL3013 TP3500 JL3029 TP3501 FB3001 JL3001 R3205 R3204 JL3028 JL3203 JL3202 JL3201 JL3200 JL3002 FB3002 CN3200 JL3003 -A SIDE- SUFFIX: -11 6-28 6-28 VPL-FX52/FX52L...
  • Page 109 D 3 0 0 0 R 3 0 1 6 R 3 0 0 3 F B 3 0 1 5 R 3 4 0 4 C 3 0 0 7 T H 3 0 0 1 -B SIDE- SUFFIX: -11 6-29 6-29 VPL-FX52/FX52L...
  • Page 110 KEY0 KEY0 JL3027JL3028JL3029JL3030JL3031 JL3019 XX FB3007 POWER_LED POWER LED JL3020 XX FB3008 TEMP LED TEMP_LED JL3021 XX FB3009 LAMP_LED LAMP LED JL3022 XX FB3010 P_SAVE_LED P.SAVE LED JL3014 XX FB3011 LAMP_COVER 5D;8F LAMP COVER (1/6) (INPUT BUFFER) 6-30 6-30 VPL-FX52/FX52L...
  • Page 111 OSD EN FCON1 FAN_CONT1 C3104 C3105 C3106 FCON2 FAN_CONT2 0.01 6.3V FPRO FAN PROT 1005 1005 2012 POWER_PROT POWER PROT 1:5D LAMP_PROT LAMP PROT LAMP_ON 1:4C LAMP ON LAMP_MODE 1:4C LAMP MODE POWER_ON POWER ON (2/6) (VOLTAGE DET./REG.) 6-31 6-31 VPL-FX52/FX52L...
  • Page 112 C3203 1005 1/16W 100p C3216 CHIP CN3200 CHIP C3214 R3204 JL3200 XX 1005 +3.3 1/16W CHIP TP3200 JL3201 XX W SCL 1005 JL3202 XX W SDA (3/6) JL3203 XX R3205 (3D GAMMA & TG) AD/FC 1/16W CHIP 6-32 6-32 VPL-FX52/FX52L...
  • Page 113 3:6E MCLK_R 0.22 0.22 0.22 JL3302XX 1608 1608 1608 R3320 R3319 C3305 CHIP 1/16W 0.22 CHIP 1608 R3316 2.2k 1/16W CHIP DAC_R 3:10F;5:2F; 6:2F Q3300 HN1B01FU-TE85R BUFF TG_R 3:12A;5:2F; 6:2G TP3303 C3326 (4/6) (PANEL DRIVE RED) JL3304JL3305JL3306 6-33 6-33 VPL-FX52/FX52L...
  • Page 114 C3404 3:6E 0.22 0.22 JL3402XX 0.22 1005 R3417 1608 1608 1608 R3416 C3405 0.22 CHIP 1/16W CHIP 1608 R3413 2.2k DAC_G 1/16W CHIP 3:10F;4:2F; 6:2F Q3400 HN1B01FU-TE85R BUFF TG_G 3:12A;4:2G; 6:2G C3421 (5/6) JL3403JL3404JL3405 (PANEL DRIVE GREEN) 6-34 6-34 VPL-FX52/FX52L...
  • Page 115 0.22 3:6E MCLK_B JL3502 XX 0.22 1005 1608 R3517 1608 1608 C3505 R3516 0.22 CHIP 1/16W CHIP 1608 R3513 2.2k 1/16W DAC_B CHIP 3:10F;4:2F; 5:2F Q3500 HN1B01FU-TE85R BUFF TG_B 3:12A;4:2G; (6/6) 5:2F C3521 (PANEL DRIVE BLUE) JL3503JL3504JL3505 6-35 6-35 VPL-FX52/FX52L...
  • Page 116 LATCH 8BIT 8BIT 8BIT 8BIT 8BIT 8BIT UPPER DIGITS UPPER DIGITS UPPER DIGITS UPPER DIGITS UPPER DIGITS UPPER DIGITS C (3/6) TC7WH125FK (TE85R)(IC3201) SEGMENT R-2R SEGMENT R-2R SEGMENT R-2R SEGMENT R-2R SEGMENT R-2R SEGMENT R-2R refL refU1 6-36 6-36 VPL-FX52/FX52L...
  • Page 117 S800 D810 D811 S805 S806 S801 S807 S804 S802 IC700 R701 C700 -A SIDE- SUFFIX: -11 -A SIDE- -B SIDE- SUFFIX: -11 SUFFIX: -11 CN600 -A SIDE- -B SIDE- SUFFIX: -11 SUFFIX: -11 -B SIDE- SUFFIX: -11 6-37 6-37 VPL-FX52/FX52L...
  • Page 118 R811 R812 R815 R816 1.8k 6.8k 6.8k 3.9k 2.7k 2.2k 1.5k 1/10W 1/10W 1/10W 1/10W 1/10W 1/10W 1/10W 1/10W R801 RN-CP RN-CP RN-CP RN-CP RN-CP RN-CP RN-CP RN-CP 1.8k R802 1/10W 1.8k RN-CP 1/10W RN-CP (PANEL SW) 6-38 6-38 VPL-FX52/FX52L...

  • Page 119: Ga (1/3)

    RN-CP 0.5 % D110 C113 C114 C115 C116 W101 RD27SB-T1 0.22 0.01 1000p PROTECT 1608 1608 1608 1608 CAM101 CAM102 VDR101 R139 FH101 560k F101 1/2W 6.3A 250V FH102 JL114 JL115 JL116 JL117 (1/3) (PFC CONT.) CN105 6-39 6-39 VPL-FX52/FX52L...

  • Page 120: Ga (2/3)

    R246 UPC393G2-E2 Q209 POWER ON DELAY Q210 2SC2712-YG-TE85L 1/10W DTC144EE-TL RN-CP PROTECT C226 JL218 CN202 R248 R249 100k 4.7k 1/10W R247 C225 1/10W 3216 RN-CP RN-CP 0.5 % C227 1/10W RN-CP 1608 GND 3:2F;900:4D (2/3) (DC-DC CONV.) 6-40 6-40 VPL-FX52/FX52L...

  • Page 121: Ga (3/3)

    RN-CP RN-CP C336 R368 R366 0.5 % 0.5 % 1/10W C332 R365 1/10W C344 R367 RN-CP 150p 4.7k C334 RN-CP 1/10W 0.5 % R393 1/10W RN-CP RN-CP 1608 0.5 % 3225 1608 CHIP 2:12H;900:4D (3/3) (DC-DC CONV.) 6-41 6-41 VPL-FX52/FX52L...
  • Page 122 * K-3 D306 * L-3 Q105 Q316 * L-3 D203 D307 * L-3 Q106 * C-1 Q317 D204 * E-2 D308 * L-3 Q107 D205 Q201 * K-3 D206 * G-3 IC101 * D-2 Q202 * J-3 6-42 6-42 VPL-FX52/FX52L...
  • Page 123 -B SIDE- SUFFIX: -11 6-43 6-43 VPL-FX52/FX52L...
  • Page 124 D405 IC401 IC505 Q407 D501 * J-2 IC402 IC506 Q408 D502 * J-2 IC403 IC507 Q409 D503 * J-2 IC404 Q410 * F-2 D504 * J-2 IC405 Q401 * E-3 D505 * J-2 IC406 Q402 * B-3 6-44 6-44 VPL-FX52/FX52L...

  • Page 125: Gb (1/2)

    FAN PROTECT C407 1/10W 1/10W R419 R420 R433 RN-CP 1/10W RN-CP 0.5 % RN-CP 0.5 % 1/10W 1/10W 1/10W R435 RN-CP RN-CP RN-CP (1/2) 330k 1608 R424 1/10W C411 RN-CP 5.6k 1/10W RN-CP (FAN REG.) 0.5 % 3216 6-45 6-45 VPL-FX52/FX52L...

  • Page 126: Gb (2/2)

    1608 C520 1608 R529 VREF JL516 OUT2 R515 D507 JL517 1/10W MA111-TX RN-CP CLAMP OUT1 C507 C508 2012 C522 C521 IC507 BA6286 FOCUS DRIVE GND_1 1:2C TO PROGRAMMING INTERFACE C523 0.01 2012 BSCAN (2/2) (MOTOR CONT.) CN503 6-46 6-46 VPL-FX52/FX52L...
  • Page 127 2 V AC range are suitable. (See Fig. A) To Exposed Metal Parts on Set 0.15 µ F 1.5 k Z voltmeter (0.75V) Earth Ground Fig A. Using an AC voltmeter to check AC leakage. VPL-FX52/FX52L...
  • Page 128 Printed in Japan VPL-FX52 Sony Corporation 2005. 12 16 VPL-FX52L (SY) E 9-872-768-02 ©2005...
