General
-
SITEL Dialog RHEA platform SC14461
-
Standard configuration of 1 VoIP account. Maximum of 4 VoIP accounts
-
Wideband G.722 Codec
-
IPv4 / IPv6
-
WAN port and LAN port
-
Headset connectivity (check with your distributor for this option before order)
-
PoE (check with your distributor for this option before order)
Server Compliance
-
Asterisk / Broadsoft / Alcatel / NEC / Avaya basic call features supported
Codecs and Voice Features
-
Wideband codec: G.722
-
Narrowband codec: G.711µ/A, ILBC
-
G.729
-
VAD, CNG, AEC, PLC, AJB, AGC
-
Full-duplex speakerphone with AEC
Thursday, 1 August 2013
Telephony I.P.
User Guide
PH656N

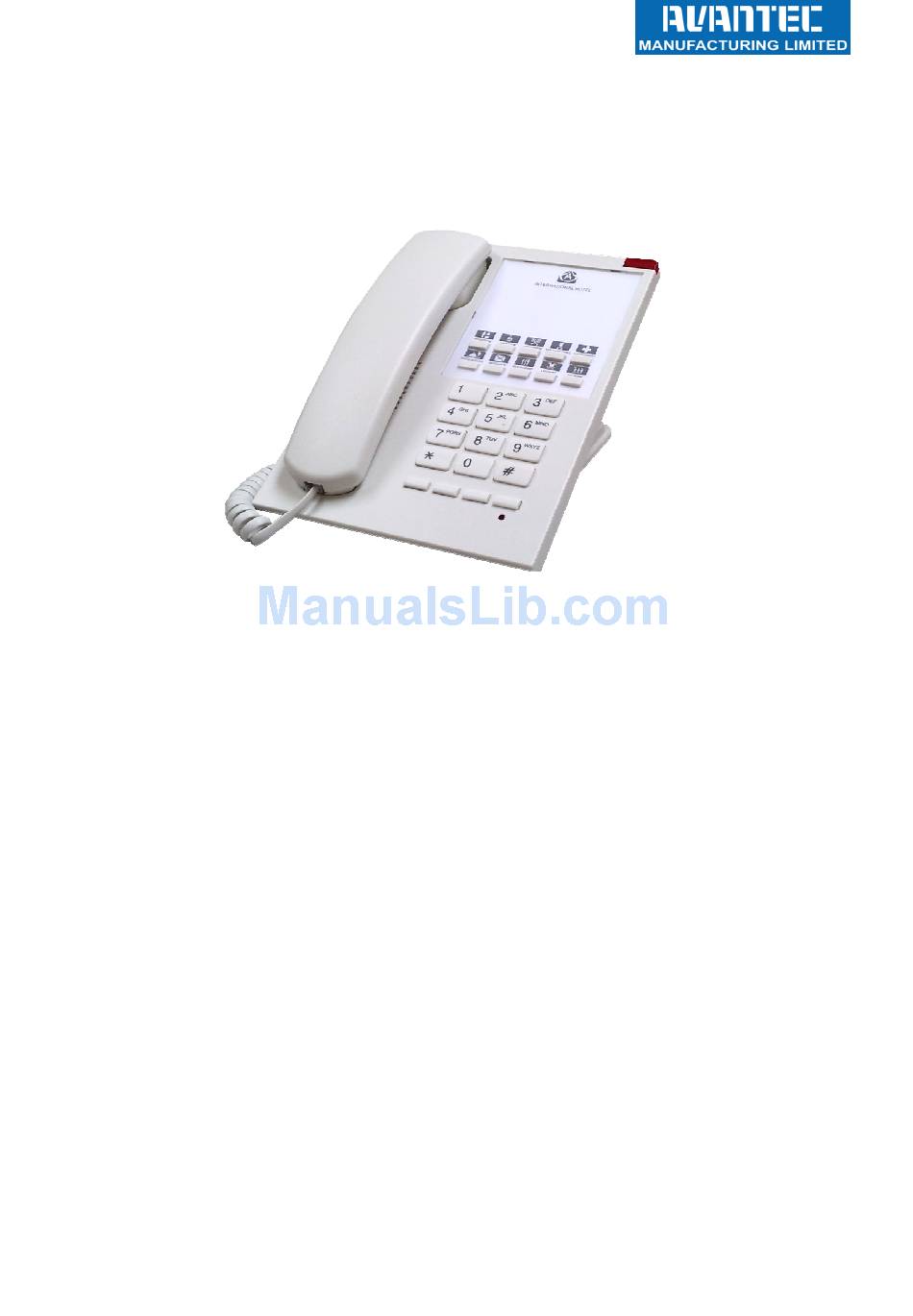

Desktop VoIP Guestroom Telephone
PH656N - User Manual v1.1
1/15
Advertisement
Table of Contents
Related Manuals for avantec PH656N
Summary of Contents for avantec PH656N
-
Page 1: User Guide
Asterisk / Broadsoft / Alcatel / NEC / Avaya basic call features supported Codecs and Voice Features Wideband codec: G.722 Narrowband codec: G.711µ/A, ILBC G.729 VAD, CNG, AEC, PLC, AJB, AGC Full-duplex speakerphone with AEC Thursday, 1 August 2013 PH656N - User Manual v1.1 1/15... -
Page 2: Installation
4. For your computer, connect its Ethernet cable to the LAN port of the main unit The LAN port is next to the logo Keypad Mapping Figure 1 - PH656N Keypad & LED mapping Thursday, 1 August 2013 PH656N - User Manual v1.1... -
Page 3: Call Operation
In idle mode, press the Vol+ or Vol- button to increase or decrease the ringer volume Observe the volume bar shown on the LCD Alternatively, go on to the Web Portal, go to Phone Settings page and adjust the volume settings (see Figure 2). Thursday, 1 August 2013 PH656N - User Manual v1.1 3/15... -
Page 4: Call Flash
1. During a conversation, press the MUTE button 2. The other end is not able to hear you but you can continue to hear from the other end. 3. To deactivate Mute, press the MUTE button again. Thursday, 1 August 2013 PH656N - User Manual v1.1 4/15... - Page 5 I. Programmable Memory Button and Message (mailbox) Key PH656N can have up to 10 programmable memory buttons. Contact your distributor for more info. The standard cabinet has 1 programmable memory button labeled, "M1". To activate, lift the handset and simply press it once. The number will be dialed out immediately.
-
Page 6: Call Waiting
To end the second call, place the handset back on the cradle The LINE1 LED stays ON to remind users that the previous call is still on the line To retrieve the previous call, press the 1 softkey (RSM) Thursday, 1 August 2013 PH656N - User Manual v1.1 6/15... -
Page 7: Web Portal
Web Portal The Web Portal of PH656N can be accessed by Google Chrome, Internet Explorer and Mozilla Firefox. A. To Log in Enter http://< IP Address of the handset > on the browser. There are two levels of access: (1) "Adminstrator / Full access" and (2) "Users / Limited access"... - Page 8 When the mask password box is checked, both password entries are masked. To un-mask, simply un-checked the mask password box. Figure 5 - Set Password for accessing the Web Portal Thursday, 1 August 2013 PH656N - User Manual v1.1 8/15...
-
Page 9: Network Settings
In order to have the changes take effect immediately, click "restart" You can always perserve the changes and decide to restart the phone at a later time Figure 6 - Network Settings page on Web Portal Thursday, 1 August 2013 PH656N - User Manual v1.1 9/15... -
Page 10: Sip Account Settings
Parameters for Audio settings for each account can be found under the title, "Audio Settings", on the left panel. Such parameters include: DTMF mode (in-band / RFC2833 / SIP INFO) Audio Codec preference (PCMU / PCMA / G.722 / G.729 / iLBC) Jitter Thursday, 1 August 2013 PH656N - User Manual v1.1 10/15... -
Page 11: Other Settings
Enter the memory key number, message key number and NAT entries When done, click Save The changes take effect immeidately Figure 8 - Memory key and NAT settings page on Web Portal Thursday, 1 August 2013 PH656N - User Manual v1.1 11/15... -
Page 12: Internet Radio
F. Internet Radio This is a neat feature on PH656N. Simply preset your favorite music channels on the Web Portal and you can turn it on easily on the phone whenever you feel like some tunes Go to Configuration page On the left panel, click on the "Internet Radio Settings"... - Page 13 If the upgrade fails, disconnect the base from the Ethernet and re-connect it in order to trigger a power-cycle. Redo the firmware upgrade procedure. Figure 10 - Firmware upgrade, User Configuration Backup / Restore on Web Portal Figure 11 - Firmware upgrade confirmation Thursday, 1 August 2013 PH656N - User Manual v1.1 13/15...
-
Page 14: Important Safety Instructions
6. Incompatibility with anything other than the PBX for which the telephone was intended during purchased. 7. Cords, connectors and replaceable batteries. 8. Force majeure. 9. Damages in transit. 10. Any damage resulting from unauthorized modification or repair of the telephone. Thursday, 1 August 2013 PH656N - User Manual v1.1 14/15... - Page 15 AVANTEC PRODUCT SUPPORT Should you need any technical assistance for this product, please contact Avantec Manufacturing Limited: Telephone : (852) 2763-0203 Email : office@avantec.com.hk Thursday, 1 August 2013 PH656N - User Manual v1.1 15/15...
