General
-
Standard configuration of 1 VoIP account. Maximum of 2 VoIP accounts
-
Wideband G.722 Codec
-
IPv4 / IPv6
-
WAN port and LAN port
-
Headset connectivity (check with your distributor for this option before order)
-
PoE (check with your distributor for this option before order)
Server Compliance
-
Asterisk / Broadsoft / Alcatel / NEC / Avaya basic call features supported
Codecs and Voice Features
-
Wideband codec: G.722
-
Narrowband codec: G.711µ/A, ILBC
-
G.729
-
VAD, CNG, AEC, PLC, AJB, AGC
-
Full-duplex speakerphone with AEC
Monday, 2 December 2013

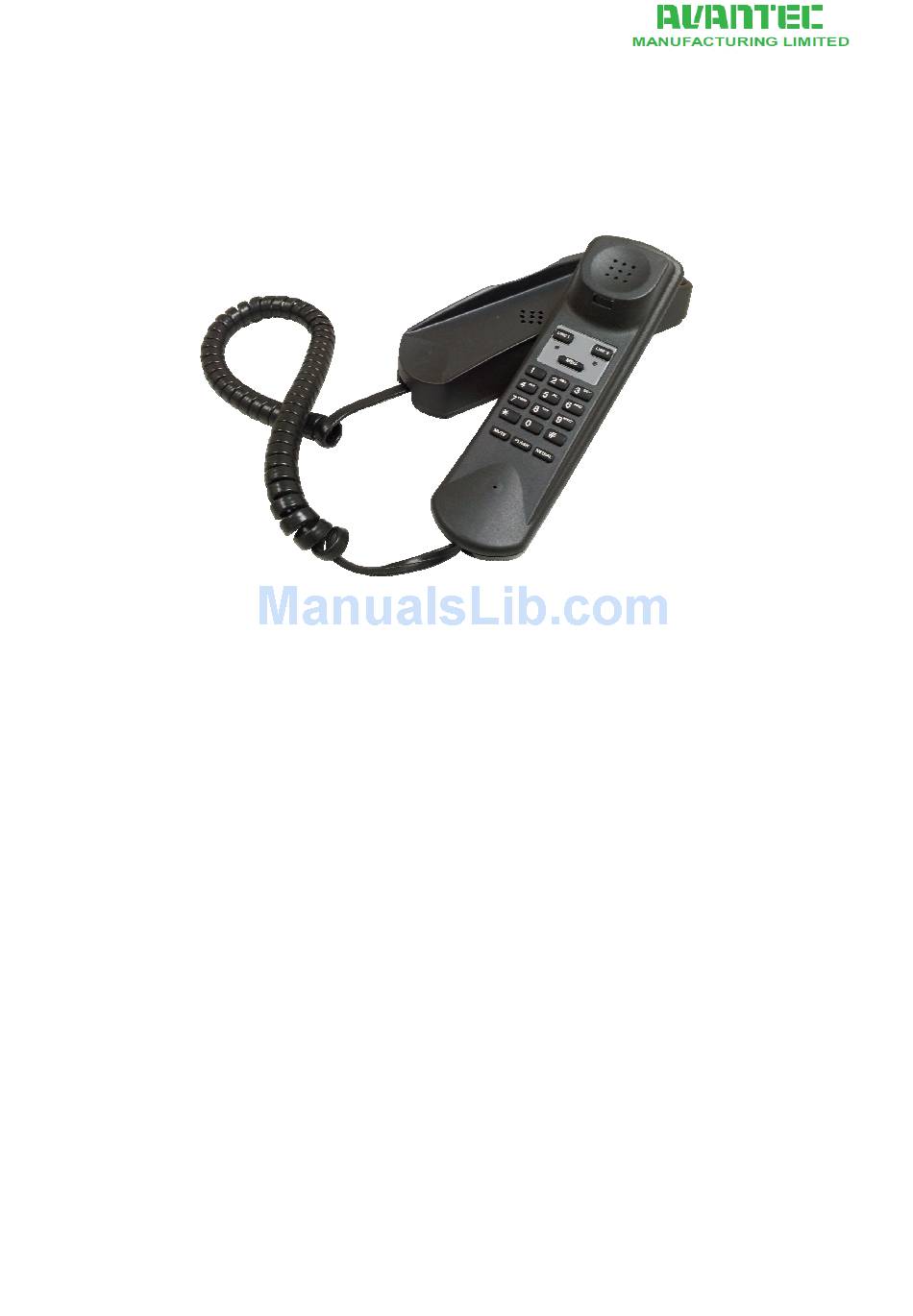

Telephony I.P.
User Guide
PH658N

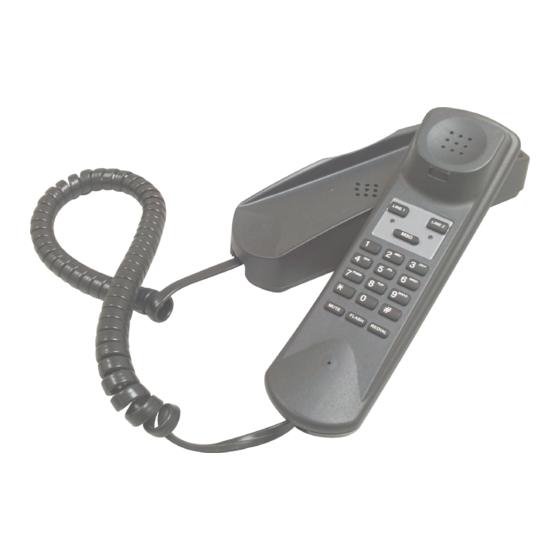

Trimline VoIP Telephone
PH658N - User Manual v1.1
1/15
Advertisement
Table of Contents
Related Manuals for avantec PH658N
Summary of Contents for avantec PH658N
-
Page 1: User Guide
Asterisk / Broadsoft / Alcatel / NEC / Avaya basic call features supported Codecs and Voice Features Wideband codec: G.722 Narrowband codec: G.711µ/A, ILBC G.729 VAD, CNG, AEC, PLC, AJB, AGC Full-duplex speakerphone with AEC Monday, 2 December 2013 PH658N - User Manual v1.1 1/15... -
Page 2: Installation
Hear the dial tone Press * 1 2 3 4 5 # Listen to the IP address being announced by the handset receiver Keypad Mapping Figure 1 – PH658N Keypad & LED mapping Monday, 2 December 2013 PH658N - User Manual v1.1 2/15... -
Page 3: Call Operation
E. Ringer Volume Go on to the Web Portal, go to Phone Settings page and adjust the volume settings (see Figure 2). Figure 2 - Phone Settings Page on Web Portal Monday, 2 December 2013 PH658N - User Manual v1.1 3/15... -
Page 4: Call Flash
1. During a conversation, press the MUTE button 2. The other end is not able to hear you but you can continue to hear from the other end. 3. To deactivate Mute, press the MUTE button again. Monday, 2 December 2013 PH658N - User Manual v1.1 4/15... - Page 5 I. Programmable Memory Button and Emergency Call Number PH658N has 2 programmable memory buttons: 1) The first one is the one-touch memory button on the faceplate. To activate, lift the handset and simply press it once. The number will be dialed out immediately.
-
Page 6: Call Waiting
4. The LED on the back of the handset stays ON to remind users that the previous call is still on the line. 5. To retrieve the previous call, lift up the handset and press Line 1 or Line 2 (depending on which line is used in Step 1). Monday, 2 December 2013 PH658N - User Manual v1.1 6/15... -
Page 7: Web Portal
Web Portal The Web Portal of PH658N can be accessed by Google Chrome, Internet Explorer and Mozilla Firefox. A. To Log in Enter http://< IP Address of the handset > on the browser. Login name and password are as follows,... - Page 8 When the mask password box is checked, both password entries are masked. To un-mask, simply un-checked the mask password box. Figure 5 - Set Password for accessing the Web Portal Monday, 2 December 2013 PH658N - User Manual v1.1 8/15...
-
Page 9: Network Settings
In order to have the changes take effect immediately, click "restart" You can always perserve the changes and decide to restart the phone at a later time Figure 6 - Network Settings page on Web Portal Monday, 2 December 2013 PH658N - User Manual v1.1 9/15... -
Page 10: Sip Account Settings
Parameters for Audio settings for each account can be found under the title, "Audio Settings", on the left panel. Such parameters include: DTMF mode (in-band / RFC2833 / SIP INFO) Audio Codec preference (PCMU / PCMA / G.722 / G.729 / iLBC) Jitter Monday, 2 December 2013 PH658N - User Manual v1.1 10/15... -
Page 11: Other Settings
Enter the memory key number, message key number and NAT entries When done, click Save The changes take effect immeidately Figure 8 - Memory key and NAT settings page on Web Portal Monday, 2 December 2013 PH658N - User Manual v1.1 11/15... - Page 12 Redo the firmware upgrade procedure. Figure 10 - Firmware upgrade, User Configuration Backup / Restore on Web Portal Figure 11 - Firmware upgrade progress bar. Do not disconnect power or Ethernet cable Monday, 2 December 2013 PH658N - User Manual v1.1 12/15...
- Page 13 Figure 12 - Firmware upgrade confirmation Monday, 2 December 2013 PH658N - User Manual v1.1 13/15...
-
Page 14: Important Safety Instructions
6. Incompatibility with anything other than the PBX for which the telephone was intended during purchased. 7. Cords, connectors and replaceable batteries. 8. Force majeure. 9. Damages in transit. 10. Any damage resulting from unauthorized modification or repair of the telephone. Monday, 2 December 2013 PH658N - User Manual v1.1 14/15... - Page 15 AVANTEC PRODUCT SUPPORT Should you need any technical assistance for this product, please contact Avantec Manufacturing Limited: Telephone : (852) 2763-0203 : (852) 2763-8643 Email : office@avantec.com.hk Monday, 2 December 2013 PH658N - User Manual v1.1 15/15...
