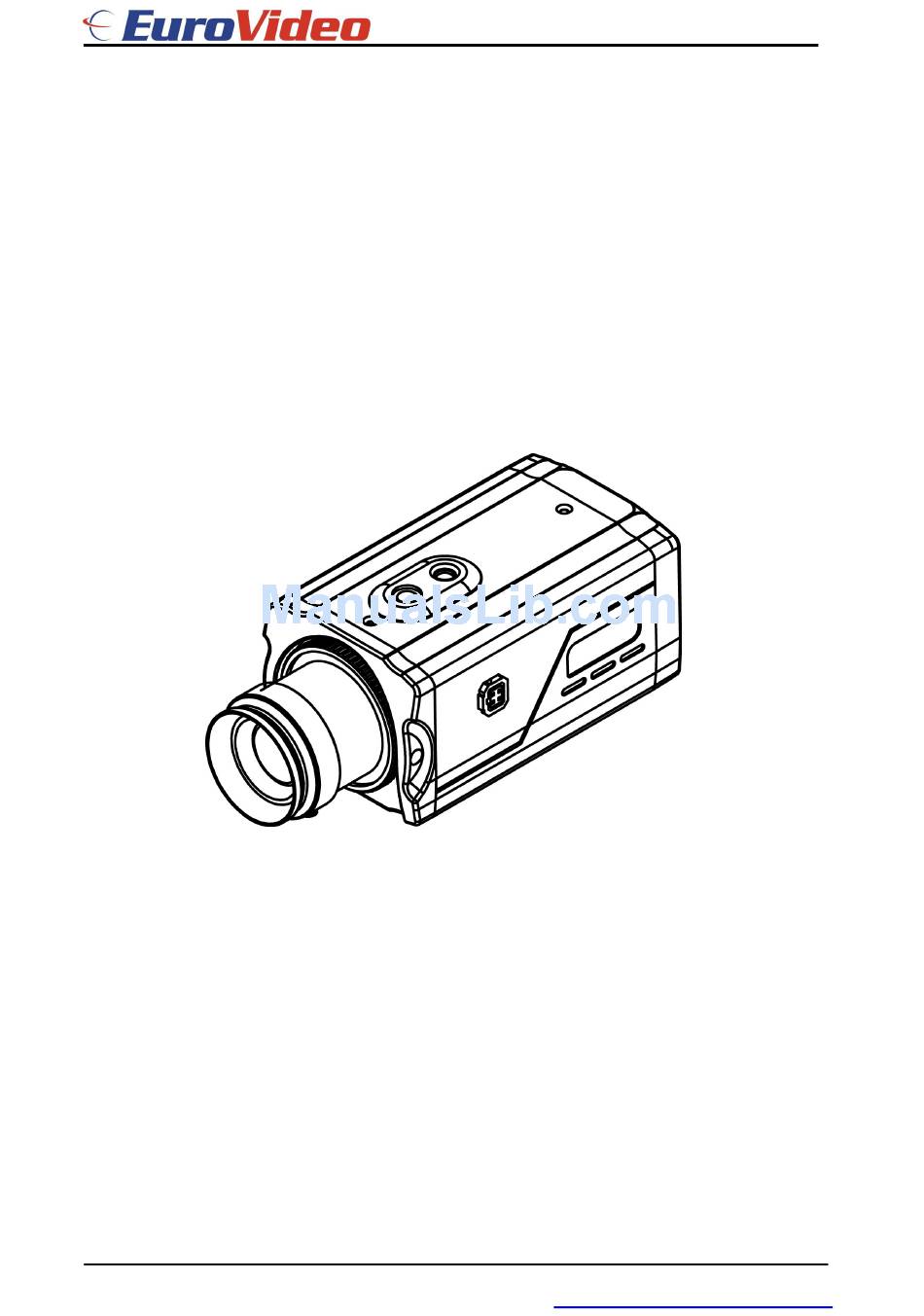

- Page 1 User’s Manual EVC-DG-BX360BNW 1/3” High Resolution Camera with On- Board OSD EVC-TP-BX360BNW 1/3” High Resolution Camera with On- Board OSD, IR-Cut Filter User’s Manual Before operating this unit, please read this manual thoroughly and retain it for future reference. www.eurovideo-cctv.com...
-
Page 2: Table Of Contents
User’s Manual Content FCC Information ............3 Warning ..............3 Package Content ............4 Product Overview ............. 4 Features ..............5 Operation ..............6 1. Operating the OSD Menu ......6 2. OSD Menu Structure ........6 LENS .......... 8 EXPOSURE ....... -
Page 3: Fcc Information
User’s Manual FCC Information This equipment has been tested and found to comply with the limits of a class A digital device, pursuant to part 15 of the FCC rules and also guaranteed with CE approval. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 4: Package Content
User’s Manual Package Content User’s Manual Box Camera Accessory Pack Product Overview Video output terminal. (BNC) Power input terminal - DC/AC (12~24)V or AC 99V~240V. (Please see the indication on the label) OSD menu control: www.eurovideo-cctv.com EVC-DG-BX360BN/EVC-TP-BX360BNW... -
Page 5: Features
User’s Manual Features 1/3” Sony Super-HAD CCD II Feature with 1/3” Sony Super-HAD CCD II, presents lower lux illumination and clear/crispy picture. 3DNR (3D Digital Noise Reduction) Embedded with 3DNR(3D Digital Noise Reduction) technology, produces extremely clear picture quality even under low-light condition for 24/7 surveillance. -
Page 6: Operation
User’s Manual Operation 1. Operating the OSD Menu The button provides five separate actions: UP, DOWN, EXIT, ENTER and MENU. Press MENU to go to the OSD Menu Page. Press UP, DOWN, EXIT or ENTER to select items on the menu and begin configuration. - Page 7 User’s Manual CAM TITLE FREEZE MIRROR MIRROR V-FLIP ROTATE D-EFFECT D-ZOOM D-ZOOM TILT GAMMA 0.05~1.0 NEG. IMAGE CAM ID 0~255 ID DISPLAY RS485 2400, 4800, BAUD 9600, 19200, RATE 38400, 57600 AREA SELECT AREA DISPLAY SPECIAL LEFT/RIGHT WIDTH MOTION TOP/BOTTOM HEIGHT SENSITIVITY MOTION VIEW...
-
Page 8: Lens
User’s Manual Camera Menu Camera menu allows the adjustment of different configurations to obtain the optimal image clarity and color realism. SETUP 1. LENS MANUAL 2. EXPOSURE 3. WHITE BAL 4. DAY NIGHT AUTO 5. 3DNR 6. SPECIAL 7. ADJUST 8. -
Page 9: Exposure
User’s Manual 2.2 EXPOSURE EXPOSURE SHUTTER AUTO --------|---------- BRIGHTNESS SENSE-UP AUTO D-WDR RETURN SHUTTER SETUP Shutter setup allows control of the speed with which the electronic shutter switches between preset shutter speeds to match various light conditions, and control flicker. Select a base shutter speed for the camera lens. - Page 10 User’s Manual AGC(Auto Gain Control) SETUP AGC mode automatically amplifies the video signal during low light condition to provide brighter night vision, adjust the AGC by selecting OFF, LOW, MIDDLE, or HIGH. Note : AGC setting is available when “DAY NIGHT” value set to “COLOR”;...
- Page 11 User’s Manual BLC (Back Light Compensation) GAIN MIDDLE DEFAULT --------|---------- LEFT/RIGHT --------|---------- WIDTH --------|---------- TOP/BOTTOM --------|---------- HEIGHT RETURN Set the BLC level by selecting “LOW”, ”MIDDLE”, and ”HIGH”. Select “DEFAULT” to reset BLC to factory default setting. The screen would show 64 grids, choose the grids you want for BLC activation by adjust “LEFT/RIGHT”, “WIDTH”, “TOP/BOTTOM”, “HEIGHT”...
-
Page 12: White Balance
User’s Manual Select “DEFAULT” to reset BLC to factory default setting. The screen would show 64 grids, choose the grids you want for BLC activation by adjust “LEFT/RIGHT”, “WIDTH”, “TOP/BOTTOM”, “HEIGHT” value. D-WDR(Digital Wide Dynamic Range) SETTING If activate “D-WDR” function, camera delivers a distinctive subject and background at the same time. -
Page 13: Day Night
User’s Manual AWC->SET SETTING SETUP 1. LENS MANUAL 2. EXPOSURE 3. WHITE BAL AWC→SET 4. DAY NIGHT AUTO 5. 3DNR 6. SPECIAL 7. ADJUST 8. RESET 9. EXIT To find the optimal setting for the current luminance environment, set the option to AWC->SET, and point the camera towards the scene and press the “MENU button”... - Page 14 User’s Manual SETUP 1. LENS MANUAL 2. EXPOSURE 3. WHITE BAL AWC→SET 4. DAY NIGHT COLOR 5. 3DNR 6. SPECIAL 7. ADJUST 8. RESET 9. EXIT Set “DAY NIGHT” value to “COLOR”, “EXT”, “AUTO”, or “B/W” mode by different applications. AUTO: The mode is switched to ‘Color’...
-
Page 15: 3Dnr(3D Digital Noise Reduction)
User’s Manual S-LEVEL: Set the starting level for camera switch from color mode to B/W mode; the bigger the value is set, the earlier the camera switch to B/W model. E-LEVEL: Set the ending level for camera switch from color mode to B/W mode; the bigger the value is set, the later the camera switch to color mode. -
Page 16: Special
User’s Manual 3DNR -----|------------- LEVEL RETURN When 3DNR is ON, enter into the subdirectory to adjust the DNR level from 1 to 100. Note : 3DNR function is available when AGC is ON. 2.6 SPECIAL SPECIAL 1. CAM TITLE 2. D-EFFECT 3. - Page 17 User’s Manual CAM TITLE 0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U R W X Y Z → ←↑↓（） ~_▉...
- Page 18 User’s Manual MIRROR The image can be mirrored by switching on the Mirror Image View mode. 3 mode for options: MIRROR, V- FLIP(Vertical Flip), ROTATE(Rotate 180 D-ZOOM(Digital Zoom) D-ZOOM D-ZOOM X 1.0 -----|------------- -----|------------- TILT RETURN The level of digital zoom could set from X1.0 to X32.0. PAN: Adjust the zoom picture to move horizontally.
- Page 19 User’s Manual Communications Settings must be first completed. RS-485 CAM ID ID DISPLAY BAUDRATE 9600 RETURN CAM ID Select an ID number between 0 to 225. If multiple cameras are being used in the surveillance system, confirm that no other cameras are using the same ID number.
- Page 20 User’s Manual MOTION AREA AREA 1 AREA -----|-------------- LEFT/RIGHT -------------|----- WIDTH ---|---------------- TOP/BOTTOM ---- -|---------- HEIGHT ------------------| SENSITIVITY MOTION RETURN Set “MOTION” to “ON”, enter into subdirectory for more settings. Select 1~4 zones under “AREA SELECT” to select the area to be detected. AREA DISPLAY set to “ON”...
- Page 21 User’s Manual Select 1~8 zones under “AREA SELECT” to select the area to be masked. AREA DISPLAY set to “ON” to show the privacy zone on the screen, set to “OFF” to hide the privacy zone on the screen. Customize the size of privacy zone by adjusting “LEFT/RIGHT”, “WIDTH”, “TOP/BOTTOM”, “HEIGHT”...
-
Page 22: Adjust
User’s Manual 2.7 ADJUST ADJUST -----|---------- SHARPNESS -----|---------- BLUE -----|---------- RETURN Adjust the image sharpness from value 0 to 31. Adjust the image blue/red color from value 0 to 100. 2.8 RESET All configurations can be reset back to default at the RESET option. - Page 23 User’s Manual Specification 1/3” High Resolution Camera with On-Board Description Image Sensor 1/3” Sony Super-HAD CCD II Effective Number of NTSC: 768(H) * 494(V) Pixels PAL: 752(H) * 582(V) Resolution Color: 600 TVL; B/W: 620 TVL Color: 0.3lx(50 IRE, F1.2)/0.001 lx (Sens-Up 256X) Min.
-
Page 24: Appendix
User’s Manual Appendix System Diagram RS485 RS485 RS485 Port ID : 0 ID : 1 ID : 2 ID : 255 Controller www.eurovideo-cctv.com EVC-DG-BX360BN/EVC-TP-BX360BNW...
