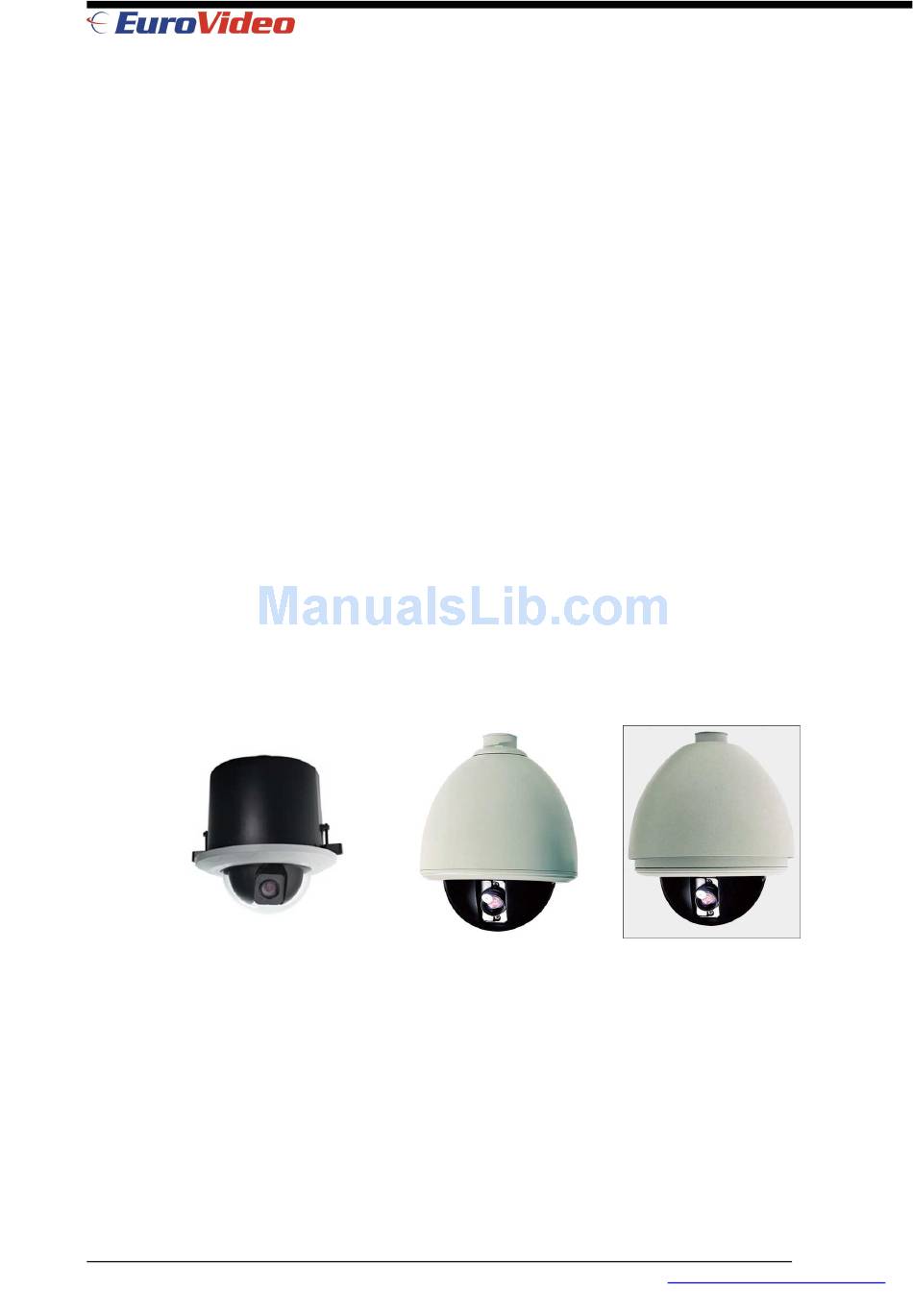

(Indoor Embedded)
Note:
•
Read this manual carefully before installation
and operation. Keep it handy for later
reference.
•
This manual covers installation and
operation of 3 type of speed dome
embedded, indoor and outdoor
EVC-TP-SO453ARW, EVC-TP-SO448AN
INSTRUCTION
MANUAL
EVC-TP-SO453ARW,
EVC-TP-SO448AN
(Indoor Use)
INSTRUCTION MANUAL
(Outdoor Use)
www.eurovideo-cctv.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Euro Video EVC-TP-SO453ARW
Summary of Contents for Euro Video EVC-TP-SO453ARW
- Page 1 (Indoor Use) (Outdoor Use) Note: • Read this manual carefully before installation and operation. Keep it handy for later reference. • This manual covers installation and operation of 3 type of speed dome embedded, indoor and outdoor www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN...
-
Page 2: Table Of Contents
PROTECTION………………………..…48 ■Boot-up Screen…...…………………24 APPENDIX VI: WARRANTY..………………..49 ■Password …………..………………..24 ■Set Default ....…………………….25 ■System Reboot …………………………..25 LENS PARAMETERS ...…………………….26 ■Zoom Speed...……………………….26 ■Digital Zoom...……………………….26 ■Joystick AF/AI..……………………..26 ■AF Resume Time………………………….26 ■AI Resume Time…………………………..27 ■Iris ALC ..…………………………….27 ■Iris PLC ..…………………………….27 ■Day/Night ...………………………….27 www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... -
Page 3: Features
-60° F (- 51° C) -50° F (-45° C) Note: 1. Assume no wind chill factor 2. Prevents icing at sustained minimum of -50°F (-45°C) 3. De-ices 0.1 inch (2.5 mm) within 3 hours after power-up TECHNICAL SPECIFICATIONS www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... - Page 4 Privacy Mask Focusing system Auto/Manual Video Output 1.0±0.2Vp-p Accessories Mounting Wall mount bracket Pendant mount accessory Corner mount accessory Pole mount accessory Heating Outside temperature sensor Transmitting & Controlling Active or Passive Twisted Pair Connector Manchester Code/RS485 converter www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN...
-
Page 5: Declaration
♦ Choose and install speed dome according to environment requirement (Refer to the Product Features). This product conforms to IP66 standard as specified in “Housing Protection Classification (IP code)”. www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... -
Page 6: Installation Preparation
RG 16/U 1,5000ft(457m) ♦ RS485 Cable ♦ 0.56mm (24AWG) twisted pair wire ■DIP SWITCH SETTING See appendix I : ♦ Protocol and Baud rate ♦ Dome address ♦ Video cable type ♦ Resistor jumper ♦ Alarm output method www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... -
Page 7: Mount Type
■ P E N D A N T M O U N T ■ W AL L M O U N T ■ C O R N E R M O U N T www.eurovideo- EVC-TP-SO453ARW, EVC-TP-SO448AN - 7- cctv.com... -
Page 8: Installation Guide
NOTE: There are signs for each port. Fix cables as picture shows. Make sure power is off before connecting. Unfasten the circuit board. Unscrew the screw to open the circuit board on connection board. Scr ew www.eurovideo- EVC-TP-SO453ARW, EVC-TP-SO448AN - 8- cctv.com... - Page 9 Set dome ID, baud rate and protocol. Set dome ID, bard rate and protocol by configuring DIP switches (see APPENDIX I ). NOTE: Remove the packing sponges. SW 1 SW 2 www.eurovideo- EVC-TP-SO453ARW, EVC-TP-SO448AN - 9- cctv.com...
-
Page 10: Wall Mount
PCB. Connect cables as picture shows. Make sure power is off before connecting. NOTE: Put cables through the wall or aside the bracket. Release the connection board. Unscrew to release the circuit board on connection board. -10- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... - Page 11 NOTE: Apply lube to the O-ring in the case of outdoor Attach the safety chain with a M3 nut as picture shows. dome NOTE: Plug the heater wiring into socket on heater in the case of outdoor dome -11- -11- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN...
-
Page 12: Corner Mount
NOTE: Apply water-proof tape to the thread in the case of outdoor dome NOTE: Put cables through the wall of aside the corner base Install bracket. Put cables through the cavity of bracket and fasten bracket on base -12- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... - Page 13 SW 1 SW 2 Down cover preliminary installation. Attach the safety chain with a M3 screw as picture shows. NOTE: Connect the plug into socket on heater in the case of outdoor dome -13- -13- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN...
-
Page 14: Pole Mount
NOTE: Names of the interfaces are marked on terminal block or PCB. Connect cables as picture shows. Make sure power is off before connecting Release the circuit board. Unscrew to release the circuit board on connection board. -14- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... - Page 15 Install black liner and Pan/Tilt Module. Push the black liner into the two tabs. Install the pan/tilt module with two clips, match color of AMP sockets. Gently push the module upward until hearing two clicks. NOTE: Remove the lens cover. -15- -15- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN...
-
Page 16: Pendent Mount
Conduct wirings through the central hole of the bracket base, and then fix it on ceiling. Unscrew to release the circuit board from connection base NOTE: Put silica gel along the top of bracket base in the case of outdoor dome. -16- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... - Page 17 The red LED is on if connections are correct. Turn off the power after checking. NOTE: Names of the interfaces are marked on terminal block or PCB. Connect cables as picture shows. Make sure power is off before connecting. -17- -17- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN...
- Page 18 Unscrew the two M4 screws on down cover ring. Push up the down cover into the housing and then fasten down cover with two M4 screws. NOTE: Apply the lube to the O-ring in the case of outdoor dome Lube Lube -18- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN...
-
Page 19: System Connection
■ S YST E M C ON NE C T I O N -19- -19- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... -
Page 20: Operation Instruction
“System booting up…” will show on the screen until “boot-up success” shows up. The whole boot up process lasts about 40 seconds. This screen display disappears once the dome receives any effective command. -20- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... -
Page 21: Access Main Menu
If the input password is wrong, the password input window will disappear. OSD menu will close automatically after 1 minute without any operation. All the settings will be saved automatically to protect against power outage. -21- -21- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... -
Page 22: Menu Operation
<Camera >, move the joystick right to select it. upper menu. Select BLC MODE in the same way. Frame Limit: Off Shutter: Off Exposure: Off Preset Freeze: Off AWB Mode: Auto BLC Mode Back NOTE: Here-in-after menu paths are written in the following format: -22- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... -
Page 23: System Info
NOTE: <Site ID> can be set by menu only when DIP switch is set to programmable ID. Move the cursor to <Site ID> and then move the joystick right to enter dome ID setting, sub-menu as follow. -23- -23- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... -
Page 24: Display Setup
Select BACK to return to upper Baud Rate : 9600bps menu. Protocol : Default Model : ………… Version : 0.95 Outer Temp :022C/071F System Tem:027C/080F -24- Boot-up info displays summary information of the Fan Speed :6480rpm Call Preset 1 To Back www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... -
Page 25: Set Default
AF Resume Time Iris ALC Iris PLC Day/Night Auto all display config. Frame Limit 1/25 Shutter Exposure White Balance Auto BLC Level Speed Amplify Proportional P/T Pswd Protection Park Time Park Action Arm/Disarm Disarm Reset Delay -25- -25- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... -
Page 26: Lens Parameters
[Focus] Joystick movement triggers auto focus only. [Iris] Joystick movement triggers auto iris only. [None] Joystick movement triggers none of the functions. ■ AF RESUME TIME <Main Menu> <Lens> <AF Resume time> -26- System defaults Auto Focus mode automatically www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... -
Page 27: Ai Resume Time
Color mode is suitable to work in daytime because it needs higher illumination. Light sensitivity of mono mode is much higher. It is suitable to work at night without illumination but the video is black and white. -27- -27- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... -
Page 28: Camera Parameters
This menu item sets the shutter time. The options are: [Off] Set auto shutter time.(Default setting) 1/30000, 1/10000, 1/4000, 1/2000, 1/1000 1/500, 1/250, 1/150, 1/100, 1/50, 1/25, 1/12, 1/6, 1/3, 1/1.5 Set the number of second of shutter time. -28- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... -
Page 29: White Balance
If the backlight is too dark, the object on the center of the picture may appear dark. So, backlight compensation can decrease the brightness of the object. Select BLC MODE and the editing menu will pop up. -29- -29- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... -
Page 30: Pan/Tilt Parameters
Objects on screen move much faster in wide scope than in tele-scope. Even too faster in some case. This function decreases the dome movement speed while zooming in. [On] Enable (default setting) [Off] Disable -30- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... -
Page 31: Auto Running
<Title>: To set current preset title. Move the joystick right to enter <Title>, and then move joystick right to desired bit and move the joystick up or down to select desired letter. -31- -31- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... -
Page 32: Tour
In the above example the tour starts from preset 1 dwells for 1 second, then goes to preset 2 dwell for 5 seconds, then preset 3 for 2 seconds and finally preset 4 for 1 second. -32- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... -
Page 33: Pattern
Call preset 1 To Confirm …….. X/100 Record…….. User can operate dome doing pan/tilt/zoom as needed. The system records the operation. To end recording user can call preset 1 to confirm. The current pattern recording is finished. -33- -33- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... -
Page 34: Cruise
Display the current auto scan number. Values are 001~004. Move joystick right then up or down to select values. <Left Position> Set the position of site A. Following menu will pop up. Call Preset 1 To Confirm..-34- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... -
Page 35: Zone
Move the camera to a particular position and call preset 1 to save. <Right Limit> Set another point’s position. Set it in the same way as <Left Limit> <Remove Current> Delete current zone setting. -35- -35- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... -
Page 36: Park Time
[Scan 001~004] Run auto scan 001~004 [Tour 001~004] Run tour 001~004 [Pat 001~004] Run pattern 001~004 Preset Tour Pattern Cruise Zone Park Time: Off Park Action: Off Back In this example, system will run Preset-8 after 38 seconds of idle time. -36- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... -
Page 37: Privacy Mask
1 to save. NOTE: Match the top left angle of the black square to desired position because the black square can expand down and right only. < Remove Mask> Remove current mask. <Back> Back to main menu. -37- -37- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... -
Page 38: Alarm
Alarm in 3 : Cru. 002 Alarm in 4 : Tour 001 Alarm in 5 : Off Alarm in 6 : Off Alarm in 7 : Off Relay 1 : Off Relay 2 : Off Arm/Disarm: Arm Interval <S>: 004 Back -38- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... -
Page 39: Appendix I: Dip Switch Setting
This button is for resetting the dome after changing the dipswitch setting. The new setting works only after reboot finishes. Flashing green light means control commands reach the dome. Red light is on when effective command received. -39- -39- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... -
Page 40: Dome Address Setting
The default broadcast ID is 255. SW2 is for dome ID setting. The setting is strictly according to binary system. If you are not familiar with binary system please look up the address setting chart. Soft - 40- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... - Page 41 Soft www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN...
- Page 42 Soft - 42- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN...
- Page 43 Soft www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN...
- Page 44 Soft - 44- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN...
-
Page 45: Resistor Jumper Setting
When choosing the first and second pins in JP4 and JP5, the alarm output state is NO. When choosing the second and third pins in JP4 and JP5, the alarm output state is NC. Factory default is NO.(refer to following picture) www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... -
Page 46: Appendix Ii: Wire Diameter & Transmission Chart
% &20141 &225 &358 &905 &3094 &150 &238 72 &603 &4070 &112 &179 54 &452 &5056 &90 &143 43 &362 &6047 &75 &119 36 &301 91 &7040 &64 &102 31 &% & 788035 &56 &89 - 46- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... -
Page 47: Appendix Iii: Rs485 Bus Basic Knowledge
There must be termination resistors with 120 ohm impedance at both ends of the connection (refer to following pictures). Please refer to following picture for simple connection. “D” should not exceed 7m. - 47- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... -
Page 48: Appendix V: Lightning & Surge Protection
RS485 Bus is resistors to the broken. system. 3. The dome is very 4. Install RS485 far away from distributor. controller. 4. There are too many domes connected in the system. 5. RS485 - 48- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... -
Page 49: Appendix Iv: Trouble Shooting
1000 connected correctly. If speed is still under 1000 rpm, please contact dealer to replace the Blurred Dome in manual Set focus to picture focus mode or auto mode. bubble is stained Clear the bubble - 49- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN... - Page 50 When the system is grounded separately, the resistance of down conductor should be + 4 and the sectional - 50- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN...
-
Page 51: Appendix Vi: Warranty
Detailed description of defect or malfunction. If there is a dispute regarding the warranty of a product which does not fall under the warranty conditions stated above, please include a written explanation with the product when returned. - 51- www.eurovideo-cctv.com EVC-TP-SO453ARW, EVC-TP-SO448AN...
