  • Page 1 Annex no. 5 Functional Description / User Manual Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920...
  • Page 2 INSTALLATION ID ISC.PRH200 Mobile Reader (English) draft – public (B) 2014-04-28 – M31210-2e-ID-B.docx...
  • Page 3 ® OBID i-scan Installation ID ISC.PRH200 Note  Copyright 2014 by FEIG ELECTRONIC GmbH Lange Strasse 4 D-35781 Weilburg Tel.: +49 6471 3109-0 http://www.feig.de With the edition of this document, all previous editions become void. Indications made in this manual may be changed without previous notice.

  • Page 4: Table Of Contents

    Lithium-ion batteries – Return and Transport ............7 Maintenance ........................ 8 Assembly of the wrist strap ..................8 Performance Features of the mobile Reader ID ISC.PRH200 Performance Features ....................9 Available Reader Types .................... 10 Available Spare Parts ....................10 Delivery contents ......................
  • Page 5 Installation ID ISC.PRH200 Approvals Europe (CE) ....................... 30 USA (FCC) and Canada (IC) ..................31 Label Information Reader ID ISC.PRH200 ............... 33 7.3.1 USA (FCC) and Canada (IC) approved antennas ........... 34 Technical Data FEIG ELECTRONIC GmbH Page 4 from 37...

  • Page 6: Safety Instructions / Warning - Read Before Start-Up

    ® OBID i-scan Installation ID ISC.PRH200 Safety Instructions / Warning - Read before Start-Up • The device may only be used for the intended purpose designed by for the manufacturer. • The operation manual should be conveniently kept available at all times for each user.

  • Page 7: Safety Instructions / Warning - Lithium-Ion Battery

    Installation ID ISC.PRH200 1.1 Safety Instructions / Warning - Lithium-ion battery • Use the battery only in the intended device from Typ ID ISC.PRH200. • Improper use, damaged chargers or battery packs of injury and fire hazard • Expose the battery pack for no deviating from the technical data of environmental influences.

  • Page 8: Lithium-Ion Batteries - Return And Transport

    • Do not load or transport Li-Ion batteries if damaged. If you have any doubts, please contact our technical support under obid-support@feig.de or phone +49 (0) 6471 3109 421. • If the packaging is damaged, the packaging must be replaced by an undamaged original packaging before further transport.

  • Page 9: Maintenance

    Installation ID ISC.PRH200 1.3 Maintenance The reader ID ISC.PRH200 is a design product with high quality surfaces, and should always be handled with caution. The Device was designed to work reliably and flawlessly for years without special maintenance. Attention! The surfaces should be cleaned with a clean, soft cloth dampened in a dishwash- ing liquid –...

  • Page 10: Performance Features Of The Mobile Reader Id Isc.prh200

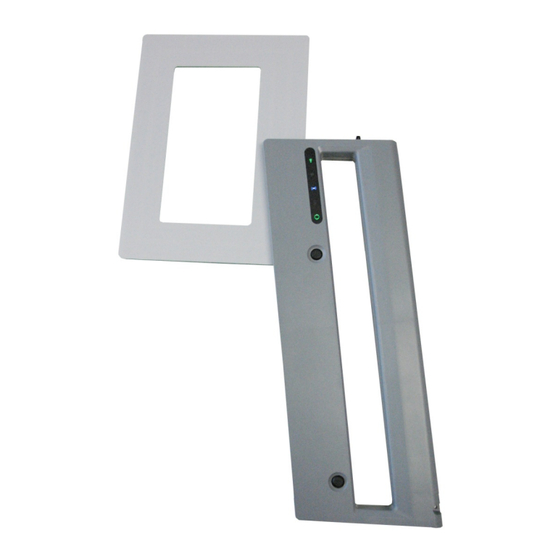

    ID ISC.PRH200 Performance Features of the mobile Reader ID ISC.PRH200 2.1 Performance Features ID ISC.PRH200 is a compact, wireless handheld reader, designed for contactless data exchange with ISO 15693 transponders, especially in libraries. Typical applications are: • Inventory (Inventory books or other media in the shelf) •...

  • Page 11: Available Reader Types

    ® OBID i-scan Installation ID ISC.PRH200 2.2 Available Reader Types Article No. Reader Description 4213.000.00 ID ISC.PRH200 Mobile Reader with rechargeable battery and Wi-Fi-Interface Table 1: Available Reader Types 2.3 Available Spare Parts Article No. Spare part Description 4214.000.00 ID ISC.SRB Spare Rechargeable Battery Spare or additional battery-pack 4215.000.00...

  • Page 12: Start-Up

    OBID i-scan Installation ID ISC.PRH200 Start-up 3.1 Side view, Button & LED‘s LED APPL LED RF-ON LED BATT LED Wi-Fi LED MODE RF-ON Eyelet for wrist strap Power-ON Fig. 2: Housing ID ISC.PRH200 FEIG ELECTRONIC GmbH Page 11 from 37 M31210-2e-ID-B.docx...

  • Page 13: Charge The Battery

    ® OBID i-scan Installation ID ISC.PRH200 3.2 Charge the battery The battery pack is charged using the supplied charger. For this, the Mini-DIN connector from the charger is plugged into the side the battery pack. After installation of the adapter socket for the charger, the charger must be connected to the mains.

  • Page 14: First Wi-Fi Connection With The Reader And Scanning Transponder

    ® OBID i-scan Installation ID ISC.PRH200 First Wi-Fi connection with the Reader and scanning transponder Before first use, the battery pack should be charged. See 3.2 Charge the battery. The battery pack must be connected to the charger. The charging will take 2-4 hours. The battery is fully charged when the green LED remains lit on the power supply.
  • Page 15 ® OBID i-scan Installation ID ISC.PRH200 Step Note LED MODE (green) will light and LED Wi-Fi flashes slowly. After about 5 seconds, the Wi-Fi LED flashes with about 8 Hz Open window "Wireless Connections" on your PC and search for the network name (SSID) PRH200.
  • Page 16 ® OBID i-scan Installation ID ISC.PRH200 Step Note The white LED Wi-Fi is off, the green LED MODE remains on. For the configuration and testing the Reader the demo program “ISOStart” can be used (Version 9.7.1 or higher). The next steps are described in the chapter: Configuration and testing the Reader using ISOStart As an alternative the demo tool „PRH200-Demo“...

  • Page 17: How To Configure The Reader In Client Mode

    ® OBID i-scan Installation ID ISC.PRH200 4.2 How to configure the Reader in client mode For using the Reader in an existing WLAN infrastructure it will be necessary to configure the reader into the Client Mode. For configuring the reader into the Client Mode the WEB-interface of the reader can be used.
  • Page 18 ® OBID i-scan Installation ID ISC.PRH200 Step Note Set the SSID and the Password (Key) of the WLAN network (Router) and confirm with “Connect” button. The IP address and the deciphering keys will be programmed automatically into the reader. Confirm the warning message with a click on the „OK“...

  • Page 19: Set Wi-Fi Parameter To Default

    ® OBID i-scan Installation ID ISC.PRH200 4.3 Set Wi-Fi parameter to default Are the Wi-Fi parameter unknown or should the device be integrated into other network, all parameters to the factory settings can be set to default by a hardware reset..
  • Page 20 ® OBID i-scan Installation ID ISC.PRH200 Step Note Short press on Power-ON Button to reboot the reader The Wi-Fi Modul is on de- fault values, now. SSID: PRH200 Unsecured Wireless Net- work Mode: Access Point FEIG ELECTRONIC GmbH Page 19 from 37...

  • Page 21: Wi-Fi Interfaces

    ® OBID i-scan Installation ID ISC.PRH200 4.4 Wi-Fi Interfaces The Reader has a built-in wireless interface according to the IEEE 802.11 b/g /n standard and can be configured in "Access Point" or the "Client Mode". The encryption protocols WEP / WPA / WPA2 are supported.

  • Page 22: Control And Display Elements

    ® OBID i-scan Installation ID ISC.PRH200 Control and Display Elements 5.1 Buttons Button Function / Description RF-ON “RF / Antenna power switch ON / OFF" (upper) State antenna OFF Short press -> The RF-Power of the antenna will be switched ON State Antenna ON Short press ->...

  • Page 23: Hf-On Motion Detector

    ® OBID i-scan Installation ID ISC.PRH200 5.1 HF-ON Motion Detector Due to shaking the Reader in the forward direction effectual and a fast movement the HF-filed can switched on alternatively to the use of the HF-ON button. For this the reader should be hold in the center or the upper part of the handle.

  • Page 24: Leds

    ® OBID i-scan Installation ID ISC.PRH200 5.2 LEDs Fig. 4: LED (Double sided) Table 6 show the function of the LEDs (Order from top to down). Function / Description LED RF-ON "RF-ON / Transponder" (green/blue) Green: The antenna is powered...

  • Page 25: Buzzer

    ® OBID i-scan Installation ID ISC.PRH200 5.3 Buzzer The reader has a integrated buzzer. The buzzer will be activated, if at least one of the configuration bits in the “Digital IO” is enabled. Fig. 5: Configuration of the Digital IO...

  • Page 26: Configuration And Testing The Reader Using Isostart

    ® OBID i-scan Installation ID ISC.PRH200 Configuration and testing the Reader using ISOStart Select „Detect“ with TCP/IP Address 192.168.1.1. and Port 10001 Select „Run without change“ This has to be done at each start of ISO-Start program otherwise the configuration of the reader will be changed by the wizard.
  • Page 27 ® OBID i-scan Installation ID ISC.PRH200 Select the “Logical View” for the reader configuration settings Select “Configuration” Select “Operating Mode” and then choose "Buff- ered Read Mode" for the reader Mode and mark “UID” as data. Set by a click on „Apply“.
  • Page 28 ® OBID i-scan Installation ID ISC.PRH200 Select „Buffered Read Mode“ Select Button „Initialize“ to clear the data buffer of the reader Press button RF-ON to enable the antenna power The LED RF ON is lit green FEIG ELECTRONIC GmbH Page 27 from 37...
  • Page 29 ® OBID i-scan Installation ID ISC.PRH200 Move the reader antenna along the media or Tranponder If valid data is detected LED HF -ON lit blue After the end of the reading antenna pro- cess, switch OFF the RF antenna power LED HF_ON goes off Select „Start“...
  • Page 30 ® OBID i-scan Installation ID ISC.PRH200 All stored transponder data sets are listed in the ISO Start window. The number of data sets and the total processing time is displayed in the header Before the next read operation, the display window can be deleted by the “Clear List”...

  • Page 31: Approvals

    ® OBID i-scan Installation ID ISC.PRH200 Approvals 7.1 Europe (CE) When used according to regulation, this radio equipment conforms with the basic requirements of Article 3 and the other relevant provisions of the R&TTE Guideline 1999/E6 dated March 99. Equipment Classification according to ETSI EN 300 330 and ETSI EN 301 489: Class 2...

  • Page 32: Usa (Fcc) And Canada (Ic)

    ® OBID i-scan Installation ID ISC.PRH200 7.2 USA (FCC) and Canada (IC) Product names: ID ISC.PRH200 Reader name: ID ISC.MR102 FCC ID: PJMPRH200 6633A-PRH200 This device complies with Part 15 of the FCC Rules and with Notice for USA and RSS-210 of Industry Canada.
  • Page 33 ® OBID i-scan Installation ID ISC.PRH200 A minimum separation distance of 20cm must be maintained between the Wi-Fi antenna (See pic- ture below) and all persons at all times. Une distance minimale de séparation de 20 cm doit être maintenue entre l'antenne Wi-Fi (voir pic- ture ci-dessous) et toutes les personnes à...

  • Page 34: Label Information Reader Id Isc.prh200

    ® OBID i-scan Installation ID ISC.PRH200 7.3 Label Information Reader ID ISC.PRH200 The following labels are placed on the bottom side of the reader: ID ISC.PRH200 FEIG ELECTRONIC GmbH Page 33 from 37 M31210-2e-ID-B.docx...

  • Page 35: Usa (Fcc) And Canada (Ic) Approved Antennas

    ® OBID i-scan Installation ID ISC.PRH200 7.3.1 USA (FCC) and Canada (IC) approved antennas This radio transmitter (identify the device by certification number, or model number if Category II) has been approved by Industry Canada to operate with the antenna types listed below with maxi- mum permission gain and required antenna impedance for each antenna type indicated.

  • Page 36: Technical Data

    ® OBID i-scan Installation ID ISC.PRH200 Technical Data Mechanical Data Reader & Antenna Dimensions ( W x H x D ) – Reader with antenna 460 mm x 260 mm x 27 mm, antenna ca: 1,5 mm thick – Packing...

  • Page 37: Feig Electronic Gmbh

    ® OBID i-scan Installation ID ISC.PRH200 Signal buzzer 1 Ton Interfaces Wi-Fi Wi-Fi Security Protocols WEP / WPA / WPA2 Wi-Fi Modes - Access Point Mode - Client Mode Interface protocol modes - FEIG ISO HOST - BRM (Datenfilterung und Datenpufferung)
  • Page 38 ® OBID i-scan Installation ID ISC.PRH200 Weight - battery 240g – Packing 470g Electrical data battery charger Supply Voltage 100V – 240 V 47 Hz – 64 Hz Output Voltage Maximal 12,44V / 1,2 A Efficiency 73% - 83% Type Wall power battery charger &...
