99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com
PD3259
DIGITAL PHASE DETECTOR
Jan. 2016 Edition 1
PD3259A981-00 16-01H
Instruction Manual
XXXXXXX
右:9 mm
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PD3259 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hioki PD3259

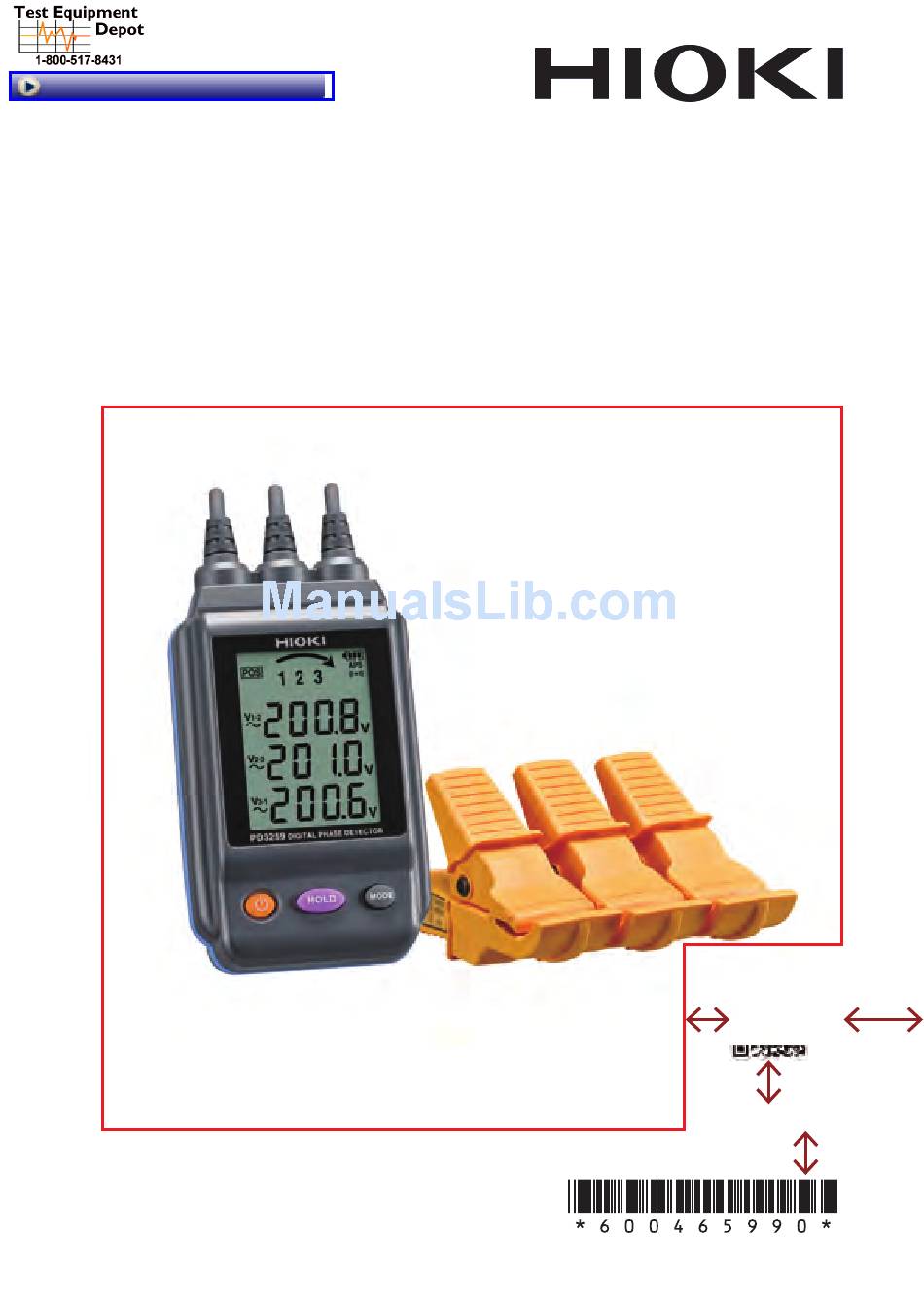

  • Page 1 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com PD3259 Instruction Manual DIGITAL PHASE DETECTOR XXXXXXX 右:9 mm Jan. 2016 Edition 1 PD3259A981-00 16-01H...
  • Page 2: Table Of Contents

    Contents Introduction .................1 Verifying Package Contents ..........1 Options (Sold Separately) ..........2 Safety Information ..............2 Operating Precautions ............7 Overview Overview and Features ......... 11 Part Names and Functions ......12 Battery Level ..........15 Preparing for Measurement Measurement Process ........17 Attaching Color Spirals and Bundling Cables Together ..........18 Attaching the Magnetic Strap (Optional) ..19 Installing and Replacing Batteries ....20...
  • Page 3 Contents Measuring Frequency ........31 Convenient Uses Power-on Options .........33 Auto power-off function ..........35 Disabling the auto-power-off function ....... 36 Switching the phase display (phase display switching function) ............ 37 Enabling and disabling the beep function ....38 Checking the version and serial number ....39 Holding the Display ........40 Enabling and disabling the hold function ....
  • Page 4 Contents Appendix Appx.1 Appx. 1 About 3-phase Circuits ....Appx.1 Appx. 2 About the Instrument’s Voltage Sensors..........Appx.2 Index Ind.1...
  • Page 5: Introduction

    Introduction Introduction Thank you for choosing the Hioki PD3259 Digital Phase Detector. To obtain maximum performance from the instrument, please read this manual first, and keep it handy for future reference Verifying Package Contents Once you have received the instrument, verify that it has not suffered any damage during shipment before using it.
  • Page 6: Options (Sold Separately)

    Options (Sold Separately) Options (Sold Separately) The following options are available for this instrument. Contact your authorized Hioki distributor or reseller when ordering. Z5020 Magnetic Strap (p.  1 9) The magnetic strap can be used to attach the instrument to a wall, such as a metal surface.
  • Page 7 Safety Information Safety-related notations In this manual, the risk seriousness and the hazard levels are classified as follows Indicates an imminent hazard that could lead to DANGER serious injury or death. Indicates a hazard that could lead to serious injury WARNING or death.
  • Page 8 Safety Information Symbols displayed on the instrument Indicates cautions and hazards. When the symbol is printed on the instrument, refer to a corresponding topic in the Instruction Manual. Indicates an instrument that is completely protected by double insulation and reinforced insulation. Indicates the grounding terminal.
  • Page 9 Safety Information Characters in screen displays The screen of this instrument displays characters in the following manner. A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 1 2 3 4 5 6 7 8 9 0 Accuracy We define measurement tolerances in terms of rdg.
  • Page 10 Safety Information Measurement categories To ensure safe operation of measurement instruments, IEC 61010 establishes safety standards for various electrical environments, categorized as CAT II to CAT IV, and called measurement categories. DANGER • Using a measuring instrument in an environment designated with a higher numbered category than that for which the instrument is rated could result in a severe accident, and must be carefully avoided.
  • Page 11: Operating Precautions

    If you find any faults, contact your authorized Hioki distributor or reseller. This instrument may cause interference if used in residential areas.
  • Page 12 Operating Precautions Installation DANGER Persons wearing electronic medical devices such as a pacemaker should not use the Z5020 Magnetic Strap. Such persons should avoid even proximity to the Z5020 Magnetic Strap, as it may be dangerous. The medical device's operation could be compromised, posing risk to the wearer's life.
  • Page 13 Operating Precautions CAUTION To avoid damage to the instrument, protect it from physical shock when transporting and handling. Be especially careful to avoid physical shock from dropping. After use, always turn OFF the power. Handling of the cables WARNING To prevent electric shock, verify that the interior of the cable is not exposed.
  • Page 14 (M3 × 8 mm) for securing the battery cover in place that are originally installed. If you have lost any screws or fin that any screws are damaged, please contact your authorized Hioki distributor or reseller for a replacement. CAUTION Heed the following instructions to avoid battery performance drop or leakage.
  • Page 15: Overview

    Overview 1.1 Overview and Features The PD3259 is a phase detector equipped with a voltmeter, enabling it to be used to measure line voltages, check phase order, measure frequency, and check for live wires and the ground phase in 3-phase circuits.
  • Page 16: Part Names And Functions

    Part Names and Functions 1.2 Part Names and Functions Front Rear (p.  1 0) Voltage sensor p.  2 3 Display p.  1 4 POWER p.  2 2 HOLD Allows the user to manually hold the detection results and p.  4 0 measured values being shown on the display.
  • Page 17 Part Names and Functions Voltage sensors (p.  8 ) Barriers p.  2 3 To avoid electric shock, avoid touching the part of the sensor beyond these barriers during use. Clip p.  2 3 Attach the clip to the wire being measured, taking care to align the position of the measurement target with the marks.
  • Page 18 Part Names and Functions Display Units Phase detection results and measured value hold (p.  4 0) Phase detection tone enabled (p.  3 0) Auto-power-off function enabled (p.  3 5) Battery level (p.  1 5) Phase display as either R/S/T or 1/2/3 (user-switchable) When a phase is missing, the indicator for that phase will turn off (missing-phase prediction function) Line voltage V...
  • Page 19: Battery Level

    Battery Level 1.3 Battery Level Battery level display There is adequate battery power remaining. The graduations in the indicator disappear from the left as the battery’s power falls. Soon no battery power will remain. Have new batteries ready. On continuously No battery power remains.
  • Page 20: Preparing For Measurement

    Preparing for Measurement 2.1 Measurement Process Before using the instrument, be sure to read “Operating Precautions” (p.  7 ). Setting up, connecting, and turning on the instrument Turn on the instrument (p.  2 0) Inspect the instrument (p.  2 1) Arrange to use other options as needed.
  • Page 21: Attaching Color Spirals And Bundling Cables Together

    Attaching Color Spirals and Bundling Cables Together 2.2 Attaching Color Spirals and Bundling Cables Together Procedure To aid in differentiating the voltage sensors, attach the included color spirals (red, blue, and yellow) to the voltage sensor cables. Bundle the voltage sensor cables together with the included spiral (black).
  • Page 22: Attaching The Magnetic Strap (Optional)

    Attaching the Magnetic Strap (Optional) 2.3 Attaching the Magnetic Strap (Optional) When the optional Z5020 Magnetic Strap is attached to the instrument, the magnetic portion can be used to hold the instrument in place on steel sheet and other magnetic surfaces. Magnet Strap slot 付...
  • Page 23: Installing And Replacing Batteries

    Installing and Replacing Batteries 2.4 Installing and Replacing Batteries When using the instrument, install four LR6 (AA-size) alkaline batteries. Verify that sufficient battery strength remains before measurement. If there is insufficient battery power remaining, replace the batteries (p.  1 5). You will need •...
  • Page 24: Inspecting The Instrument

    2.5 Inspecting the Instrument Before using the instrument, inspect it for any damage it may have sustained during storage or shipment and verify its proper operation. If you find any damage, contact your authorized Hioki distributor or reseller. Inspection item...
  • Page 25: Turning The Instrument On And Off

    Turning the Instrument On and Off 2.6 Turning the Instrument On and Off Press POWER to turn the instrument on and off.
  • Page 26: Attaching The Voltage Sensors To The Circuit

    Attaching the Voltage Sensors to the Circuit 2.7 Attaching the Voltage Sensors to the Circuit Proper attachment method Align the mark on each voltage sensor to the insulated target wire and clip it securely in place. The sensors can be attached to wires with diameters ranging from 6 mm to 30 mm.
  • Page 27 Attaching the Voltage Sensors to the Circuit Example: When measuring a thin insulated wire Insulated wire Insulated wire Insulated wire Mark Mark Barriers Marks...
  • Page 28 Attaching the Voltage Sensors to the Circuit Improper attachment If the clips are not attached properly, accurate measurement will be impossible due to the effects of nearby wires. The sensor is attached to the The sensor is attached to the insulated wire by the tip of the clip.
  • Page 29: Setting Up The Instrument In The Measurement Location

    Setting Up the Instrument in the Measurement Location 2.8 Setting Up the Instrument in the Measurement Location Attach voltage sensor R (1) to phase R (1), voltage sensor S (2) to phase S (2), and voltage sensor T (3) to phase T (3). R S T (1)(2)(3) R S T...
  • Page 30: Performing Measurement

    Performing Measurement Press and hold Phase Voltage Line Voltage Measurement Measurement screen screen (p.  2 8) (p.  2 9) Press and hold Phase Voltage Phase Detection screen Measurement screen (p.  3 0) (p.  2 9  ) Frequency Measurement screen (p.  3 1) 付...
  • Page 31: Measuring Line Voltages In A 3-Phase Circuit

    Measuring Line Voltages in a 3-phase Circuit 3.1 Measuring Line Voltages in a 3-phase Circuit Three-phase line voltage measurement The display will indicate V , and V (or V , and V When a 3-phase circuit is measured, the three line voltage values will be shown on the display.
  • Page 32 Measuring Line Voltages in a 3-phase Circuit Phase voltage measurement (reference values) The display will indicate V , and V (or V , and V ). When a 3-phase circuit is measured, the three phase voltage values will be shown on the display. However, since the neutral line cannot be measured, the displayed values indicate each phase’s voltage relative to the ground using the virtual neutral point (ground) as the reference.
  • Page 33: Checking Phase Order In A 3-Phase Circuit (Phase Detection Function)

    Checking Phase Order in a 3-phase Circuit (Phase Detection Function) 3.2 Checking Phase Order in a 3-phase Circuit (Phase Detection Function) The instrument displays phase detection results when a 3-phase circuit is measured. The display’s backlight will light up, and the instrument will beep to indicate the phase detection results.
  • Page 34: Measuring Frequency

    Measuring Frequency 3.3 Measuring Frequency The instrument will measure the frequency of the line voltage V Display the Frequency Measurement screen (p.  2 7). Check the measured value. (The frequency of the line voltage VRS will be displayed.) The display will indicate [Lo] if the measured frequency is less than 45.0 Hz or...
  • Page 35 Checking Phase Order in a 3-phase Circuit (Phase Detection Function)
  • Page 36: Convenient Uses

    Convenient Uses 4.1 Power-on Options Power-on options can be set as described below. (Perform the indicated operation while the instrument is turned off.) HOLD MODE Auto-power-on function setting Phase display switching function (p.  3 5) setting (p.  3 7) To power-on screen Tone setting (p. ...
  • Page 37 Power-on Options HOLD MODE Display version information (p.  3 9) Display serial number (p.  3 9) To power-on screen...
  • Page 38: Auto Power-Off Function

    Power-on Options Auto power-off function The instrument provides functionality for limiting battery consumption. When the auto-power-off function is enabled, the instrument will automatically turn off once 10 min. has passed since the last key operation. (It will beep intermittently starting 30 sec. before the power turns off.) [APS] icon will be displayed.
  • Page 39: Disabling The Auto-Power-Off Function

    Power-on Options Disabling the auto-power-off function Turn on the instrument while holding down HOLD. [APS oFF] will be displayed. The power-on screen will be displayed. [APS] icon will no longer be displayed. (Indicating that auto-power-off is disabled)
  • Page 40: Switching The Phase Display (Phase Display Switching Function)

    Power-on Options Switching the phase display (phase display switching function) You can select whether to display phases using the or the convention. Phase display Line voltage display Turn on the instrument while holding down MODE. Press HOLD to select the phase display ([rst]↔[123]).
  • Page 41: Enabling And Disabling The Beep Function

    Power-on Options Enabling and disabling the beep function This section describes how to enable or disable the beeping tones that the instrument emits during key operation and phase detection. Turn on the instrument while holding down MODE. Press MODE. Press HOLD to select whether to enable or disable the beep...
  • Page 42: Checking The Version And Serial Number

    Power-on Options Checking the version and serial number This section describes how to display version information along with the instrument’s serial number. Turn on the instrument while holding down HOLD MODE at the same time. The display will indicate [vEr]. Press MODE.
  • Page 43: Holding The Display

    Holding the Display 4.2 Holding the Display This section describes how to hold measured values and phase detection results shown on the display. The hold function can be used on the Voltage Measurement screen, Phase Detection screen, and Frequency Measurement screen. Enabling and disabling the hold function HOLD Press...
  • Page 44: Turning On The Backlight

    Turning On the Backlight 4.3 Turning On the Backlight This section describes how to turn on the backlight. The backlight makes it possible to view the display clearly in dim locations where the LCD would otherwise be difficult to see Enabling and disabling the backlight Press and hold HOLD.
  • Page 45: Displaying The Predicted State For A 3-Phase Circuit

    3-phase Circuit When measuring a 3-phase circuit with Δ wiring in which one phase is grounded, the PD3259 can automatically predict the grounded phase. In addition, the instrument can predict if one line of the 3-phase circuit is missing. The results are shown using icons on the display (These functions are only used in Japan.)
  • Page 46: General Specification

    Specification 5.1 General Specification Operating environment Indoors, Pollution Degree 2, altitude up to 2000 m (6562 ft.) Operating temperature Temperature: -25°C to 65°C (-13°F to 149°F) and humidity Humidity: 80% RH or less at less than 50°C (no condensation) 50% RH or less at 50°C to 65°C (no condensation) Storage temperature -25°C to 65°C (-13°F to 149°F), 80% RH or less...
  • Page 47: Input Specification And Measurement Specification

    Input Specifications and Measurement Specificatio Options See p.  2 . 5.2 Input Specification and Measurement Specification Basic specification Measurement 3-phase AC voltage (line voltage, voltage parameters relative to ground), frequency Measurement targets Insulated wires*, metal parts* *Not compatible with shielded wires. 3-phase 90.0 V AC to 520.0 V AC (45 Hz to 66 Measurable conductor Outer diameter: φ...
  • Page 48: Accuracy Specification

    Accuracy specification Conditions of Guaranteed accuracy period: 1 year guaranteed accuracy Guaranteed accuracy period from adjustment made by Hioki: 1 year Temperature and humidity for guaranteed accuracy: 23°C ±5°C (73°F ±9°F), 80% RH or less Warm-up time: Max. 10 sec. Number of voltage sensor clip open/close...
  • Page 49: Other Specification

    Other Specification Missing phase Predicts missing phase. prediction function 5.4 Other Specification Hold function HOLD Displayed values are held when the is pressed. Display backlight function The display is illuminated by a yellow-green backlight when the hold function is enabled. However, the backlight will turn red when reversed phase is detected.
  • Page 50: Maintenance And Service

    It is recommended to determine the appropriate calibration interval based on the manner and environment in which you intend to use the instrument and then to request Hioki to calibrate it on a regular basis accordingly. 付...
  • Page 51: Troubleshooting

    If you encounter an issue with the instrument and believe it may be malfunctioning, review the information provided in “Before having the instrument repaired” below. If unable to resolve the issue, contact your authorized Hioki distributor or reseller. Before having the instrument repaired More...
  • Page 52 Troubleshooting More Issue What to check Solution information Measured values Is the measurement The instrument fail to stabilize. target’s frequency is designed 50 Hz or 60 Hz? exclusively for use The instrument does with 50 Hz and not support 400 Hz 60 Hz circuits.
  • Page 53 Troubleshooting More Issue What to check Solution information Phase detection Is the measurement The instrument results fail to target’s frequency is designed stabilize. 50 Hz or 60 Hz? The exclusively for use instrument does not with 50 Hz and support the frequency 60 Hz circuits.
  • Page 54: Error Codes

    Troubleshooting Error codes Error Description Solution display Err 001 ROM error program Take the following action if the display indicates an error: Err 002 ROM error adjustment data Replace the batteries with new Err 003 ADC error batteries (p.  2 0). If this fails to Hardware failure resolve the issue, the instrument needs to be repaired.
  • Page 55: Appendix

    240 V. It is possible to measure this circuit using a measuring instrument rated for an input-to-ground voltage of 300 V. The PD3259’s input-to-ground voltage rating of 400 V enables it to be safely be used to measure lines with a line voltage of 415 V.
  • Page 56 About the Instrument’s Voltage Sensors Appx. 2 About the Instrument’s Voltage Sensors Each of the instrument’s voltage sensors incorporates an internal electrode (metal plate). When the voltage sensor is clipped around the measurement target (wire), the minuscule current I flows due to capacitive coupling between the measurement target and the voltage sensor’s internal electrode.
  • Page 57 About the Instrument’s Voltage Sensors is controlled so that I = 0. Since V when I = 0, V is measured to obtain V Based on equation (1), I = 0 when V = 0 (when the measurement target and the voltage sensor’s internal electrode are at the same potential).
  • Page 58: Index

    Index LR6 (AA-size) alkaline batteries ........1 APS ........14 Auto-power-off function .. 14, 35 Disabling auto-power-off Magnetic strap ....2, 19 function ......36 Measuring frequency .... 31 Measuring line voltages in a 3-phase circuit ...... 28 Barriers ..... 12, 13, 23 Battery level display....
