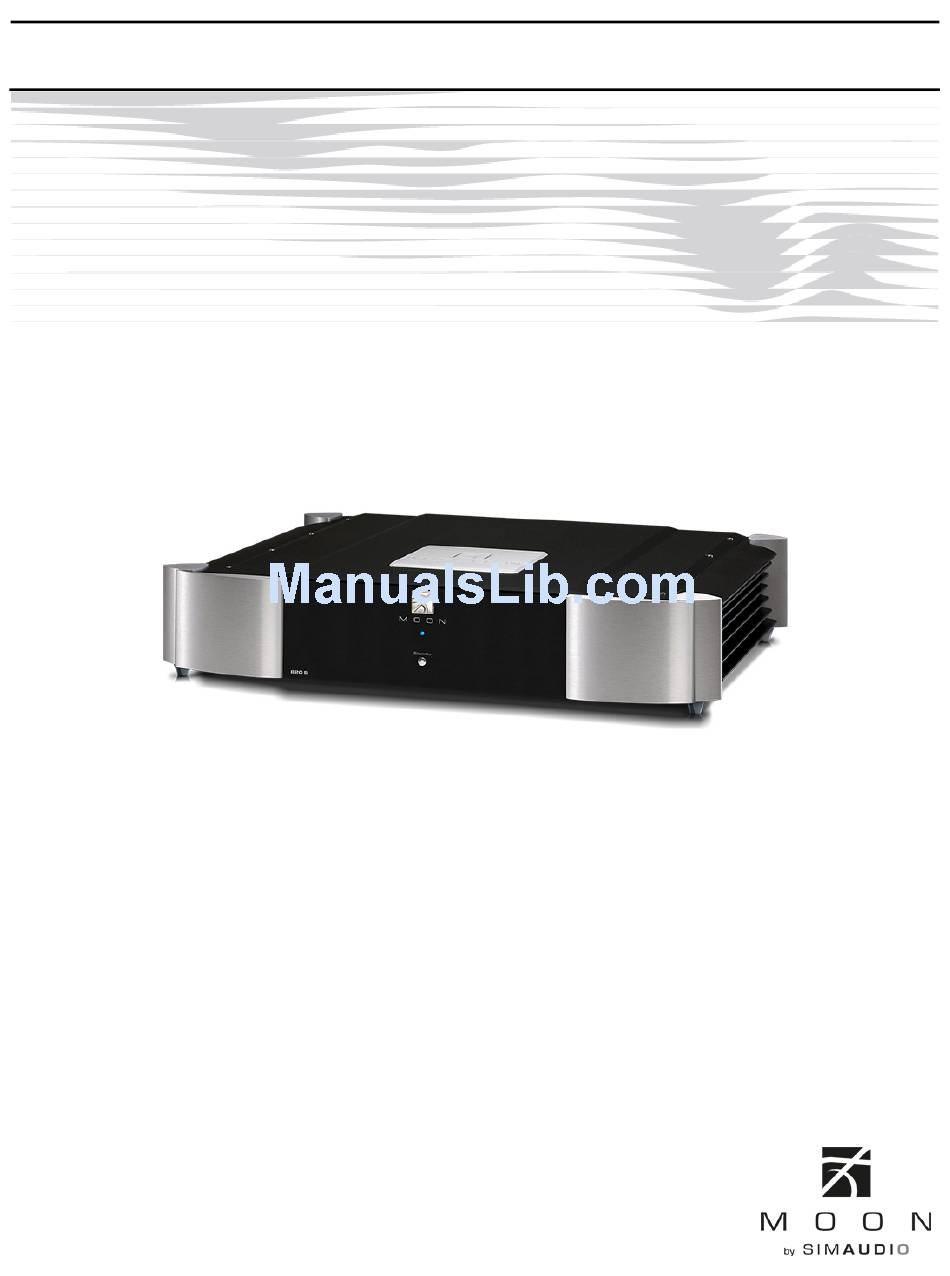

- Page 1 820S Evolution Series Power Supply Owner’s Manual...
- Page 2 820S Evolution Series...
-
Page 3: Important Safety Instructions
Owner’s Manual Important Safety Instructions Read these instructions. receptacles, and the point where they exit from the apparatus. Unplug mains cord during Keep these instructions. transportation. Heed all warnings. 11. Only use attachments and accessories specified by Follow all instructions. the manufacturer. - Page 4 MOON 820S, immediately disconnect it from component. To completely disconnect this the AC mains and take it to your MOON dealer apparatus from the AC mains, disconnect the for a complete check-up. power supply cord plug from the AC receptacle.
-
Page 5: Table Of Contents
Owner’s Manual Table of Contents Introduction Unpacking Installation & Placement Rear Panel Connections Connecting the 820S Operating the 820S Troubleshooting Specifications www.simaudio.com Simaudio Ltd., 1345 Newton Road Boucherville, Québec J4B 5H2 CANADA Date Code: 20160714... -
Page 6: Introduction
MOON 820S power supply as much as the regulation circuit using a "precision reference" feeding an pride we have taken in creating this fine audio product. amplifier comprised of numerous IC's and transistors, as We understand the power and emotion of music and opposed to a single voltage regulation chip. -
Page 7: Unpacking
(USA and Canada only) Once the 820S is unpacked, inspect it thoroughly and report any damage to your dealer immediately. We suggest that you keep all of the original packaging, storing it in a safe, dry place in case you’re required to transport this product. -
Page 8: Rear Panel Connections
Connecting the 820S shows a 750D DAC/ CD Transport (top) connected to an 820S (middle) by both a 4-Pin XLR cable and a 5-Pin XLR Disconnect the AC power cable(s) from your MOON cable, as well as a 610LP Phono Preamplifier (bottom) Evolution component(s) that you will be using with connected to the 820S with only a 4-Pin XLR cable. - Page 9 Figure 2: Connecting the 820S to other MOON Evolution components IMPORTANT ! Any component(s) connected to the 820S Power Supply will NOT power up, remotely or via their standby button, when the 820S is powered off or in standby. ____________________________________________________________________________________...
-
Page 10: Operating The 820S
Turning on your MOON 820S for the first time first, via their “Standby” button(s), before powering down your 820S. Prior to turning the 820S power supply on for the first time, make sure that every cable is properly connected to avoid any problems (note: remember to remove the... -
Page 11: Specifications
Owner’s Manual Specifications Transformers 2 x 0 25VA Total Capacitance 80,000μF Total Inductance 80mH Output Voltage (analog supply output 1) ±20 Volts Output Voltage (digital supply output 2) +14 Volts Power Consumption @ idle 25 Watts AC Power Requirements 120V / 60Hz or 240V / 50Hz Shipping Weight 40 lb. - Page 12 820S Evolution Series...
