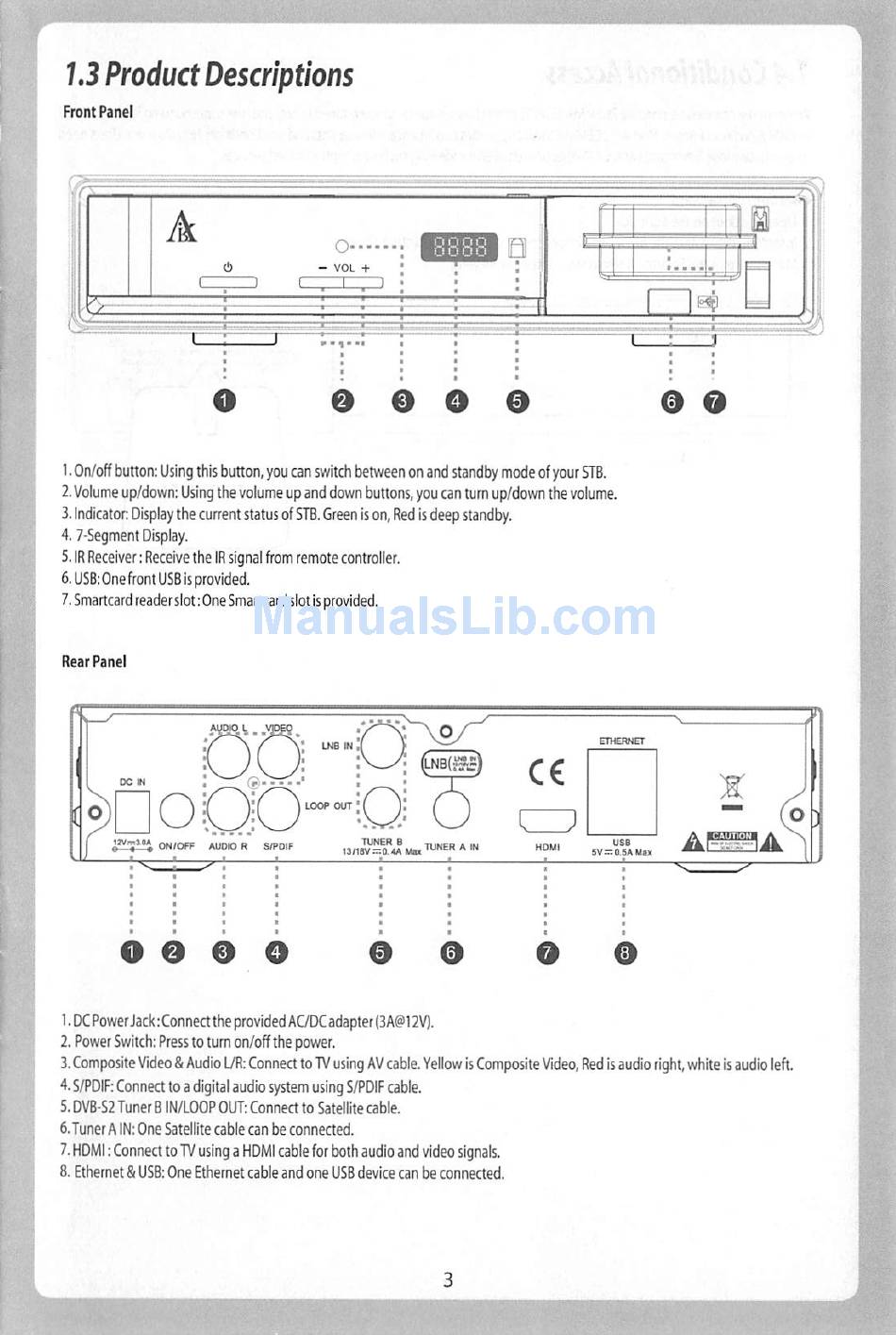

1.3 Product Descriptions
Front Pane
:m
e 0 o 0
1. On/off button: Using this button, you can switch between on and standby mode of your STB.
2. Volume up/down: Using the volume up and down buttons, you can turn up/down the volume.
3. Indicator Display the current status of STB. Green is on, Red is deep standby.
4.7-Segment Display.
5. IR Receiver: Receive the IR signal from remote controller.
6. USBiOne front USB is provided,
7. Smartcard reader slot :One Smartcard slot is provided.
Rear Panel
o e
iaVq»A fMlOPV AUDIO ft 8/POlF TUNER A
USB
9V=&6All0it
o o o o O O 0 9
■' l.DCPowerJack:ConnecttheprovidedAC/DCadapter(3A@12V).
2. PowerSwitchiPresstotumon/offthepower.
3. Composite Video & Audio L/R: Connect to TV using AV cable. Yellow is Composite Video, Red is audio right, white is audio left.
4. S/PDIF: Connect to a digital audio system using S/PDIF cable.
5. DVB-S2 Tuner B IN/LOOP OUT: Connect to Satellite cable.
B.Tuner A IN: One Satellite cable can be connected.
7. HDMI: Connect to TV using a HDMI cable for both audio and video signals.
8. Ethernet & USB: One Ethemet cable and one USB device can be connected.
