Page 1: User Manual

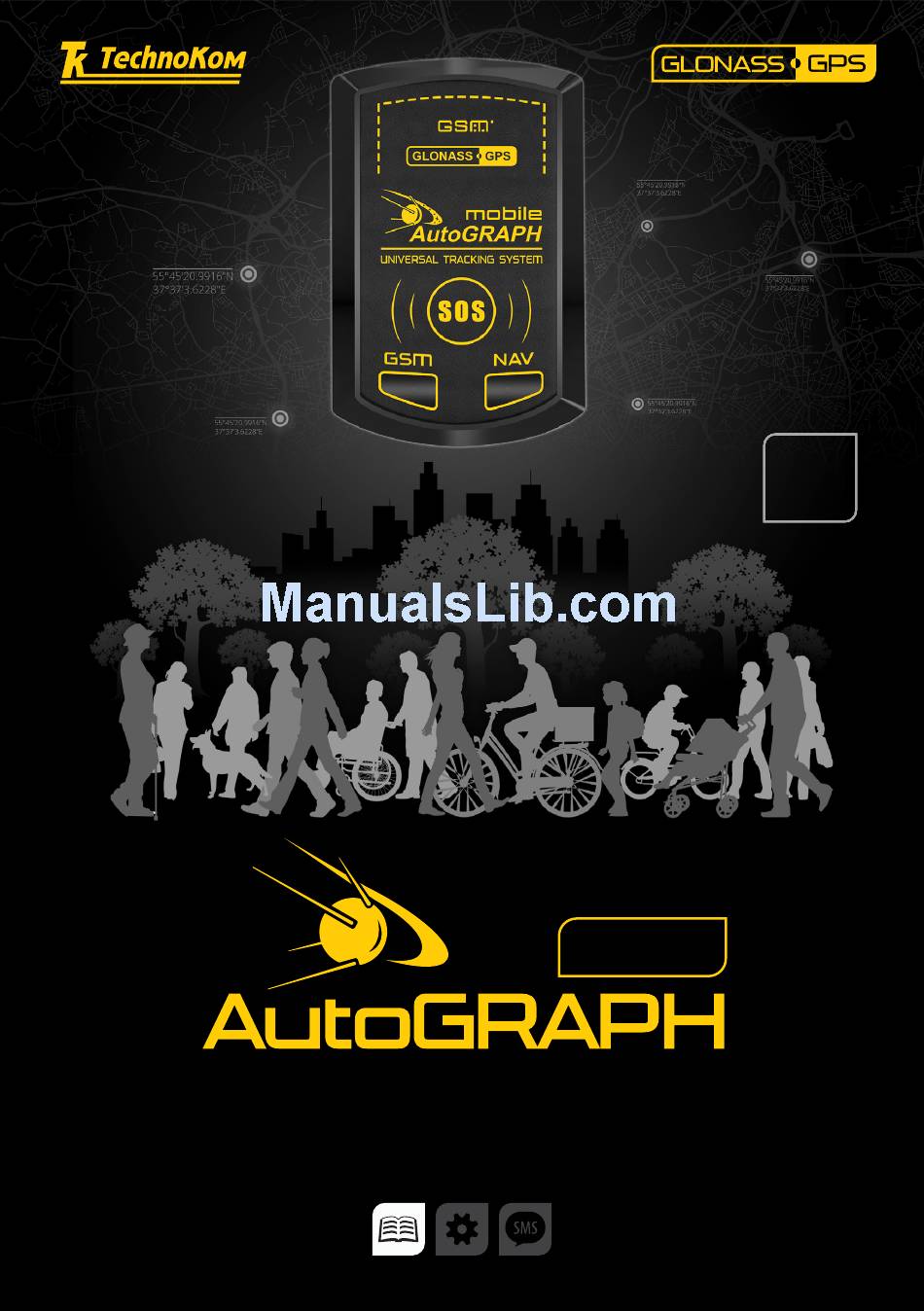

DOCUMENT VERSION MOBILE VEHICLE AND PERSONAL TRACKING SYSTEM USER MANUAL... - Page 2 AutoGRAPH-Mobile • USER MANUAL TechnoKom © 2016...
-
Page 3: Table Of Contents
AutoGRAPH-Mobile • USER MANUAL Contents Introduction ................................Version history ..............................Related documentation ............................ Software Copyright Notice ..........................Safe Operation and Exposure to Electromagnetic Fields ..............Basic Information ..............................Scope of Supply ..............................Technical Specifications ........................... Components of AutoGRAPH-Mobile ......................Getting Started .............................. -
Page 4: Introduction
TU 6811-005-12606363-2016 and warranty provisions. For proper operation of the AutoGRAPH-Mobile controller, a user should be aware of operating principles of the personal tracking system as a whole, as well as understand functions of its individual components. -
Page 5: Related Documentation
TechnoKom or third parties. Laws of the Russian Federation and other countries secure certain exclusive rights of TechnoKom and third parties to the software, which is subjected to copyright, for example, exclusive rights for distribution or reproduction. -
Page 6: Safe Operation And Exposure To Electromagnetic Fields
This section contains important information for effective and safe operation. Please Fields read the information below before using The design of the AutoGRAPH-Mobile AutoGRAPH-Mobile vehicle and personal vehicle and personal tracking controller tracking controllers. complies with the following national and... - Page 7 AutoGRAPH-Mobile • USER MANUAL • Australian Communications Authority Hearing Devices Radiocommunications (Electromagnetic Sometimes, use of mobile communication Radiation - Human Exposure) Standard devices may cause troubles for wearers of 1999 (applicable to wireless phones only). certain hearing devices. In this case, consult...
-
Page 8: Basic Information
AutoGRAPH-Mobile • USER MANUAL Basic Information The «AutoGRAPH-Mobile» (GLONASS/GPS) personal tracking controller is a portable autonomous electronic unit which tracks all movements of assets by recording the time and the route in the form of geographic coordinates received from the satellites of global navigation system GPS (NAVSTAR) or GLONASS. -
Page 9: Technical Specifications
AutoGRAPH-Mobile • USER MANUAL Technical Specifications Description AutoGRAPH-Mobile GPS/GLONASS Receiver Receiver type uBlox MAX-M8Q GPS + GLONASS / Supported GNSS GALILEO / Beidou Channels Autonomous A-GNSS SBAS (WAAS, EGNOS, MSAS, Differential GPS (DGPS) GAGAN, QZSS), RTCM Position accuracy when using GPS/GLONASS GNSS •... - Page 10 AutoGRAPH-Mobile • USER MANUAL Description AutoGRAPH-Mobile Charging temperature, °С 0…+45 Dimensions, mm 92 х 58 х 22 Weight (with battery), g With nominal signals level -130 dBm. A wide specified range is supplied as the position accuracy when using LBS depends on base stations location around asset.
-
Page 11: Components Of Autograph-Mobile
AutoGRAPH-Mobile • USER MANUAL Components of AutoGRAPH-Mobile 1. GSM LED (orange). 2. GPS / GLONASS antenna placement. 3. NAVIGATION/CHARGING LED (bi-colour). 4. SOS button. 5. Fastening screw (x4). 6. POWER button (hidden). 7. Manufacturer’s label. 8. Mini USB connector. TechnoKom © 2016... -
Page 12: Getting Started
SIM card, when the primary one is unavailable (disabled, damaged or not inserted). For proper operation it is quite sufficient to insert main SIM card in AutoGRAPH-Mobile. But the backup card provides the appropriate operation of the tracker even if the main SIM card is damaged. -
Page 13: Inserting The Battery
AutoGRAPH-Mobile • USER MANUAL Inserting the battery The AutoGRAPH-Mobile comes with a rechargeable Li-Ion battery. The trackers are supplied with batteries of 1800 mAh capacity. To insert the battery: • Unscrew the four fastening screws and remove the back cover of the tracker. -
Page 14: Charging The Battery
AutoGRAPH-Mobile • USER MANUAL Charging the battery Before turning on and starting use of the AutoGRAPH-Mobile, it is recommended to charge the battery. The AutoGRAPH-Mobile comes with the USB power adapter and a USB cable (USB AM – USB miniB 5pin) for charging the battery from an electrical mains of 220 V or from a PC. - Page 15 • Now the tracker is ready to operate. The AutoGRAPH-Mobile can be set up to turn on only when the external power supply is connected NOTE (5V). This mode can be used when the tracker is installed in a vehicle and allows to preserve the battery power.
-
Page 16: Autograph-Mobile Functions
AutoGRAPH-Mobile Functions Coordinate acquisition Outgoing SMS On request, the tracker sends the current In normal mode, the AutoGRAPH-Mobile coordinates to the customer by SMS. The acquires coordinates of the asset after the coordinates are sent as a link to an online specified period and records the coordinates mapping service. - Page 17 When answering the call, the recipient will hear a preset voice message. The AutoGRAPH-Mobile remembers state of the SOS button even after the restart. If the tracker does NOTE not perform all preset functions of the SOS button before turning off, it will complete tasks after turning TechnoKom ©...
-
Page 18: Autograph-Mobile Operation Modes
After that the external power switches off, mode when an asset is not moving or external the device stays in normal mode powered power of AutoGRAPH-Mobile is turned off. by the internal battery in order to transfer The events forcing the device to switch to collected data to server. -
Page 19: Tracker Indicators
AutoGRAPH-Mobile • USER MANUAL Tracker Indicators The AutoGRAPH-Mobile has two LEDs intended to indicate the device operation. Install SIM cards, connect the battery and turn on the tracker. The tracker will be ready to operate after location acquisition and connecting to a GSM network. -
Page 20: Drivers Installation
Drivers Installation This section covers the installation procedure of the AutoGRAPH-Mobile tracker drivers. The AutoGRAPH-Mobile drivers (AGUSBDriver) can be downloaded for free from the official web site of NOTE the manufacturer (www.tk-chel.ru). The drivers are compatible with Microsoft Windows XP, 7, Vista, 8, Server 2003, Server 2008 and Server 2012. -
Page 21: Connection To Pc
AutoGRAPH-Mobile • USER MANUAL Fig.3. Fig.4. 8. Drivers for the AutoGRAPH-Mobile are successfully installed. The device is ready to operate with troubleshooting utilities, dispatch software and other applications. Connection to PC For configuration the tracker and reading the data, it is necessary to connect the AutoGRAPH- Mobile to a PC. -
Page 22: Autograph-Mobile Events
Every event is recorded in a certain data field. To review the device event in the AutoGRAPH 5 Dispatch Software, display data field which that event is recorded in. The list of AutoGRAPH-Mobile events and data fields, which those events are recorded in, are given in the table below. -
Page 23: Technokom
GLONASS AutoGRAPH VEHICLE AND PERSONAL TRACKING SYSTEM TechnoKom ltd. Copyright © Chelyabinsk, 2016 www.tk-nav.com All Rights Reserved. info@tk-nav.com...
