Strongarm SA5000 Owner's Manual

ç
OWNER'S
M NU L

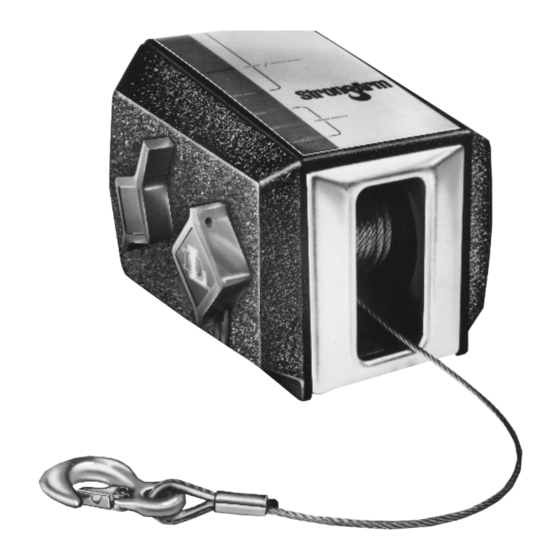

MODELS S 5000, S 7000
S 9000, S 12000
WARNING:
ATTEMPTING TO INSTALL, OPERATE OR SERVICE THE STRONGARM
ELECTRIC WINCH. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT
IN SERIOUS OR FATAL INJURY. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
electric Winch rating*
5000
4500
4000
3500
3000
2500
2000
1500
1000
500
10
LENGTH oF CaBLE oN REEL (FT.)
guide to rolling load capacitY**
Maximum weight in pounds and kilograms rolling load.
Model
5% 10%
(3°) (6°)
SA5000 10,000 lbs. 7,500 lbs. 5,100 lbs. 3,900 lbs. 2,700 lbs. 2,200 lbs.
4,536 kg 3,402 kg 2,313 kg
SA7000 14,600 lbs. 11,000 lbs. 7,400 lbs. 5,700 lbs. 4,000 lbs. 3,300 lbs.
6,623 kg 4,990 kg 3,357 kg 2,586 kg 1,814 kg 1,497 kg
SA9000 20,000 lbs. 15,000 lbs. 10,200 lbs. 7,700 lbs. 5,500 lbs. 4,500 lbs.
9,072 kg 6,804 kg 4,627 kg 3,493 kg 2,495 kg 2,041 kg
SA12000 30,000 lbs. 22,600 lbs.15,200 lbs.11,600 lbs. 8,300 lbs. 6,800 lbs.
13,608 kg 10,251 kg 6,895 kg
(*) Load capacity (dead weight) is a measure of actual maximum force to which the
winch system may be subjected.
(**) all capacities shown are with 15' of cable on the reel and 10% rolling friction factor.
For full reel of cable adjust capacities according to graph above. Note 5% incline is
one-half foot rise in ten feet.
READ INSTRUCTIONS CAREFULLY BEFORE
Winch ratings
20 30 40
PERCENT INCLINE
20% 30%
(11°) (17°)
1,769 kg 1,225 kg
5,262 kg 3,765 kg 3,084 kg
Models Sa7000 and Sa12000 are factory equipped
with a pulley block and hook and 50' of cable for
double line operation. This increases the pulling
capacity of the winch as shown, however, care
must be taken to allow adequate motor cooling.
Note that with double line, a pull of 25' requires
reeling in 50' of cable.
For intermittent use only. Ratings at left are based
on 10' pull. For longer pulls motor cooling periods
must be allowed.
MaXIMuM CoNTINuouS RuN TIME 4 MINuTES
caution: continuous running in
50
eXcess of 4 Minutes Will daMage Winch
Motor.
Load
50% 70%
CaPaCITY
(26°) (35°)
1500 lbs.
998 kg 680 kg
2200 lbs.
998 kg
3,000 lbs.
1,361 kg
4,500 lbs.
2,041 kg
1
12 Volt D
ELE TRI WIN HES
double line operation
approXiMate load speed
(ft./Min.)
No Load
Full
Reel
33
SA5000
SA7000 16
SA9000 11
5
SA12000
Warning: not to be
used as a hoist for
lifting, supporting or
transporting people or
loads over areas Where
people could be present!
FuLL Load
Empty Full Empty
Reel Reel Reel
12 8 4
6 4.5 3.5
5 4 2.5
2.5 2 1.5
