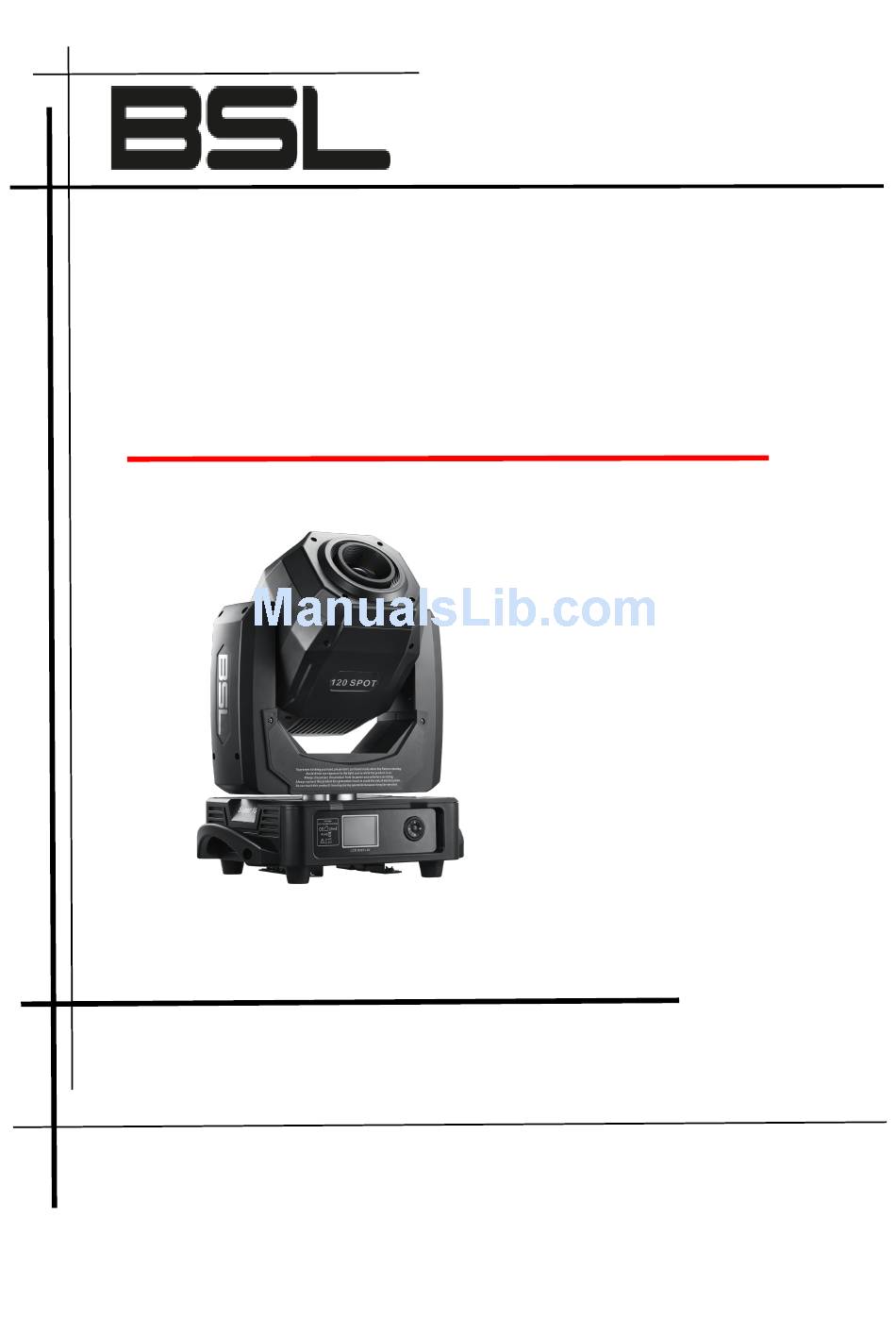

- Page 1 Pure Spot 120LED USER MANUAL www.bsl-lighting.com...
-
Page 2: Table Of Contents
Table of contents Safety instructions..................3 Operating determination................4 Fixture exterior view ................. 5 Installation ....................6 Connection to the mains............... 6 Replacing gobos ................7 Rigging the fixture................. 8 DMX-512 connection..............11 Control menu map..................12 Technical Specifications................14 Maintenance and cleaning............... -
Page 3: Safety Instructions
CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOU INITIAL START - UP! 1. Safety instructions Every person involved with installation and maintenance of this device have to: - be qualified - follow the instructions of this manual CAUTION! -
Page 4: Operating Determination
Do not view the light output with optical instruments or any device that may concentrate the beam. 2. Operating determination This device is a moving head for creating decorative effects and was designed for indoor use only. This device is for professional use only. It is not for household use. If the device has been exposed to drastic temperature fluctuation (e.g. -
Page 5: Fixture Exterior View
3. Fixture exterior view 1 - Head 2 - Front lens 3 - Handles 4 - Control buttons 5 - Display screen 6 - Yoke 9 - Power (PowerCon) 10 - Fuse holder 11 - DMX OUT (3-pin) 11 - DMX IN (3-pin) 12 - DMX OUT (5-pin) 12 - DMX IN (5-pin) 13 - Switch... -
Page 6: Installation
For protection from electric shock, the fixture must be earthed! For protection from electric shock, the fixture must be earthed! The Pure Spot 120LED is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz AC power source from 100-240 Volts. Power cord is enclosed to the fixture. -
Page 7: Rigging The Fixture
6.Insert he gobo holder back under the distance slots (6, 7) into rotating gobo wheel in this way, that its position point (4) has to aimed at a small toothlike projection (5) on the edge of the rotating gobo wheel. Important! When inserting the gobo holder back to the rotating gobo wheel, one of the adjacent gobo holder has to be oriented according to the same rule, it means that its position point (4) has to aimed at the toothlike projection (5) on the edge of the... - Page 8 The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled person once a year. The projector should be installed outside areas where persons may walk by or be seated. IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including (but not limited to) calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the fixture.
- Page 9 Alternativelly, fixtures handels can be used for safety attachment When installing fixtures side-by-side, avoid illuminating one fixture with another!
-
Page 10: Dmx-512 Connection
4.4 DMX-512 connection The fixture is equipped with both 3-pin and 5-pin XLR sockets for DMX input and output. The sockets are wired in parallel. Only use a shielded twisted-pair cable designed for RS-485 and 3-pin or 5-pin XLR-plugs and connectors in order to connect the controller with the fixture or one fixture with another. - Page 11 1. Button Instruction S1：Return S2：Down S3：Enter S4：UP Menu Page: 1. Address 2.Fixture Setting 3.Manual Setting Auto Test 5.System Test 6.Information 2. Menu Function When in Start Page, press any button, then reach the Selection Page Main Menu Selection Using Noted Selection a) Press S3 enter to Selection Page;...
- Page 12 c) Press S3 to save and exit at selection Page; All Reset d) Press S1 to exit. Tilt Dimmer Strobe Select “Channel” Color a) Press S3 enter to channel selection Page; b) Press S2 or S4 to select channel; Fixed-Gobo c) Press S3 to enter edit status;...
-
Page 13: Technical Specifications
6. Technical Specifications Electrical Power supply:......electronic auto-ranging Input voltage range:....100-240V, 50/60Hz Max. power consumption:..310 W@230V Fuse:........T 5A Light source 120W white engine Color temperature: 6500K CRI=80 Color wheel 7 dichroic filters + open Static gobo wheel 7metal gobos, image diameter =22.5mm, aluminium, thickness=0.5 mm Gobo wheel continuous rotation Rotating gobo wheel 7 glass gobos can be indexed and rotated in both directions... - Page 14 Prism Rotating 3-facet 11° prism with continuous rotation in both directions, Rotating 8-facet 12° prism with continuous rotation in both directions Iris Motorized iris for different beam diameters Strobe Strobe effect with variable speed (max.15 flashes/sec.) Dimmer Smooth dimmer from 0 - 100% Control Readout fixture and llight source usage, receiving DMX values, temperatures, etc Built-in analyzer for easy fault finding, error messages...
-
Page 15: Maintenance And Cleaning
7.Maintenance and cleaning It is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not build up on or within the fixture. Otherwise, the fixture‘s light-output will be significantly reduced. Regular cleaning will not only ensure the maximum light-output, but will also allow the fixture to function reliably throughout its life. -
Page 16: Photometric Diagram
8.Photometric diagram 9.DMX protocol Pure Spot 120LED DMX Channel Mode/Channel Value Function Pan 0-255 0-100% Pan fine 0-255 0-100% Tilt 0-255 0-100% Tilt fine 0-255 0-100% Pan/Fine Speed 0-255 Fast -> Slow Dimmer 0-255 0 -> 100% Dimmer Fine 0 -> 100%... - Page 17 Strobe/Shutter 252-255 Open 213-251 Random Strobe 208-212 Open 108-207 Pulse: Slow -> Fast 104-107 Open 4-103 Strobe: Slow -> Fast Close Color1 Wheel 206-255 Rotation(CCW): Slow -> Fast 156-205 Rotation(CW): Fast -> Slow 152-155 Color7 148-151 Color6 144-147 Color5 140-143 Color4 136-139 Color3 132-135 Color2 128-131 Color1 0-127 Color Position Color1 Wheel fine 0-255 0 -> 100% Static Gobo 191-255 Rotation(CCW): Slow -> Fast 126-190 Rotation(CW): Slow -> Fast...
- Page 18 Rotating Gobo 188-255 Rotation(CCW): Slow -> Fast 120-187 Rotation(CW): Slow -> Fast 112-119 Gobo7 Shake: Slow -> Fast 104-111 Gobo6 Shake: Slow -> Fast 96-103 Gobo5 Shake: Slow -> Fast 88-95 Gobo4 Shake: Slow -> Fast 80-87 Gobo3 Shake: Slow -> Fast 72-79 Gobo2 Shake: Slow -> Fast 64-71 Gobo1 Shake: Slow -> Fast 56-63 Gobo7 48-55 Gobo6 40-47 Gobo5 32-39 Gobo4 24-31 Gobo3 16-23 Gobo2 8-15 Gobo1 Open Gobo Rotation 193-255 Gobo Rotation(CCW): Slow -> Fast 128-192 Gobo Rotation(CW): Fast -> Slow 0-127 Gobo Position Iris 193-255...
