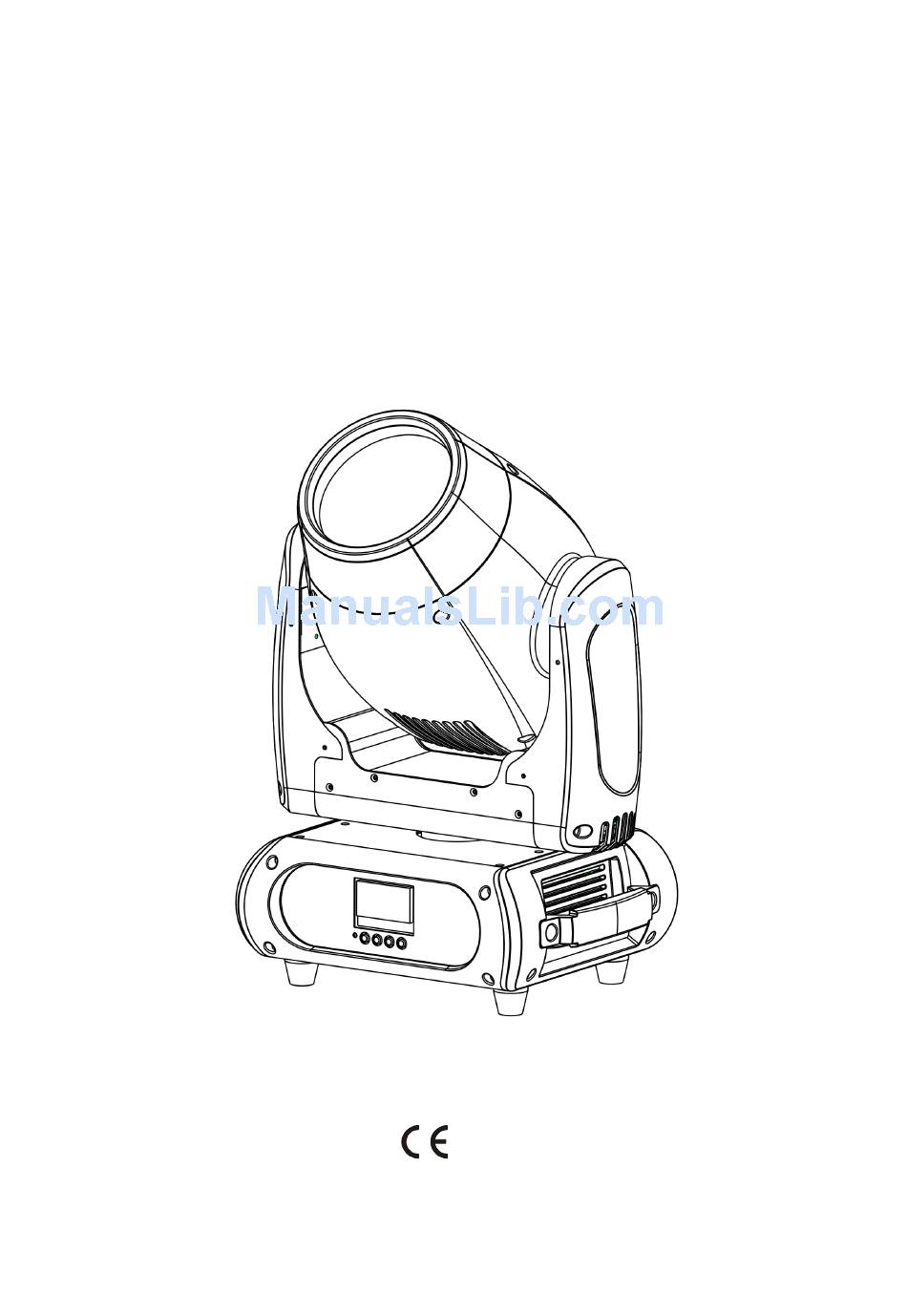

- Page 1 BSL IMPACT BEAM 17R USERS GUIDE...
-
Page 2: Position
1. Product Introduction: 1.1 Before unpack the fixture, pls make sure that the packing is in good condition, following items will be found in the box: -The fixture -This users guide -1.5m power cable with powercon - Bracket with nuts for handing installation -Safety chain 1.2 Specification Source Light source: Osram Sirius HRI 280W discharge lamp Lamp life: 2.000 hours Luminous Flux: 11165lumen, 170000lux@10m Control: Remote on/off via DMX Ballast: switching mode power supply Optical System Beam angle: 1.3° X/Y Pan: 630° (4.0 sec) or 540°(3.58 sec), Tilt: 265° (2.8 sec) 16-bit resolution Auto repositioning Colors 14+open, interchangeable, indexable and bidirectional rainbow effect Color bounce Gobos Outside ￠13.8mm, inside ￠6mm 14+ open static gobos Real indexable and gobo shaking Distinctive gobo animation effect Features DMX channels: 11/13 Color wheel: 13+1 colors Static gobo wheel: 14+1 gobos Motorized focus Full range 0-100% dimmer Various strobe Forst 8 facets rotating Effect wheel Software upgrade via DMX Hibernation when lost DMX for preset time Indicate temperature info of base, arm and lamp... -
Page 3: Position
Flip Back-up communicating IC 1.3 Description of the Device 1. Project lens 2. Head 3. Arm 4. Base 5. Display 6. Foot stand 7. Operation button 8. Mic 9. Mode/Esc 10. Down button 11. Up button 12. Enter button 13. Display 14. 3-pin DMX in 15. 3-pin DMX out 16. Powercon in 17. Fuse holder 18.Power switch ... -
Page 4: Position
1.4 Colors and Gobos Open Red Orange 3 Yellow 4 Blue green 5 Amber 6 Light bule 7 Green 8 9 Light red 10 Megenta 11 Dark green 12 Dark yellow 13 Blue... -
Page 5: Position
Static gobo wheel 2. Safety and maintenance Information 2.1 Safety Info Before operate this unit, please carefully read this users guide and keep if needed in future. It’s necessary to respect following rules. The disposal of the device after lifecycle could damage the environment, need to take it to special company for recycling or return to authorized dealer. The products referred to in this manual conform to the European Community Directives and are therefore marked with CE logo. Keep this device away from children and unauthorized users, the manufacturer will not take responsibility for the damage due to any disregard of the information provided in this manual and wrong operation. Before operate the device, pls make sure the fixture is in good housing, ensure pan and tilt can rotate in its complete range. Pls make sure minimal 0.5m distance need to kept between the fixture to any flammable material. --0.5m The device can only run with 100-240v voltage, 50/60Hz power, don’t connect to any other wrong power. Disconnect the device from main power before open the shield or maintenance. The device is designed only for indoor usage, pls keep it away from moisture. Do not expose the device under the sun or directly to any other lighting source. Never look directly into the projecting lens when the fixture is power on, the light may trigger epileptic seizures in photosensitive persons or persons with epilepsy. Especially at beam effect, extreme caution and observance of these safety instructions is mandatory. Don’t put or install the device on a surface that subject to vibration or bumps. -
Page 6: Position
The device is supposed to work in the temperate range -15° C and +45° C, do not use the device Ta=4 5℃ when the temperate exceed this range. The lens, shield need to be replaced when obviously broken, never use the device when the shield is not completed closed. Safety I class device, need to be earth connected. When the fixture is hanged overhead, the safety rope must be fixed to the bottom of the device to the appropriate fixing point. Always carry the device by the handles, do not take the head or arm directly for transportation. 2.2 Maintenance 2.2.1 Operation only allowed to qualified person, damages due to unprofessional operation or remove of any parts inside will not be considered in warranty service. There are no serviceable parts inside the device or package, service only leaves to authorized dealers. 2.2.3 Never allow the optical components contact with oil, fat or any other liquid. 2.2.4 A regular clearance of the device is needed for long-term usage, this is very helpful to maintain the lifetime and brightness need to use a soft and lint-free cloth to clean the optical system, fan and air flowing tunnel. 2.2.5. Trouble Shooting Problems Possible reasons Checking or solutions Device not power up Powercon or power cable damaged Change a good power cable to try Faulty power supply Replace new power supply Pan/Tilt error or vibrate Faulty Pan/Tilt PCB Replace PT001 PCB Faulty opto sensor Replace opto sensor OP001 Cable loosen Check the cable connect to OP001 Lamp off Temperature protection Check the temperature from menu Fan not working Check the fan speed info from menu Faulty Lamp... - Page 7 3. Installation 3.1 The device could be either put on a solid and even urface, or mounted upside down or sideways like left picture. 3.2 The mounting place must be sufficient stable and be able to support a weight of 10 times of the unit’s weight. When the fixture is hanged, always additionally secure the device with the safety chain, fasten the safety rope at a suitable position so that the maximum fall of the projector will be 20 cm 3.3 How to do mounting installation. Step one: Installation the clamp onto the bracket; Step two: Install the clamp and bracket on the bottom of panel, fasten the quick-locks; Step three: Install the whole device onto appropriate truss and fasten the clamps, tight the safety rope with the truss or other fixing point at a suitable position that drop down distance not exceed 20 cm.
- Page 8 4. Control menu Default setting shadowed. Mark with ①can be basic reloaded, ② be program reloaded, ③can be private reloaded. DMX Addr XXX DMX address setting Slave Rece Choose Slave mode Connect Choose Sequence Sequence Alon/Mast mode Music Alon/Mast Choose Sound mode Max Temp 80~130℃, 90℃ Lamp off if temperature continuously over for Light 5 minutes Lamp Adjust CHxx=XXX….. Adjust value of each channels Information Lamp Temp XXXC Temperature of driver Reset Reset Movement RPan ON/OFF Pan Reverse RTilt ON/OFF Tilt Reverse...
- Page 9 5. DMX connection and DMX protocol 5.1 DMX addressing: 5.1.1 The device is controlled by universal DMX 512 protocol, DMX address is the start channel used to receive instructions from the external controller. For independent control, each fixture must be assigned its unique address control channels. For example, this device has four channel modes: 11/13, if we set the mode at standard 13 channels mode, and there are several models need to be independently controlled, we just simply address first fixture at 1, and second fixture at 12, third one at 23, etc. If the devices have the same address, they will behave synchronically. DMX addressing is limited, don’t set the address so high that without enough control channels for the fixtures. Display is flashing when no DMX signal is received. 5.1.2 This device is equipped with 3-pins DMX in and out sockets only. Pin 1 = GND Pin 2 = Signal (-) Pin 3 = Signal (+) 5.1.3 The termination is prepared by soldering a 120Ω resistor between pins 2 and 3. 5.1.4 Connection: us DMX cable with 3-pin XLR-plugs to connect the controller with the fixture or one fixture with another. 5.2 DMX chart Channel name function Min DMX Max DMX Pan Pan Coarse 255...
- Page 10 Pan fine Pan Fine 255 Tilt Tilt Coarse 255 Tilt fine Tilt Fine 255 fastest to Slowest 247 Movment Speed Movement With Backout 248 255 Shutter closed No function (shutter open) Strobe effect slow to fast No function (shutter open) 127 Shutter Pulse-effect in sequences 128 159 No function (shutter open) 160 191 Random strobe effect slow to fast 192 223 No function (shutter open) 224 255 Dimmer Dimmer(Close to Open) 255 Indexed Position 1 (Open) Position 2 Position 3 Position 4 Position 5 Position 6...
-
Page 11: Table Of Contents
Position 2 Position 3 Position 4 103 Position 5 104 115 Position 6 116 127 Position 7 128 139 Position 8 140 151 Position 9 152 163 Position 10 164 175 Position 11 176 187 Position 12 188 199 Position 13 200 211 Position 14 212 223 Forward Wheel Spin Stop to fastest 224 239 Reverse Wheel Spin Stop to fastest 240 255 Indexed... - Page 12 Position 13 Position 14 Position 15 Indexed With Shake Position 3 103 Position 4 104 113 Position 5 114 123 Position 6 124 133 Position 7 134 143 Position 8 144 153 Position 9 154 163 Position 10 164 173 Position 11 174 183 Position 12 184 193 Position 13 194 203 Position 14 204 213 Position 15 214 223 Forward Wheel Spin...
- Page 13 6. Unique Features 6.1 Software upgrade function via DMX cable, if there is any new firmware for this device come out, it can be upgraded simply via a software upgrade box, no need to change any mechanical parts. The upgrade box is not included in the package, if need any further assistance pls just contact authorized dealers. 6.2 Hibernation, the device will enter sleeping mode if activated after a period of disconnecting DMX signal to save the power consumption, and will return immediately as soon as the DMX signal is sent again. 6.3 Display back-up communication IC, there is a back-up communication IC installed in the display PCB, so users could replace at once if the working one is broken, no need to wait long time from service. 6.4 Display flip, by press up and down button for more than 3 seconds, the display will flip automatically, this function is useful to read menu conveniently when device is hanged. 7. Dimensions Drawing 8. Technical specification Power supply 100-240 V AC, 50/60 Hz ~ Power consumption 420W LED Osram Sirius HRI 280W discharge lamp DMX channels 11/13 modes Beam angle 1.3° Luminous flux 11165lumen, 170000lux@10m Fuse T 3.15 A, 250 V Device dimensions 343x250x50mm Net Weight 15KG...
