Techone Park-1100 EPP Instruction Manual

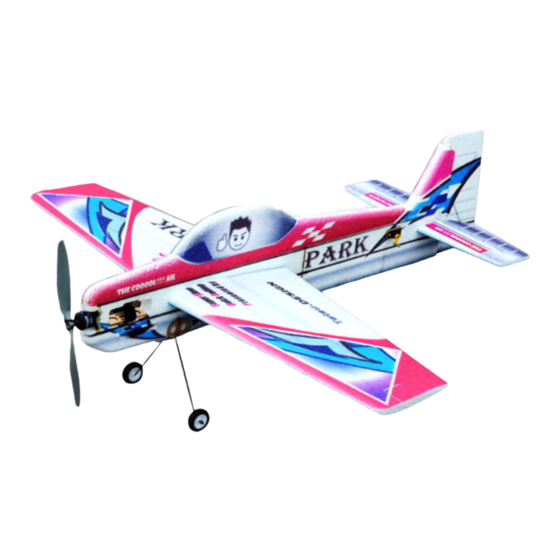

1. Park-1100 EPP is a superb model for 3D
aerobatic flying. It's made of "almost unbreakable"
EPP material and by the modern technology in
CNC machines.
2. The flying time of Park-1100 EPP is 8-15 minutes,
it depends on the flying figures. The model is able
to "torque roll" and then after giving more "gas" to
rise verticaly up, looping in "knife" flight and all
aerobatic figures.
3. Easy to landing.
4. Easy to assemble, most of the parts are
pre-assembled in our factory.
5. Removable wing, it's easy to take.
Max servo travel of aileron: 35degrees up and 35
degrees down 60mm
Max servo travel of elevator:55 degrees up and 55
degrees down 90mm
Max servo travel of rudder: 50degrees left and 50
degrees right 110mm
