Techone Gent EPP Instruction Manual

Gent EPP
Instruction Manual
Introduction

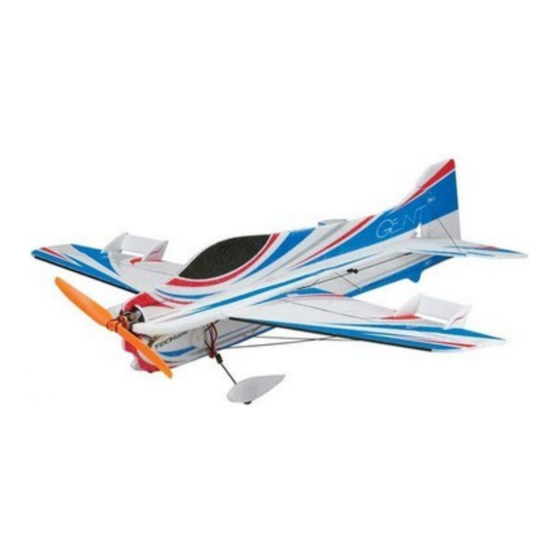

Thank you for purchasing the Gent EPP-F3P.
The Gent ARF has super slow flight responsiveness so you can fly high-alpha 3D
with authority. Its carbon fiber reinforced Gent EPP construction provides the
solid, precise feel of a balsa profile plane without the weight. This allows you to fly
the Gent ARF outside in windier conditions that would keep most other profile
foamies grounded. The Gent ARF is another exciting addition to TECH ONE's
outstanding line of electric RC aircraft and accessories.
TECH ONE uses top-quality engineering and materials in everything it makes, so
you always get the maximum level of value and fun. TECH ONE backs all of its
products with the best customer service and support in the hobby so your electric
flight experience is always a positive one.
These assembly instructions are designed to guide you through the entire
assembly process of your new airplane in the least amount of time possible. Along
the way you'll learn how to properly assemble your new airplane and also learn
tips that will help you in the future. We have listed some of our recommendations
below. Please read through them before beginning assembly.
Warning
An R/C aircraft is not a toy! If misused, it can cause seriousbodily harm and
damage to property. Fly only in open areas,preferably AMA (Academy of
Model Aeronautics) approvedflying sites, following all instructions included
with your radio.Always assume the electric motor can come on at any time
souse extreme caution.Before beginning assembly of your
strongly uggest that you read through this instruction manual so you s
canbecome familiar with the parts and the assembly sequence.Assemble the
kit according to the sequence provided in the instruction manual. Do not
attempt to modify or change the kit design as doing so could adversely
change the models flying characteristics.
Before use， please read the explanations carefully！
Piaget EPP , we
Specifications
Fuselage length： 900mm（ 35in）
Wingspan： 820mm（ 32in）
Flying Weight： 210－ 240g（ with battery）
Additional Required Equipment
Motor: C20 Pro or 2205
ESC: 10 A
Propeller： 9050 Slow Flyer Prop
Servo： 6G
： ／
Radio 4 more channel
： ／
Receiver 4 more channel
Battery charger
Battery： 7.4V 800mAh /11.1V 500mAh Li-po
Laser-cut 5mm genuine EPP parts for optimum strength and
Minimum weight .
Lightweight carbon fiber truss system virtually eliminates flex .
Ideal for indoor flight and capable of outdoor flight in low winds.
Minimal assembly required flight ready in as little as 3 hours .
Vibrant screen printed trim scheme.
Required Tools and Adhesives (not included in the kit)
5 Minute Epoxy
Foam-Friendly Thin and Thick C/A
Aerosol Zip-Kicker
# 0 and #1 Phillips Head Screwdrivers
1.5mm Hex Wrench
Adjustable Wrench
Wire Cutters
Z-Bend Pliers
Needle Nose Pliers
Modeling Knife
Scissors
Electric or Hand Drill
Assorted Drill Bits
Straight Edge Ruler
Pencil
T-Pins
Builder's Triangle
220 Grit Sandpaper with Sanding Block
Masking Tape
Paper Towels
Rubbing Alcohol
Epoxy Mixing Sticks
Epoxy Mixing Cups
Soldering Iron
