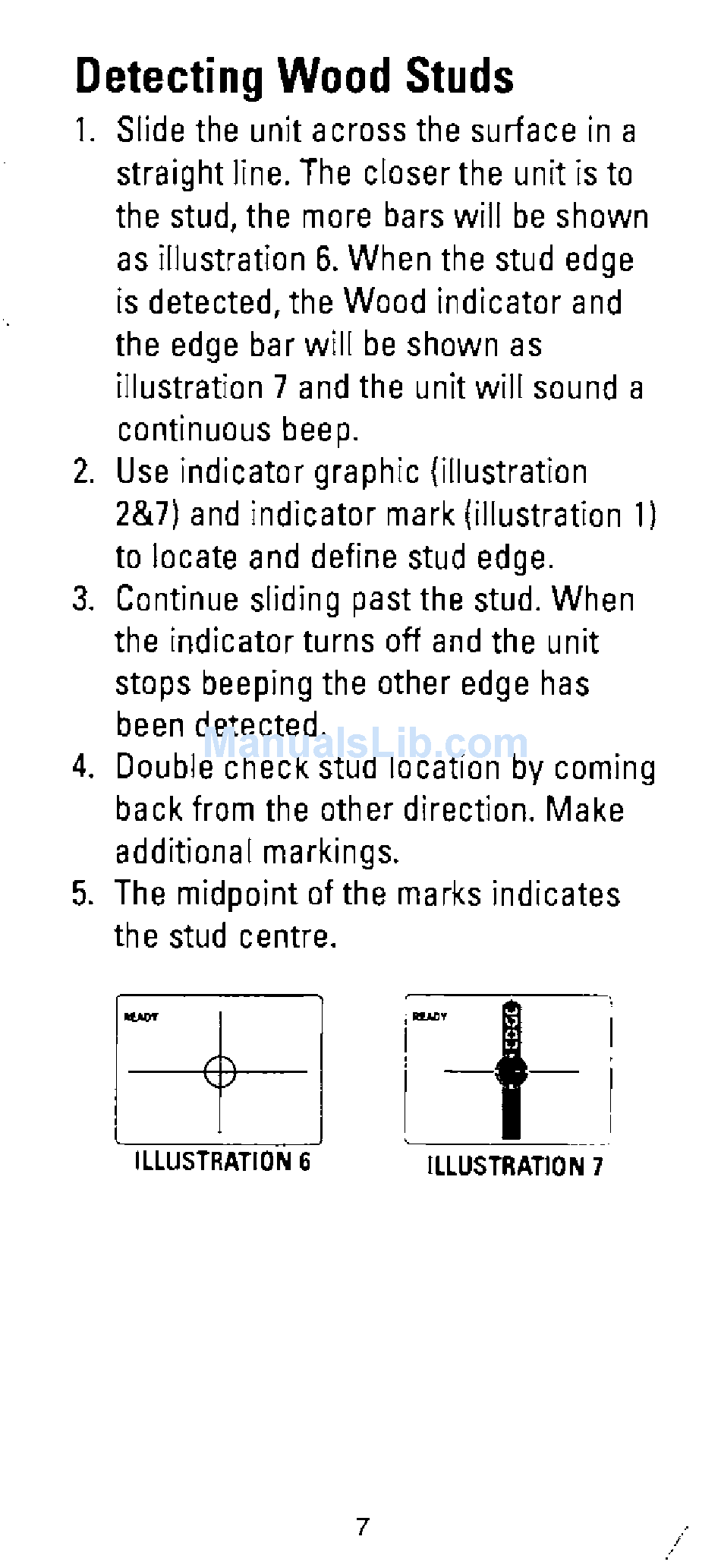

Detecting Wood Studs
1. Slide the unit across the surface in a
straight line. The closer the unit is to
the stud, the more bars will be shown
as illustration 6. When the stud edge
is detected, the Wood indicator and
the edge bar will be shown as
illustration 7 and the unit will sound a
continuous beep.
2. Use indicator graphic (illustration
2&7) and indicator mark (illustration 1)
to locate and define stud edge.
3. Continue sliding past the stud. When
the indicator turns off and the unit
stops beeping the other edge has
been detected.
4. Double check stud location by coming
back from the other direction. Make
additional markings.
5. The midpoint of the marks indicates
the stud centre.
r
>1
)
ILLUSTRATION 6
ILLUSTRATION 7
