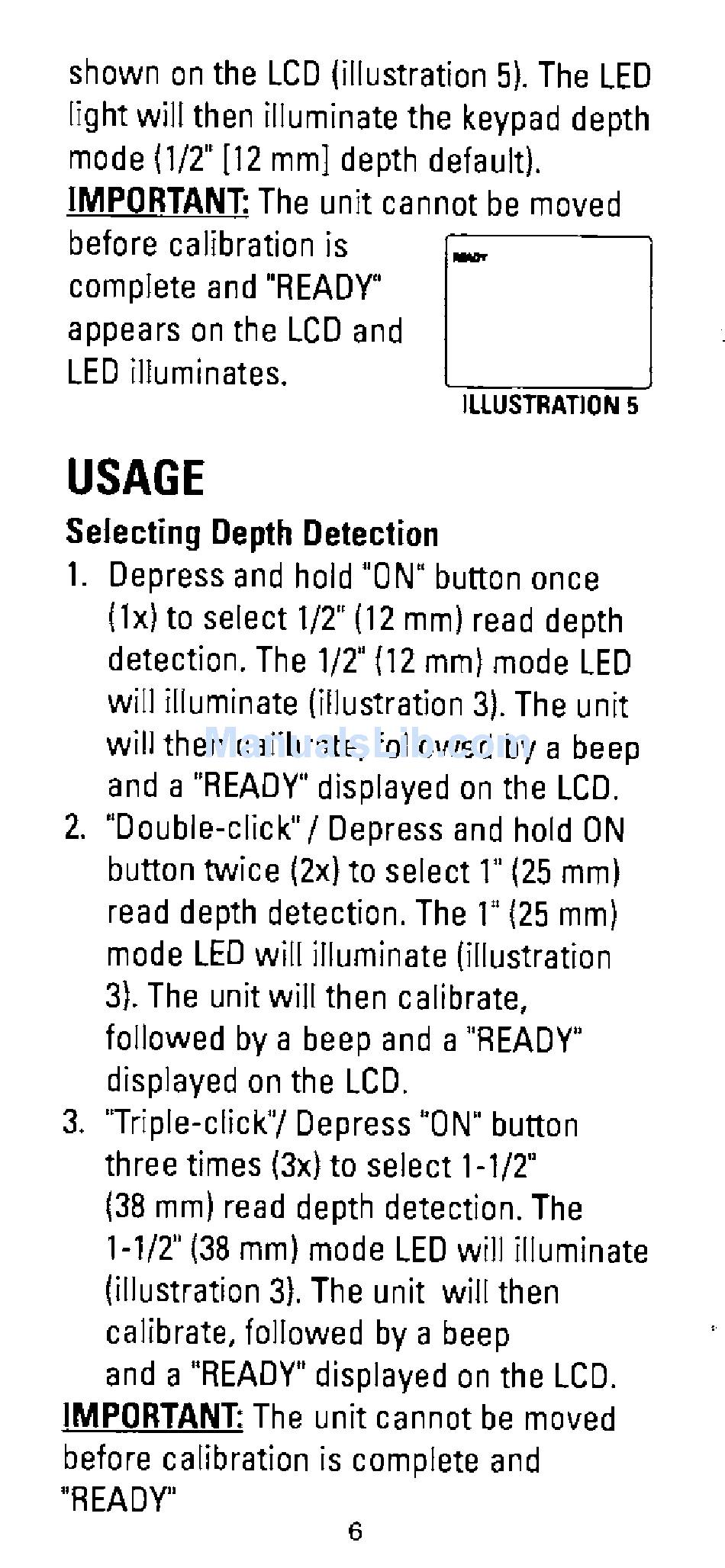

shown on the LCD (illustration 5). The LED
light will then illuminate the keypad depth
mode (1/2" [12 mm] depth default).
IMPORTANT: The unit cannot be moved
before calibration is
complete and "READY"
appears on the LCD and
LED illuminates.
ILLUSTRATION 5
USAGE
Selecting Depth Detection
1. Depress and hold "ON" button once
(Ix) to select 1/2" (12 mm) read depth
detection. The 1/2" (12 mm) mode LED
will illuminate (illustration 3). The unit
will then calibrate, followed by a beep
and a "READY" displayed on the LCD.
2. "Double-click" / Depress and hold ON
button twice (2x) to select 1" (25 mm)
read depth detection. The 1" (25 mm)
mode LED will illuminate (illustration
3). The unit will then calibrate,
followed by a beep and a "READY"
displayed on the LCD.
3. "Triple-click"/ Depress "ON" button
three times (3x) to select 1-1/2"
(38 mm) read depth detection. The
1-1/2" (38 mm) mode LED will illuminate
(illustration 3). The unit will then
calibrate, followed by a beep
and a "READY" displayed on the LCD.
IMPDRTANT: The unit cannot be moved
before calibration is complete and
"READY"
