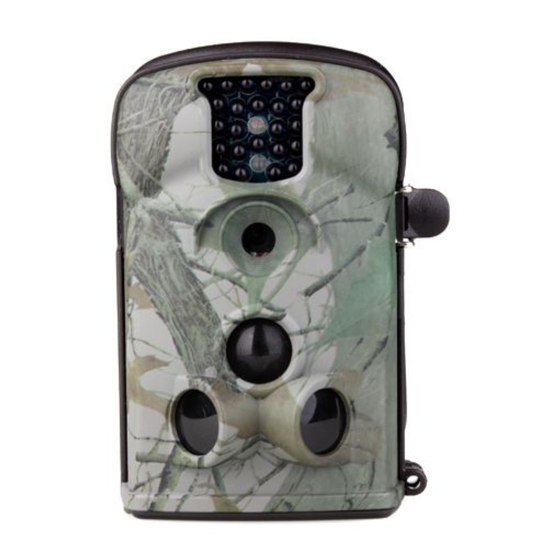

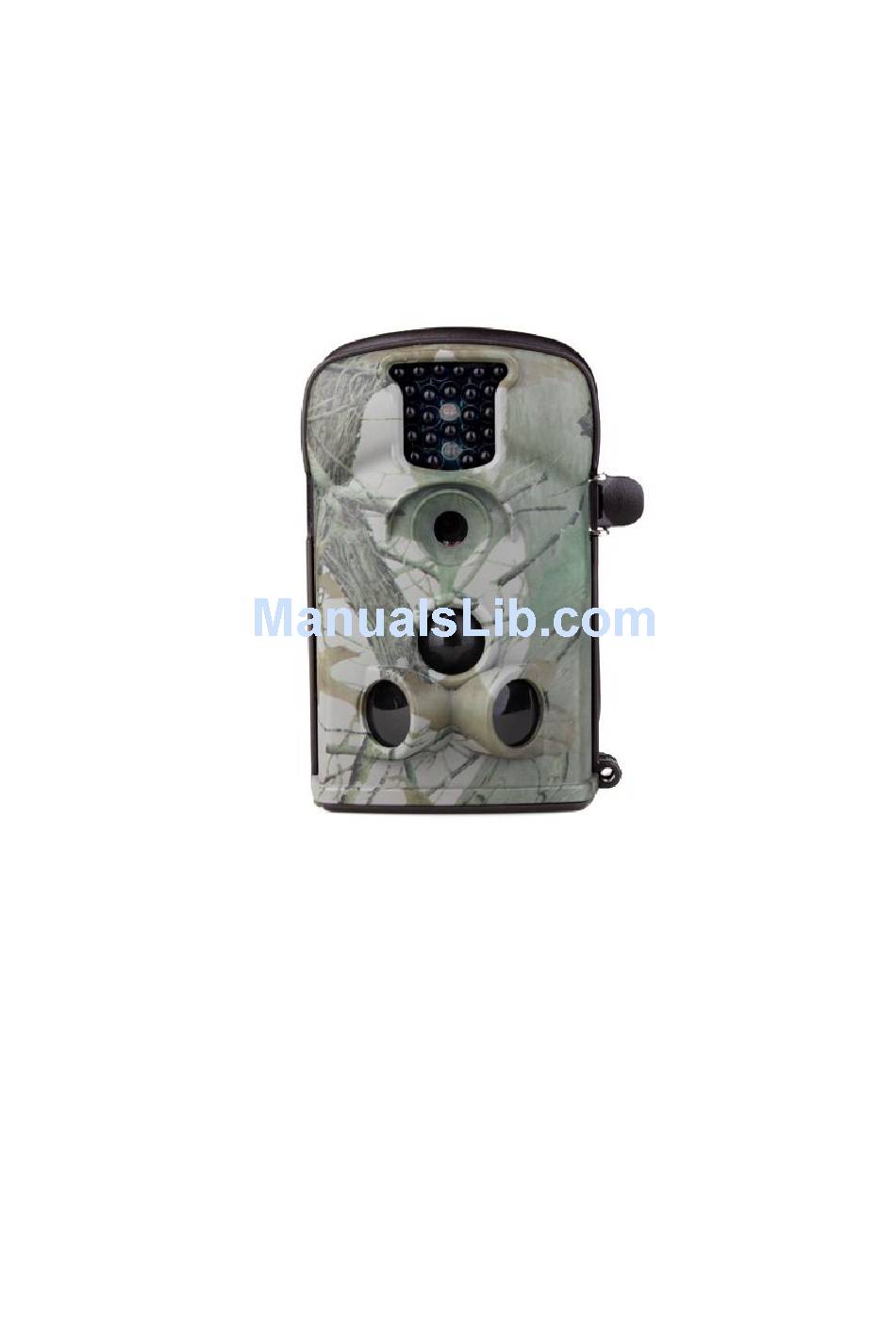

- Page 1 Scouting Camera 12MP 5210A User Manual Thank you for purchasing 5210A Hunting camera, please read this manual before using it. If any problems when you are using this product , please contact the local dealers or contact us directly.
-
Page 2: Table Of Contents
Contents Product Information........................- 2 - 1.1 The Introduction of Product..................- 2 - 1.2 Application........................- 2 - 1.3 Package Contents......................- 3 - 1.4 Illustration........................- 4 - Quick Start.............................- 6 - 2.1 Installing the Battery..................... - 6 - 2.2 Installing the SD Card.................... -
Page 3: Product Information
Product Information 1.1 The Introduction of Product This is a far-infrared HD outdoor surveillance cameras (also called hunting cameras, animals surveillance cameras, plant observation cameras, etc.), it can be triggered by sudden change of ambient temperature caused by moving game in a region of interest (ROI), which is detected by a highly sensitive Passive Infra-Red (PIR) sensor, and then take pictures or video clips automatically. -
Page 4: Package Contents
6) All other indoor/outdoor surveillance where invasion evidence needed Package Contents A Digital Camera A Strap A USB Cable A TV Cable A warranty card User manual SD card Solar panel Anti-theft case (optional ) （optional） （optional） - 3 -... -
Page 5: Illustration
Illustration 1.4.1Front View 1.4.2-1Internal Structure - 4 -... - Page 6 1.4.2-2 Internal Structure 1.4.3-1 Bottom View - 5 -...
-
Page 7: Quick Start
1.4.3-2 Bottom View Quick Start If you are not familiar with the operation of this camera, the following instructions will help you get a quick overview. Before doing any operation,please make sure you have loaded batteries and plugged the SD cardcorrectly. Attention: If the SD card is not inserted correctly or its write-protect is enabled,the device will turn off automatically. -
Page 8: Installing The Sd Card
2.2 Installing the SD Card The camera itself does not have the storage, so the camera will turn off automatically if there is not SD card. Attention: Please select brand SD card and use after formatted on a computer and then use ordinary neutral card is not guaranteed to work. -
Page 9: Review The Photos And Videos
camera will begin to take picture or video according to the previous programmed setting when human or animal enters monitor area. If there are not any goals within the range, the camera would enter into sleeping mode automatically. Before entering the operation modes, please notice: 1) Make sure the power is sufficient 2) Make sure the SD card has sufficient space. -
Page 10: Function And Technical Parameters Setting
Mode Camera, Select whether still photos or video clips are Video, taken. In Camera + Video mode,Bestok can Camera + Video first take photos and then shoot videos afterward. Please notice, it would cost much electric during the video taking. If you use for... - Page 11 Video Size 1280×720 You can take several types of video 720×480 according to your need. Please notice: Higher 640×480, resolution produces better quality videos, but 320×240 creates larger files that take more of the SD card capacity.In addition, larger file needs longer time to write in the SD card, this will influence the reflect speed of camera and cost more electric.
-
Page 12: Technical Parameters Setting
setting from unauthorized users. Serial number Select On to assign a serial number to each camera you have. You can use the combination of 4 digits and/or alphabets to record the location in the photos. This helps multi-camera users identify the location when reviewing the photos. - Page 13 Image Size 12MP=4000x3000; 5MP = 2560x1920; Video Size 1280x720p: 30fps; 720x480: 30fps; 640x480: 30fps; 320x240: 30fps PIR sensitivity High/Standard/Low OperationMode Day/Night TriggerTime The fastest reach 1 seconds(Using SD card below 2G) Trigger interval 5 seconds-60 minutes adjustable Video Length 1-30 seconds adjustable Camera+Video Take photo first then take video Playback ZoomIn...
-
Page 14: Trouble Shooting
Trouble Shooting 4.1 Firmware Upgrade We periodically release firmware update with new feature or performance enhance ments. 4.2 Update Steps 1)Download the latest software DSP from the authorized dealers’ official website 2)Copy the software into a formatted SD card. 3)Insert the SD card into the camera. 4) Press on the left button with your finger, switch to the Test mode at the same time. - Page 15 because mirror will reflect the infrared ray strongly. The too small shooting space or too strong reflection will also result in too light or overexposed phenomenon at night. 2) Please check whether the objects cover the photosensitive resistor. 3) Shooting objects are too close. Or the front of camera covers too many reflectors that cause pictures too bright at night.
-
Page 16: Warranty
Warranty Thank you for purchasing our products, we are proud of our products and technology. Meanwhile, we strongly recommend that you maintain your product well and ensure that you operate it with the guidelines of this manual. If your usage meets the requirement above, we will provide you with better and longer service.
